Protero Grille Open Cell

Specifications

Material

Aluminum | Extruded

Weight

Depends on cell configuration (1.2 - 1.8 lbs/sq ft)

Thickness

.125"

Surface Finish

Factory-applied polyester paint. Available in Standard Colors and Color Matched.

Seismic Performance

Protero has been engineered for use in all seismic areas. Installations may require additional attachment from panel to suspension bar. Check with local code officials or a licensed engineer for additional requirements.

Fire Performance

Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.

LEED Points

• LEED BD+C: New Construction v4; MR: Regional Materials; MR: Recycled Content
• LEED ID+C: Commercial Interiors v4; EQ: Low-Emitting Material

Declarations

No VOC’S: No added urea–formaldehyde
EPD ‘Environmental Product Declaration’ for raw material components

Recycled Content

Recycled Content - up to 80%

Finishes

- Open structure design enhances visual depth and promotes airflow for a sleek, industrial look.
- High open area percentage (over 70%) is available when required in sprinklered areas to allow unobstructed water flow.
- Designed for exact fit - no site cutting required.

Standard Options

Standard panel sizes:
2' x 2' panel
2' x 4' panel

Grille configurations are available in rectangular and square formats. Standard cell sizes are listed below, custom sizes available:
W/L: 4" x 6", 4" x 8", 6" x 6", 6" x 8", 8" x 6", 8" x 8", 12" x 6"

Installation

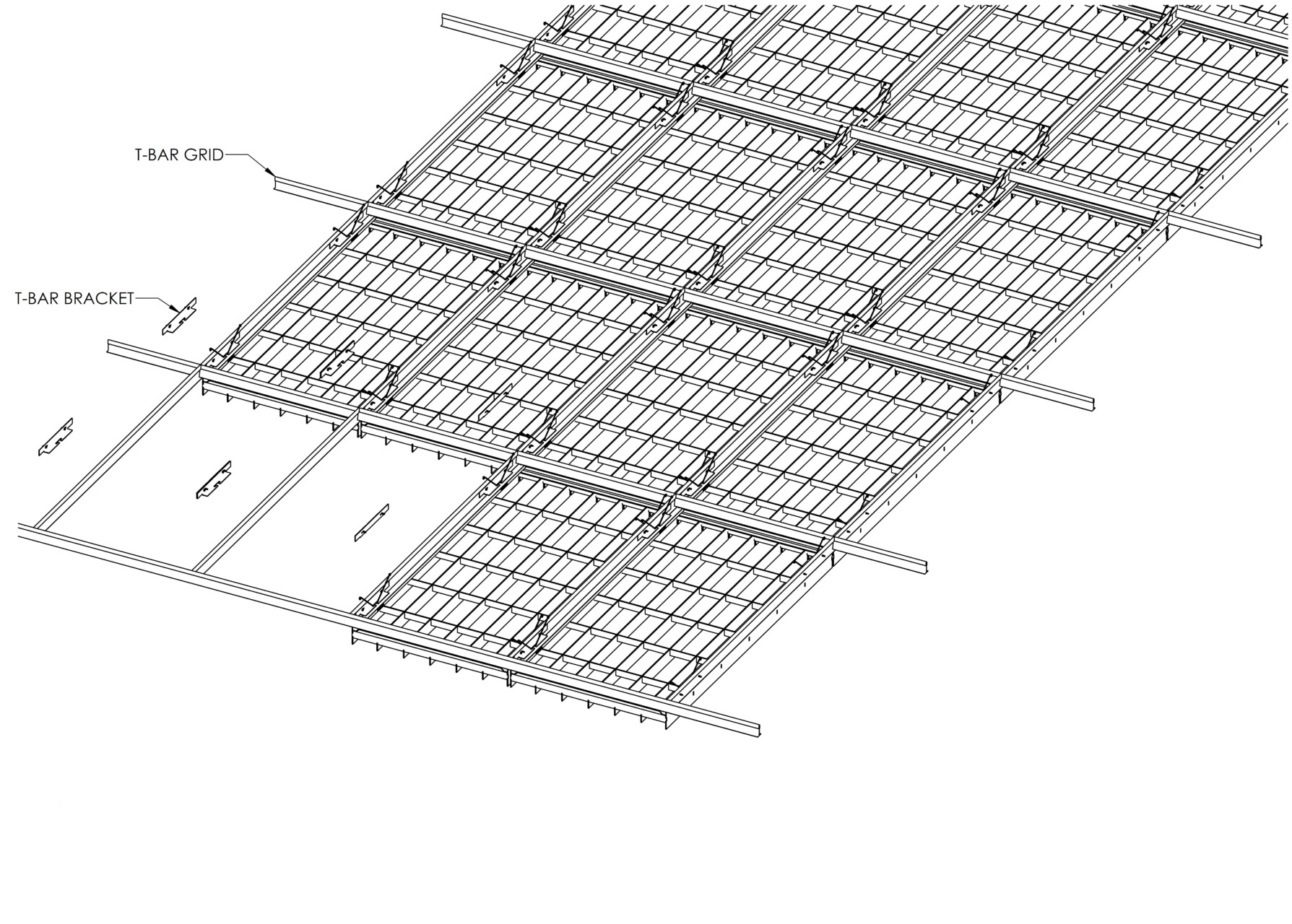

• Attaches to 15/16" HD Grid or custom suspension system.

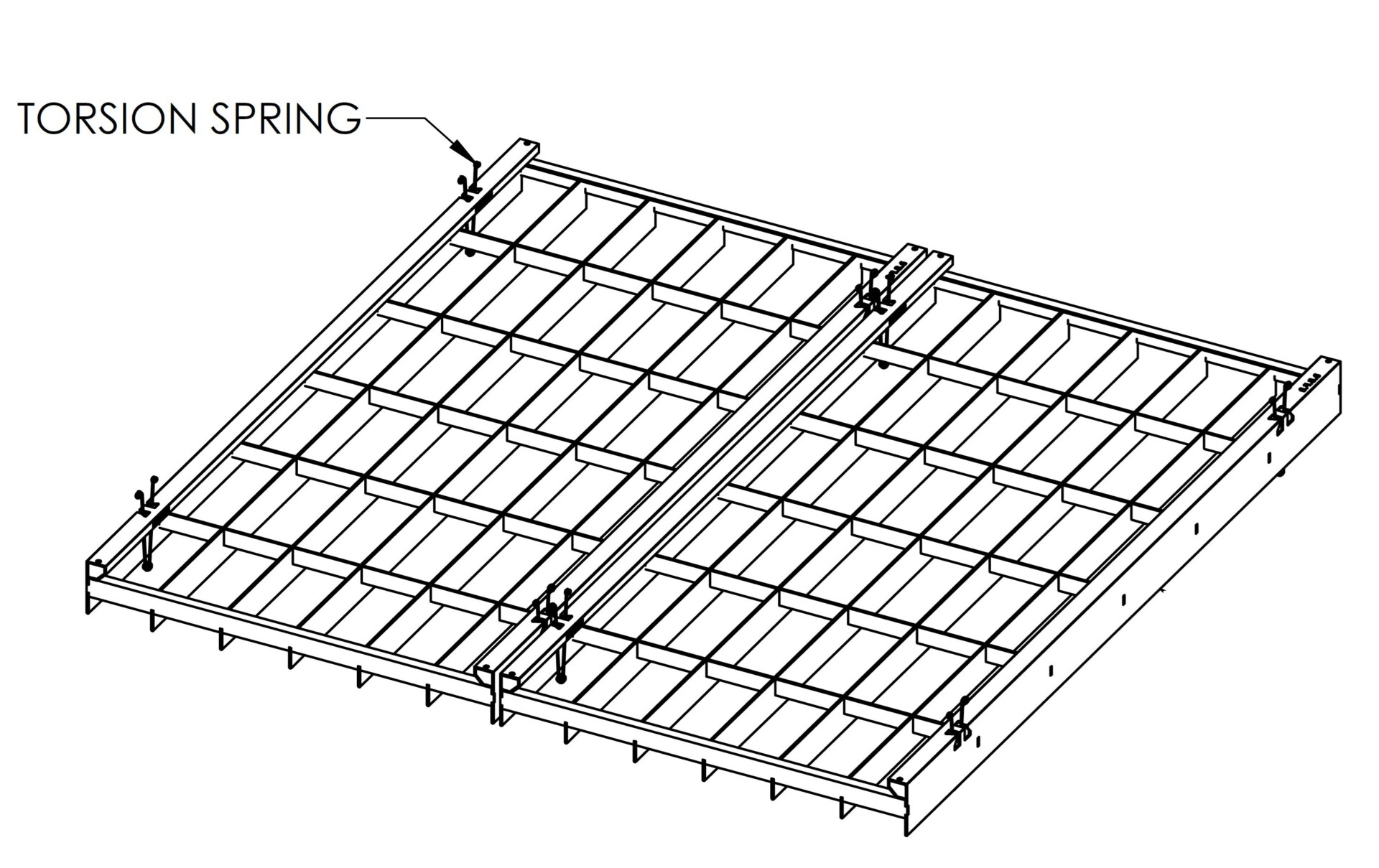

• Torsion spring design allows for easy plenum access. Panels can remain hinged to suspension to avoid damage.

Care & Maintenance

Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe. Optional utility troughs discreetly house MEP systems while ensuring easy access for maintenance.
