AERO:Form Crossroads Open Cell

Fabricated Metal Open Cell Ceiling System

Create intersecting linear designs for a unique custom look that is easy to configure and install.

Get Started

Specifications

Product Details
Sustainability
Features

Material: Aluminum (Fabricated)
Weight: 0.67 – 1.10 lbs. / ln.ft.
Thickness: 0.041” - 0.060” (design-dependent)
Surface Finish: Factory-applied polyester paint
Available in standard colors
Color matched and wood look powder-coated
Acoustic Performance: Perforated baffles are supplied with acoustic infills to absorb sound. NRC values vary based on design and application.
Seismic Performance: This product has been engineered for use in all seismic areas. Installations may require additional attachment from baffle to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: ASTM E84 Class A. CAN / ULC S102.2.

LEED Points: LEED BD+C v4 (MR: Regional & Recycled Materials)
Schools EQ: Acoustic Performance
ID+C EQ: Low-Emitting Materials
Declarations: No VOCs
EPD available
Recycled Content: Aluminum contains up to 80% recycled content

Finishes: Unlimited finish options – custom colors, wood looks, films & wood veneers. 16 standard wood look finishes.
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options: Lengths - up to 12’
Depths - up to 15”
Widths - up to 6”
Installation: Lightweight & easy to install.
Versatile attachment options for Unistrut,® 15/16” HD Grid and cable hung applications.
Easy plenum access – attachment hardware allows baffles to slide for easy plenum access and adjustment during installation.

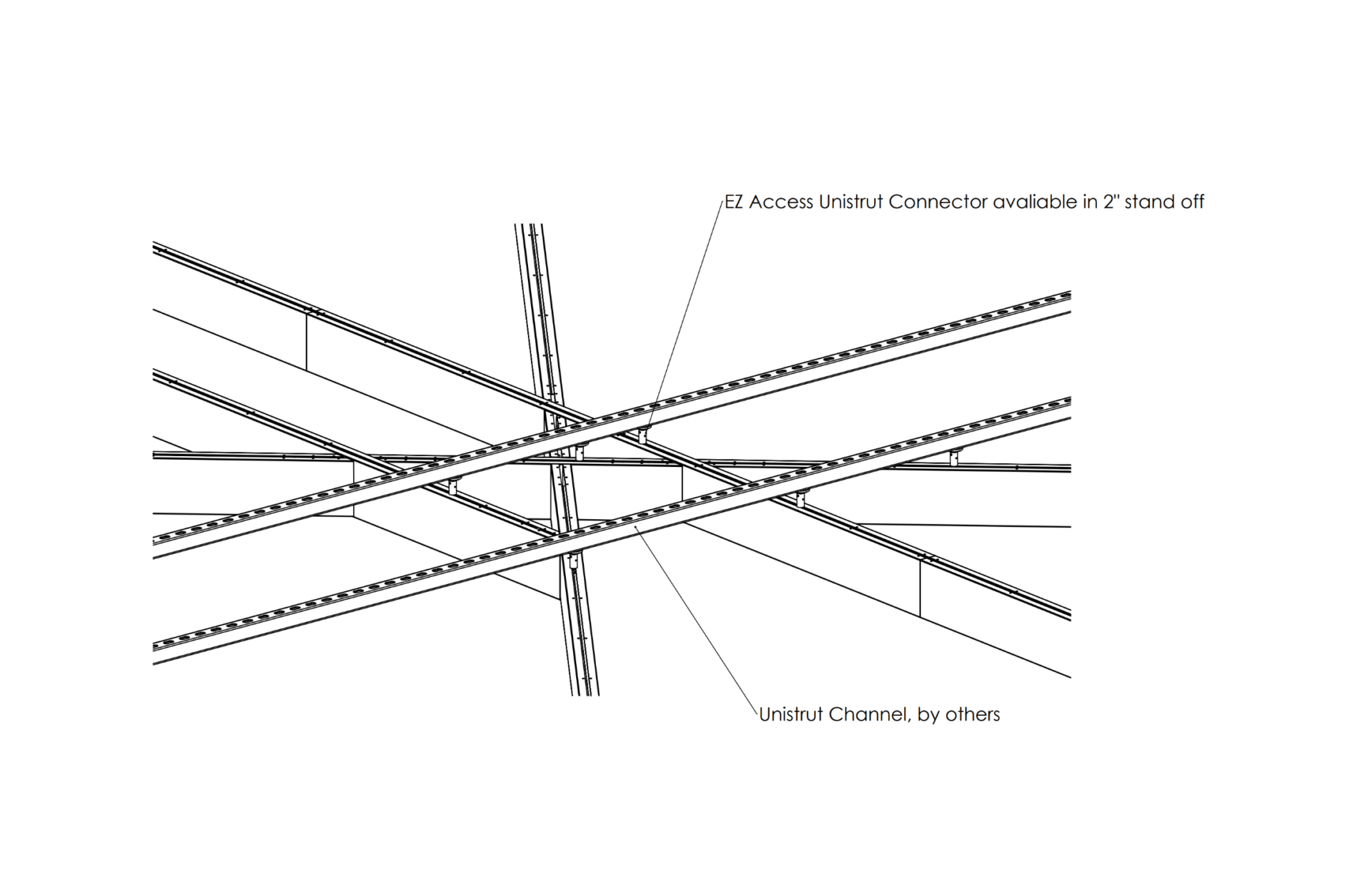

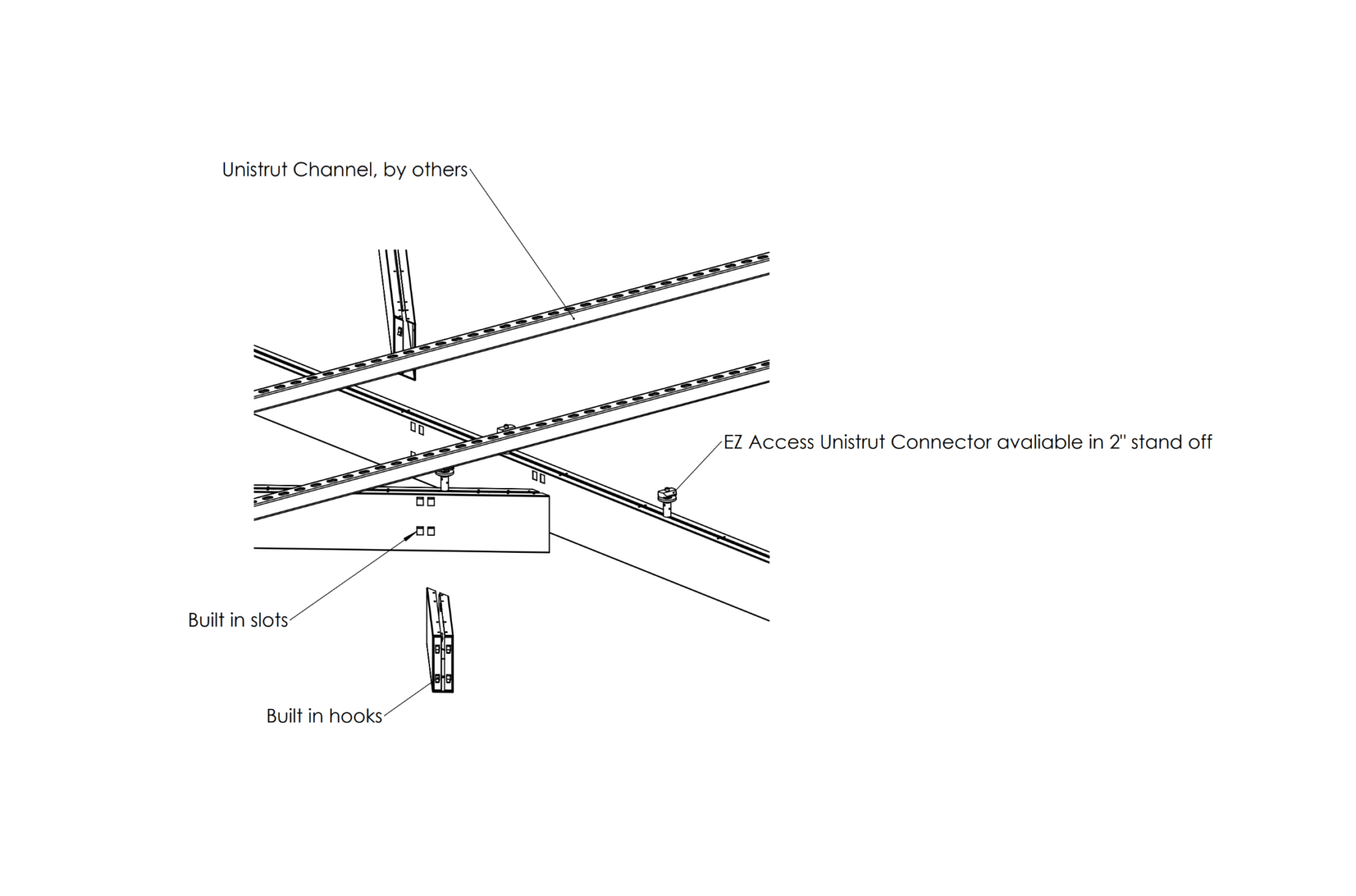

Assembly

Material and Finishing Options

Bonded Metallic Finish
Solid Color Paint
Standard Powder Coated Woodgrain Paint Finish
Standard Laminated (Film) Finish
Standard Perforation
Premium Perforation

(Interior & Exterior) Formaldehyde-Free.

Blush Copper
Dark Bronze
Forged Charcoal
Gold
Golden Bronze
Metallic Sterling Silver
Soft Nickel

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.
