Fabricated Metal Open Cell Ceiling System

AERO:Form Parallel Open Cell

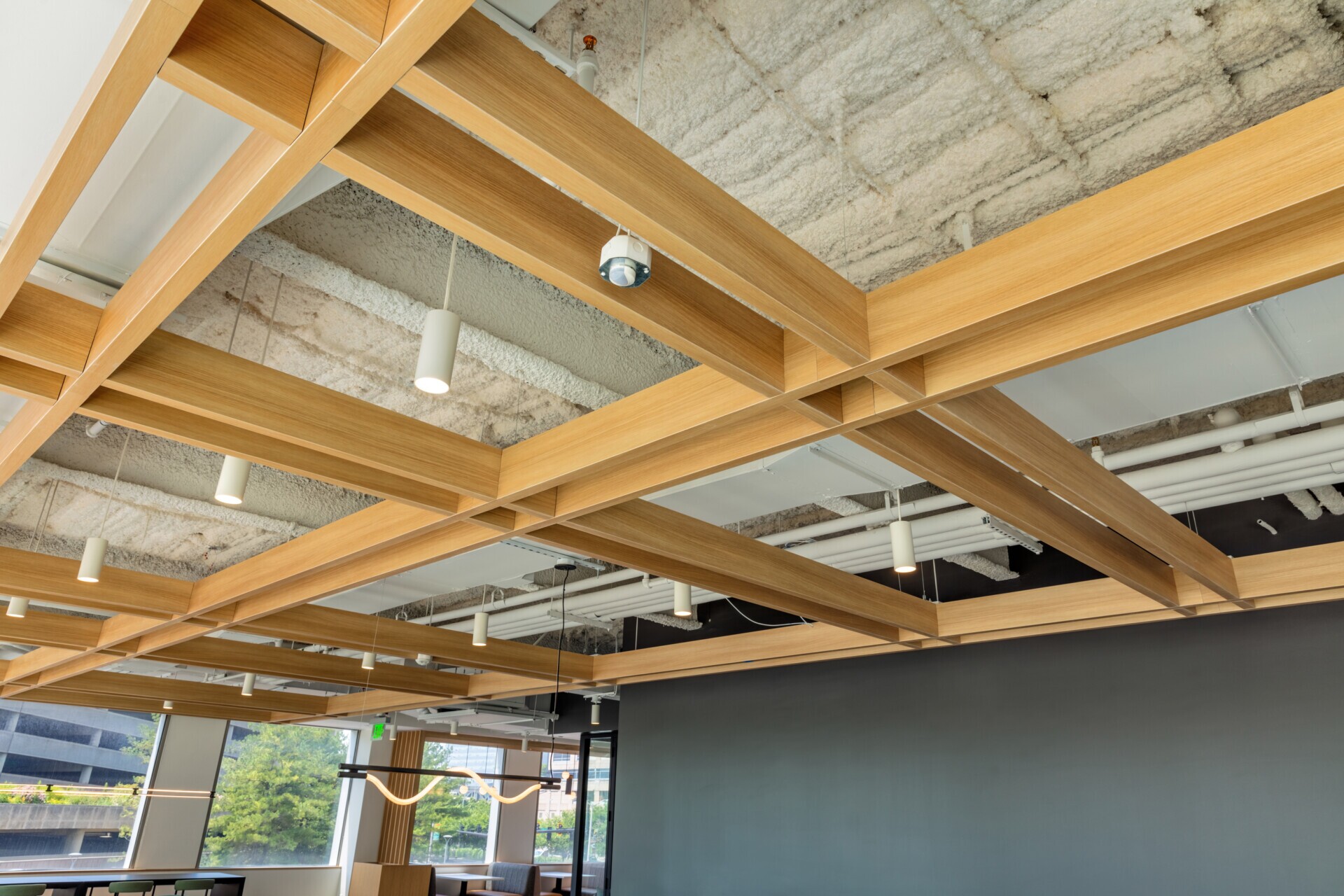

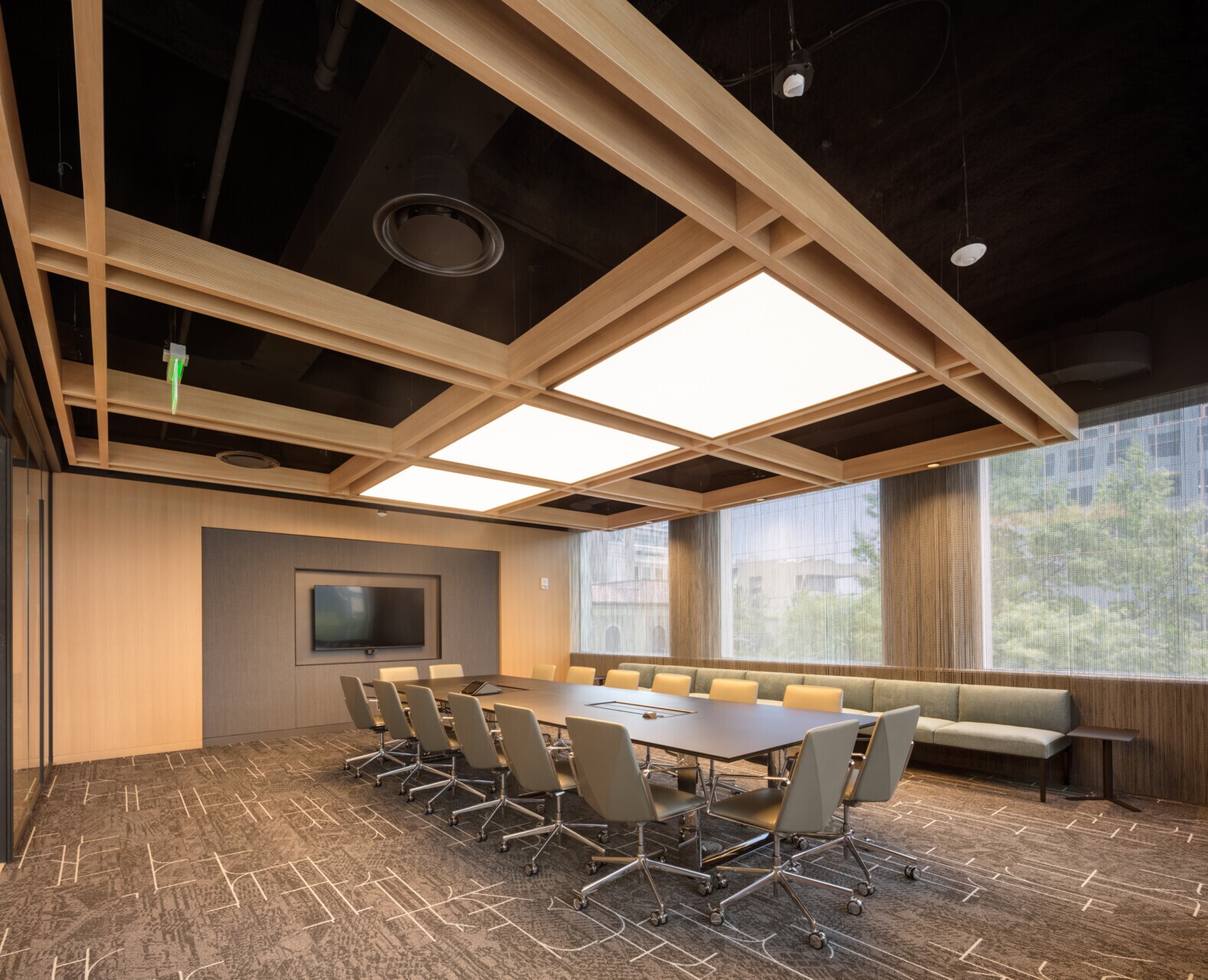

Create distinctive parallel beam networks designs with integrated functional panels.

Get Started

Resources

Specifications

Product Details
Sustainability
Features

Material: Aluminum (Fabricated)
Weight: 0.67 - 1.10 lbs. / ln.ft.
Thickness: 0.041" - 0.060" (design-dependent)
Surface Finish: Beams - Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look.
Panels - Factory applied polyester paint. Available in Standard Colors, Color Matched, Stainless Steel, Wood Look, and Felt Colors.
Acoustic Performance: Perforated panels are supplied with acoustic infills to absorb sound. NRC values depend on design and configuration.
Seismic Performance: Agilis has been engineered for use in all seismic areas. Installations may require additional attachment from baffle to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: ASTM E84 Class A. CAN/ULC S102.2.

LEED Points: LEED BD+C v4 (MR: Regional & Recycled Materials)
Schools EQ: Acoustic Performance
ID+C EQ: Low-Emitting Materials
Declarations: No VOCs
EPD available
Certifications: Sustainability certificates are available for aluminum & felt
Recycled Content: Aluminum contains up to 80% recycled content

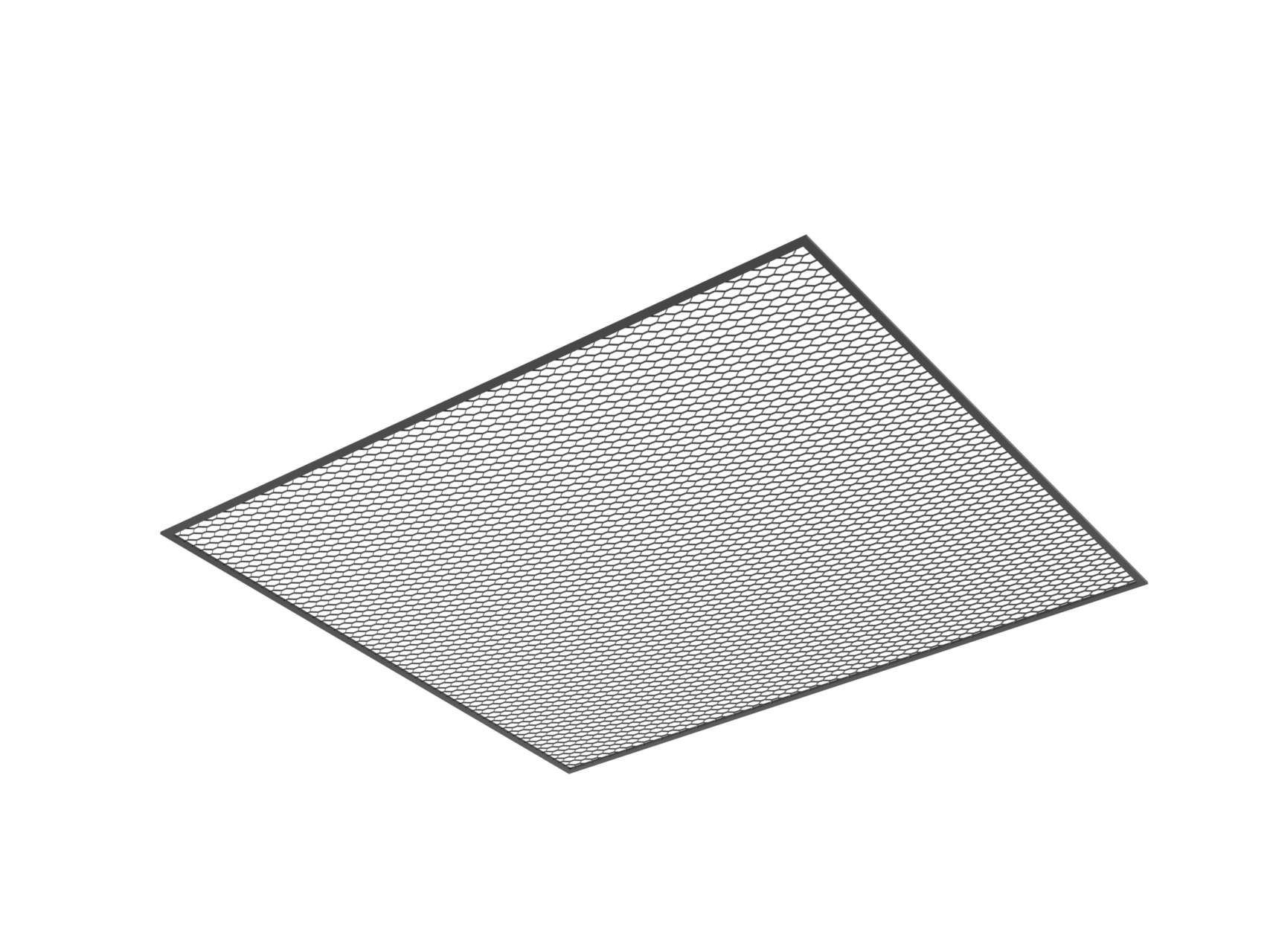

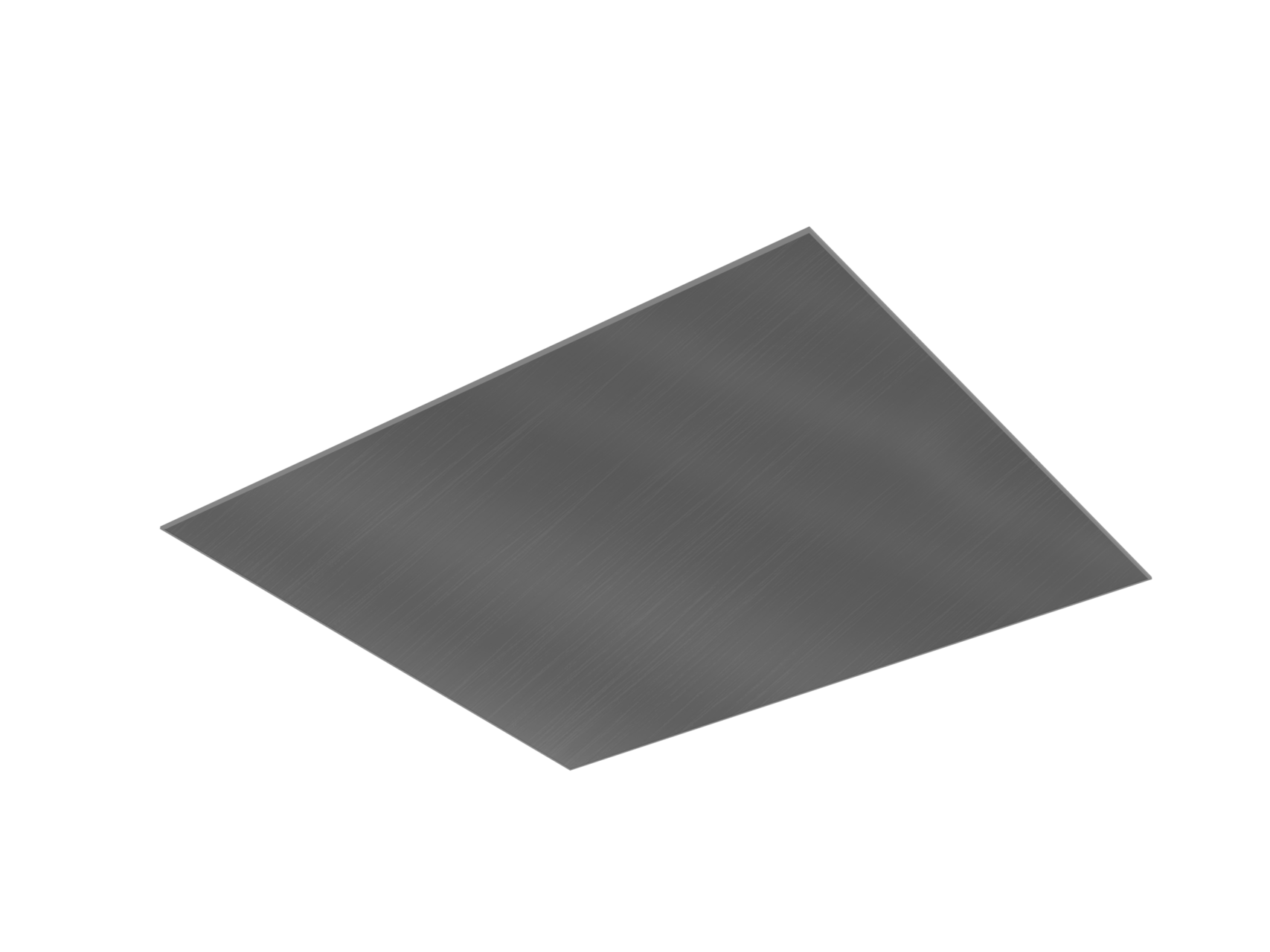

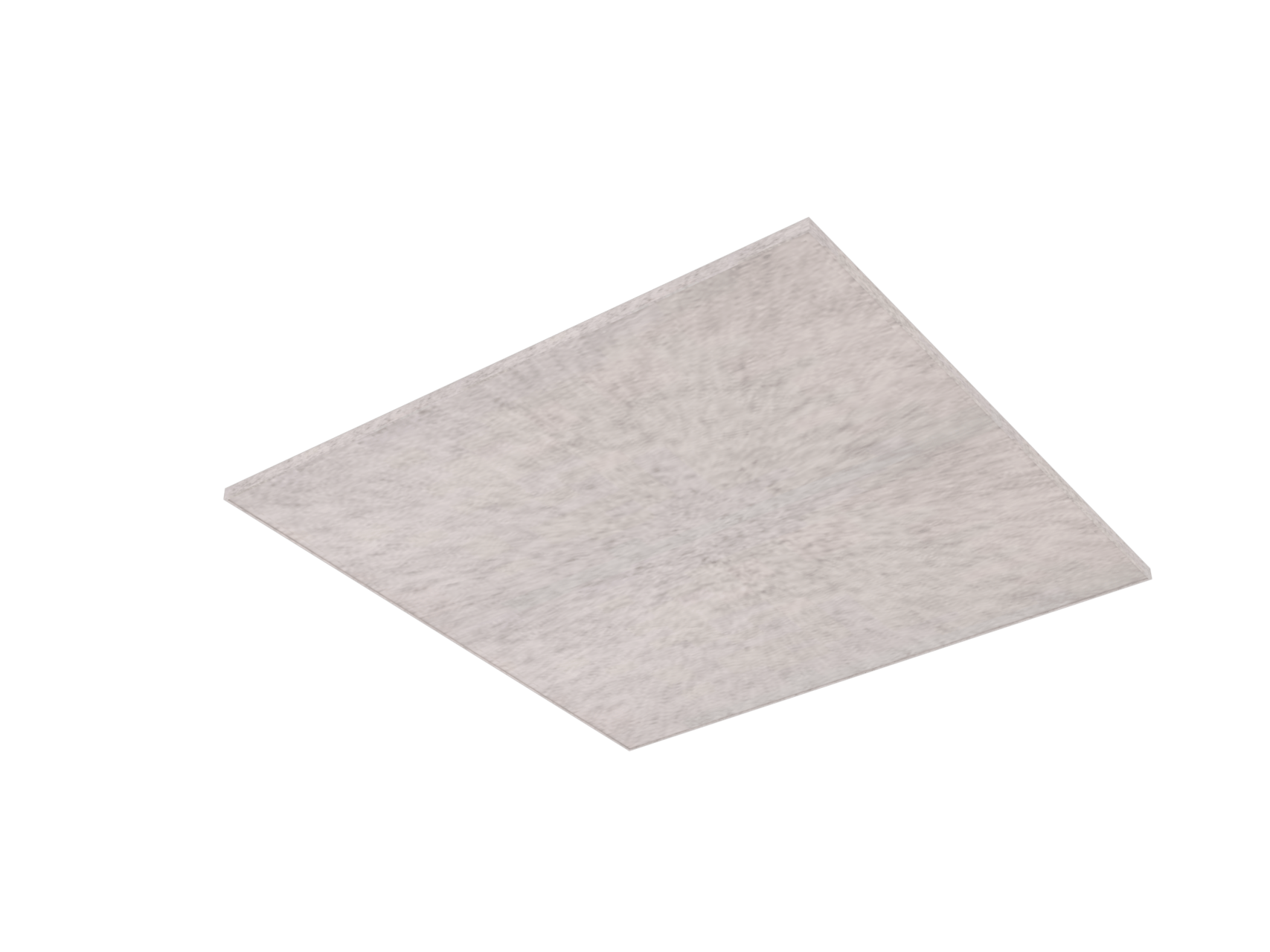

Finishes: Available as open cell or with metal, metal mesh, and felt panels

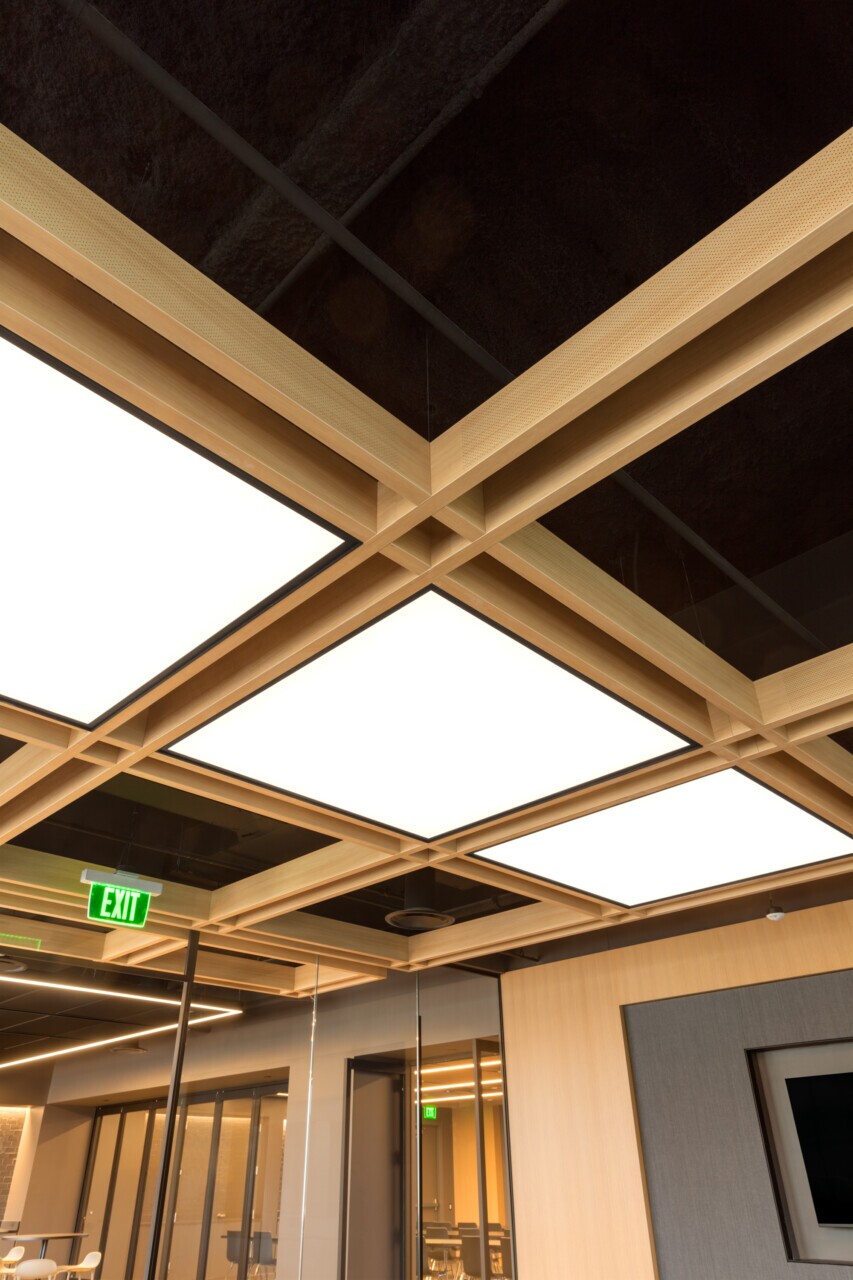

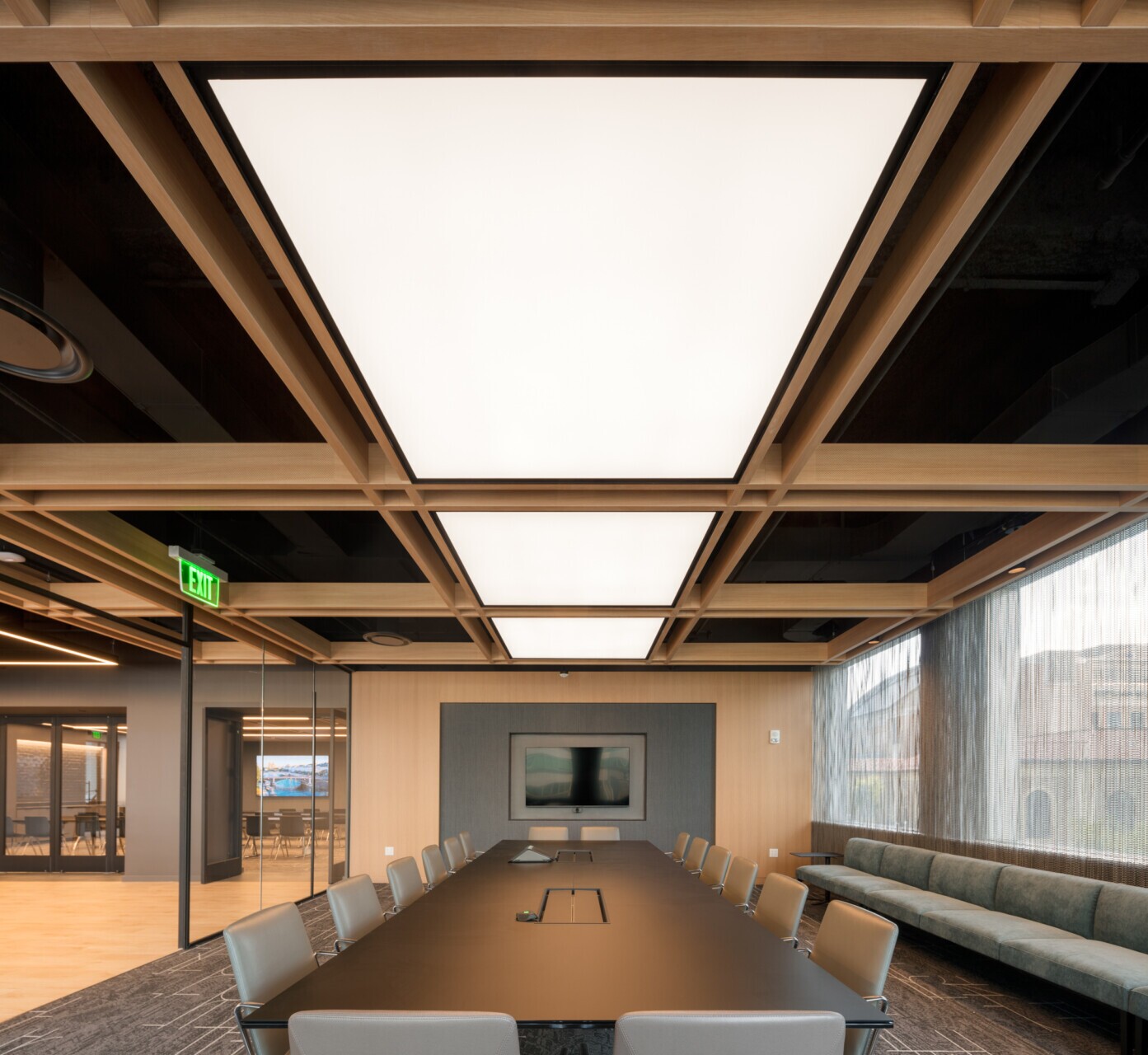

Effortlessly integrates lighting options including LED panels
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options: Lengths - up to 12'
Depths - up to 15"
Widths - up to 6"

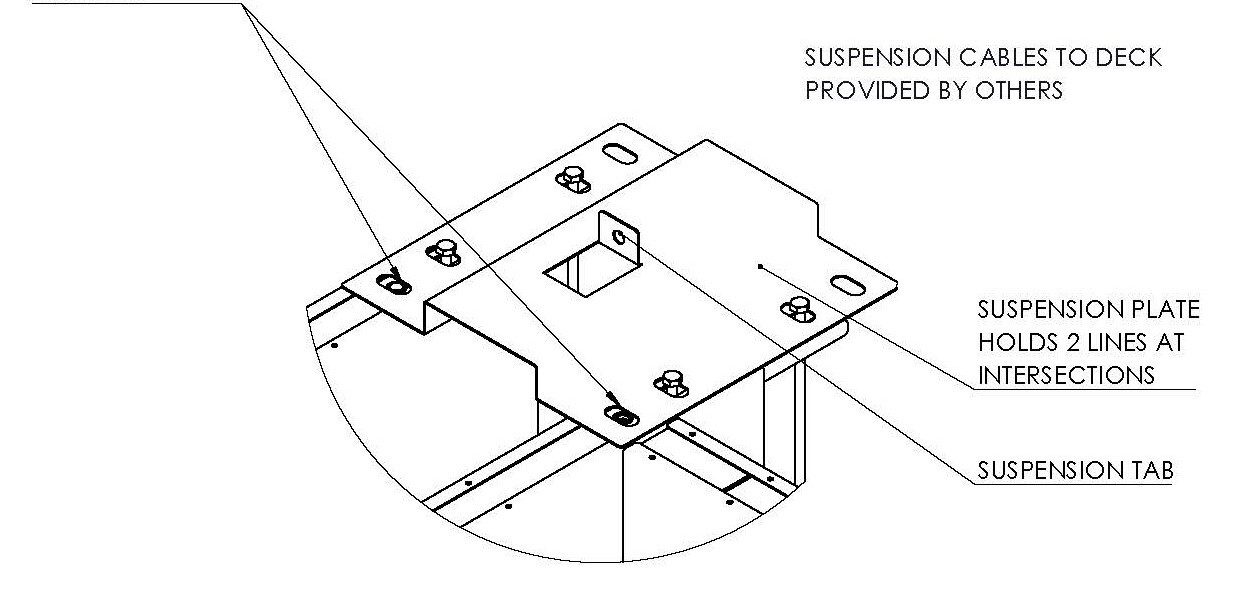

Installation: Lightweight & easy to install via suspension cable (supplied by others).
Open cell design seamlessly accommodates and provides easy access to lighting, sprinklers, and HVAC components; parallel beam structure helps to conceal these elements when desired.
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

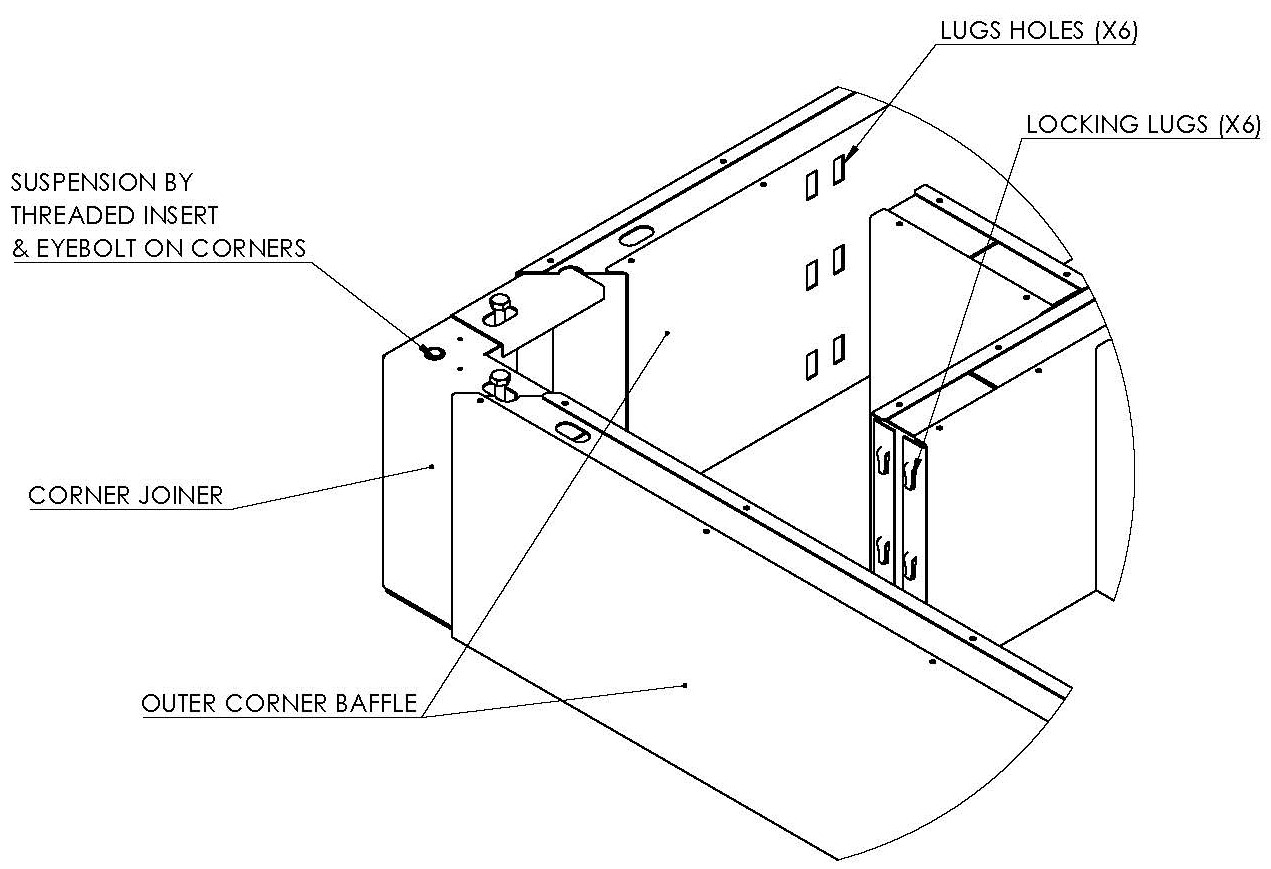

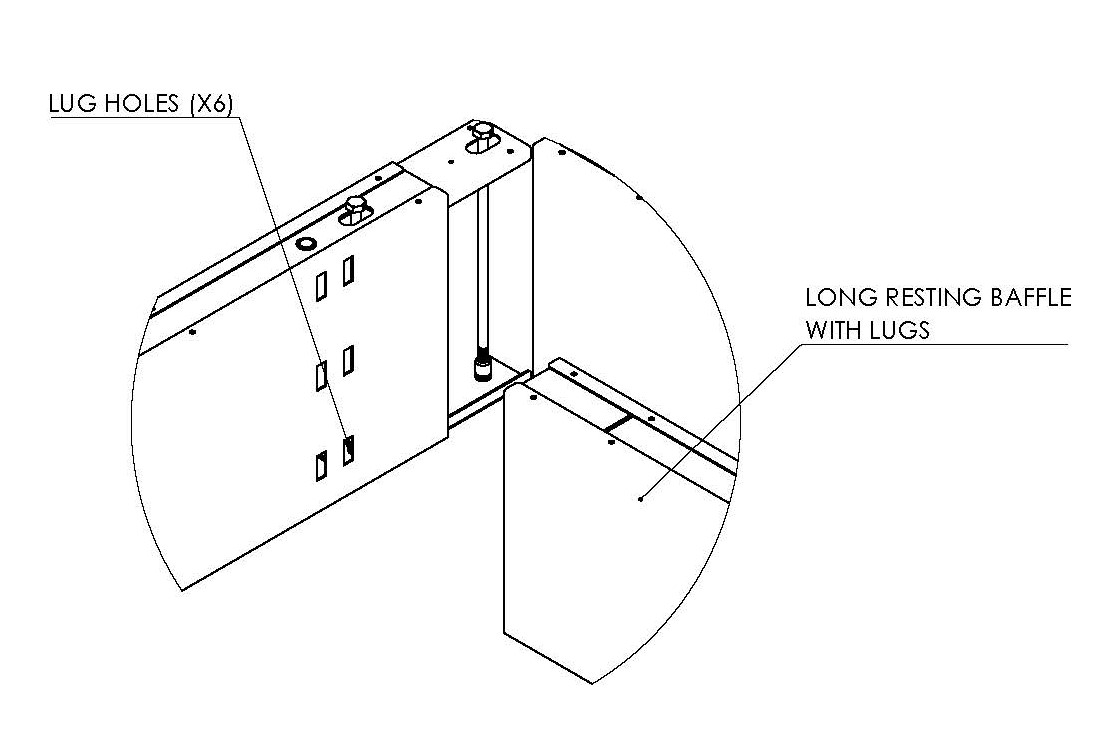

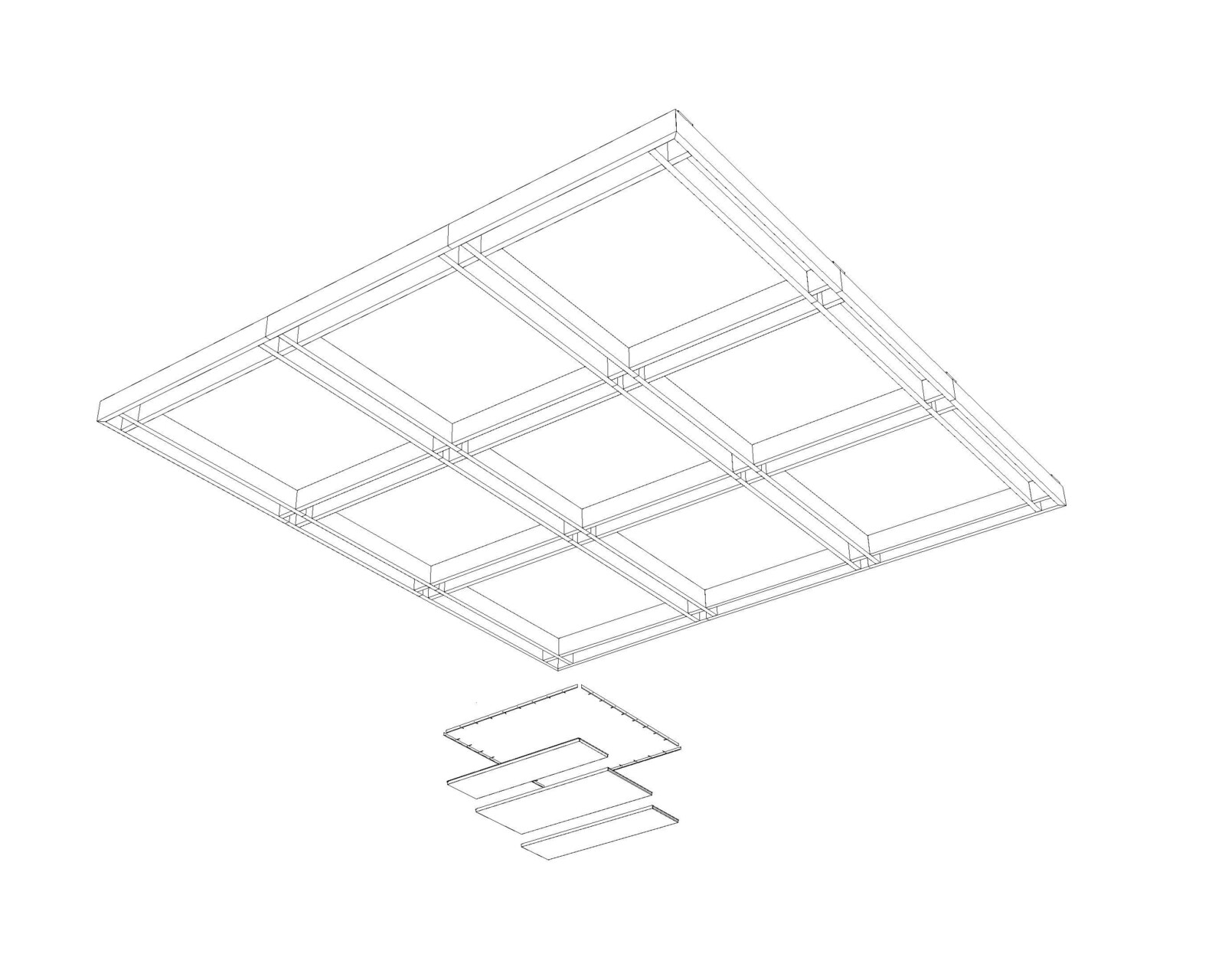

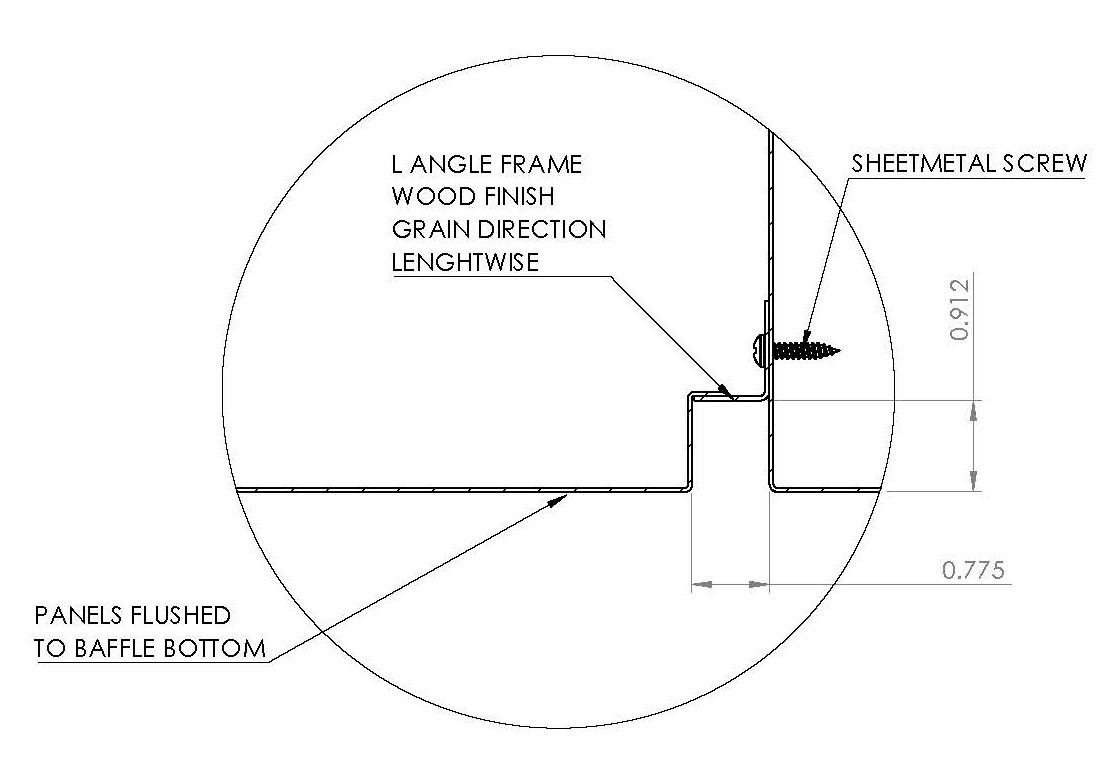

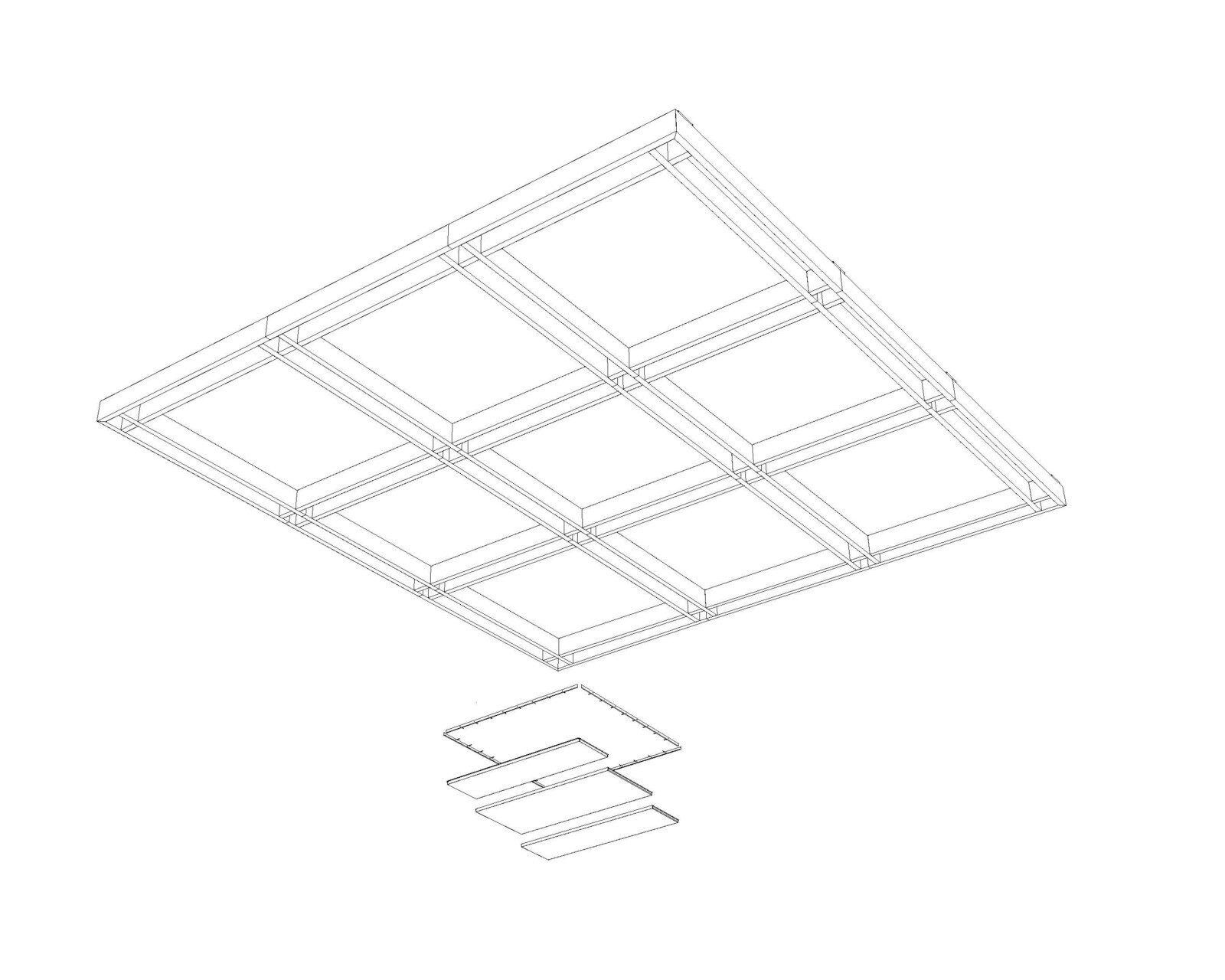

Assembly

Material and Finishing Options

Limestone (limestone-felt-finish)

Beige
Grey
White

Bonded Metallic Finish (bonded-metallic-finish)

Golden Bronze
Metallic Sterling Silver
Soft Nickel
Blush Copper
Dark Bronze
Forged Charcoal
Gold

(Interior & Exterior) Formaldehyde-Free.

Solid Color Paint (solid-color-paint)

Chalkstone White

2-6 Gloss | LRV 85-86
White

12-20 Gloss | LRV 79-80
Snow White

25-30 Gloss | LRV 83-84
Black

25-35 Gloss
Blush Rose

20 Gloss
Sunrise Yellow

20 Gloss
Forest Green

20 Gloss
Pure Orange

20 Gloss
Tan Straw

20 Gloss
Mid Beige

20 Gloss
Sterling Silver

20 Gloss

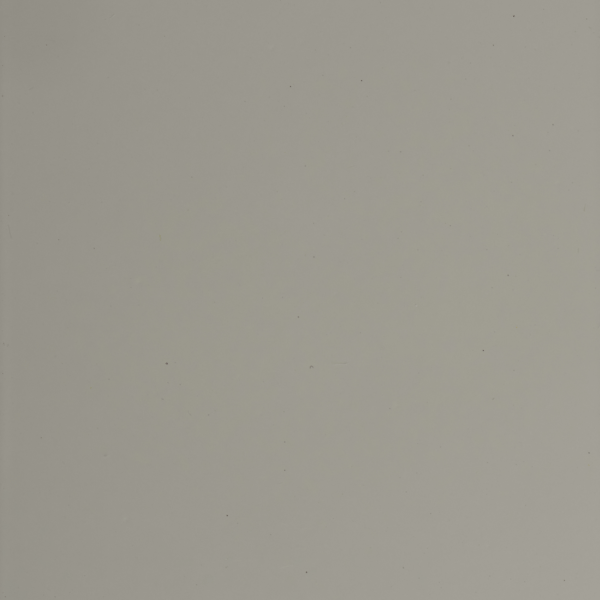

Grey

65-75 Gloss

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

Standard Powder Coated Woodgrain Paint Finish (woodgrain-paint)

National Walnut
Chestnut
Rosewood
European Cherry
Knotty Pine
Oak Fine
Maple
American Maple
American Douglas
Teak

Wood look powder coated paint finish

For interior and exterior. Formaldehyde-free.

Standard Laminated (Film) Finish (standard-laminated-film-finish)

Brazilian Walnut

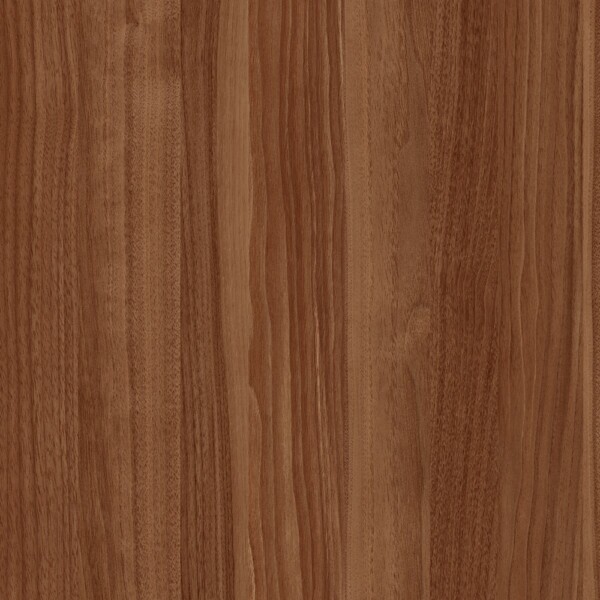

Black Walnut
North Oak
Italian Walnut
Canadian Oak
White Oak
American Natural

For interior use only. Formaldehyde-free.

Standard Perforation (perforation)

Unperforated

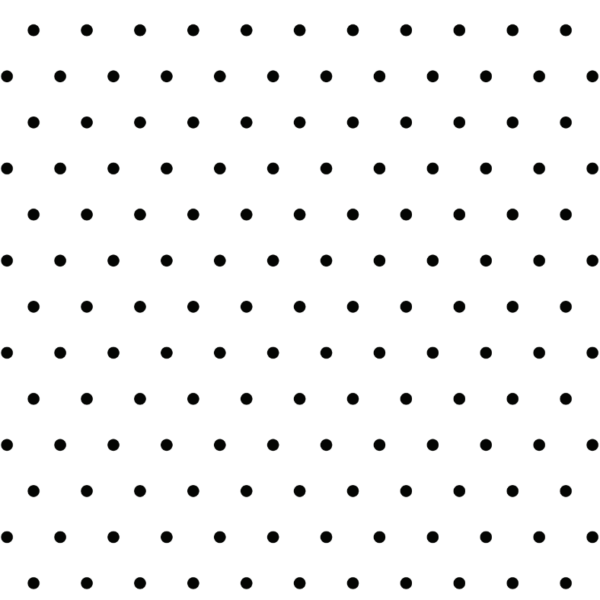

S02 Staggered

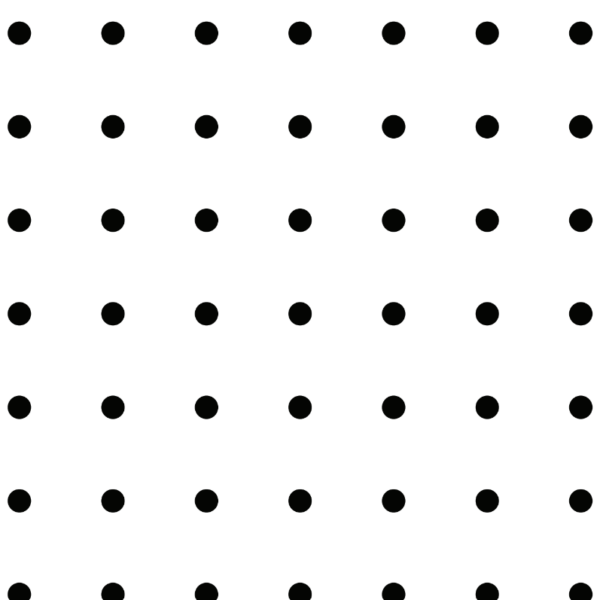

S03 Straight

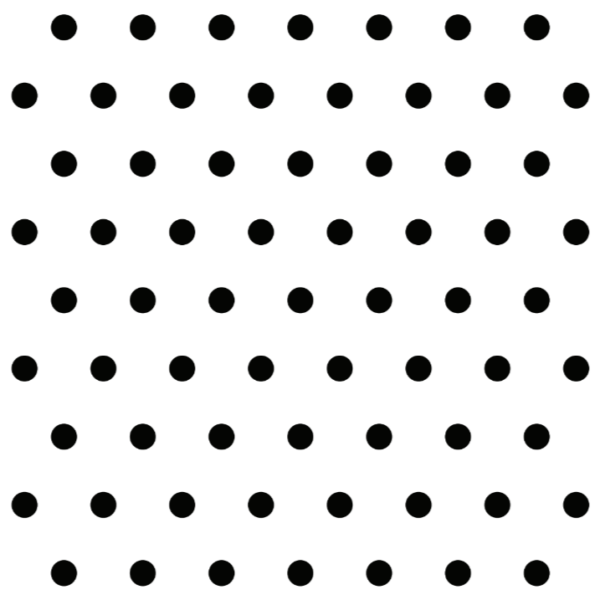

S04 Staggered

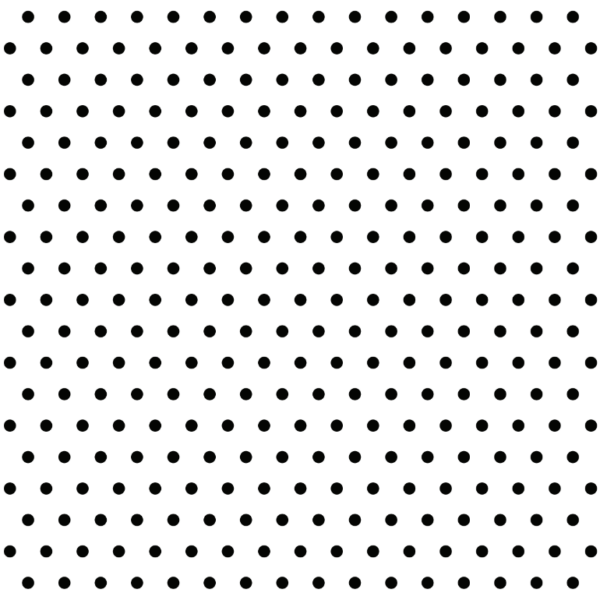

S05 Staggered

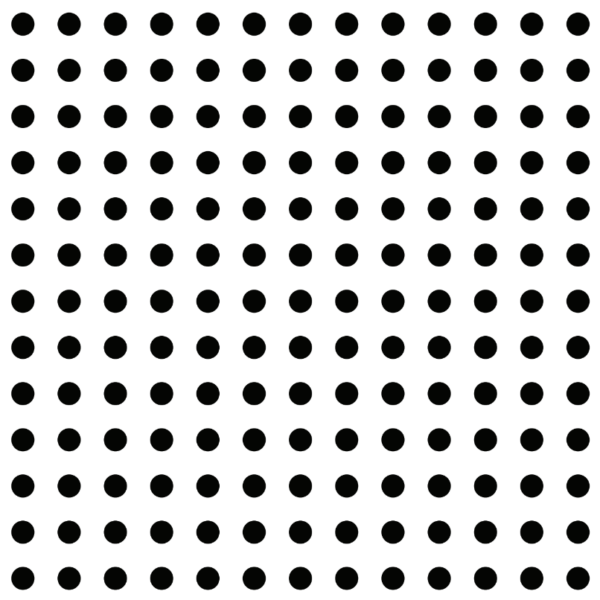

S06 Straight

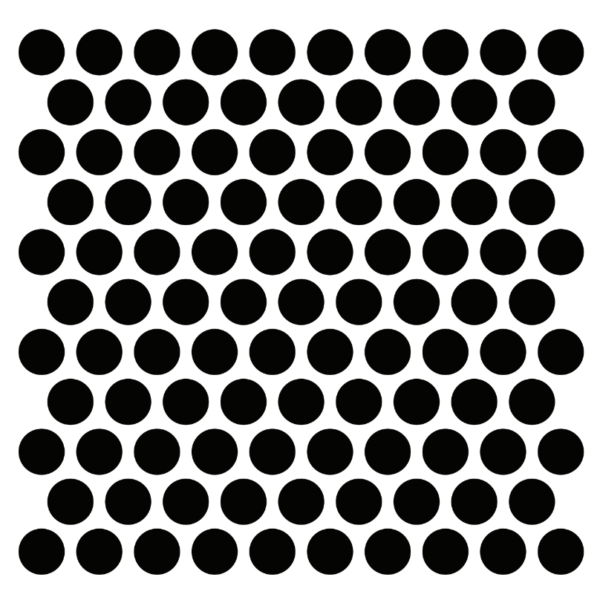

S07 Staggered

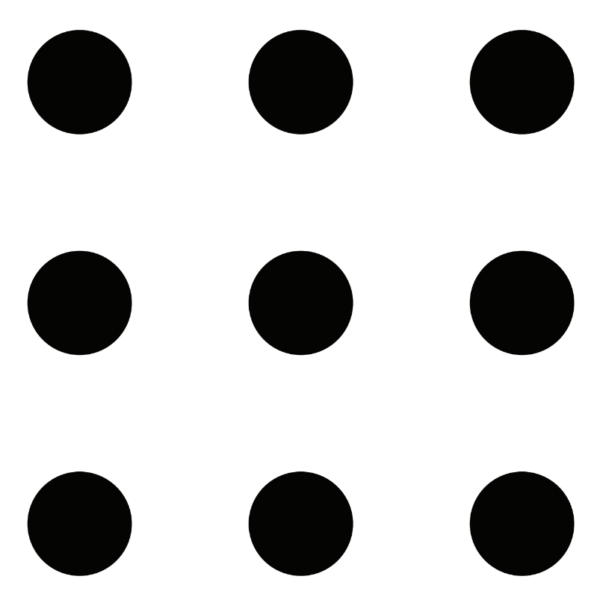

S08 Straight

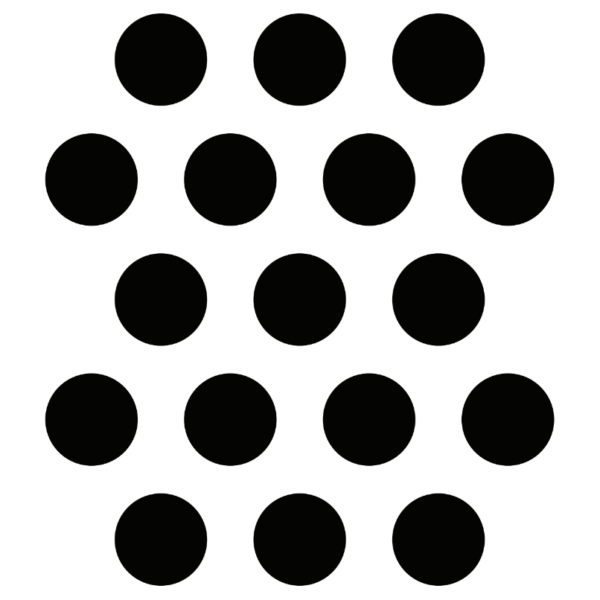

S09 Staggered

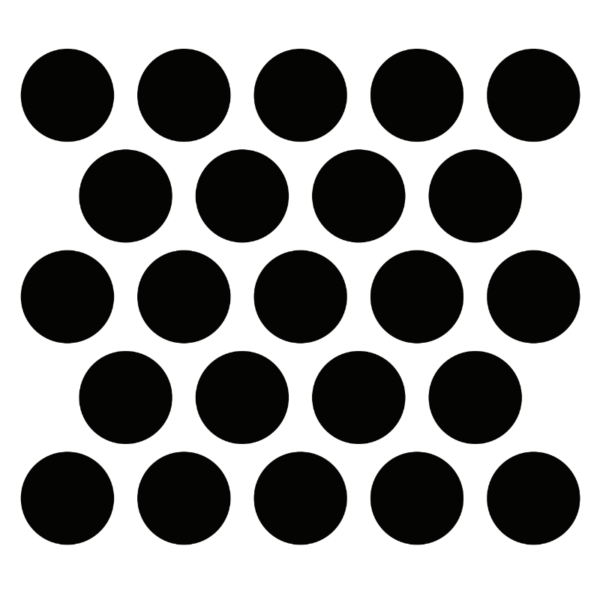

S10 Staggered

Angles – Staggered 60°

Premium Perforation (premium-perforations)

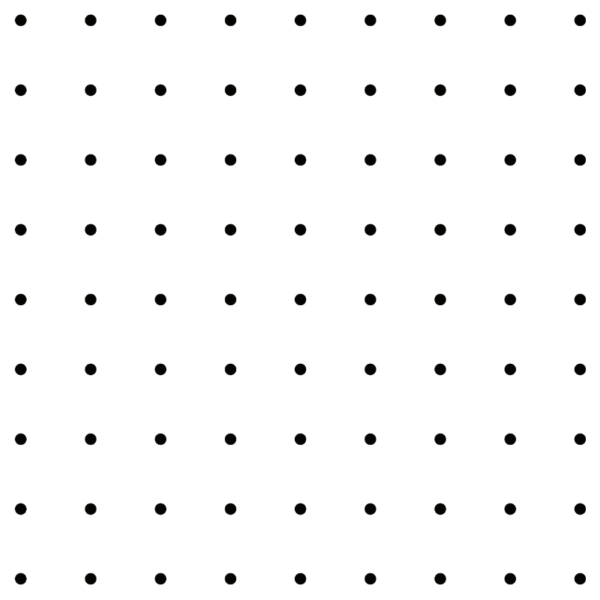

P11 Straight

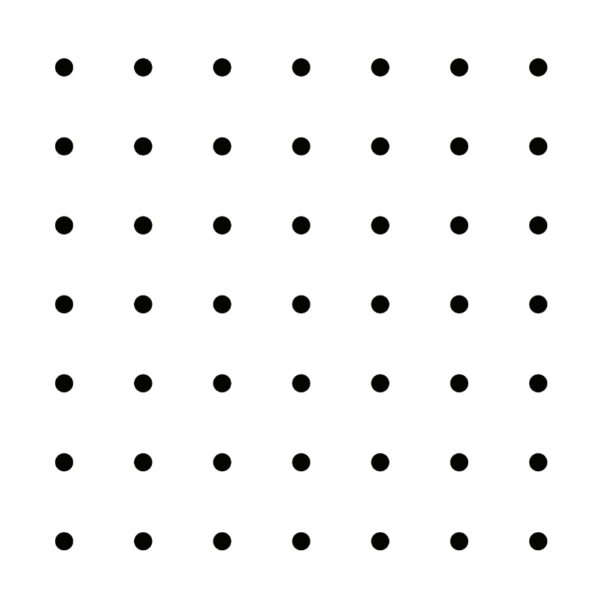

P12 Straight

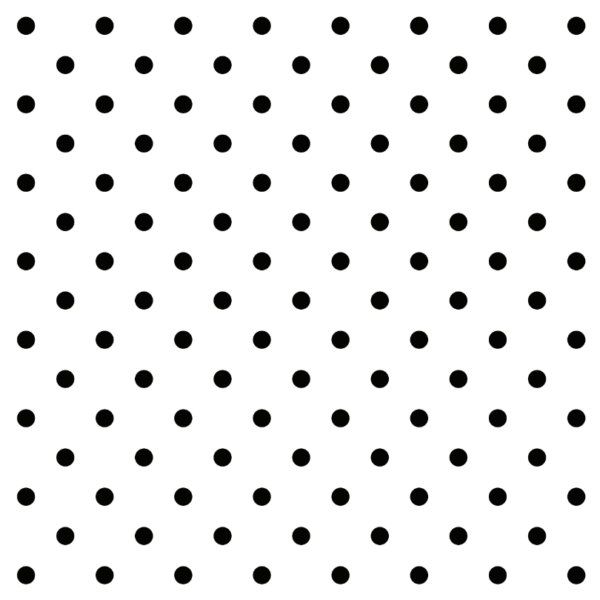

P13 Diagonal

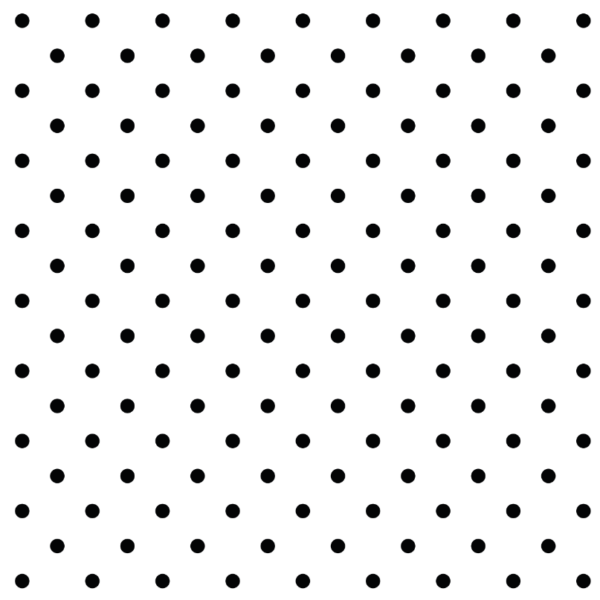

P14 Diagonal

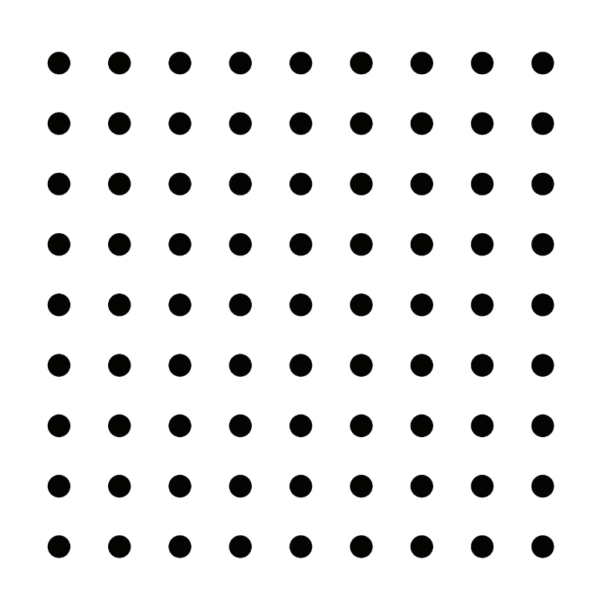

P15 Straight

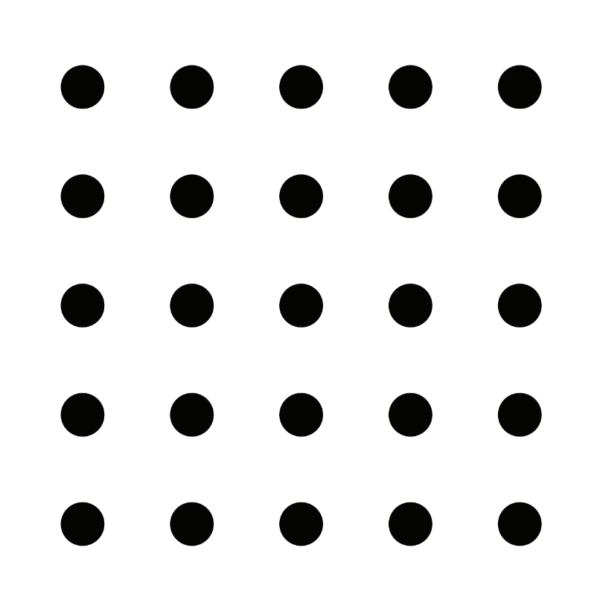

P16 Straight

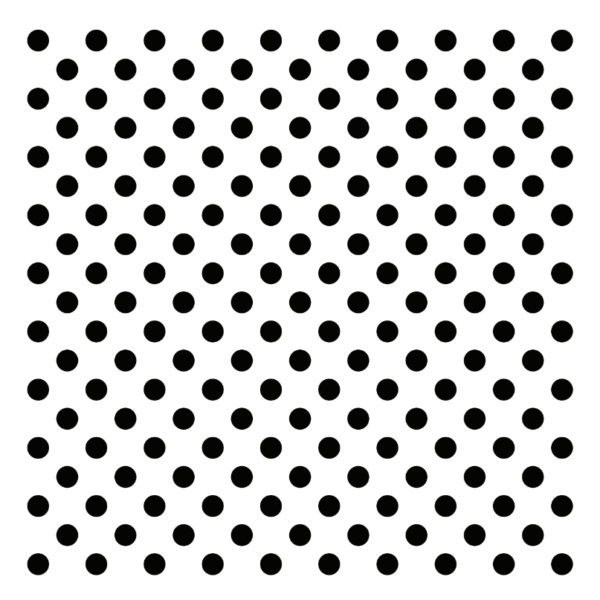

P17 Diagonal

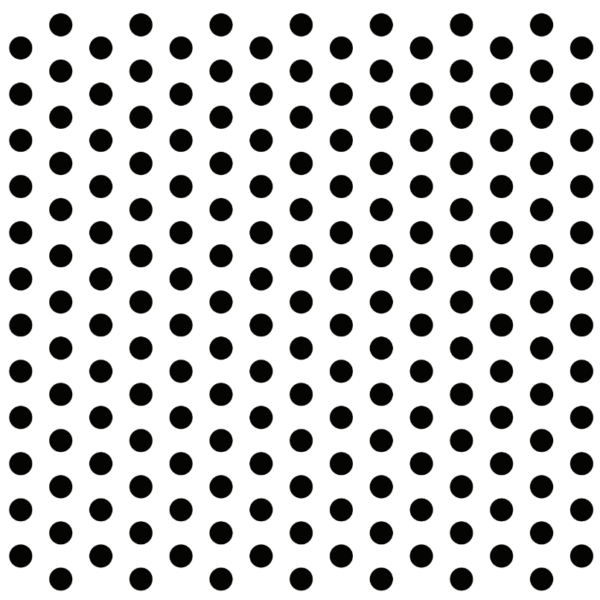

P18 Staggered

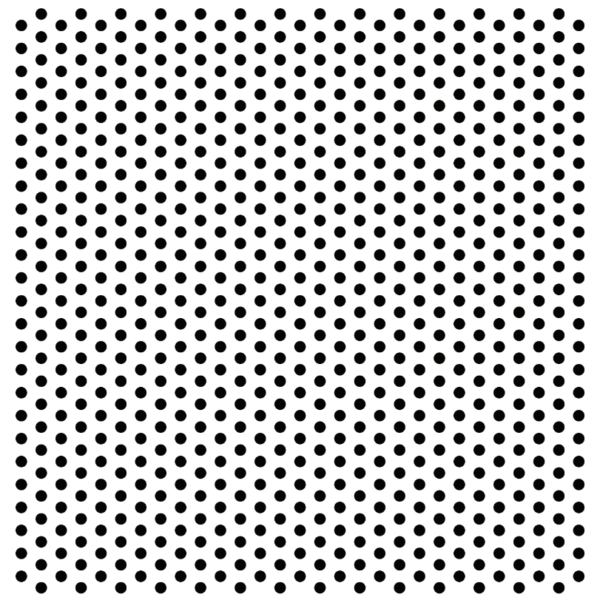

P19 Staggered

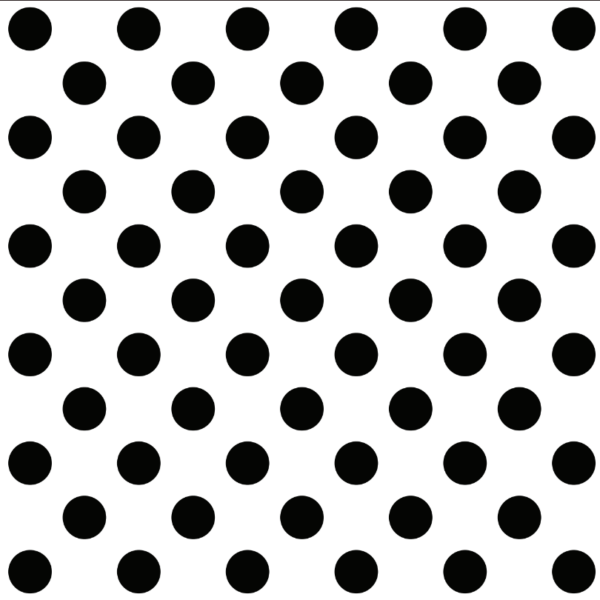

P20 Diagonal

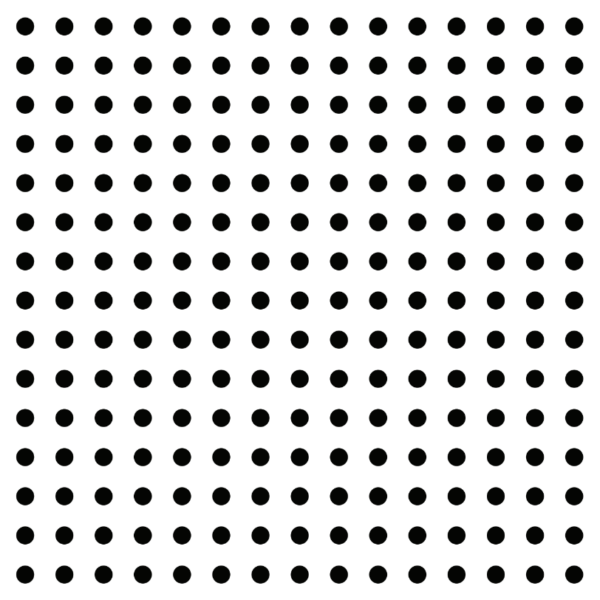

P21 Straight

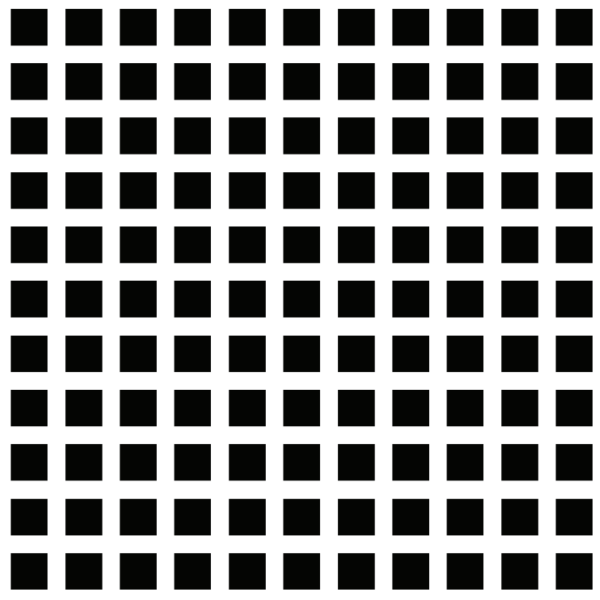

P22 Square Straight

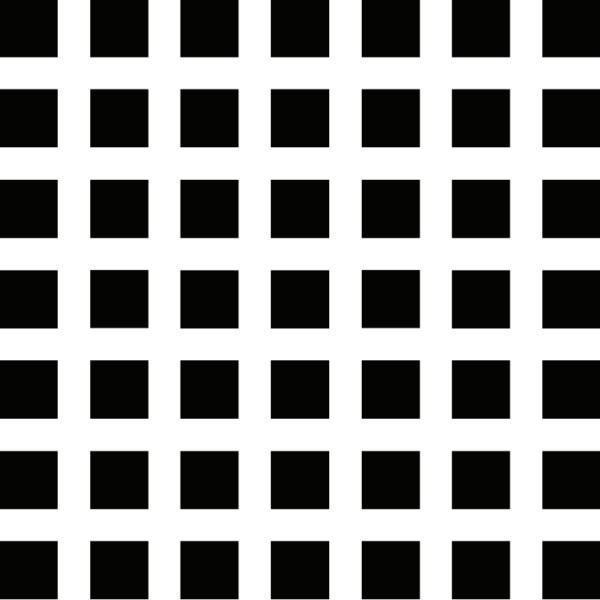

P23 Square Straight

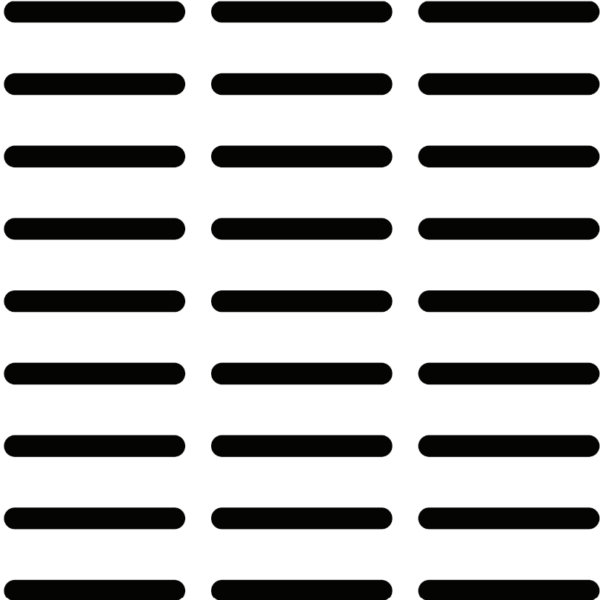

P24 Oblong Straight

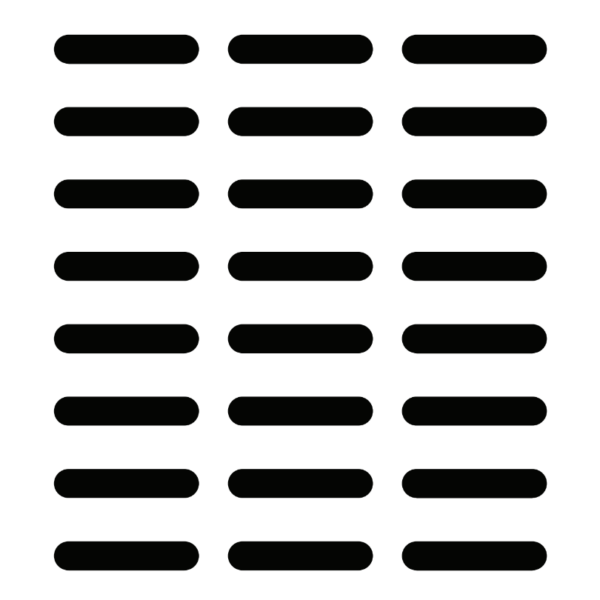

P25 Oblong Straight

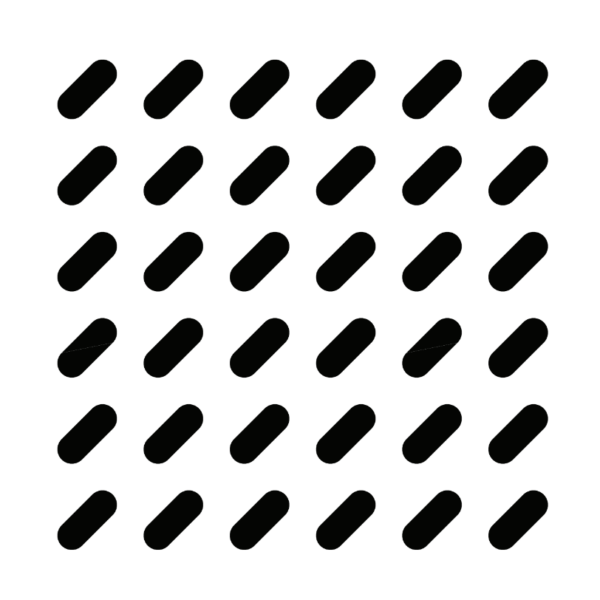

P26 Diagonal

Angles – Diagonal 45° | Staggered 60°

PET Felt - Solid Color (pet-felt-solid-color)

Quick Ship

Raven
Quick Ship

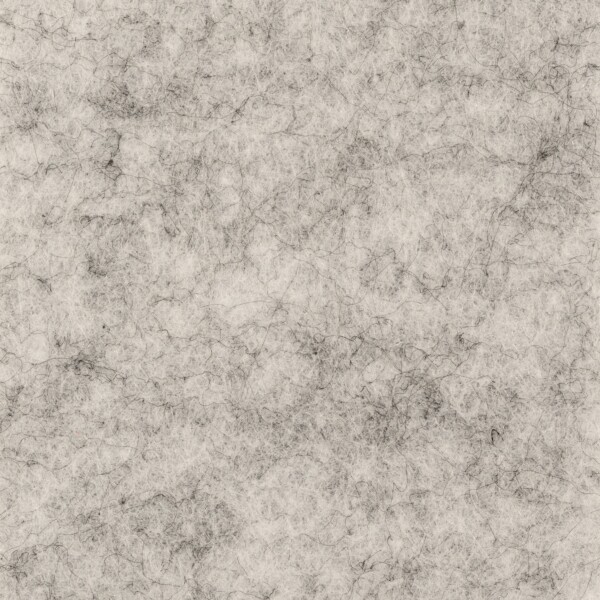

White Quartz
Quick Ship

Ivory
Quick Ship

Caramel
Quick Ship

Smoke
Quick Ship

Grey Quartz
Quick Ship

Cream Marble
Quick Ship

Olive Grey

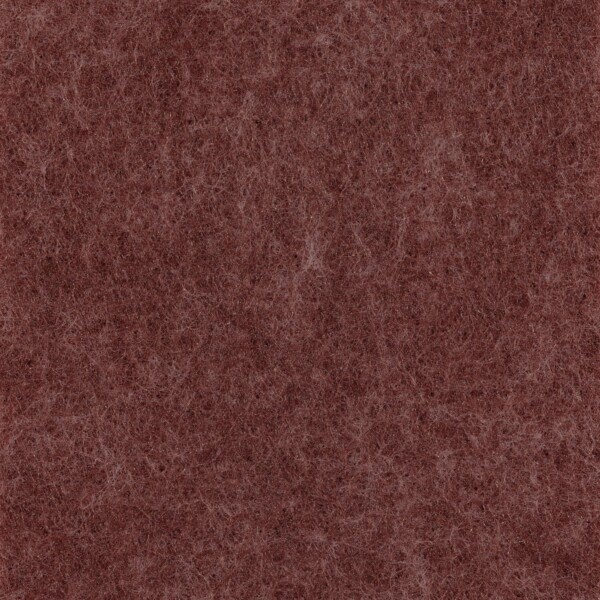

Mulberry
Sea Green

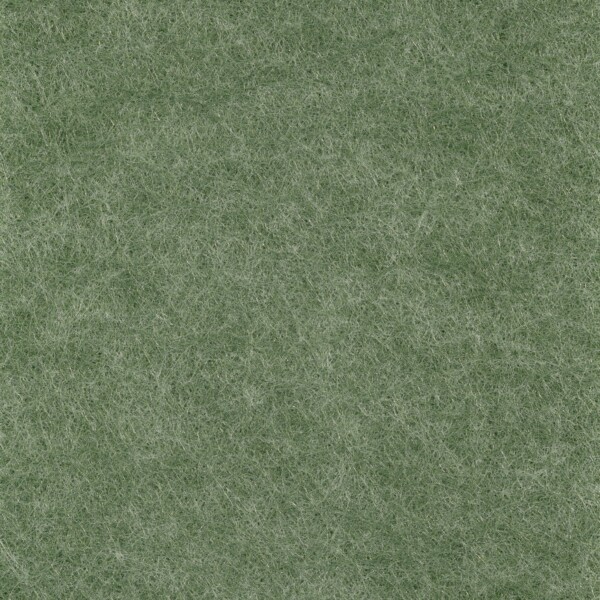

Jade
Honeycomb
Raspberry

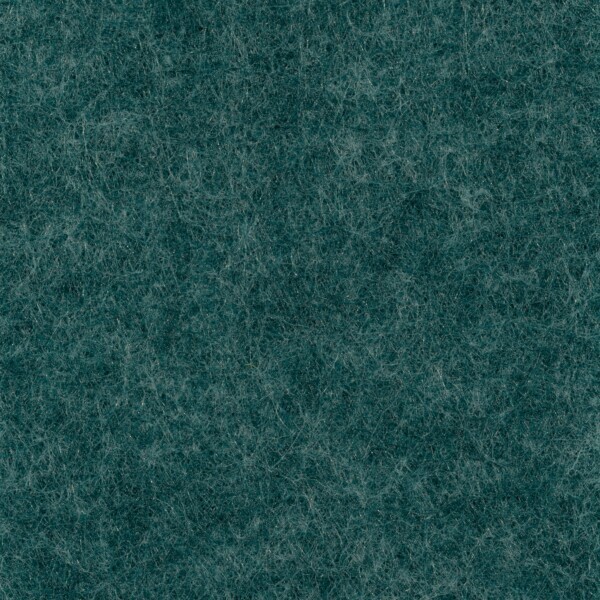

Ocean
Chestnut
Thyme
Burnt Orange
Sage
Cloud
Driftwood
Steel
Beige Plaster
Cotton
Denim

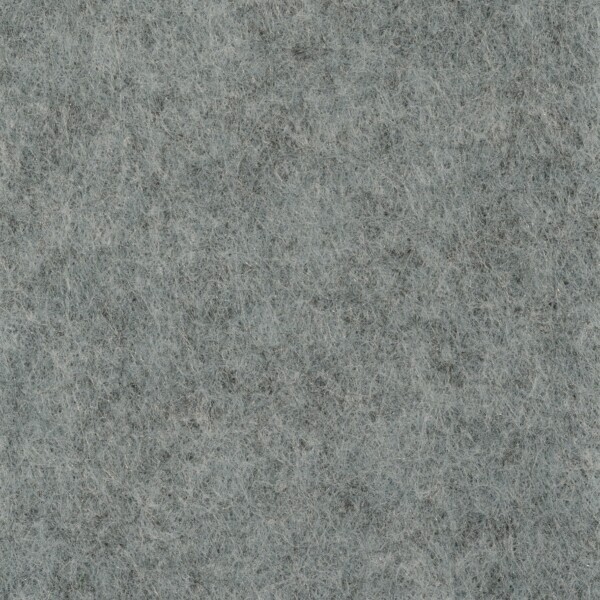

Smokey Blue
Lavender Mist
Aqua
Clear Blue
Iris
Cornflower
Cyan
Amethyst
Kiwi
Amber
Cobalt
Persimmon
Strawberry

All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.

Woodgrain (woodgrain-felt)

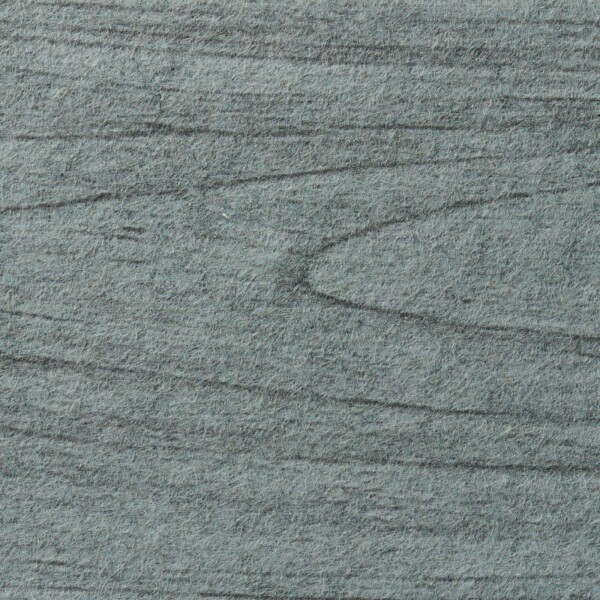

Weathered Grey

Timbercast™ Wood Look Colors
Dark Walnut

Timbercast™ Wood Look Colors
Red Oak

Timbercast™ Wood Look Colors
Natural Maple

Timbercast™ Wood Look Colors
White Oak

Timbercast™ Wood Look Colors

All colors are available in both 9mm and 12mm, with the Quick Ship option offered exclusively in 9mm.
