Agilis Parallel Networks

Fabricated Metal Ceiling Open Cell System

Create distinctive parallel beam networks designs with integrated functional panels.

Specifications

Material
Aluminum (Fabricated)
Weight
0.67 - 1.10 lbs. / ln.ft.
Thickness
0.041" - 0.060" (design-dependent)
Surface Finish
Beams - Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look.
Panels - Factory applied polyester paint. Available in Standard Colors, Color Matched, Stainless Steel, Wood Look, and Felt Colors.
Acoustic Performance
Perforated beams and panels are supplied with acoustic infills to absorb sound - NRC values depend on design and configuration.
Seismic Performance
Agilis has been engineered for use in all seismic areas. Installations may require additional attachment from baffle to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance
ASTM E84 Class A. CAN/ULC S102.2.
LEED Points
  • LEED BD+C: New Construction v4; MR: Regional Materials; MR: Recycled Content
  • LEED BD+C: Schools v4; EQ: Acoustic Performance
  • LEED ID+C: Commercial Interiors v4; EQ: Low-Emitting Material
Declarations
No VOC’S: No added urea–formaldehyde
EPD ‘Environmental Product Declaration’ for raw material components
Certifications
Sustainability certificates are available for aluminum & felt
Recycled Content
Recycled Content - Aluminum up to 80%, Felt minimum 60%
Finishes
Available as open cell or with metal, metal mesh, and felt panels
Effortlessly integrates lighting options including LED panels
Custom Options
Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options
Lengths - up to 12'
Depths - up to 15"
Widths - up to 6"
Installation
  • Lightweight & easy to install via suspension cable (supplied by others).
  • Open cell design seamlessly accommodates and provides easy access to lighting, sprinklers, and HVAC components; parallel beam structure helps to conceal these elements when desired.
Care & Maintenance
Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

Assembly

Material and Finishing Options

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

  • White

  • Snow White

  • Black

  • Blush Rose

    (20 gloss)

  • Sunrise Yellow

    (20 gloss)

  • Forest Green

    (20 gloss)

  • Pure Orange

    (20 gloss)

  • Gold

    (20 gloss)

  • Metallic Bronze

    (20 gloss)

  • Tan Straw

    (20 gloss)

  • Mid Beige

    (20 gloss)

  • Metallic Sterling Silver

    (20 gloss)

  • Charcoal

    (20 Gloss)

  • Sterling Silver

    (20 gloss)

  • Grey

    (65-75 Gloss)

Wood look powder coated paint finishes for interior and exterior use. Formaldehyde-Free.

  • National Walnut

    Wood look powder coated paint finish

  • Chestnut

    Wood look powder coated paint finish

  • Rosewood

    Wood look powder coated paint finish

  • European Cherry

    Wood look powder coated paint finish

  • Knotty Pine

    Wood look powder coated paint finish

  • Oak Fine

    Wood look powder coated paint finish

  • Maple

    Wood look powder coated paint finish

  • American Maple

    Wood look powder coated paint finish

  • American Douglas

    Wood look powder coated paint finish

  • Teak

    Wood look powder coated paint finish

Standard Laminated (Film) Finishes for interior use only. Formaldehyde-free.

  • Brazilian Walnut

    Wood look laminated film finish

  • Black Walnut

    Wood look laminated film finish

  • North Oak

    Wood look laminated film finish

  • Italian Walnut

    Wood look laminated film finish

  • Canadian Oak

    Wood look laminated film finish

  • White Oak

    Wood look laminated film finish

  • American Natural

    Wood look laminated film finish

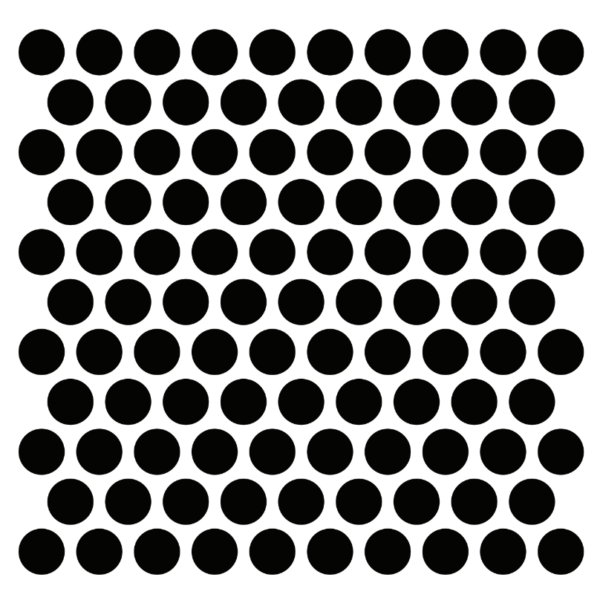

Angles – Staggered 60°

  • Unperforated

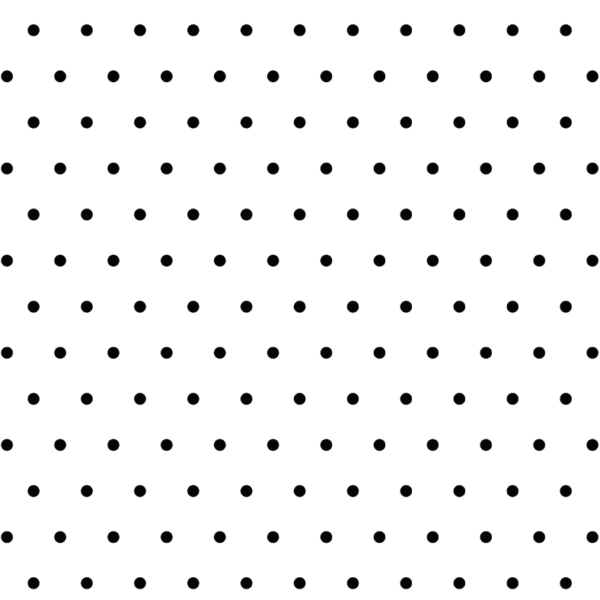

  • S02 Staggered

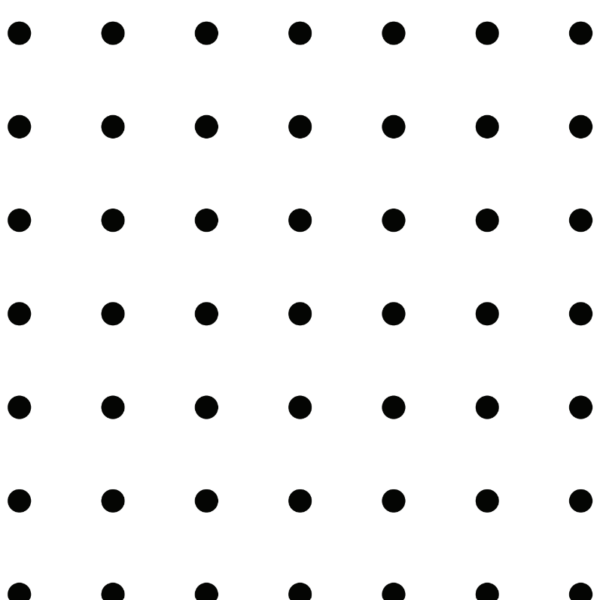

  • S03 Straight

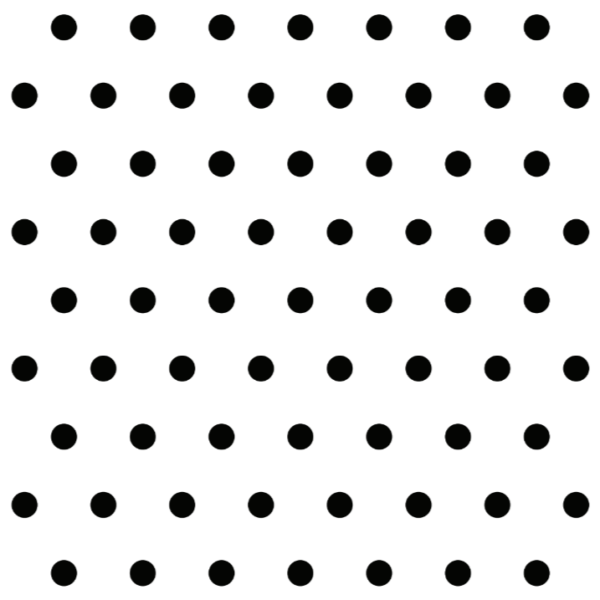

  • S04 Staggered

  • S05 Staggered

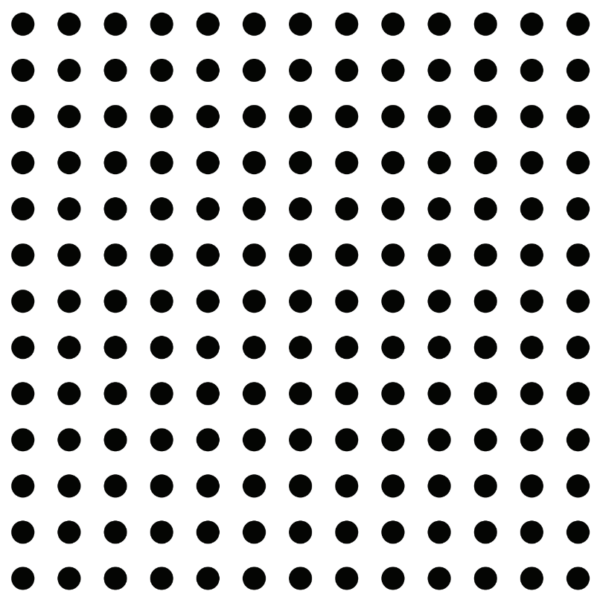

  • S06 Straight

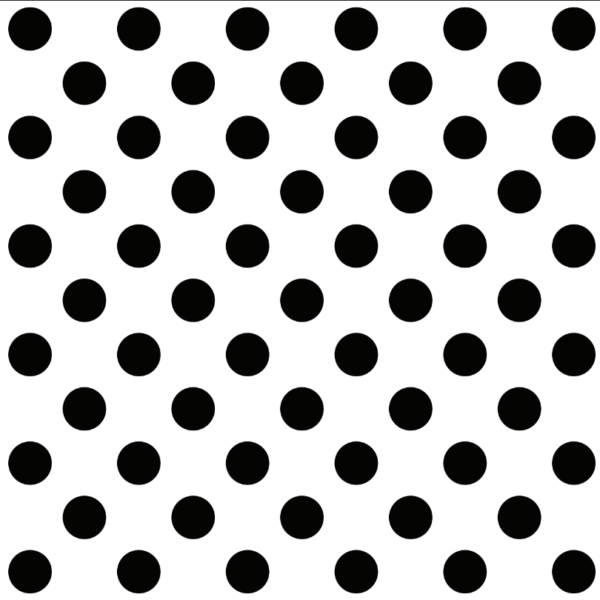

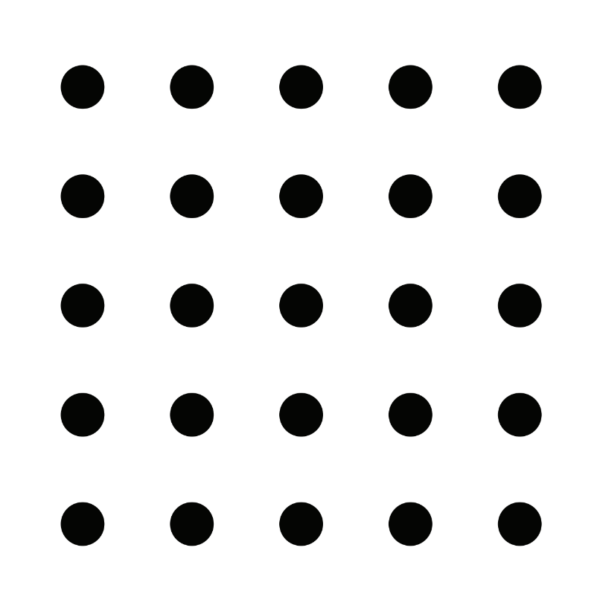

Angles – Diagonal 45° | Staggered 60°

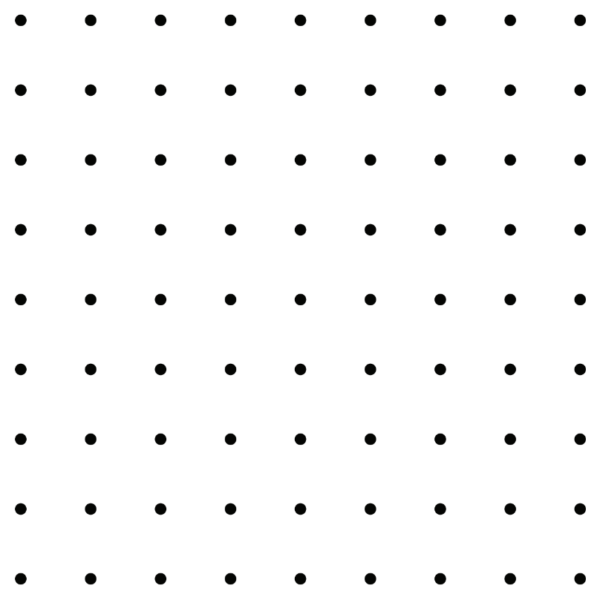

  • P11 Straight

  • P12 Straight

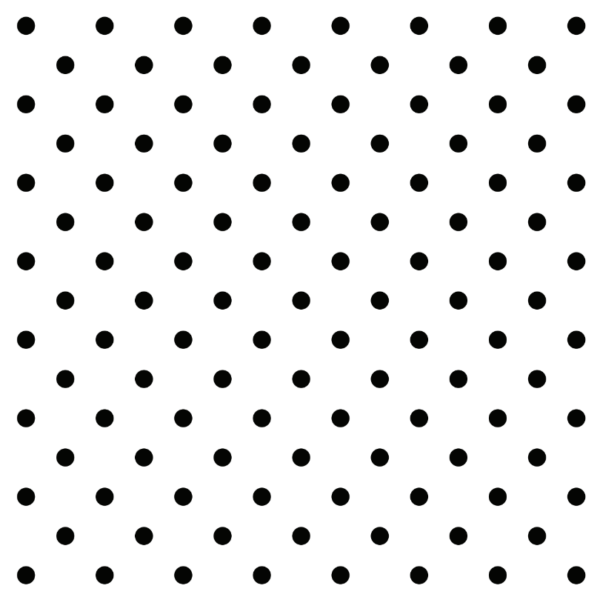

  • P13 Diagonal

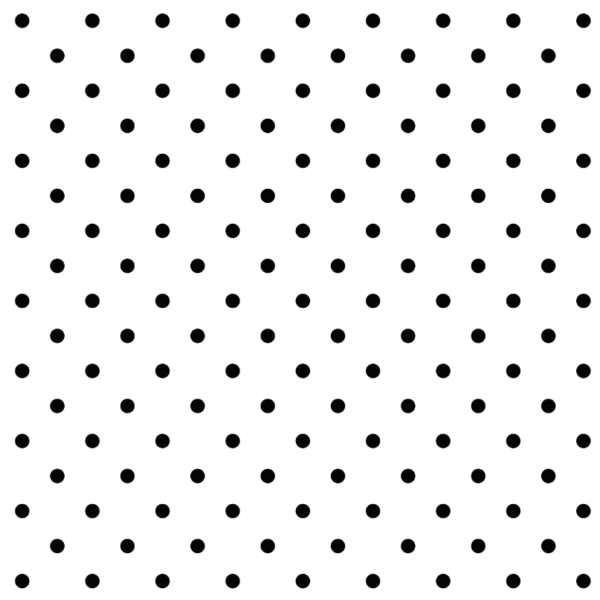

  • P14 Diagonal

  • P18 Staggered

  • P19 Staggered

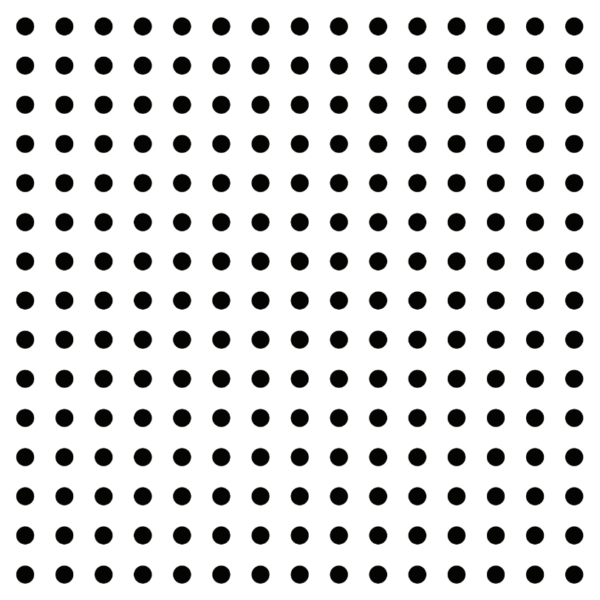

  • P21 Straight

  • Flow

    Stainless steel metal texture finish

  • Ripple #2

    Stainless steel metal texture finish

  • Soft #2

    Stainless steel metal texture finish

  • Copper

    Stainless steel metal color finish

  • Blue

    Stainless steel metal color finish

  • Black

    Stainless steel metal color finish

  • Champagne

    Stainless steel metal color finish

  • Silver

    Stainless steel metal color finish

(PET) polyester felt finish

  • Yellow

    (PET) polyester felt finish

  • White

    (PET) polyester felt finish

  • Violet

    (PET) polyester felt finish

  • Teal

    (PET) polyester felt finish

  • Stone

    (PET) polyester felt finish

  • Sand

    (PET) polyester felt finish

  • Salmon

    (PET) polyester felt finish

  • Red

    (PET) polyester felt finish

  • Purple

    (PET) polyester felt finish

  • Pumpkin

    (PET) polyester felt finish

  • Plum

    (PET) polyester felt finish

  • Pink

    (PET) polyester felt finish

  • Periwinkle

    (PET) polyester felt finish

  • Pepper

    (PET) polyester felt finish

  • Pear

    (PET) polyester felt finish

  • Orange

    (PET) polyester felt finish

  • Oat

    (PET) polyester felt finish

  • Navy

    (PET) polyester felt finish

  • Maroon

    (PET) polyester felt finish

  • Lime

    (PET) polyester felt finish

  • Lemon

    (PET) polyester felt finish

  • Leaf Green

    (PET) polyester felt finish

  • Hickory

    (PET) polyester felt finish

  • Green

    (PET) polyester felt finish

  • Gray

    (PET) polyester felt finish

  • Dew

    (PET) polyester felt finish

  • Deep Blue

    (PET) polyester felt finish

  • Dark Brown

    (PET) polyester felt finish

  • Charcoal

    (PET) polyester felt finish

  • Brown

    (PET) polyester felt finish

  • Blue Jean

    (PET) polyester felt finish

  • Black

    (PET) polyester felt finish

  • Berry

    (PET) polyester felt finish

  • Alabaster

    (PET) polyester felt finish

Timbercast™ Wood Look Colors

  • Weathered Grey

    Timbercast™ Wood Look Colors

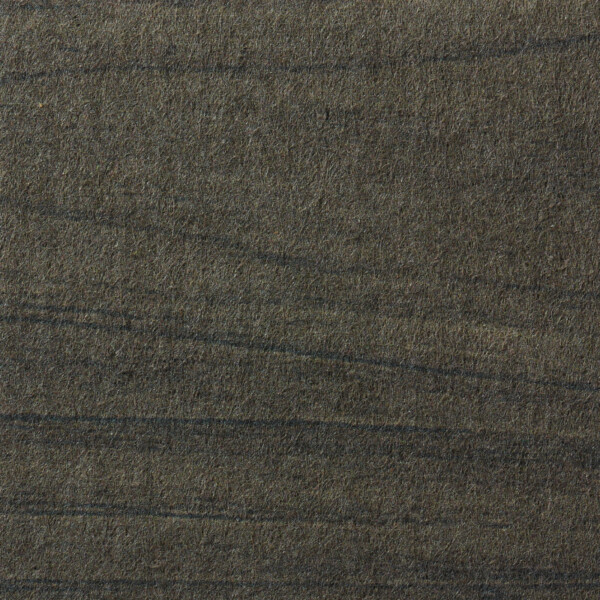

  • Walnut

    Timbercast™ Wood Look Colors

  • Red Oak

    Timbercast™ Wood Look Colors

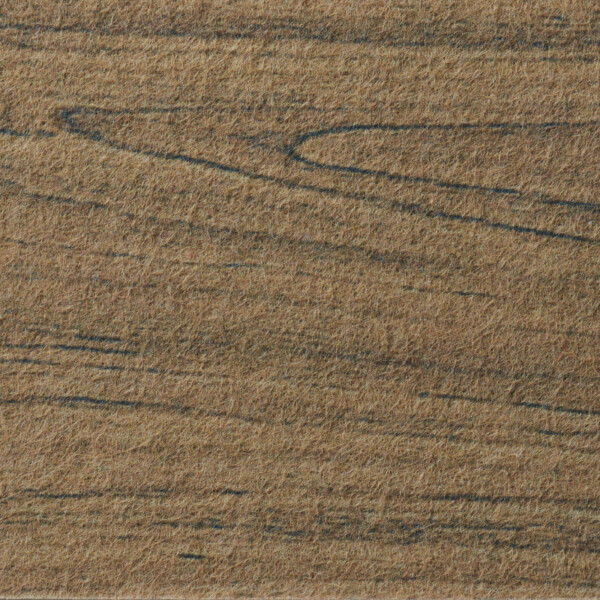

  • Natural Maple

    Timbercast™ Wood Look Colors

  • White Oak *NEW

    Timbercast™ Wood Look Colors

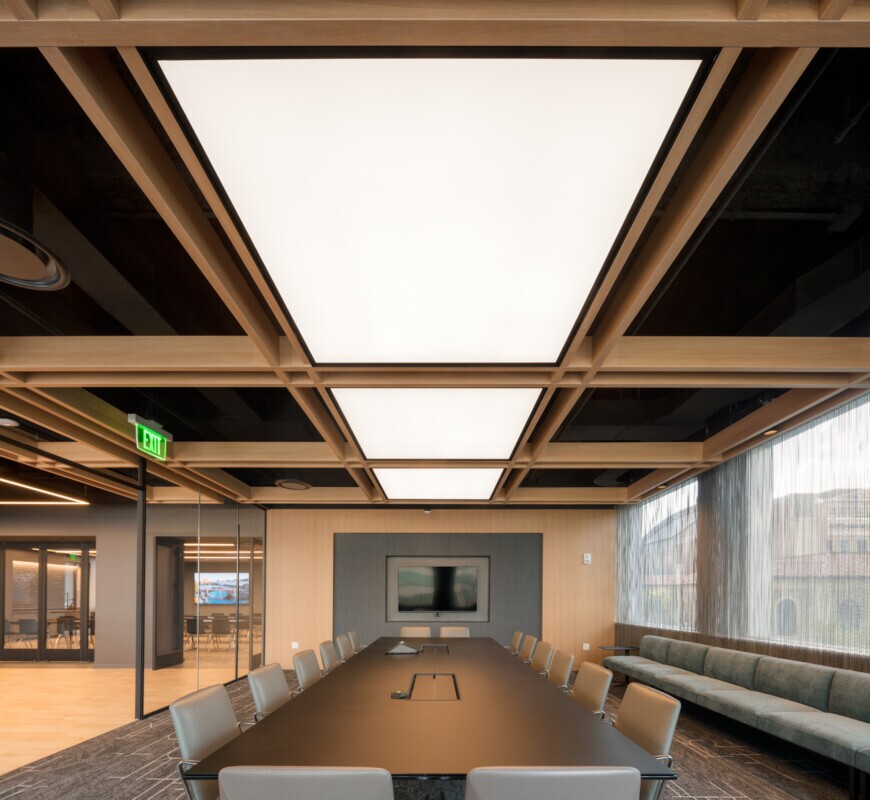

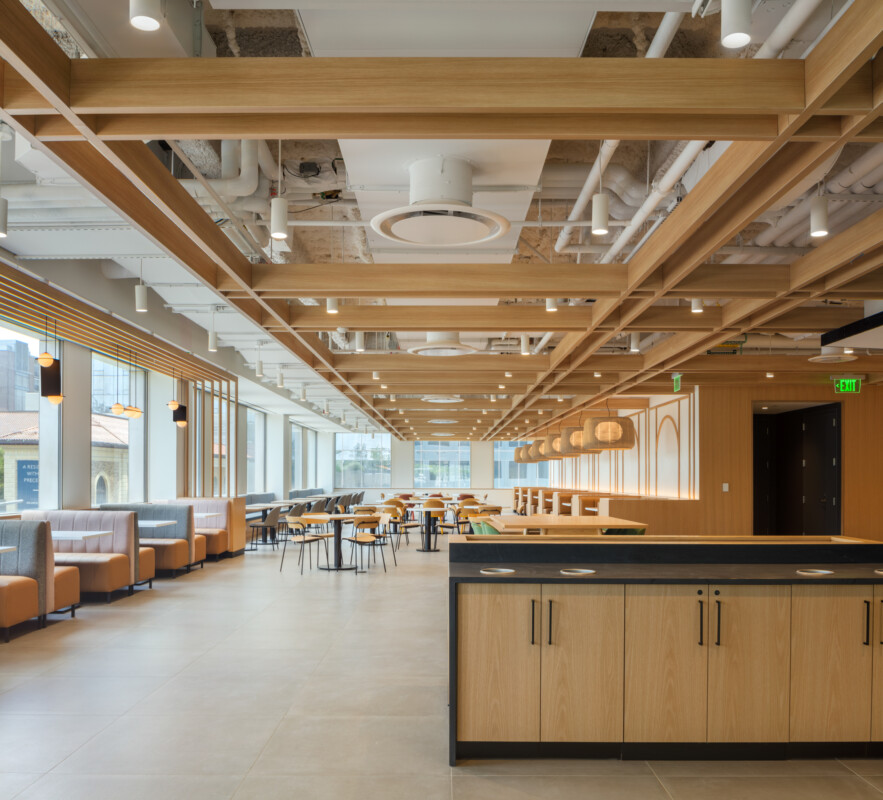

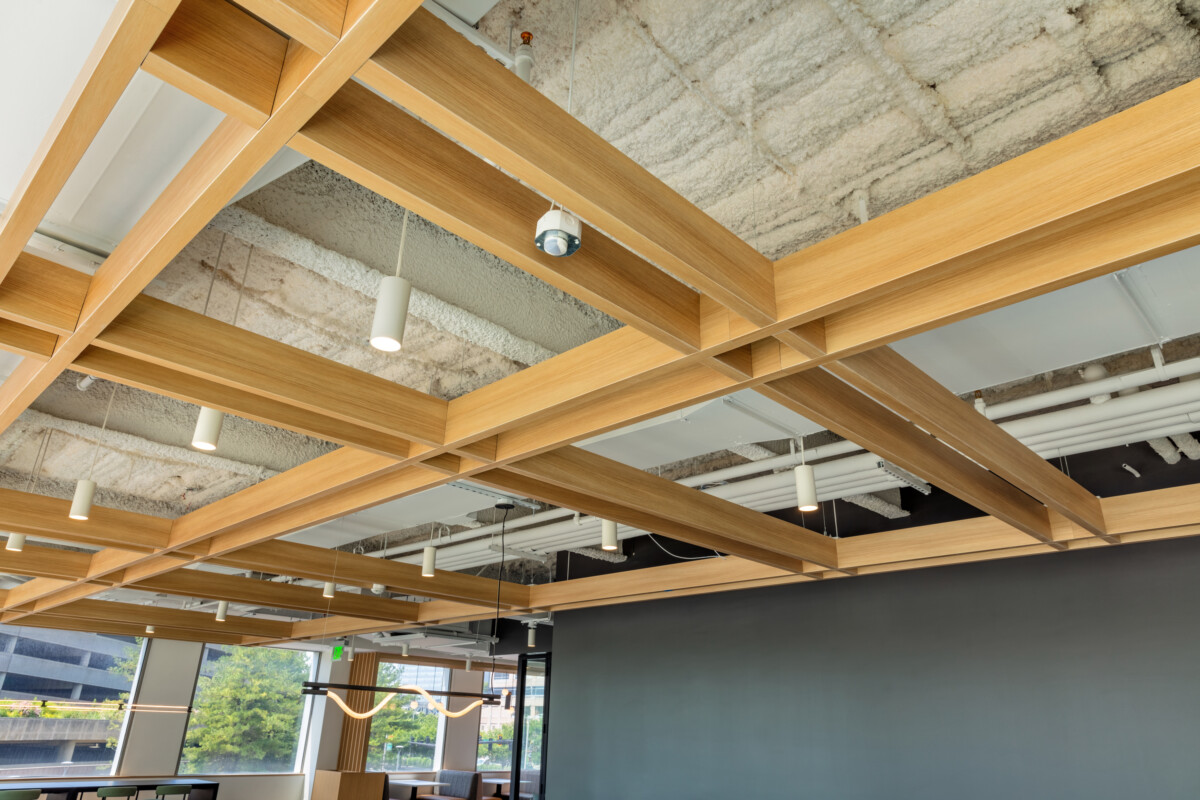

Agilis Parallel Networks in application

Some of our recent projects that include Agilis.
