LINE:Form Elevations Baffle

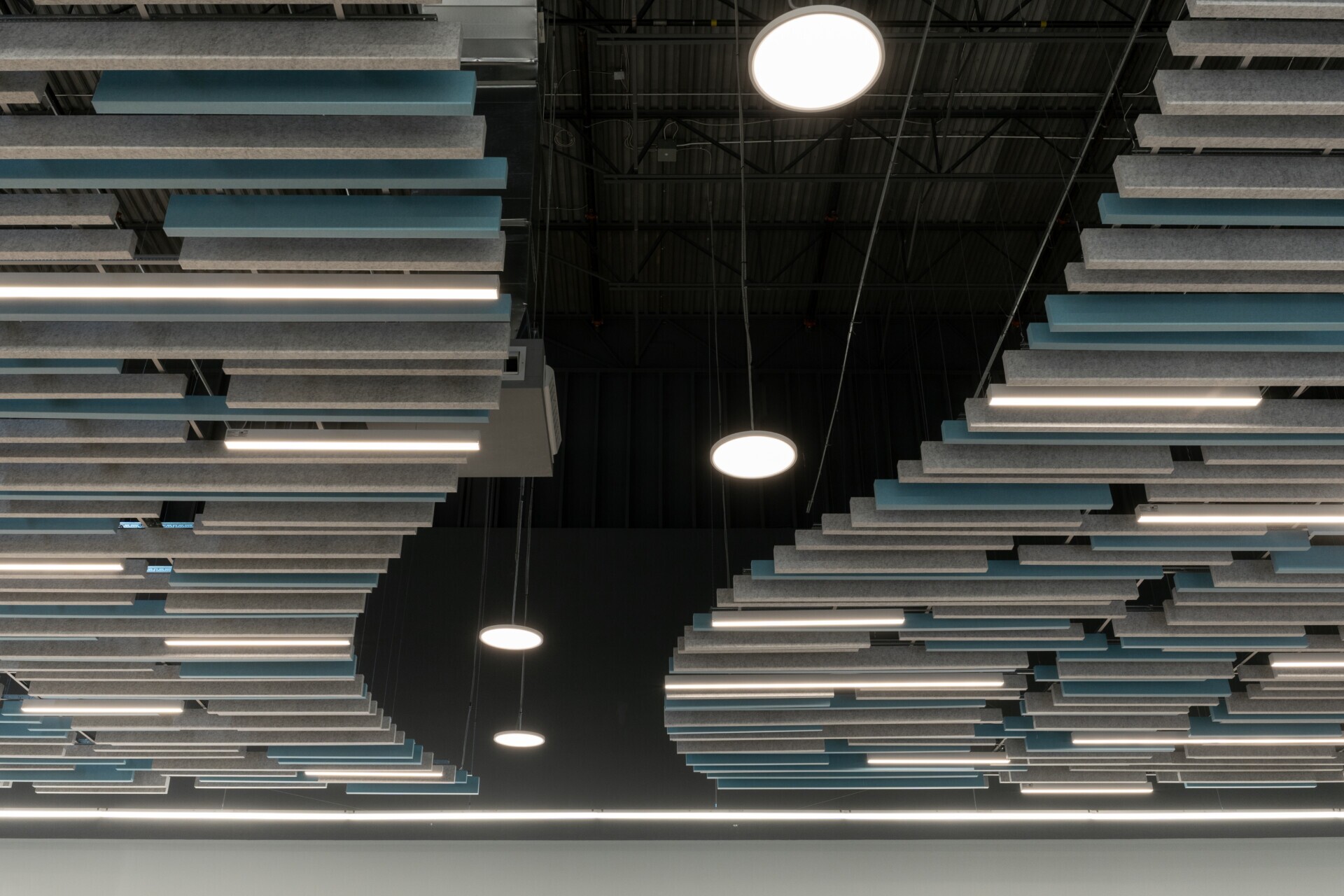

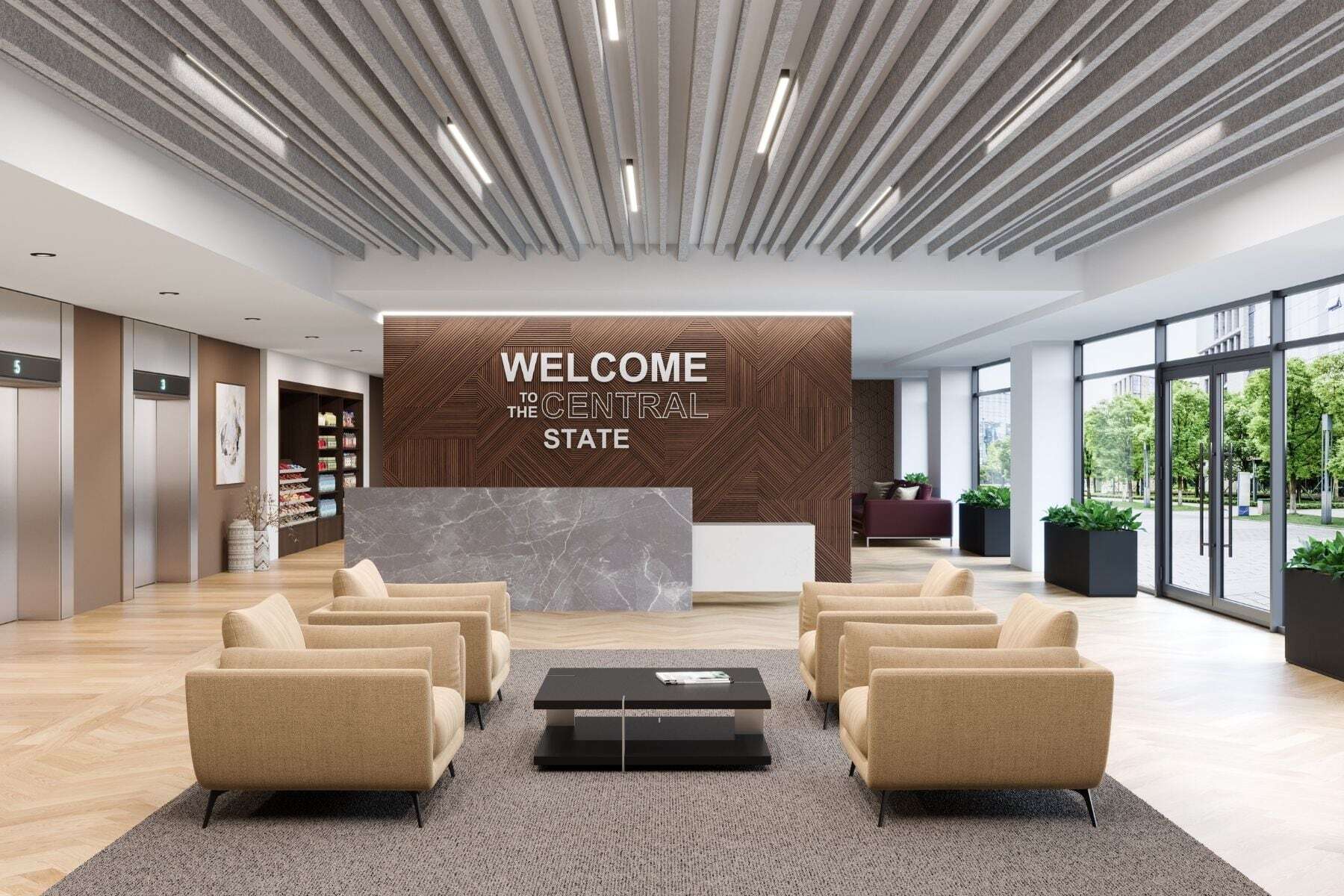

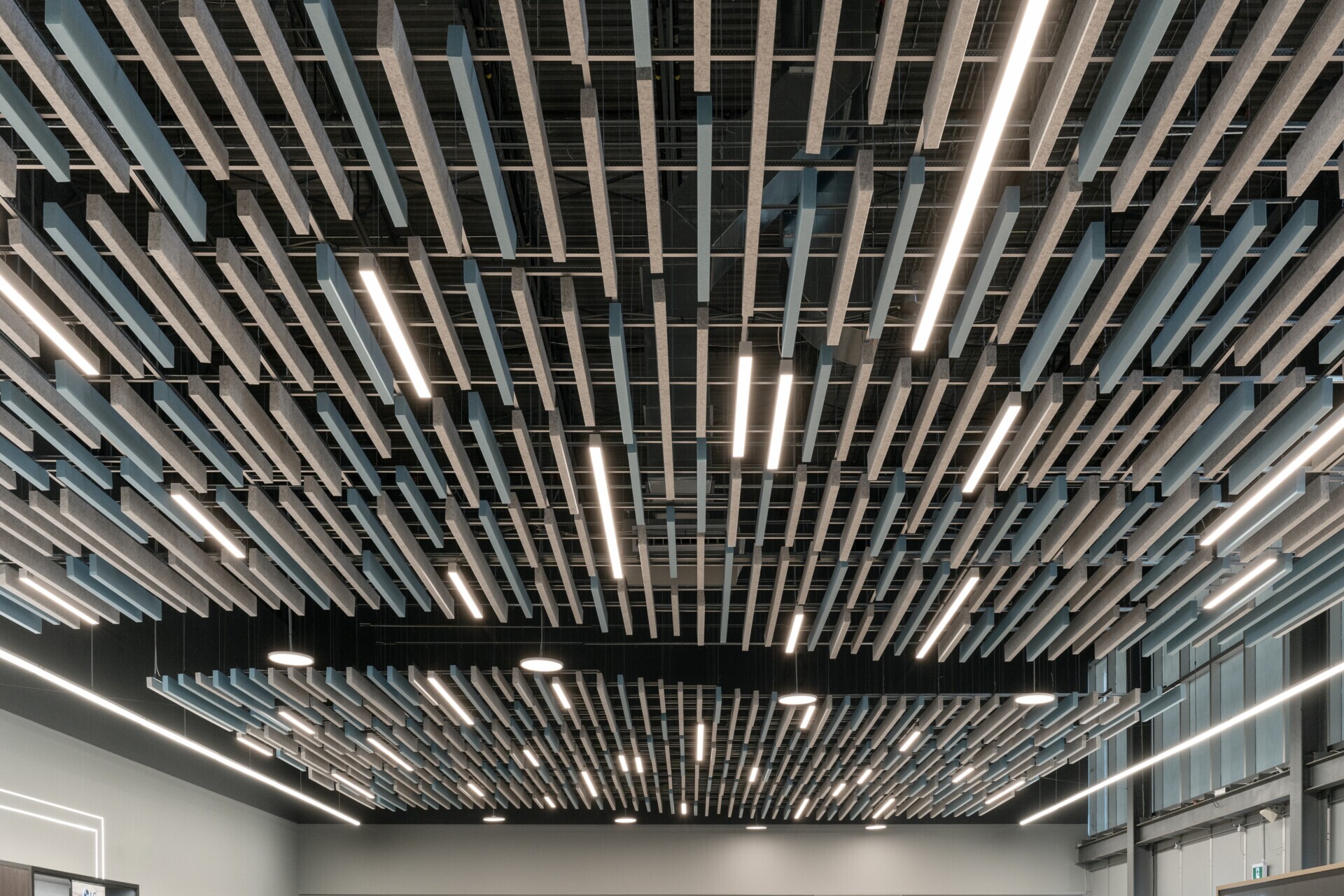

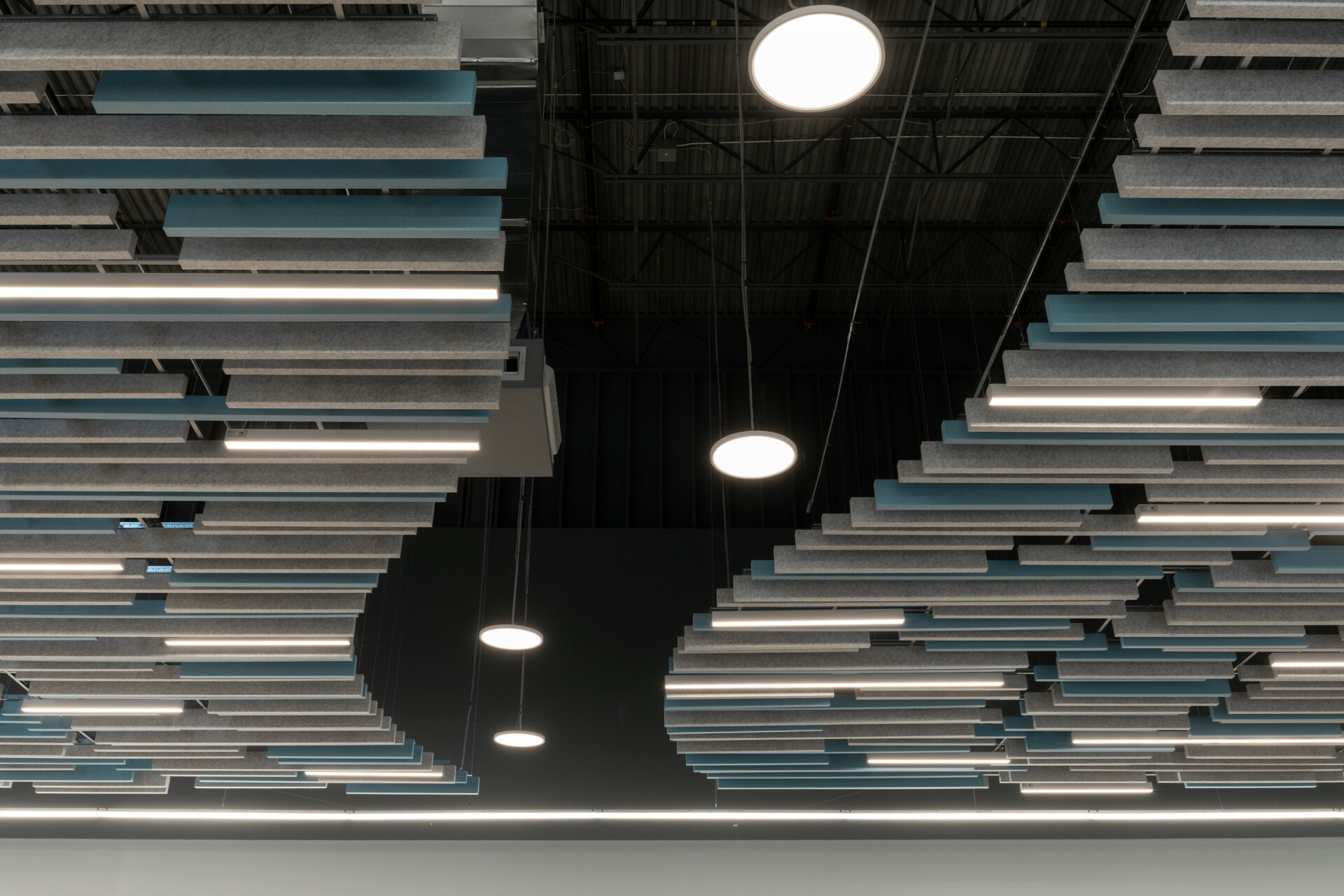

Fabricated Profile Felt Ceiling Baffle System

Delivers bold texture and directional flow in a design that can be scaled for small, medium and large spaces.

Get Started

Specifications

Product Details
Sustainability
Features

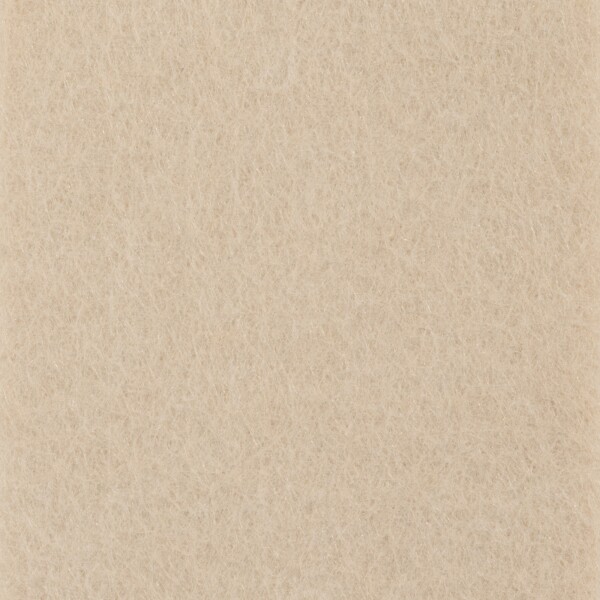

Material: PET Felt
Weight: 0.69 - 1.17 lbs. / ln.ft.
Thickness: 3/8” nominal (9 mm) ; 1/5" nominal (12 mm)
Surface Finish: PET Felt - Solid Color

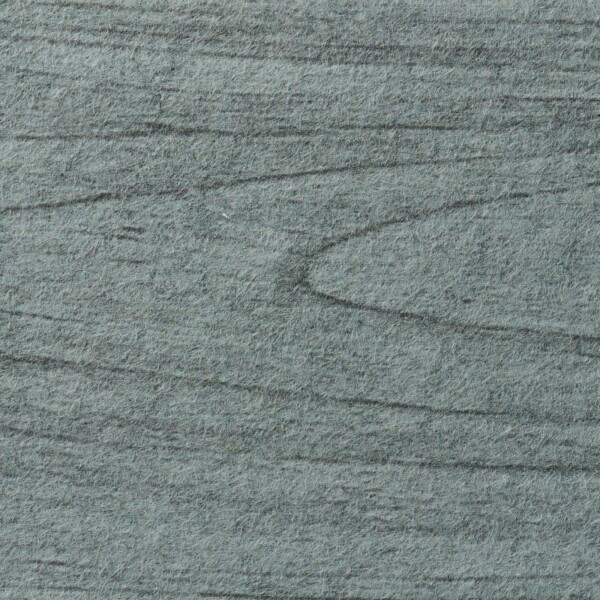

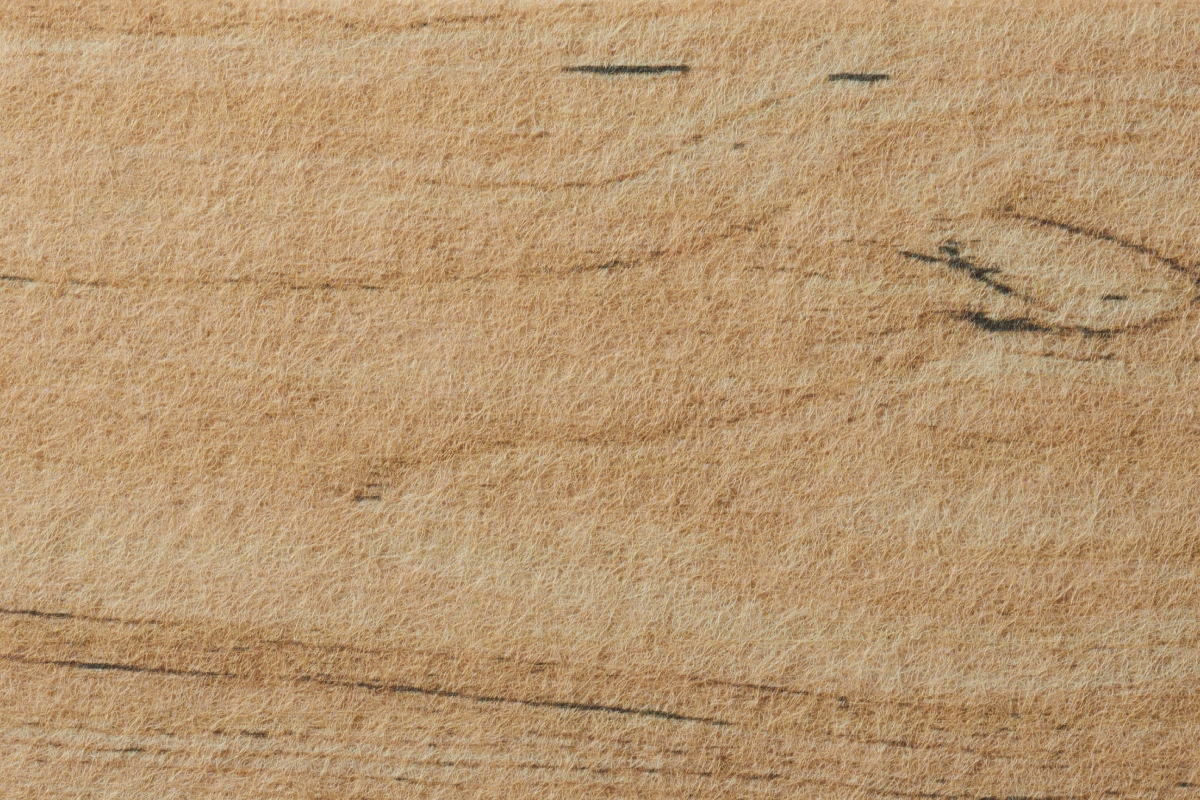

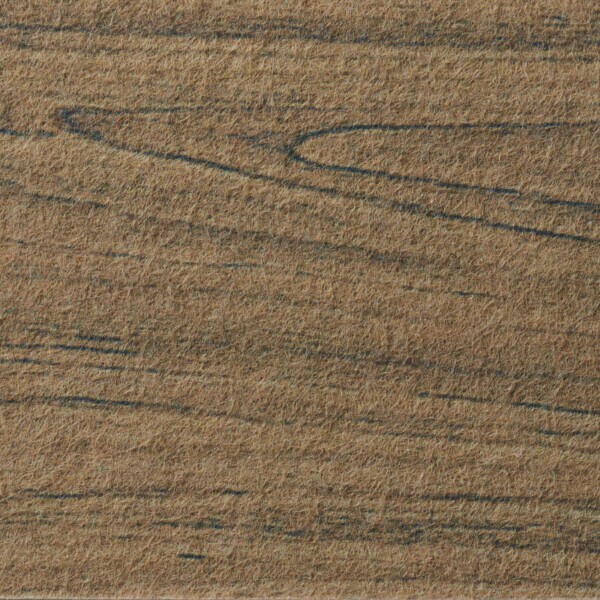

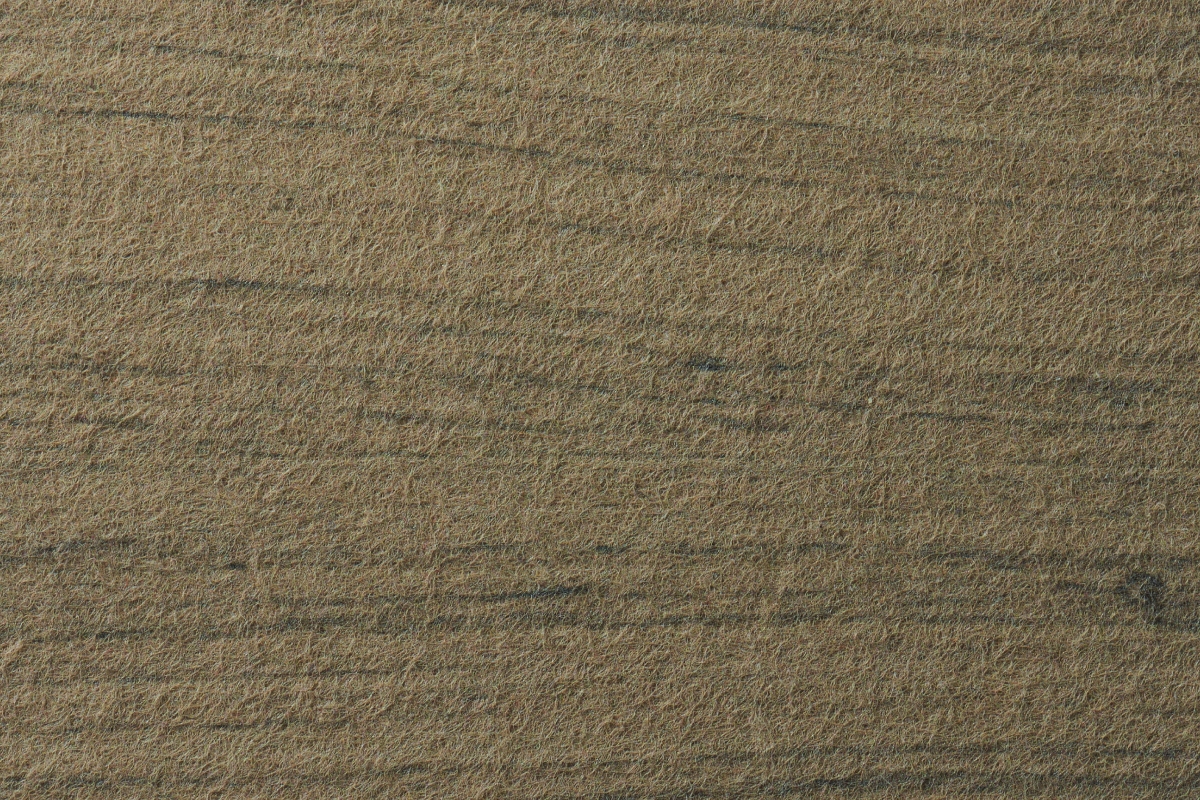

PET Felt - Woodgrain Printed

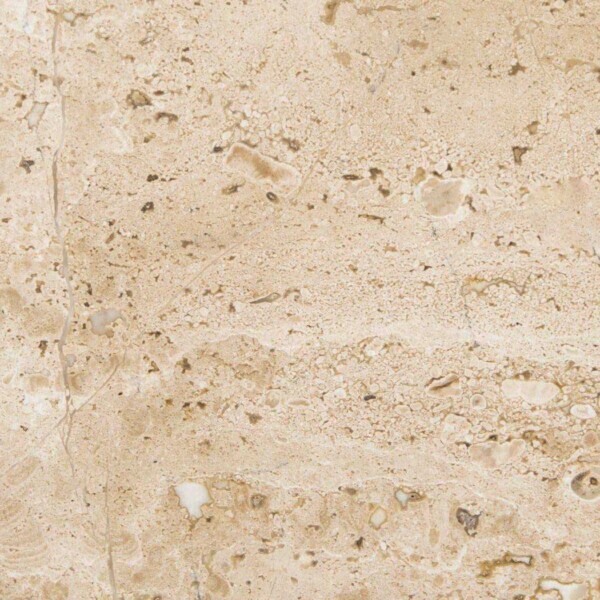

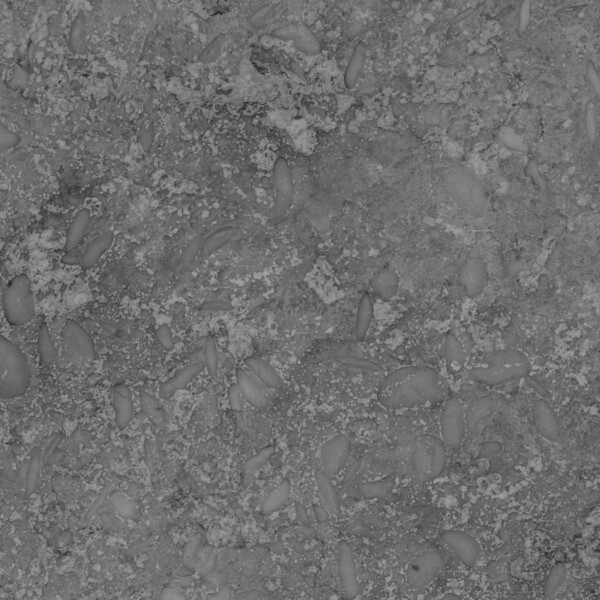

PET Felt - Limestone Printed
Acoustic Performance: NRC depends on baffle size and spacing. Baffles spaced closely together can achieve higher NRC.
Seismic Performance: This product has been engineered for use in all seismic areas. Installations may require additional attachments. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: ASTM E84, Class A. CAN/ULC – S102.2
Applications: This product is not approved for exterior application
Do not install near sources of heat greater than 158º F

LEED Points: BD+C v4 (MR: Product Disclosure, Recycled Content)
Schools EQ: Acoustic Performance
Declarations: No VOCs
EPD & GREENGUARD Gold certified
Recycled Content: Up to 60% post-consumer PET felt

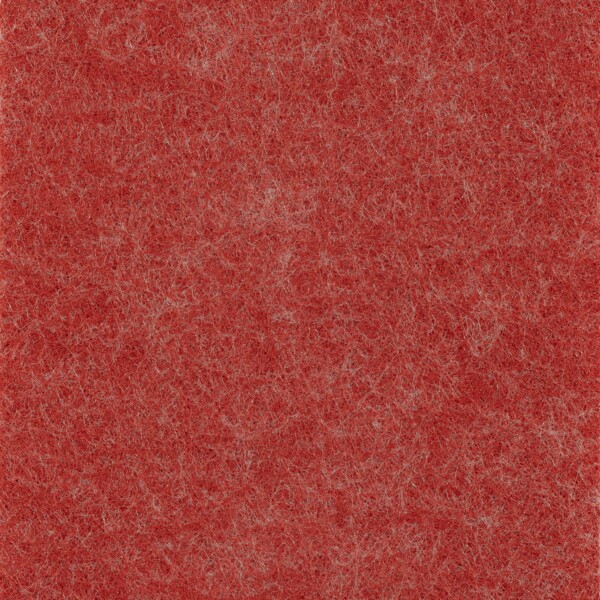

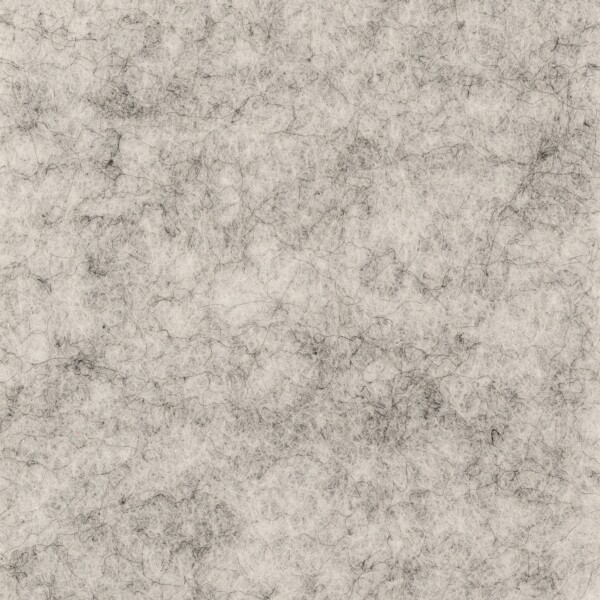

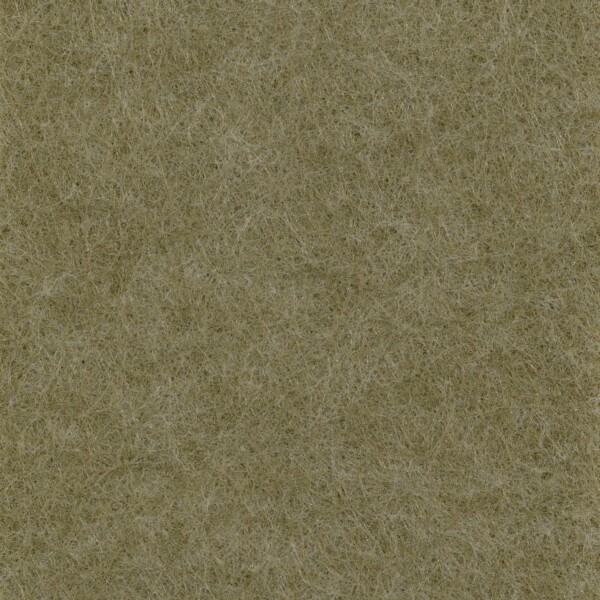

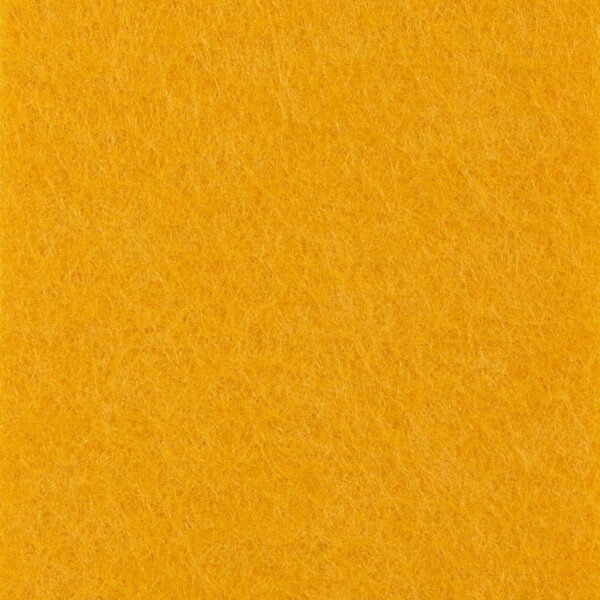

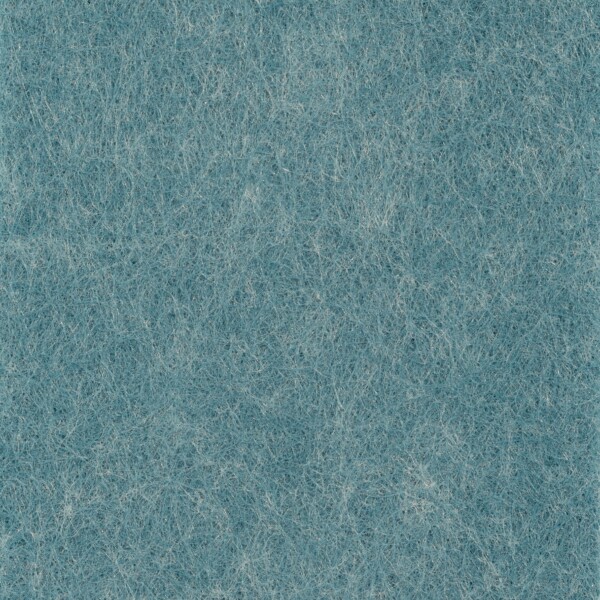

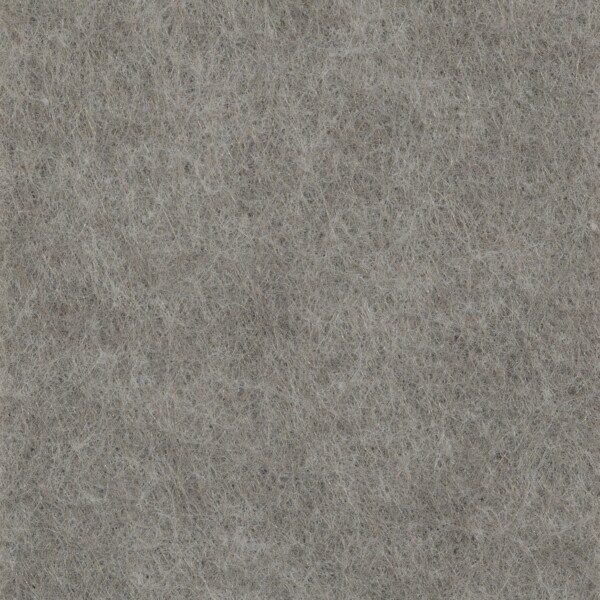

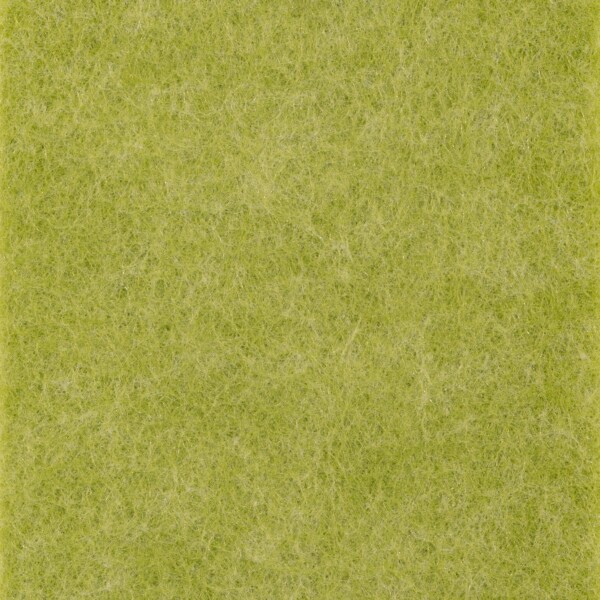

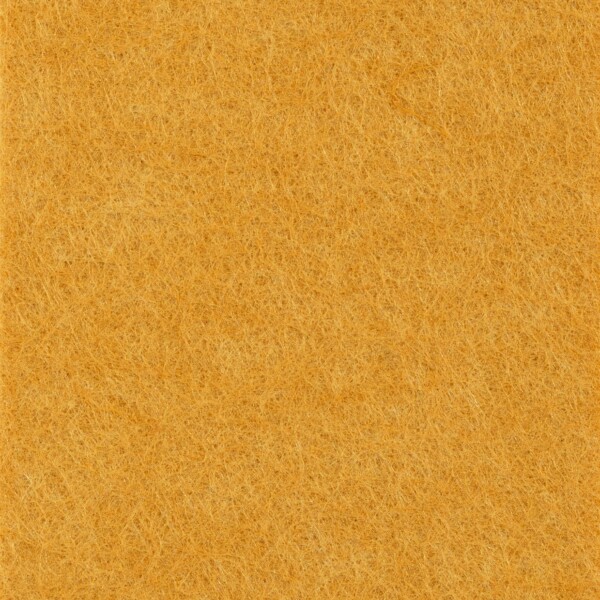

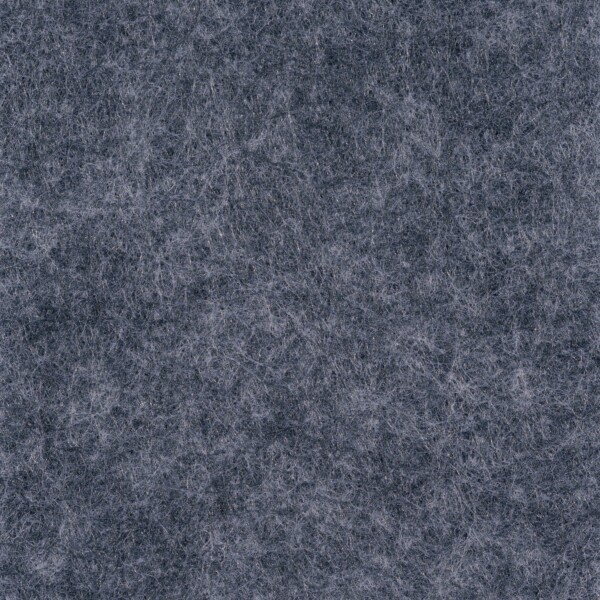

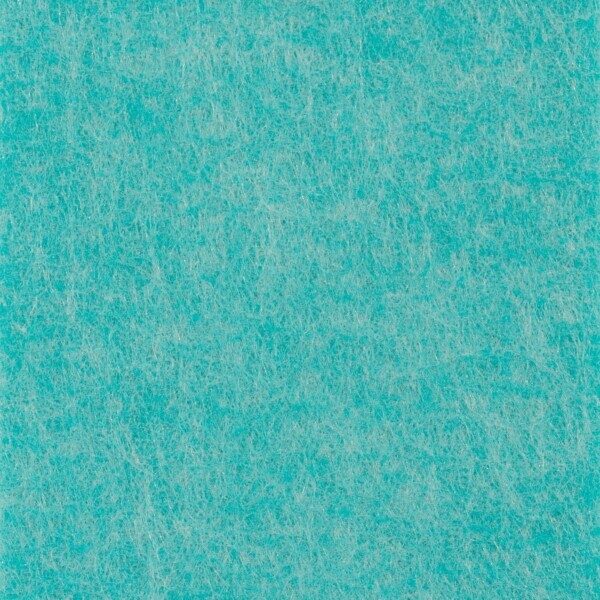

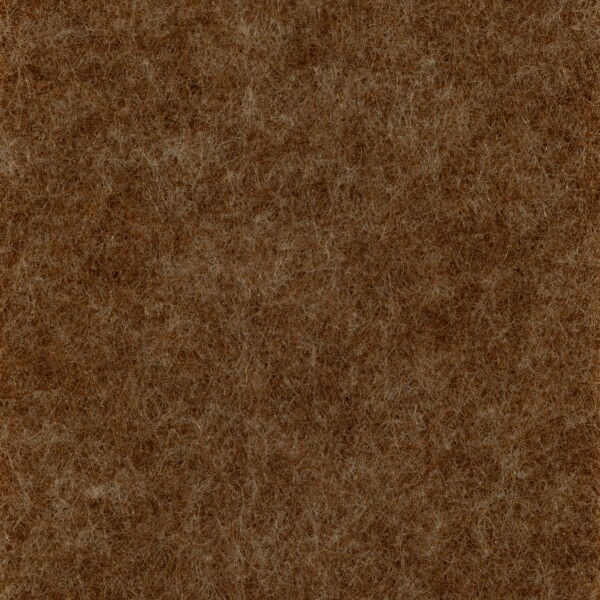

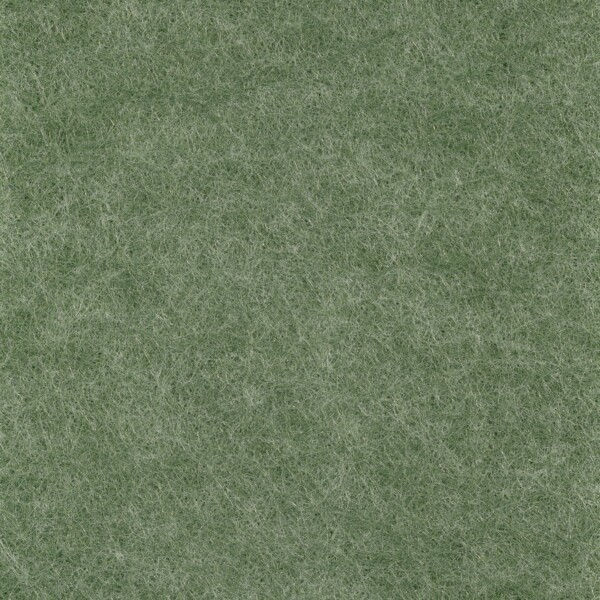

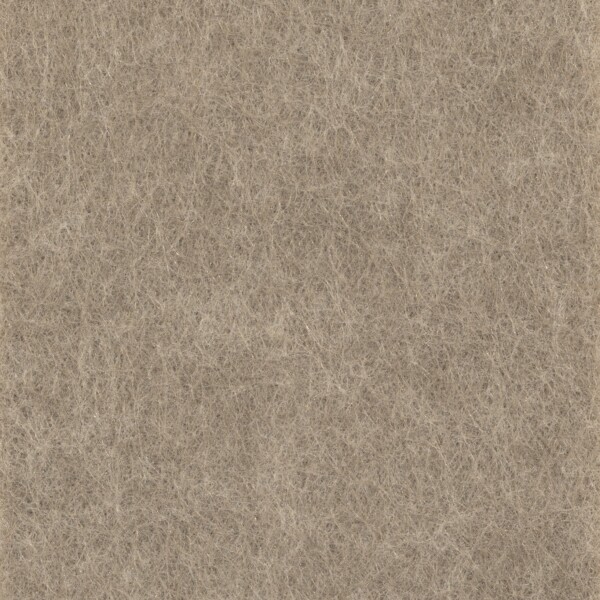

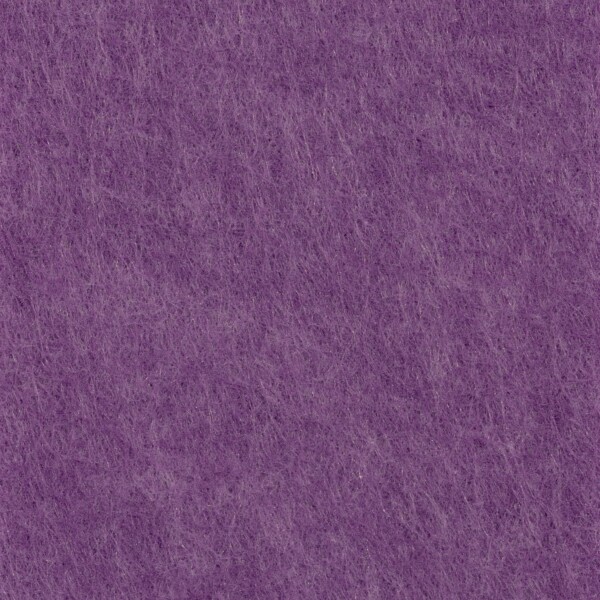

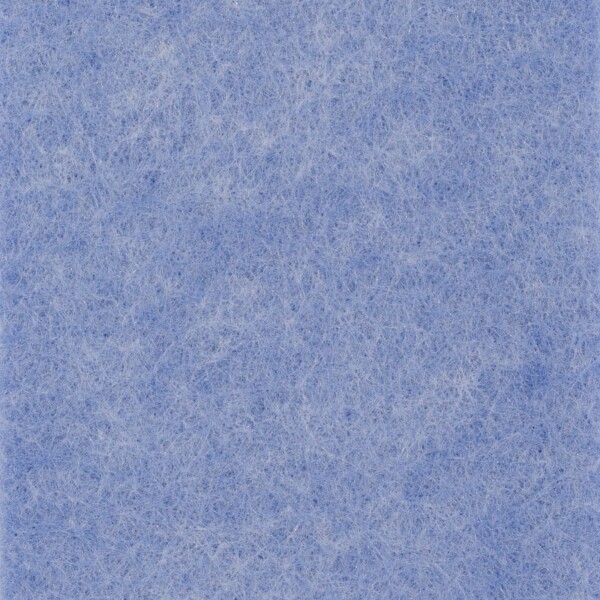

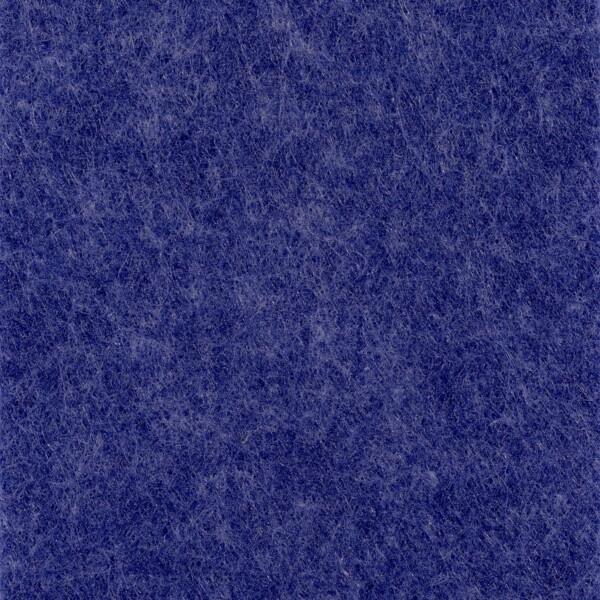

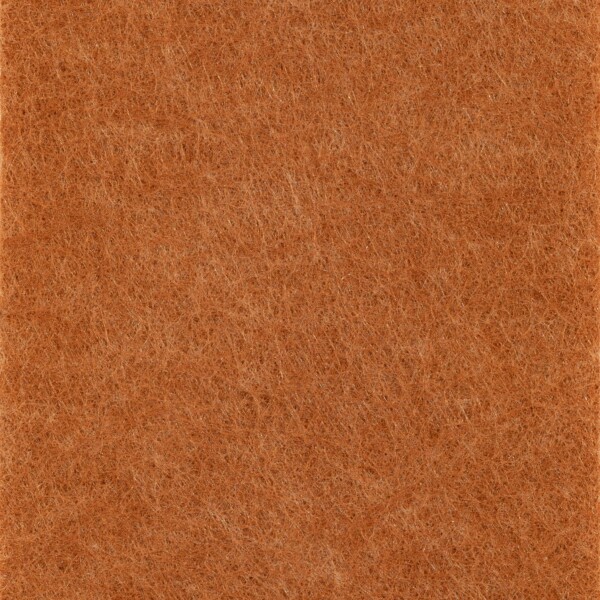

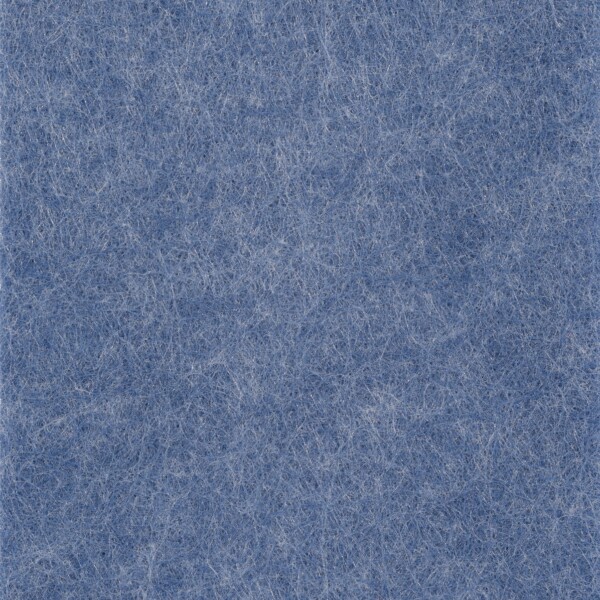

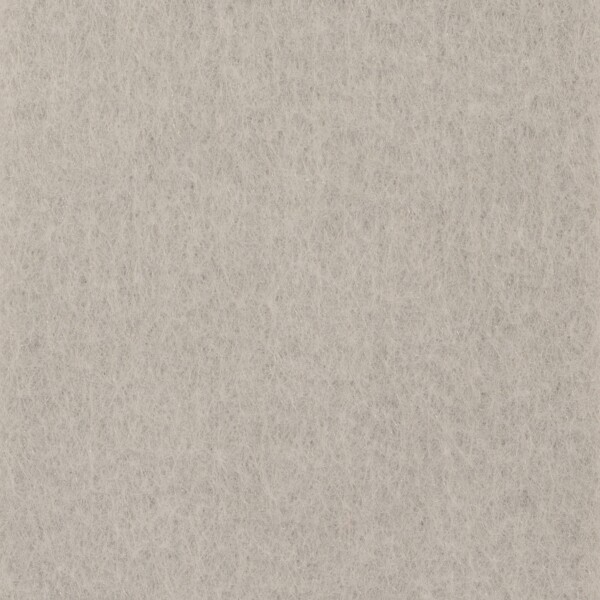

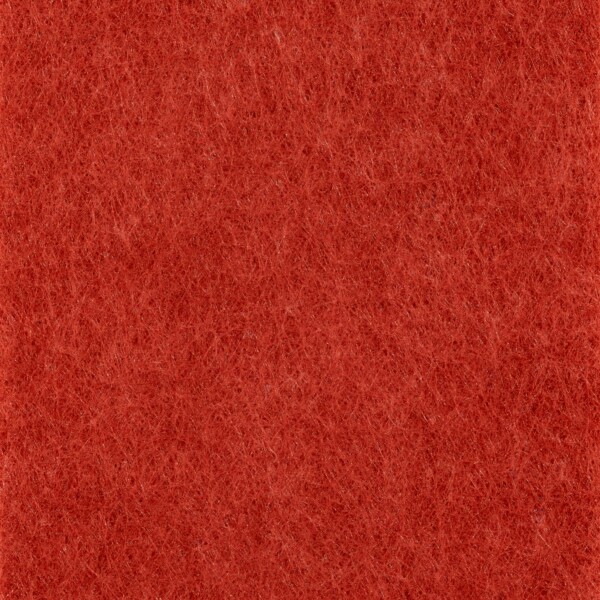

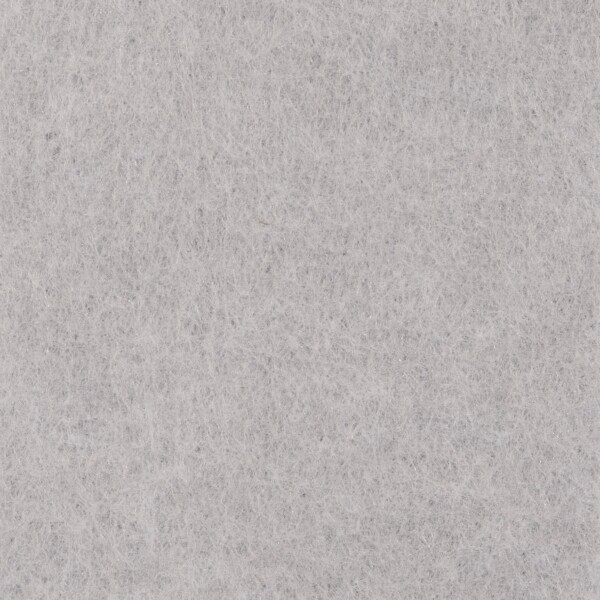

Finishes: 37 standard colors to choose from; 8 'Quick Ship.'
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options: Lengths - up to 8'
Depths - up to 12"
Widths - 1.5", 2" (Minimum width is 1.5")
Installation: Lightweight, pre-assembled & easy to install

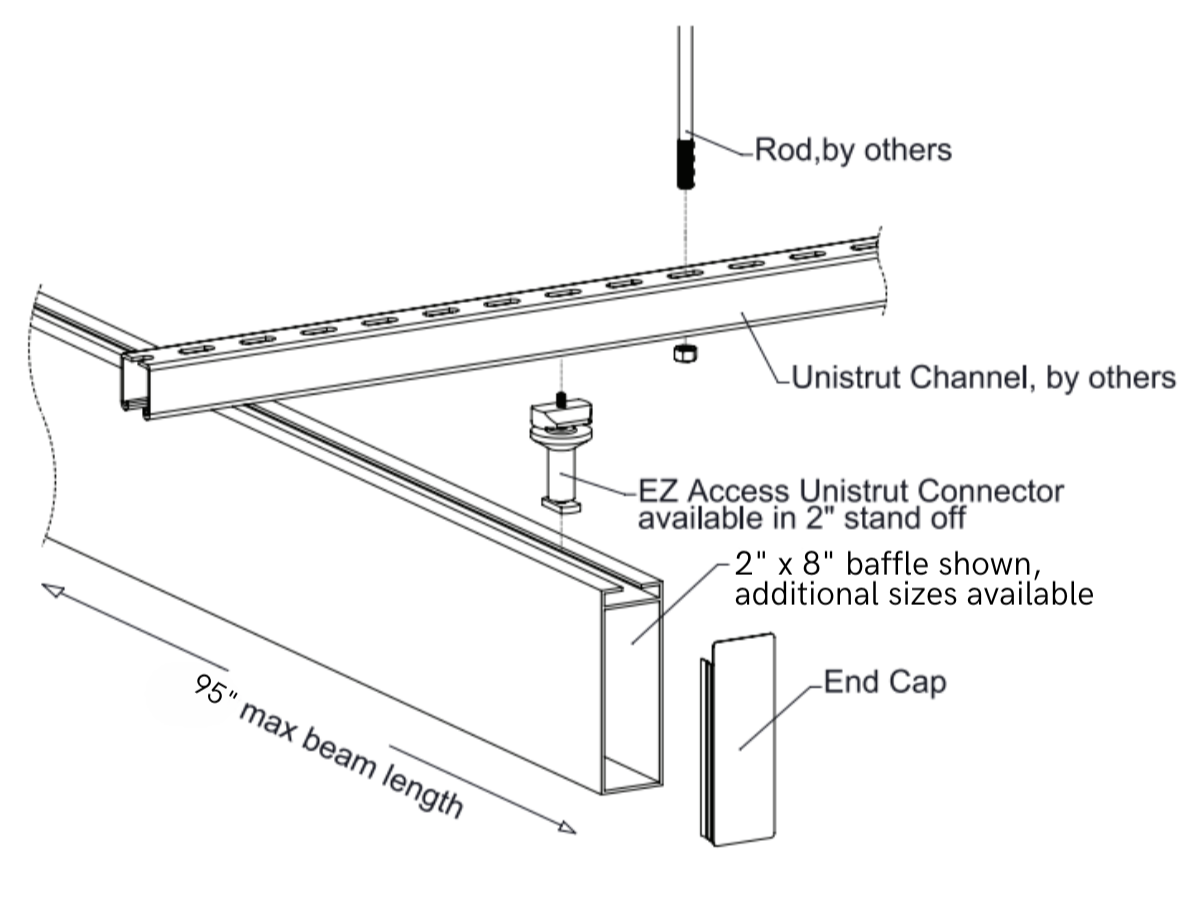

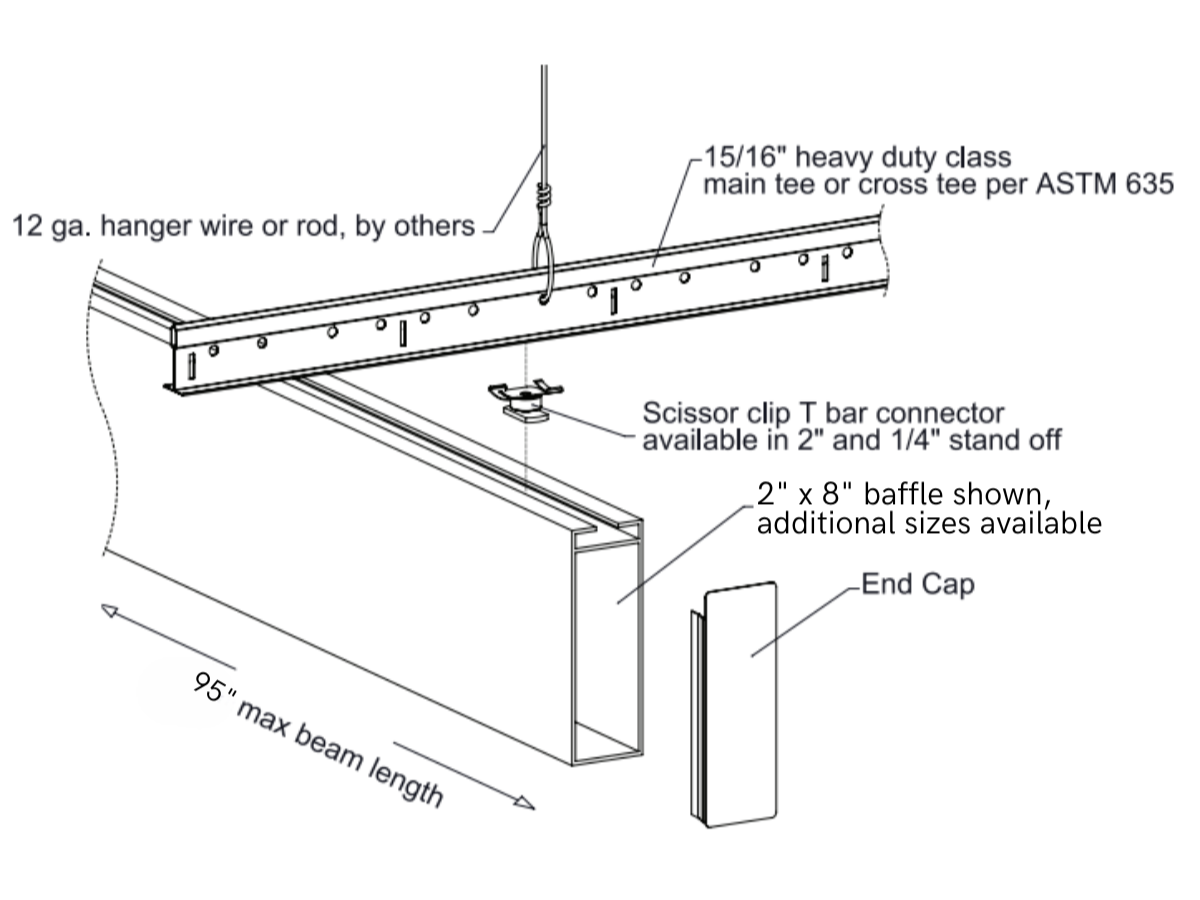

Versatile attachment options for Unistrut®, 15/16” HD Grid and cable-suspended applications
Easy plenum access – attachment hardware allows baffles to slide for easy plenum access and adjustment during installation
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe

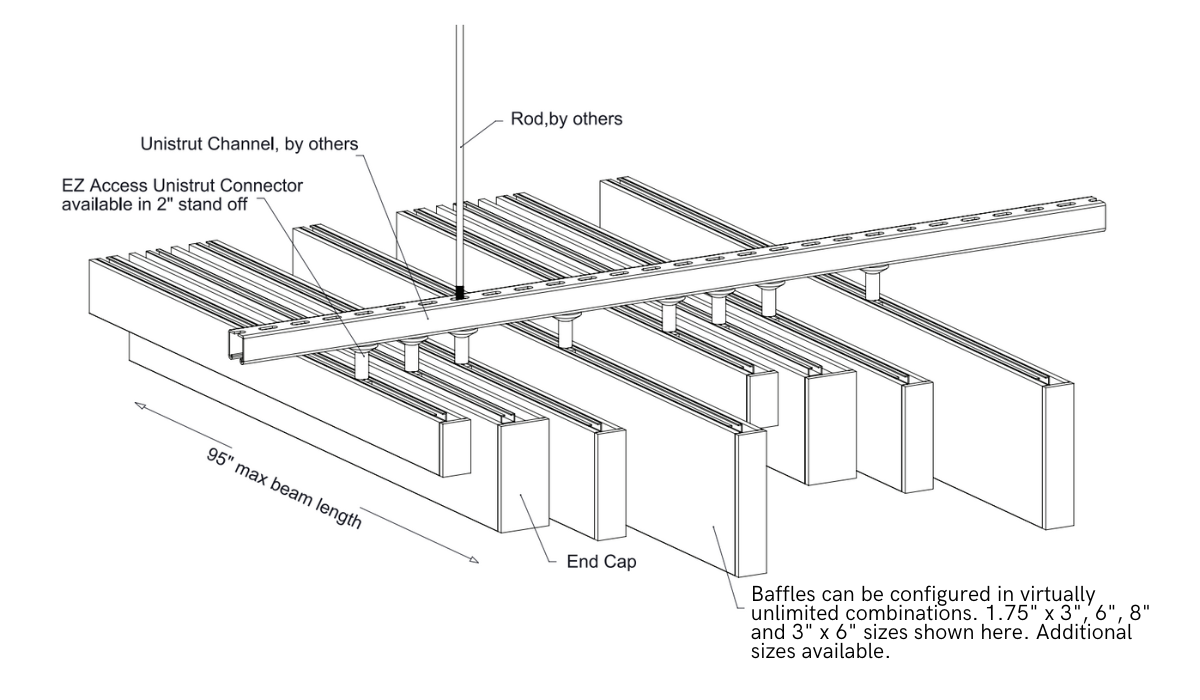

Assembly

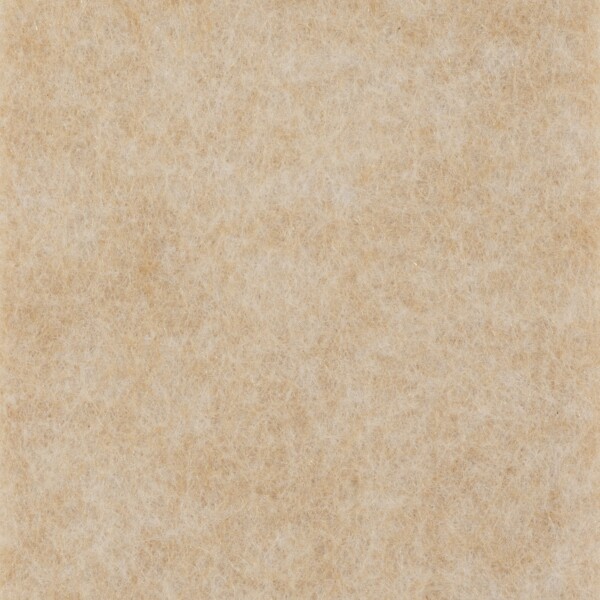

Beige
Grey
White

All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.
