LINE:Form Traditional Extruded Baffle

Specifications

Material

Aluminum (Extruded)

Weight

1.03 - 1.92 lbs. / ln.ft.

Thickness

0.100"

Surface Finish

Laminated Woodgrain Film
Solid Color Powder Coat
Woodgrain Powder Coat

Seismic Performance

This product has been engineered for use in all seismic areas. Installations may require additional attachments. Check with local code officials or a licensed engineer for additional requirements.

Fire Performance

Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.

Applications

Exterior Options Available

LEED Points

• LEED BD+C v4 (MR: Regional & Recycled Materials)
• ID+C EQ: Low-Emitting Materials

Declarations

No VOCs
EPD available

Recycled Content

Aluminum contains up to 80% recycled content

Finishes

Unlimited finish options – custom colors, wood looks, films & wood veneers. 16 standard wood look finishes

Custom Options

Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.

Standard Options

Lengths - up to 12’
Profile Size - 1-3/8”x 3-3/8”
Profile Size - 1-1/2”x 6”
Profile Size - 2”x 6”

Installation

• Lightweight, pre-assembled & easy to install

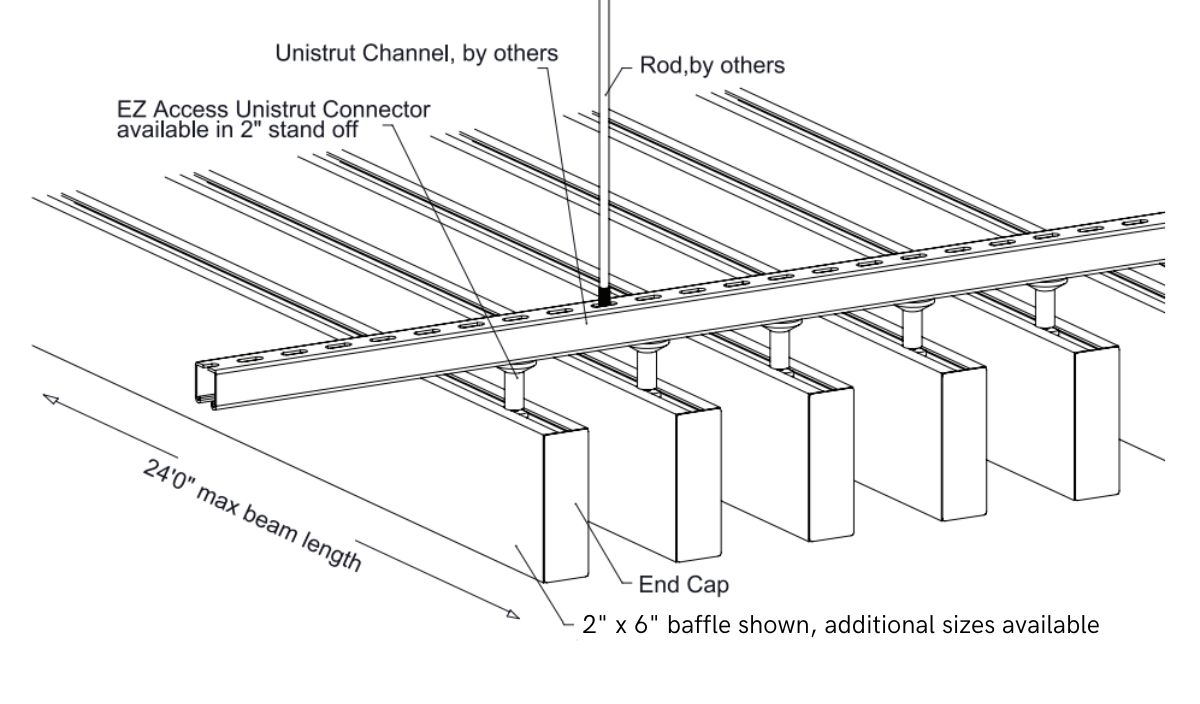

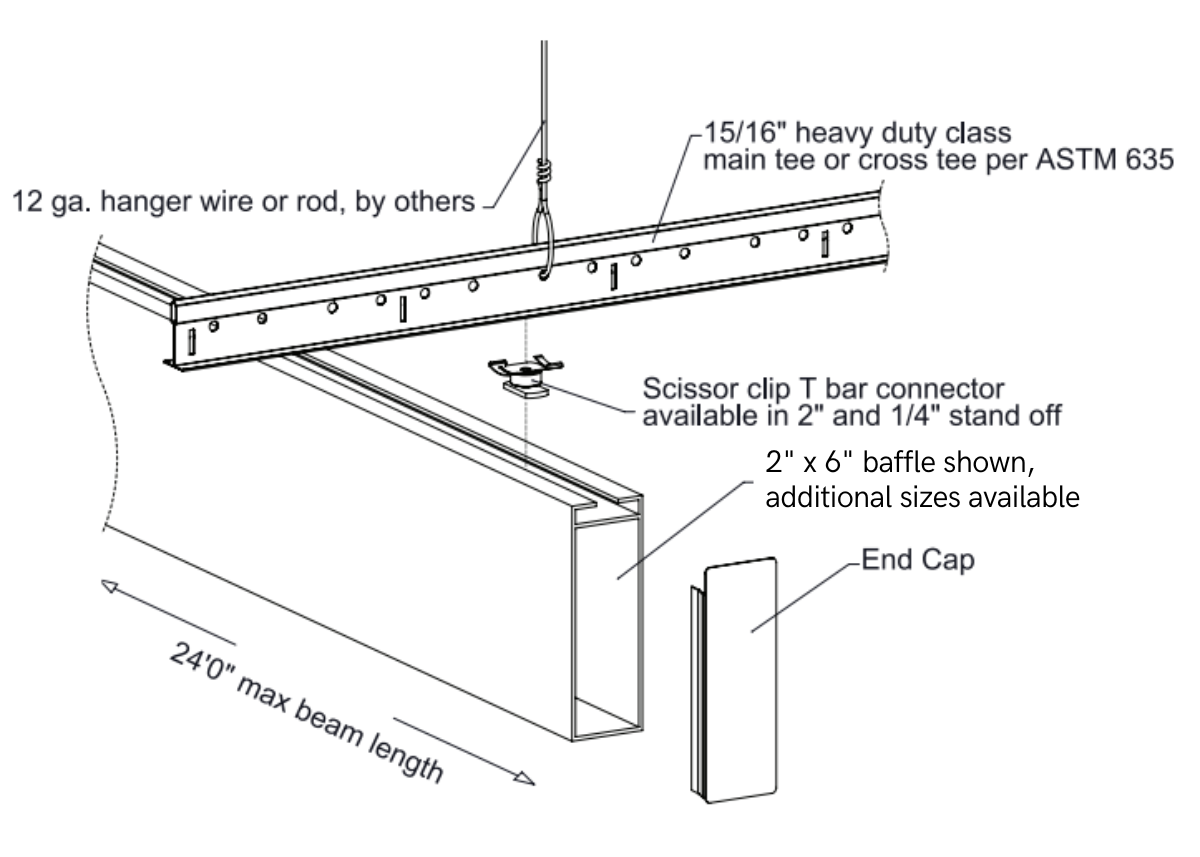

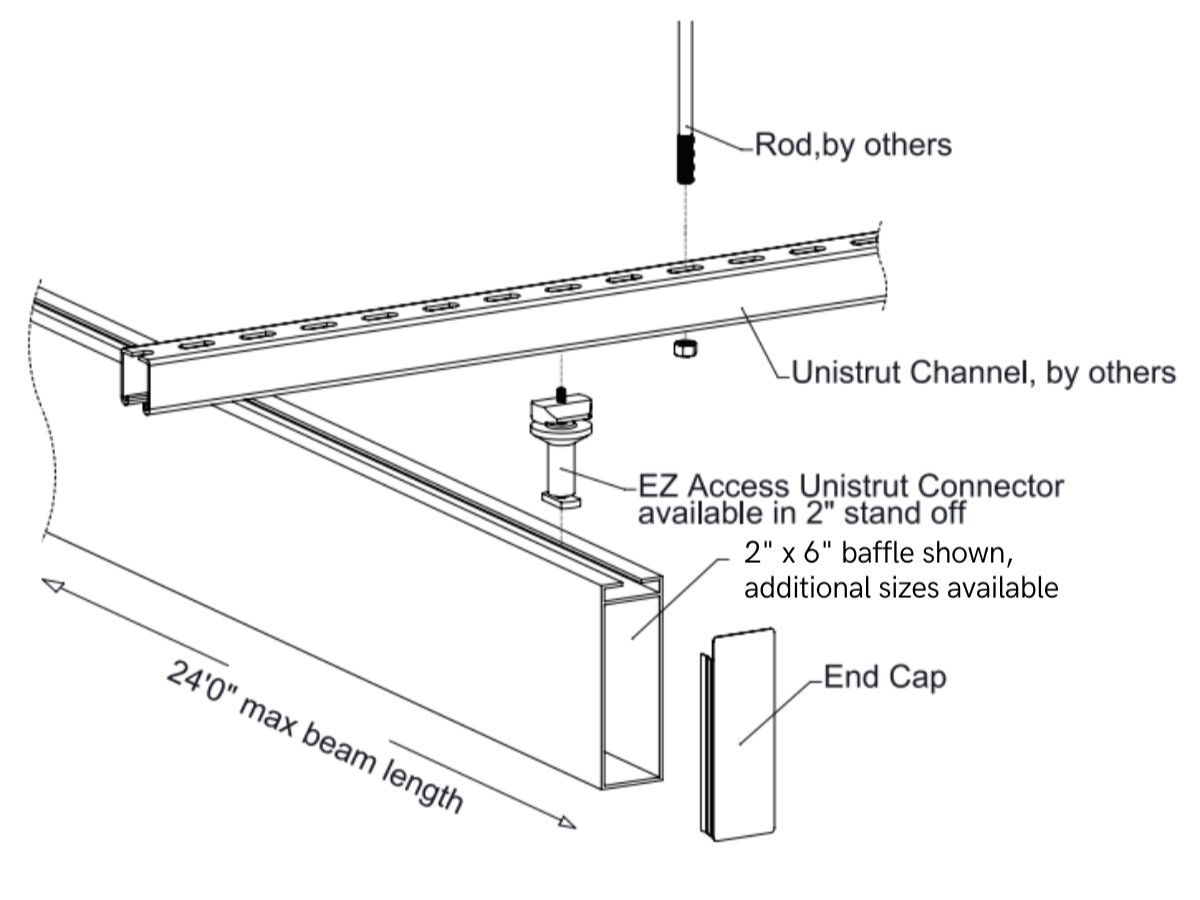

• Versatile attachment options for Unistrut,® 15/16” HD Grid and cable-suspended applications
• Easy plenum access – attachment hardware allows baffles to slide for easy plenum access and adjustment during installation

Care & Maintenance

Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe
