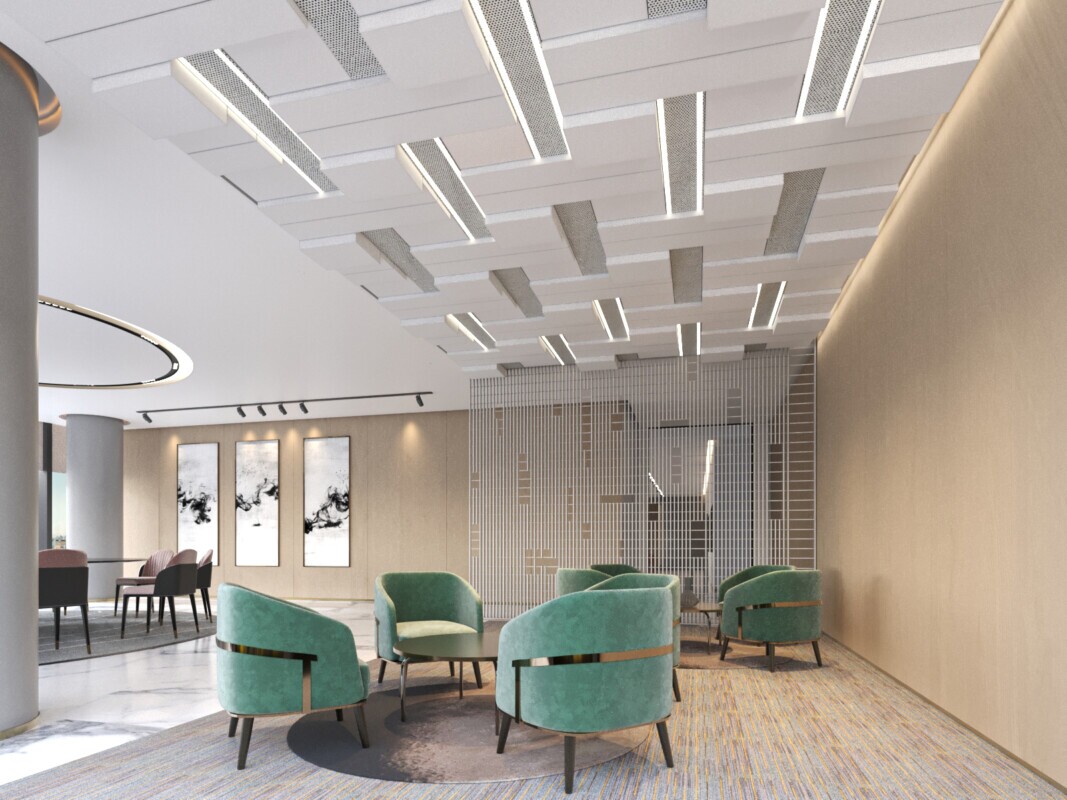

Mozaix Double Weave

Geometric Ceiling Panels

Design features an intricate pattern that intertwines layers of colors or textures, creating a dynamic visual effect reminiscent of woven fabric. This design can be tailored to suit various aesthetics, from contemporary and minimalist to traditional and rustic, making it a versatile choice for interior design projects.

Get Started

Material: Material substrate - Aluminum (Decorative Panels); Galvanized Steel (Suspension Panels)
Weight: Varies from .67 - 1.10 lbs./sq.ft.
Thickness: 0.041" - 0.060" design dependent
Surface Finish: Factory-supplied polyester paint
Available in standard colors, color matched, wood look powder-coated, and laminated
Acoustic Performance: Acoustic Non-Woven - At only 0.01” thickness, acoustic nonwoven offers high degree of sound absorption. Available in white and black. Fire rated Class A - FSI 0 SDI 35; ASTM E84-19a.

1’’ Surface Coated Fiberglass - Greenguard certified, made from strong, glass fibers tightly bonded and protected with a durable glass mat facing that contains an EPA-registered antimicrobial agent; no polywrapping required. Offered in Black. Greenguard Gold version available. Fire rate Class A - FSI 25 SDI 50 ; ASTM E84-19a, CAN/ULC S102.
Seismic Performance: Mozaix™ has been engineered for use in all seismic areas. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: Class A: Tested per ASTM E84. CAN/ULC S102 surface burning characteristics.

LEED Points: LEED BD+C: New Construction v4; MR: Regional Materials; MR: Recycled Content
LEED BD+C: Schools v4; EQ: Acoustic Performance
LEED ID+C: Commercial Interiors v4; EQ: Low-Emitting Materials
Declarations: No VOC’S: No added urea–formaldehyde
Environmental Product Declaration (EDP) available
Recycled Content: Recycled Content - up to 80%

Custom Options: Unlimited finish options - standard and custom solid and wood look colors.
Standard Options: See Configuration Options for available size combinations
Installation: Lightweight and easy to install
Supported by traditional 15/16" HD Grid system
Integrated lighting, HVAC, and sprinkler options available
Torsion spring design allows for easy downward access panel removal
Suspension panels drop into the grid and don't require fasteners
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

Acoustic Performance

Assembly

Material and Finishing Options

Solid Color Paint
Woodgrain Paint
Laminated Woodgrain Film
Standard Perforation

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.
