Fabricated Metal Panel System

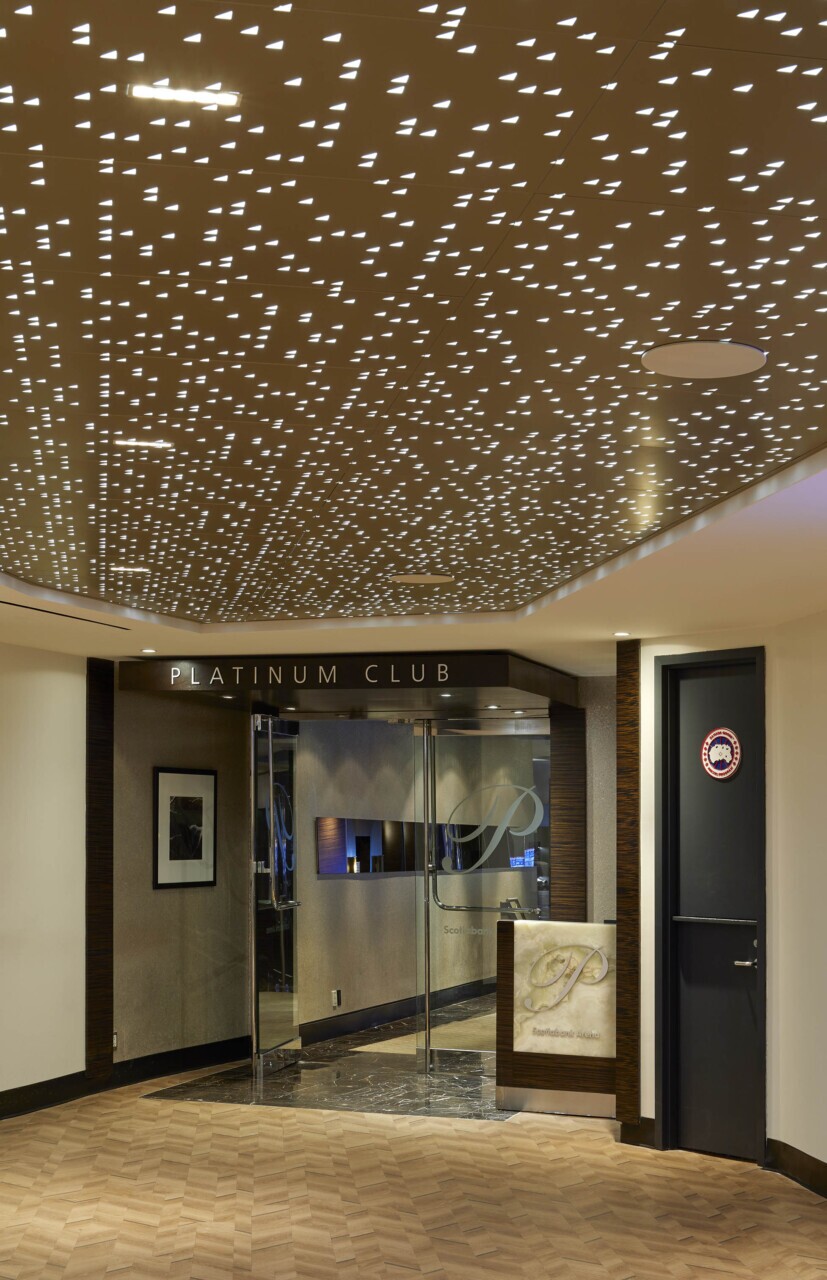

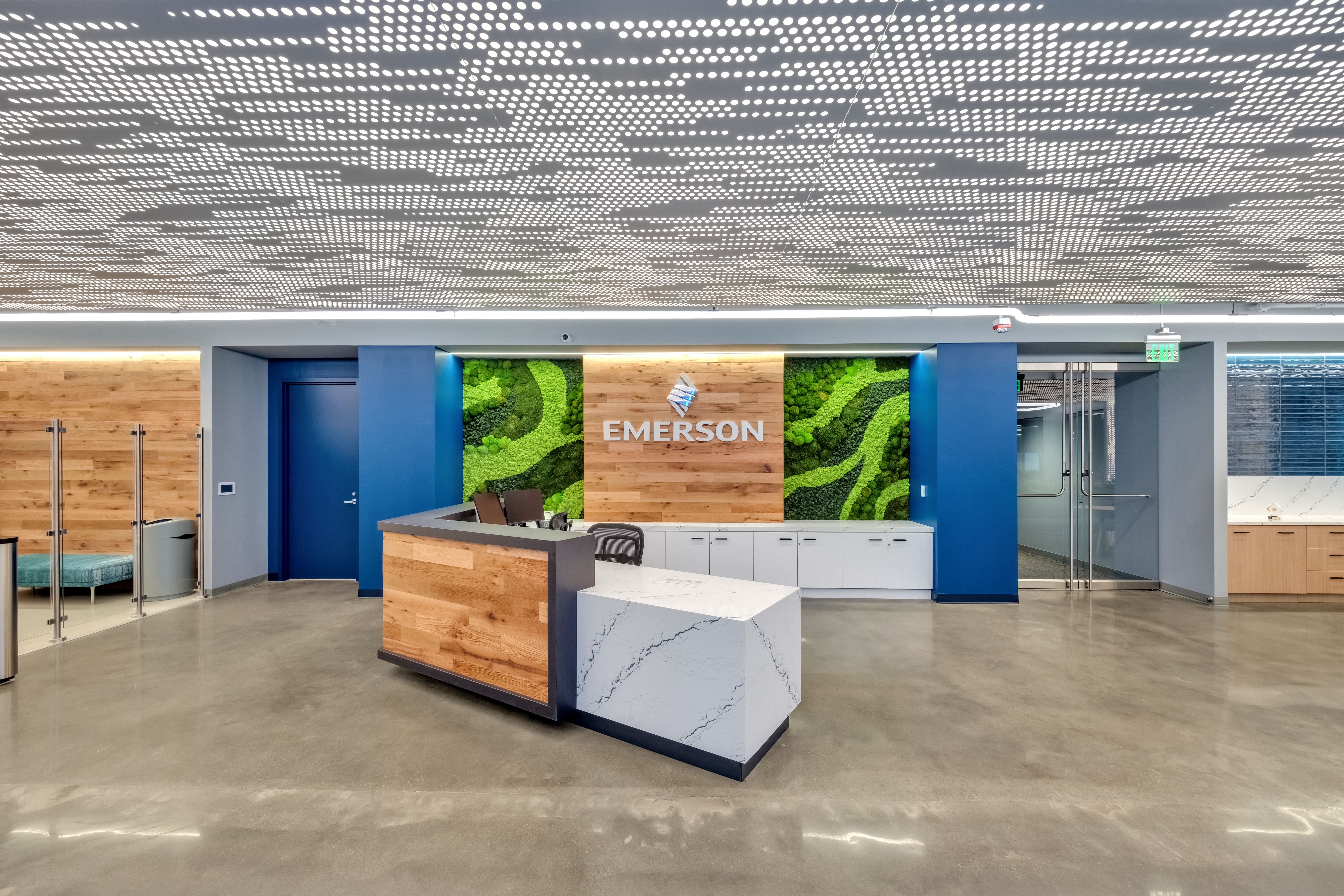

PANEL:Form Backlit Ceiling Panels

Combine perforated shapes and illumination for ceiling & wall designs that make a statement.

Get Started

Resources

Specifications

Product Details
Sustainability
Features

Material: Aluminum | Fabricated
Weight: Varies from 1.0 - 1.5 lbs./sp.ft.
Thickness: 0.041" - 0.060" design dependent
Surface Finish: Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look Powder-Coated and Laminated.
Seismic Performance: Backlit Panels have been engineered for use in all seismic areas. Installations may require additional attachment from panel to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.

LEED Points: LEED BD+C: New Construction v4; MR: Regional Materials; MR: Recycled Content
LEED ID+C: EQ: Low-Emitting Material
Declarations: No VOC’S: No added urea–formaldehyde
EPD ‘Environmental Product Declaration’ for raw material components
Recycled Content: Recycled Content - up to 80%

Finishes: Unlimited finish options - custom colors, wood looks, & films.
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Linear lights can be integrated with backlit panels upon request.

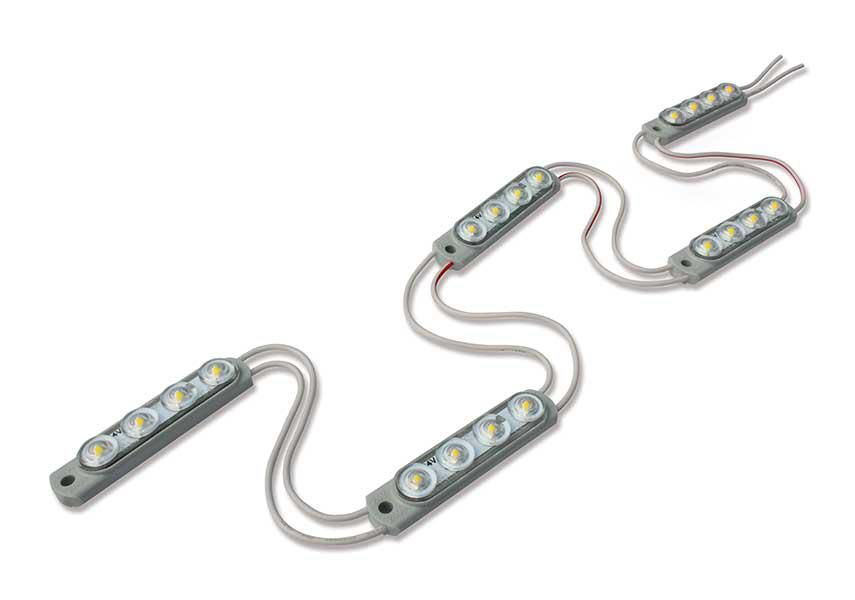

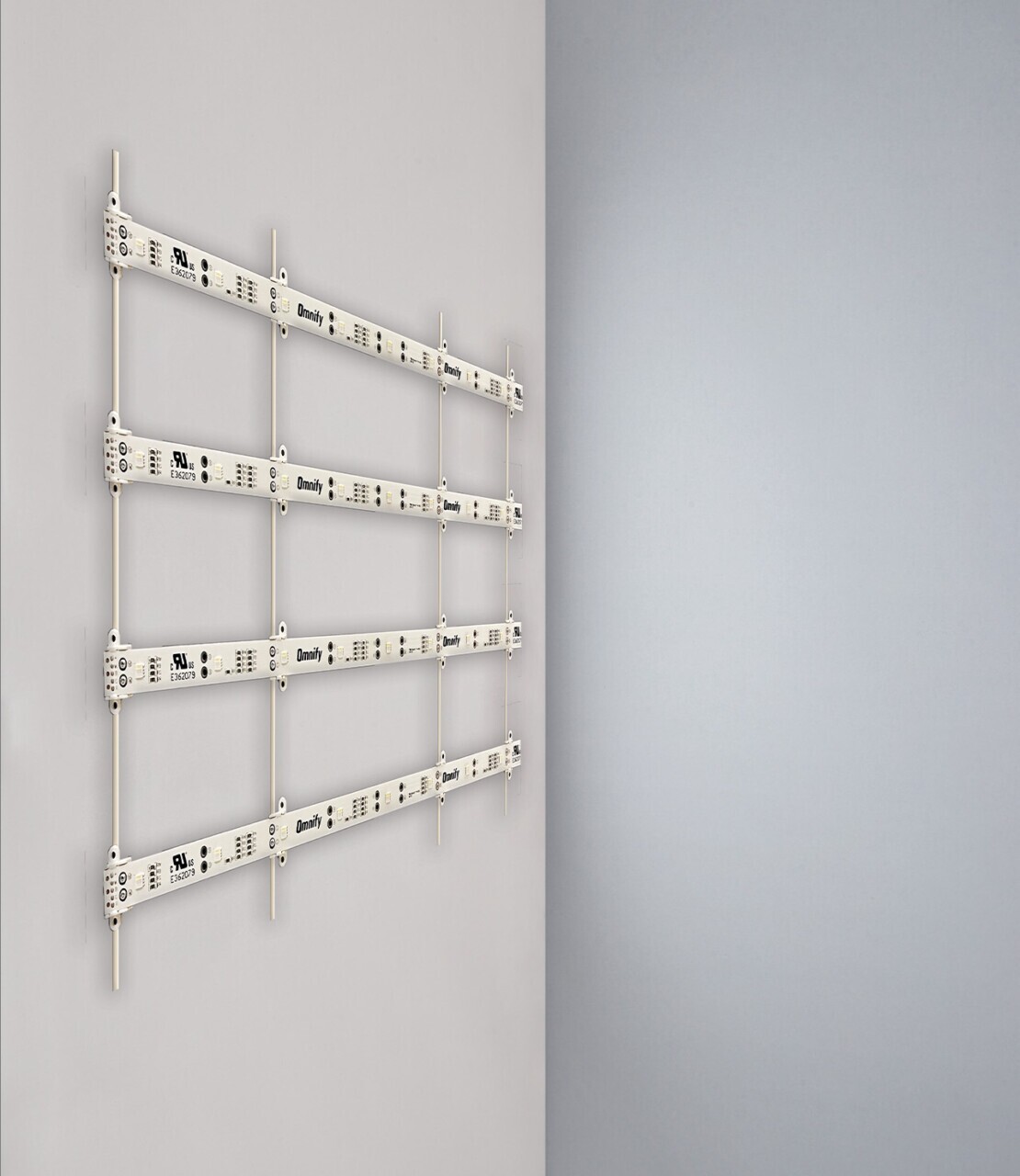

Standard Options: Backlighting options include White and RGBW LED.
Backlighting should not be relied upon as the primary lighting source. Linear lights can be integrated with backlit panels upon request.

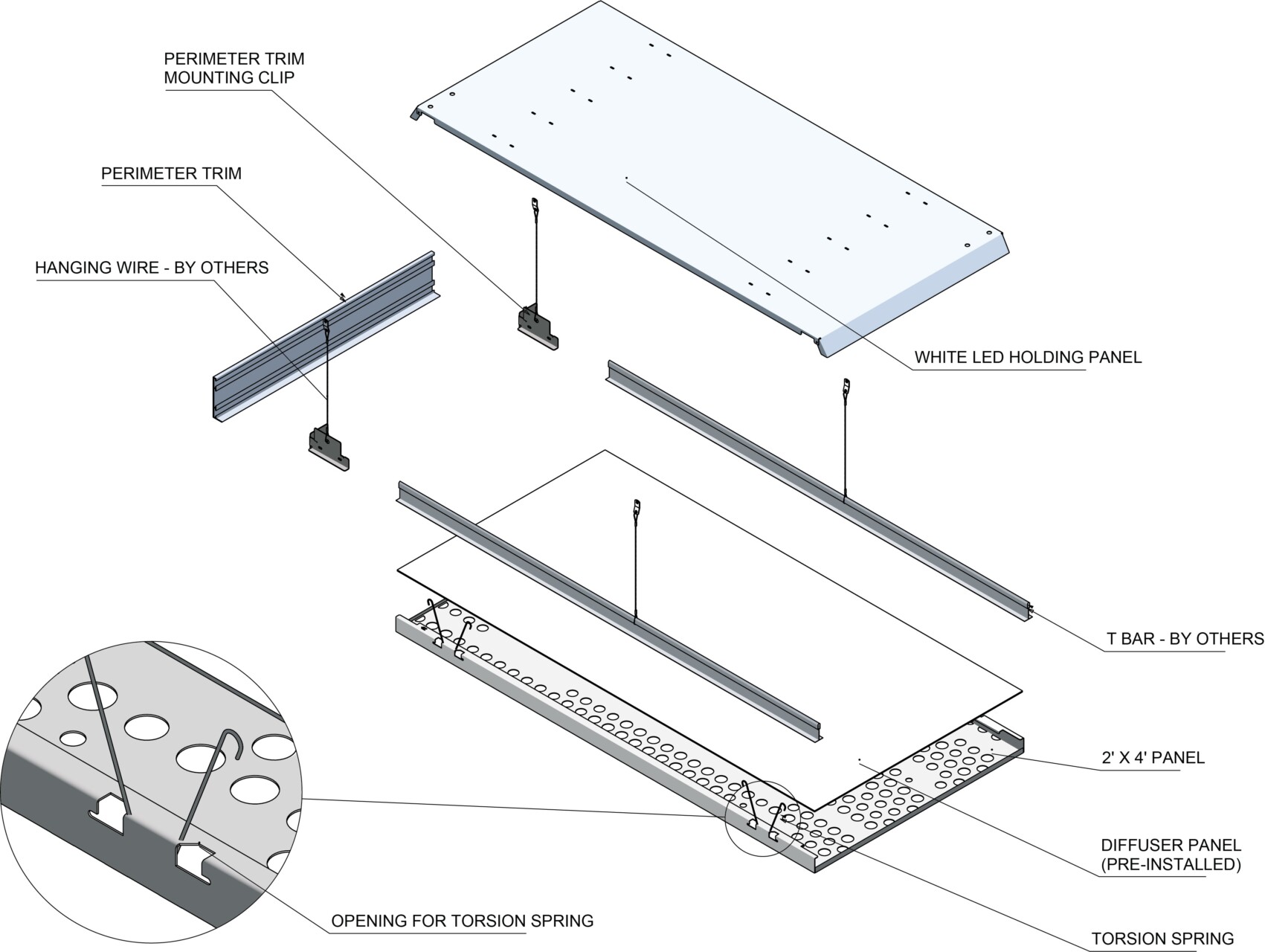

Installation: Lightweight, pre-assembled & easy to install
Attaches to both traditional 15/16" HD Grid and Maxxit's custom suspension system
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

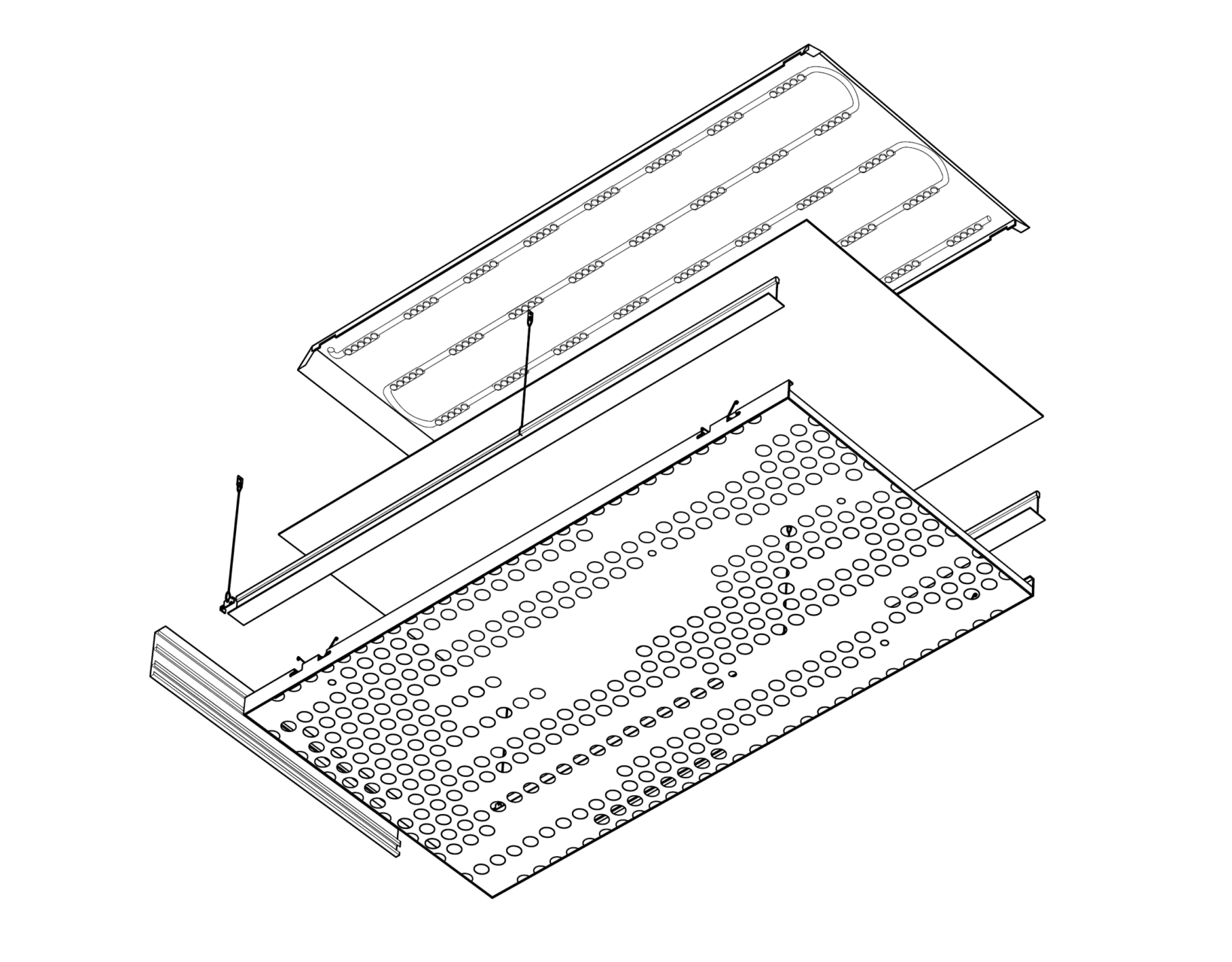

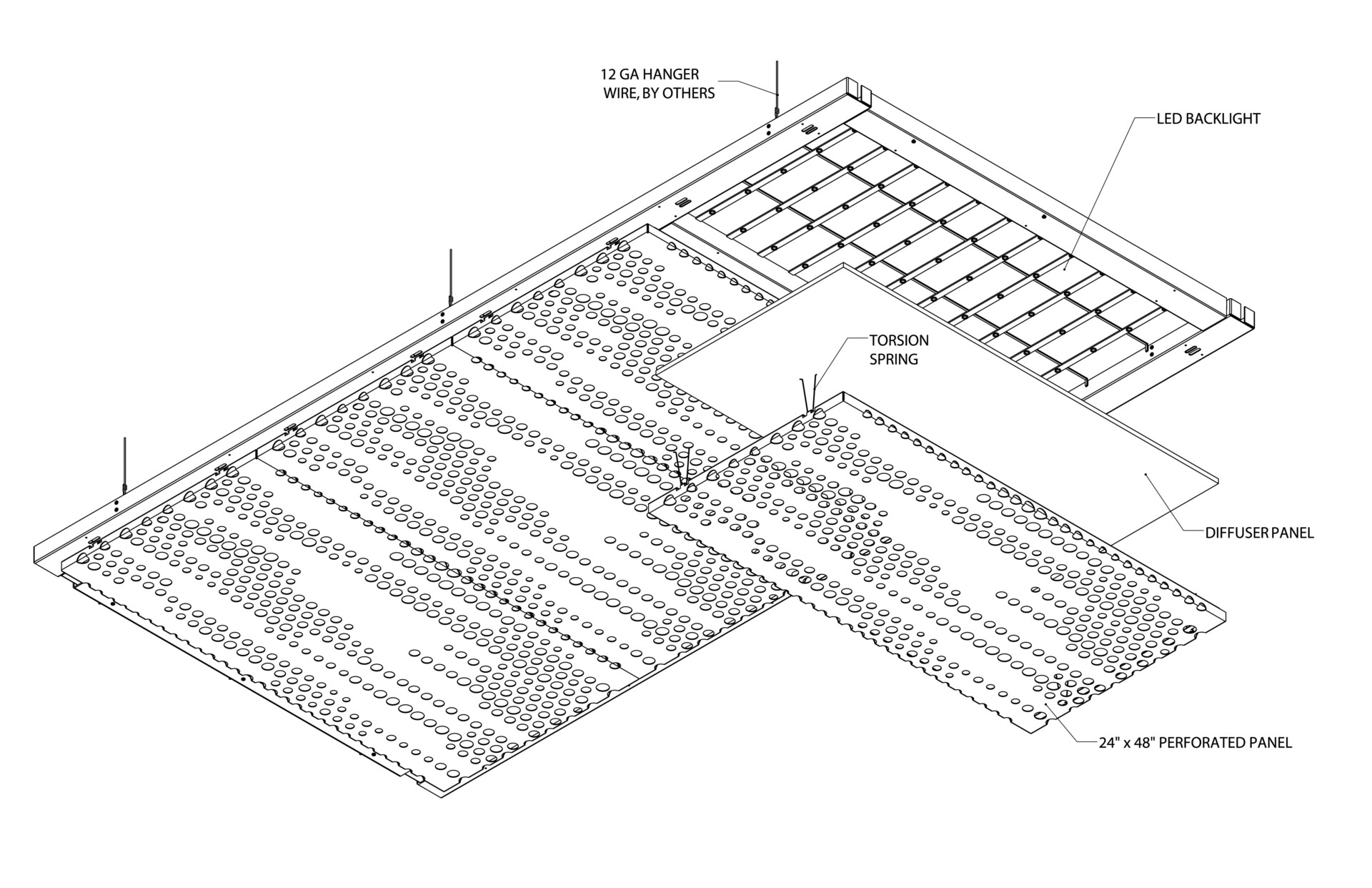

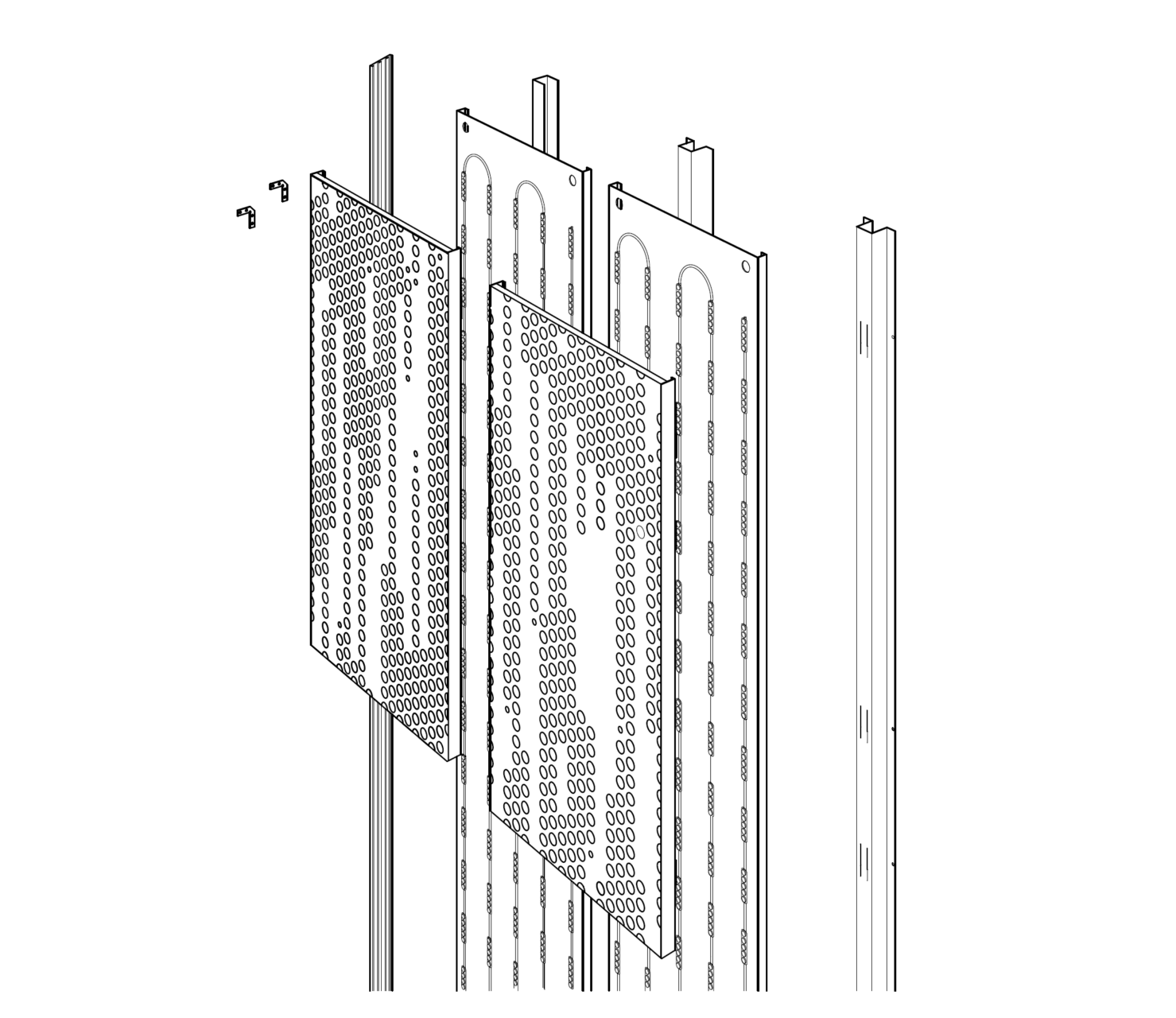

Assembly

Material and Finishing Options

Bonded Metallic Finish (bonded-metallic-finish)

Golden Bronze
Metallic Sterling Silver
Soft Nickel
Blush Copper
Dark Bronze
Forged Charcoal
Gold

(Interior & Exterior) Formaldehyde-Free.

Solid Color Paint (solid-color-paint)

Chalkstone White

2-6 Gloss | LRV 85-86
White

12-20 Gloss | LRV 79-80
Snow White

25-30 Gloss | LRV 83-84
Black

25-35 Gloss
Blush Rose

20 Gloss
Sunrise Yellow

20 Gloss
Forest Green

20 Gloss
Pure Orange

20 Gloss
Tan Straw

20 Gloss
Mid Beige

20 Gloss
Sterling Silver

20 Gloss
Grey

65-75 Gloss

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

Standard Powder Coated Woodgrain Paint Finish (woodgrain-paint)

National Walnut
Chestnut
Rosewood
European Cherry
Knotty Pine
Oak Fine
Maple
American Maple
American Douglas
Teak

Wood look powder coated paint finish

For interior and exterior. Formaldehyde-free.

Standard Laminated (Film) Finish (standard-laminated-film-finish)

Brazilian Walnut
Black Walnut
North Oak
Italian Walnut
Canadian Oak
White Oak
American Natural

For interior use only. Formaldehyde-free.

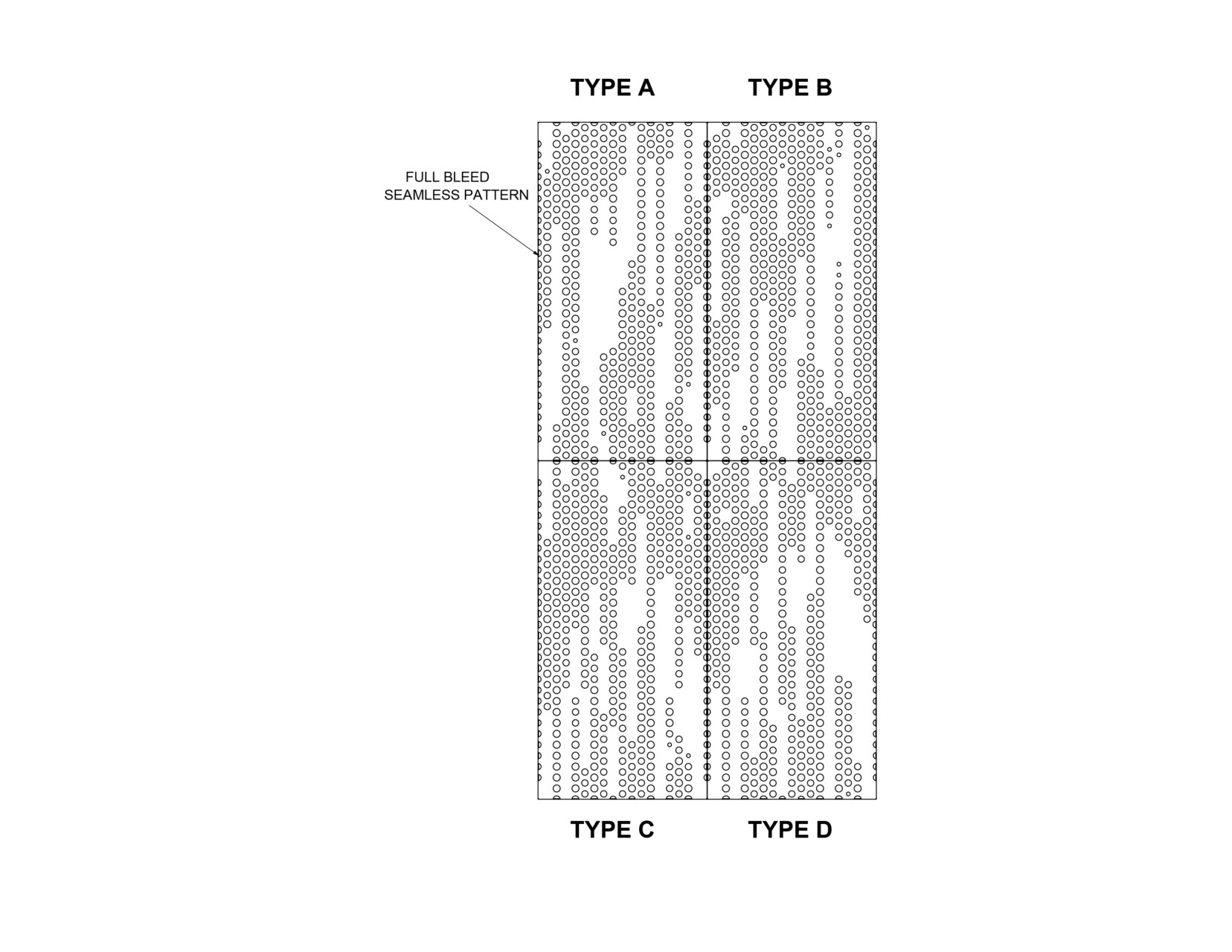

Design Perforated Patterns (design-perforated-patterns)

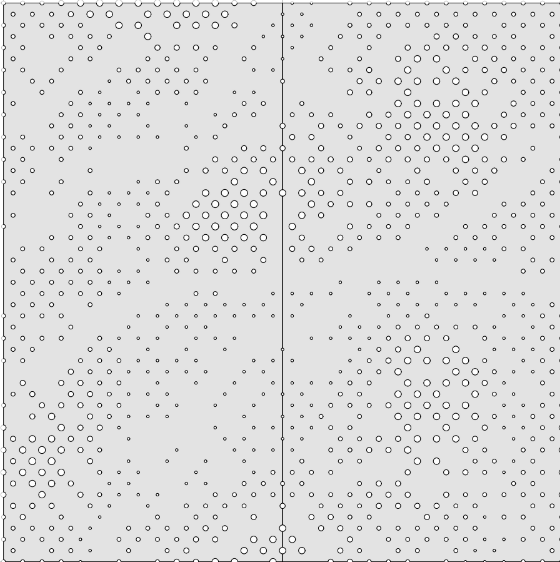

Woodland

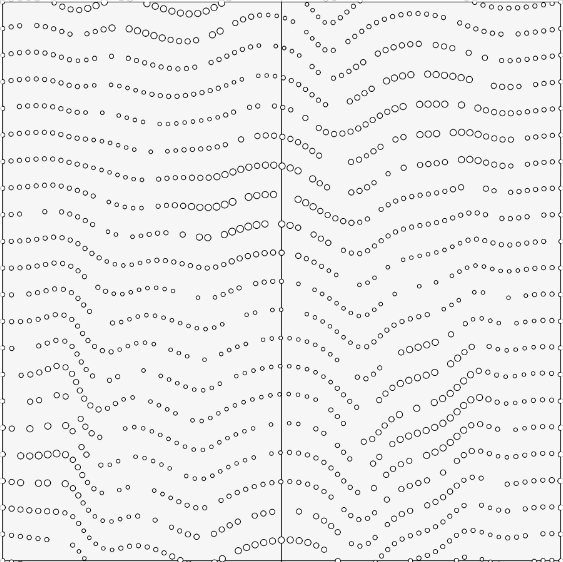

Ripple

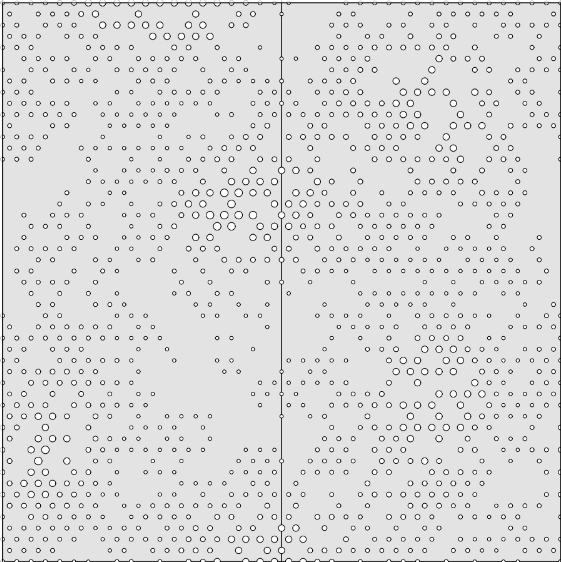

Nebula Mist

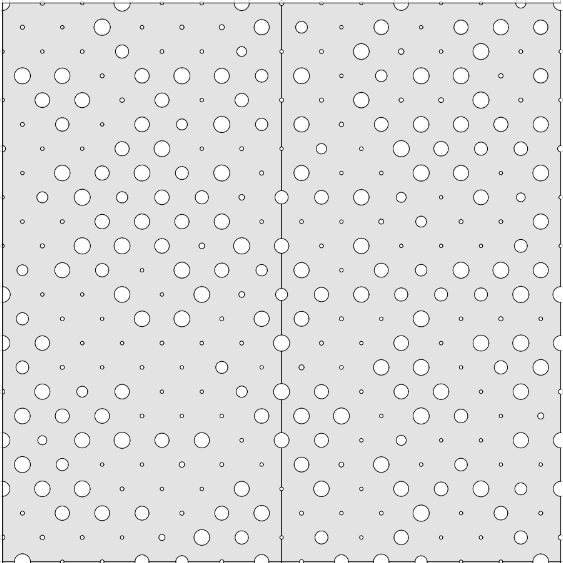

Starlight

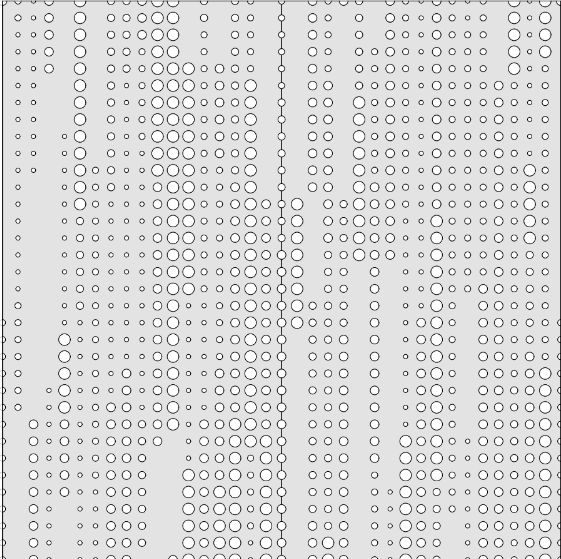

Bitstream

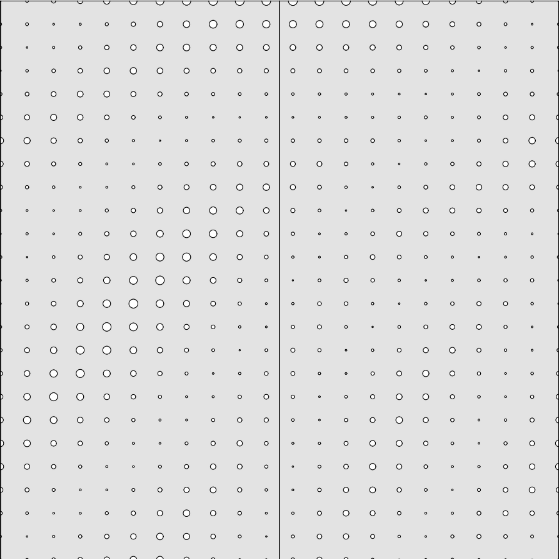

Aqua Flow

Six distinct design families, each with customizable parameters. Whether it’s adjusting hole diameter, pattern density, or scale, we can create virtually endless variations of each pattern to suit individual needs and preferences.
