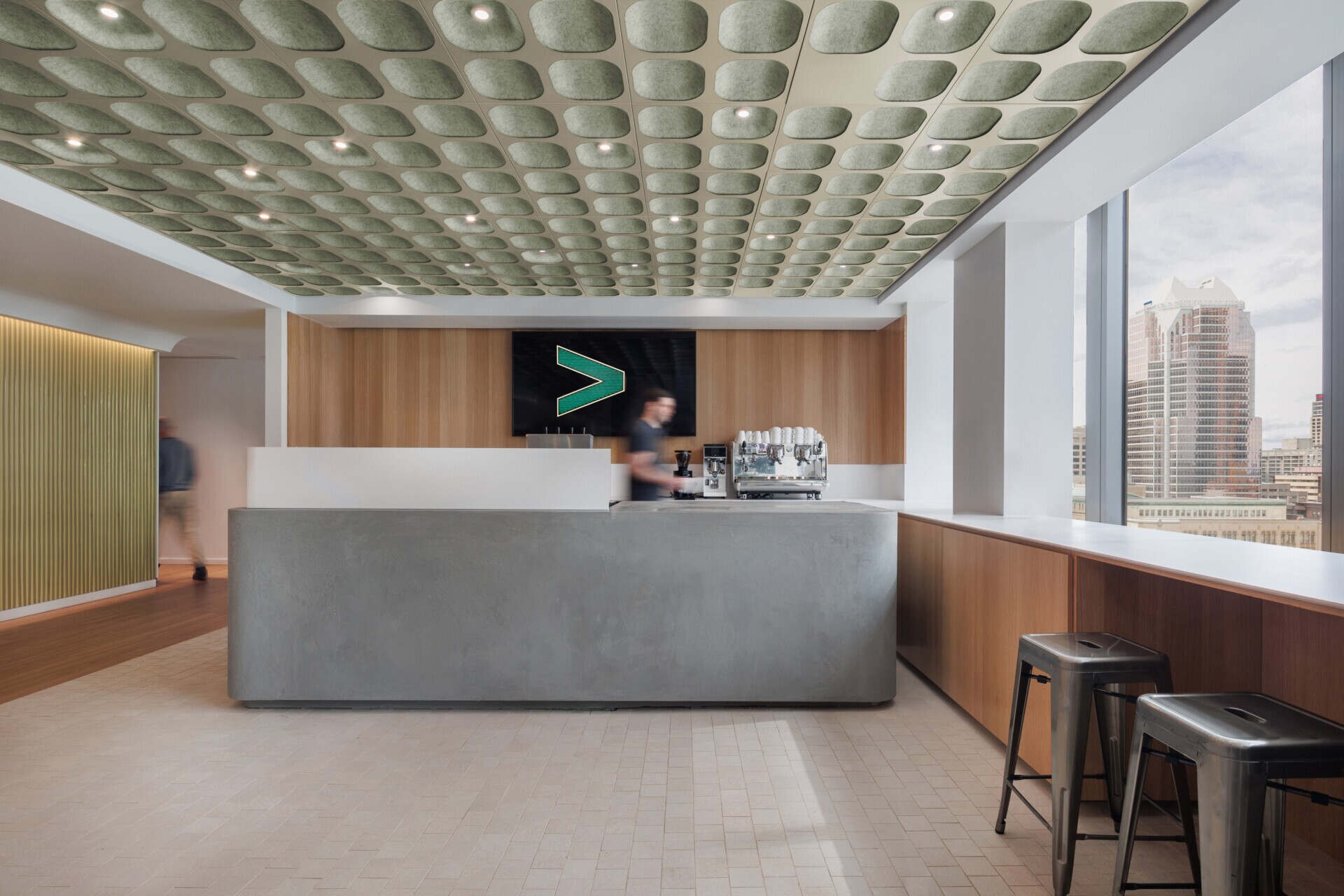

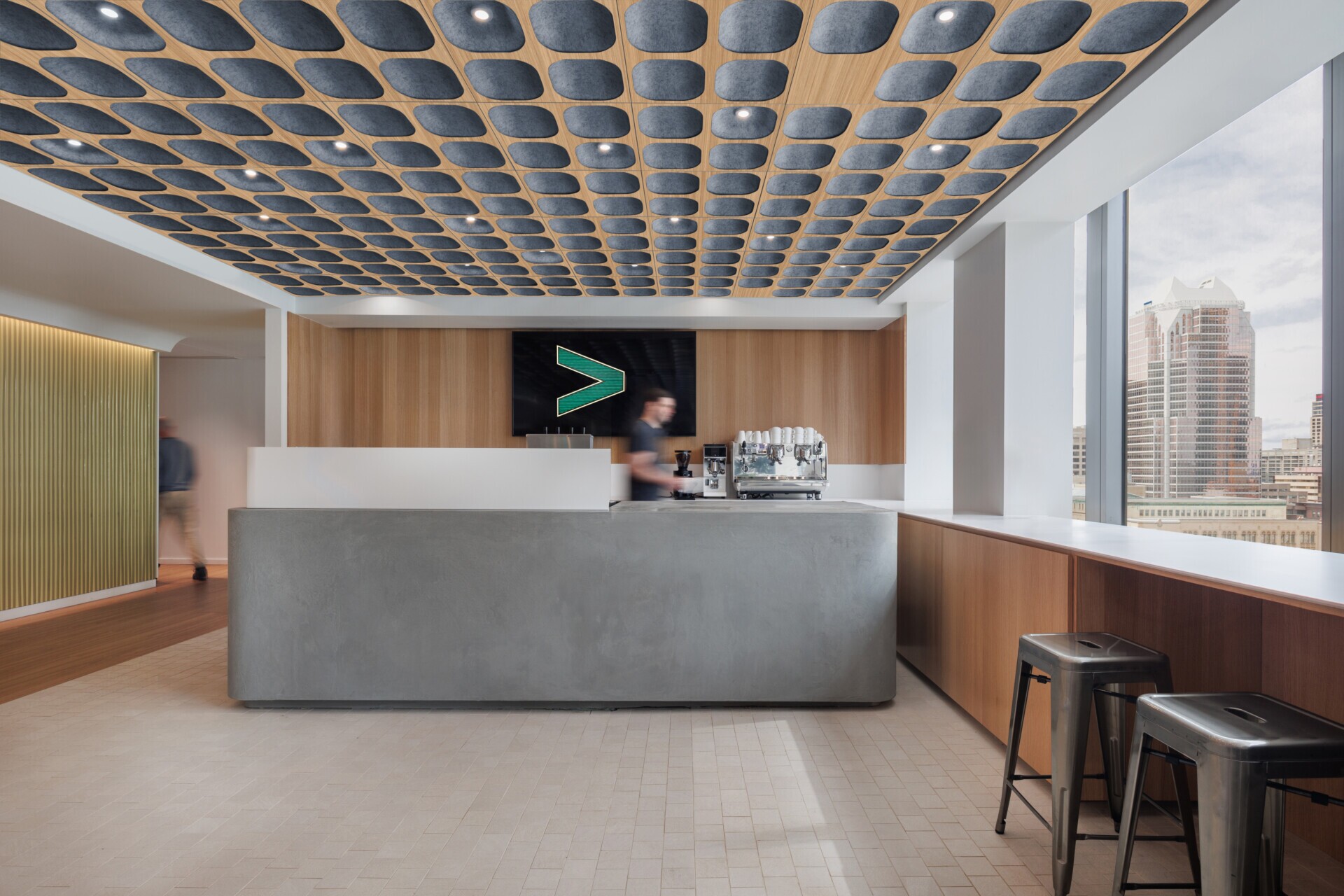

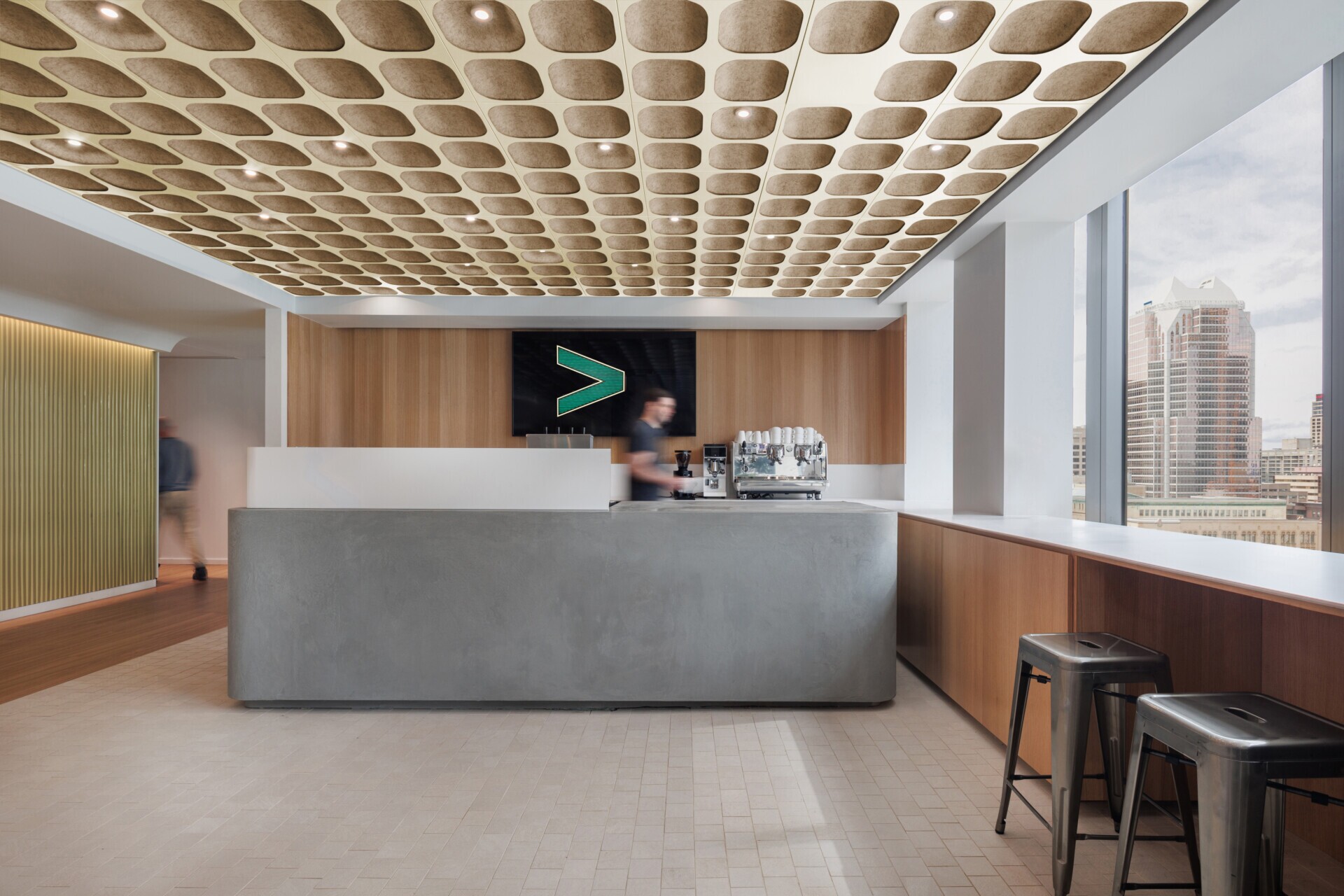

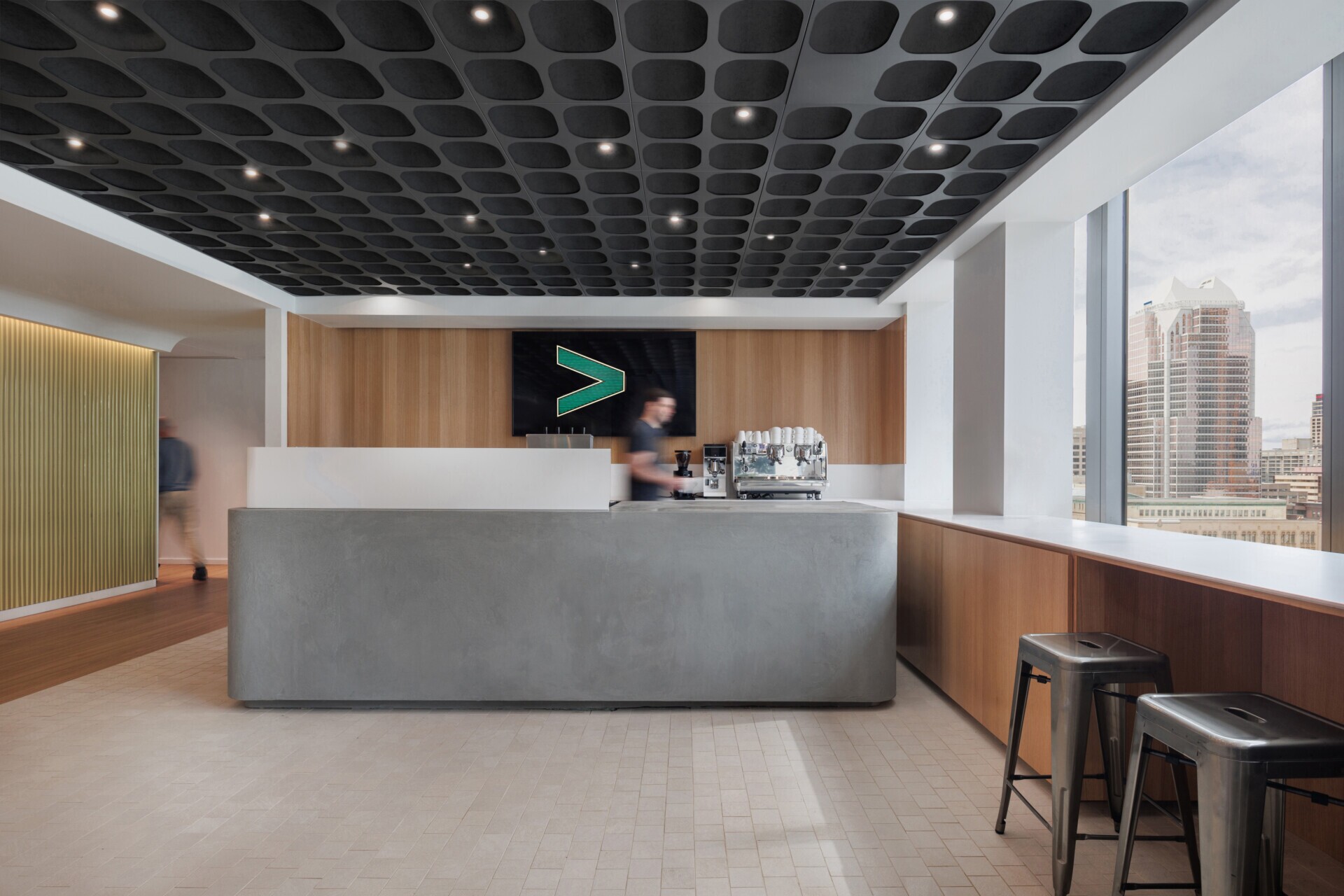

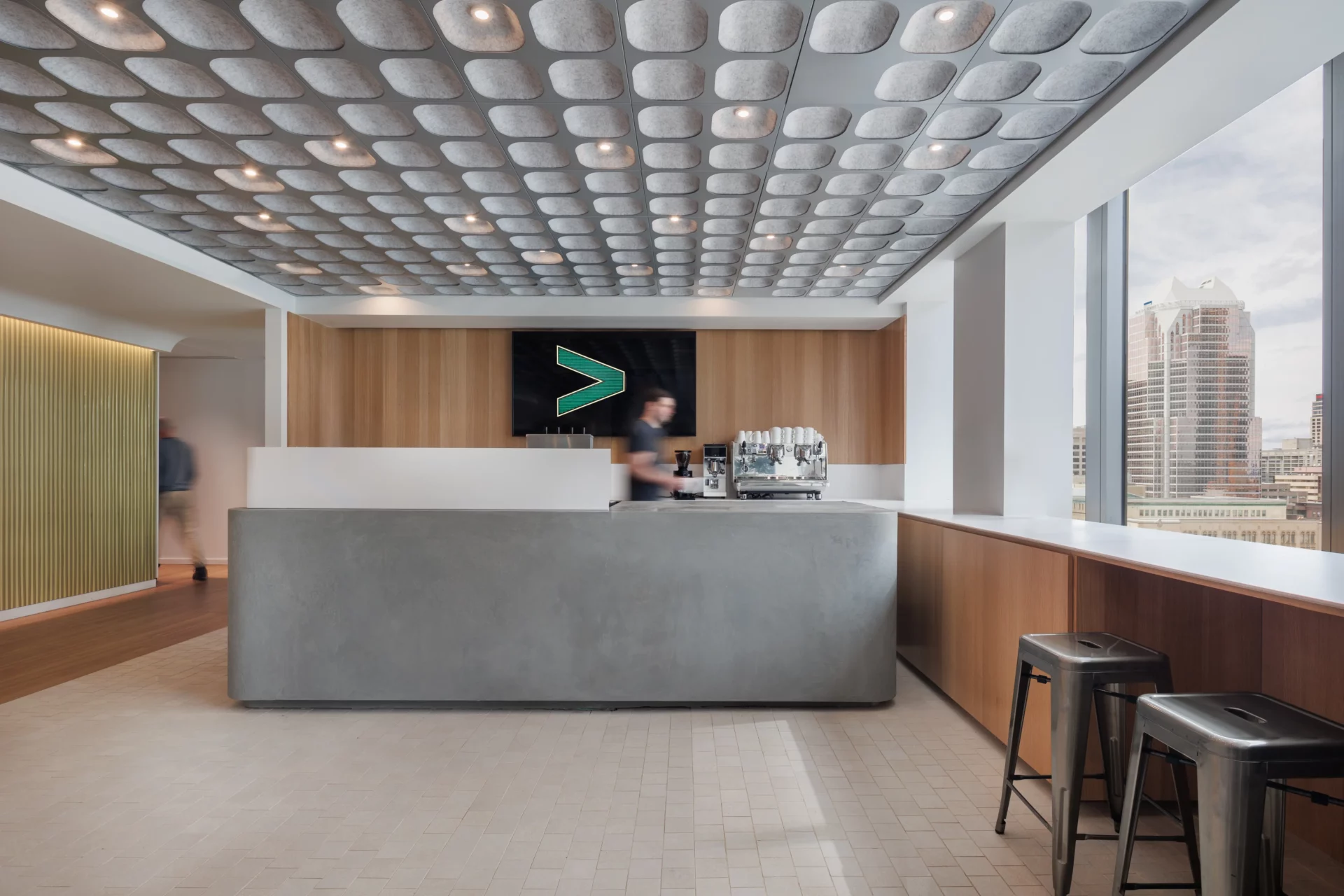

PANEL:Form Concave Ceiling Panels
Integrate metal and felt materials to enhance acoustic performance, durability and aesthetic appeal in modern interior spaces.
Specifications
- Material
- (PET) acoustic felt, 18 ga aluminum
- Weight
- 0.09 lbs./sq.ft.
- Thickness
- Felt thickness – 3/8”
- Surface Finish
- (Aluminum) - Factory-applied polyester paint. Available in Standard Colors, Color Matched
Finish (Felt) - 30+ colors to choose from - Acoustic Performance
- NRC = 0.85 per ISO 11654
- Seismic Performance
- Silentia has been engineered for use in all seismic areas. Check with local code officials or a licensed engineer for additional requirements.
- Fire Performance
- Class A per ASTM E84, CAN/ULC
- LEED Points
- METAL: LEED BD+C v4 (MR: Regional & Recycled Materials) ; Schools EQ: Acoustic Performance ; ID+C EQ: Low-Emitting Materials
- FELT: BD+C v4 (MR: Product Disclosure, Recycled Content) ; Schools EQ: Acoustic Performance
- Declarations
- No VOCS
EPDs available
GREENGUARD Gold certified
- Recycled Content
- Aluminum contains up to 80% recycled content & up to 60% post-consumer PET felt
- Finishes
- - Combines metal and felt materials, featuring a curved shape that enhances both acoustic performance and aesthetic appeal.
- Lighting integration – panels can be equipped with pot lights through a cutout placed in the center of the felt cavity (prespecified or cut on site).
- Integrates standard diffusers and sprinklers.
- Trim options include field-trimmable panels in either all aluminum or with a flat felt inlay. Angle cell brackets and push-down clips are included.
- Easy plenum access - torsion spring design allows for easy downward access panel removal. Panels remain hinged to suspension to avoid damage. - Custom Options
- Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
- Standard Options

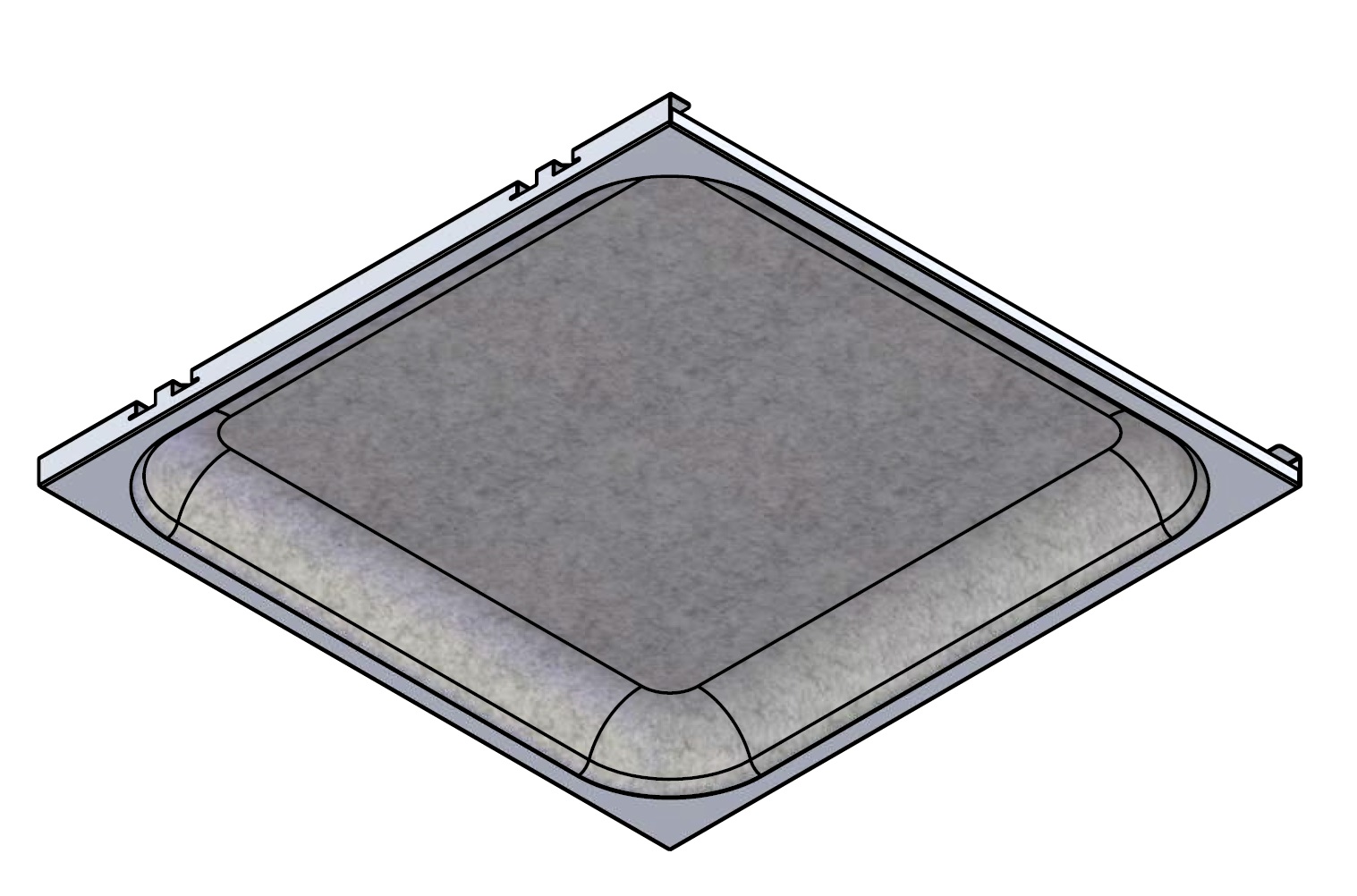

- 2’ x 2’ panel (solo configuration)

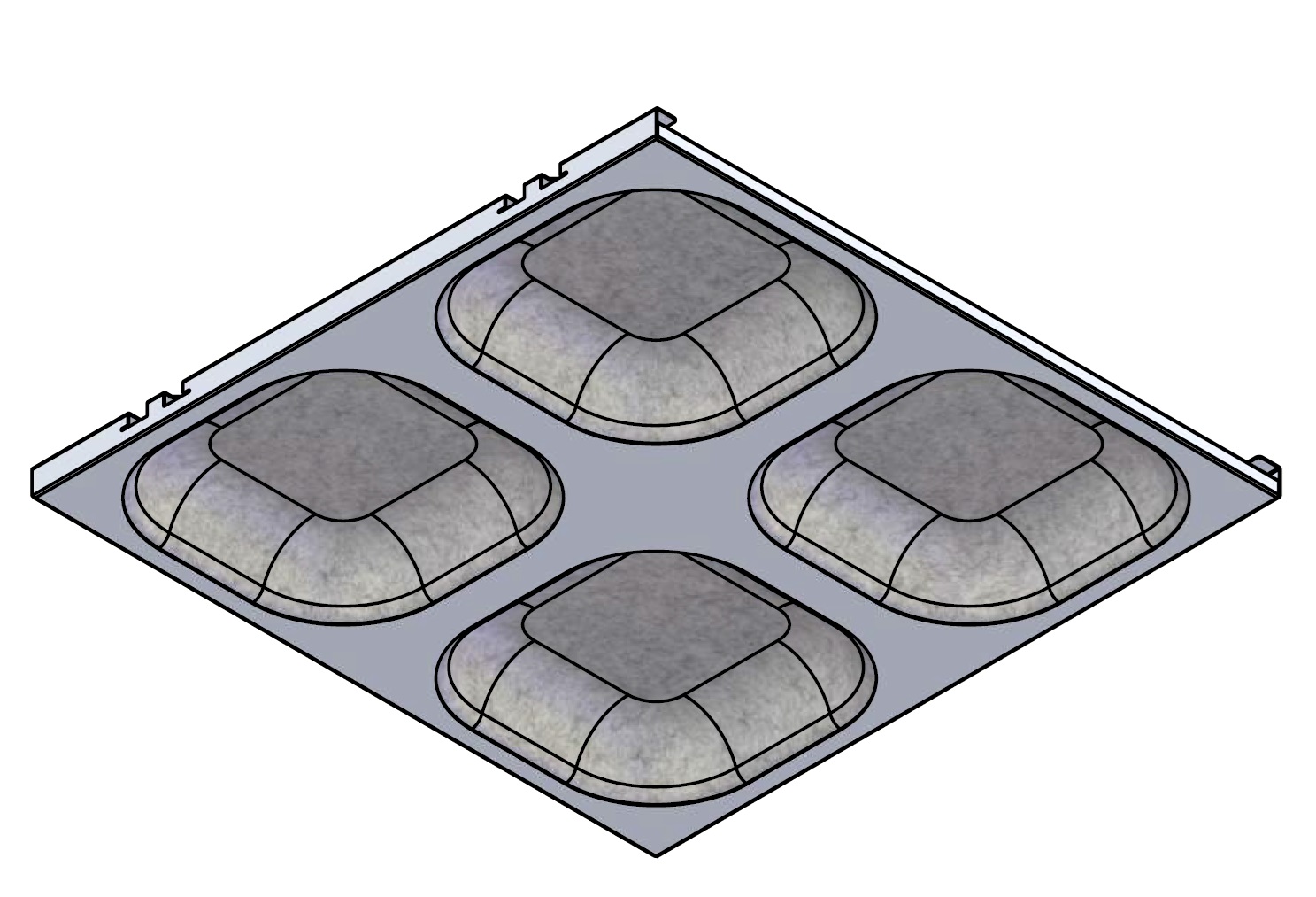

2’ x 2’ panel (quad configuration)

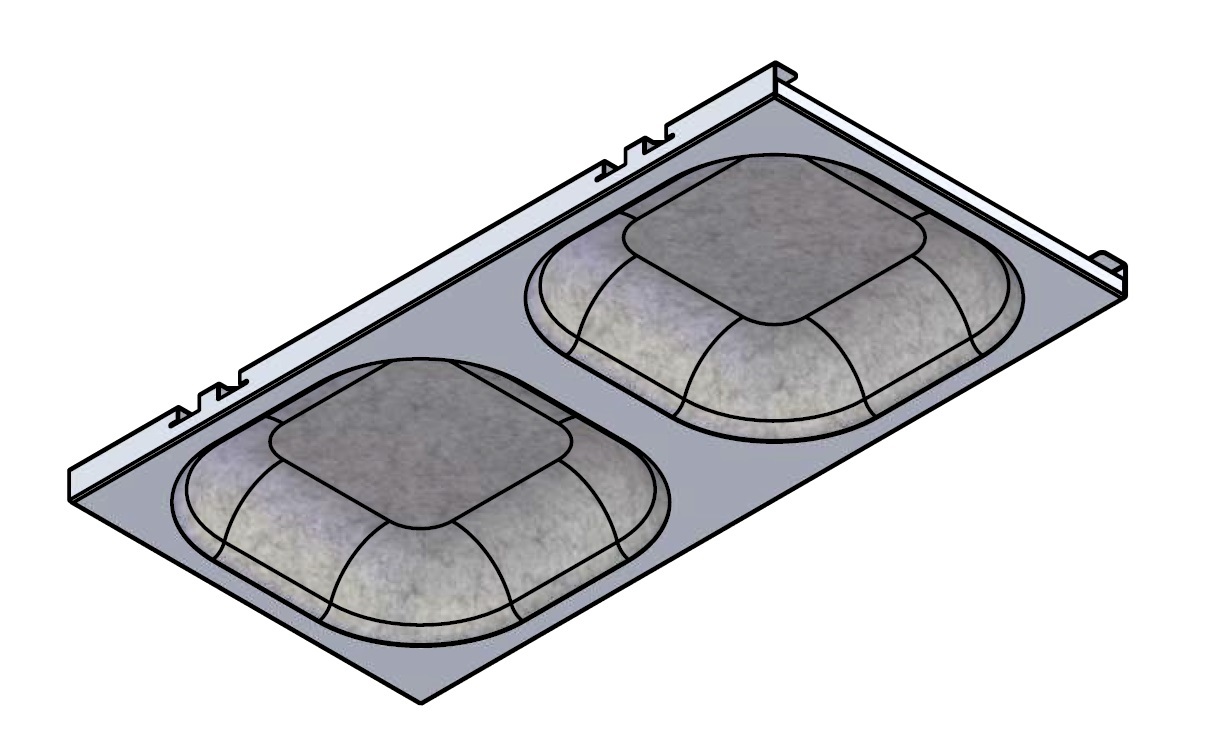

2’ x 1’ panel (duo configuration) - Installation
- Self locating mounting brackets make for easy installation.
- Torsion spring attachment to most standard T-bar grids (supplied by others). T-bar can be exposed or concealed.
- Care & Maintenance
- Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

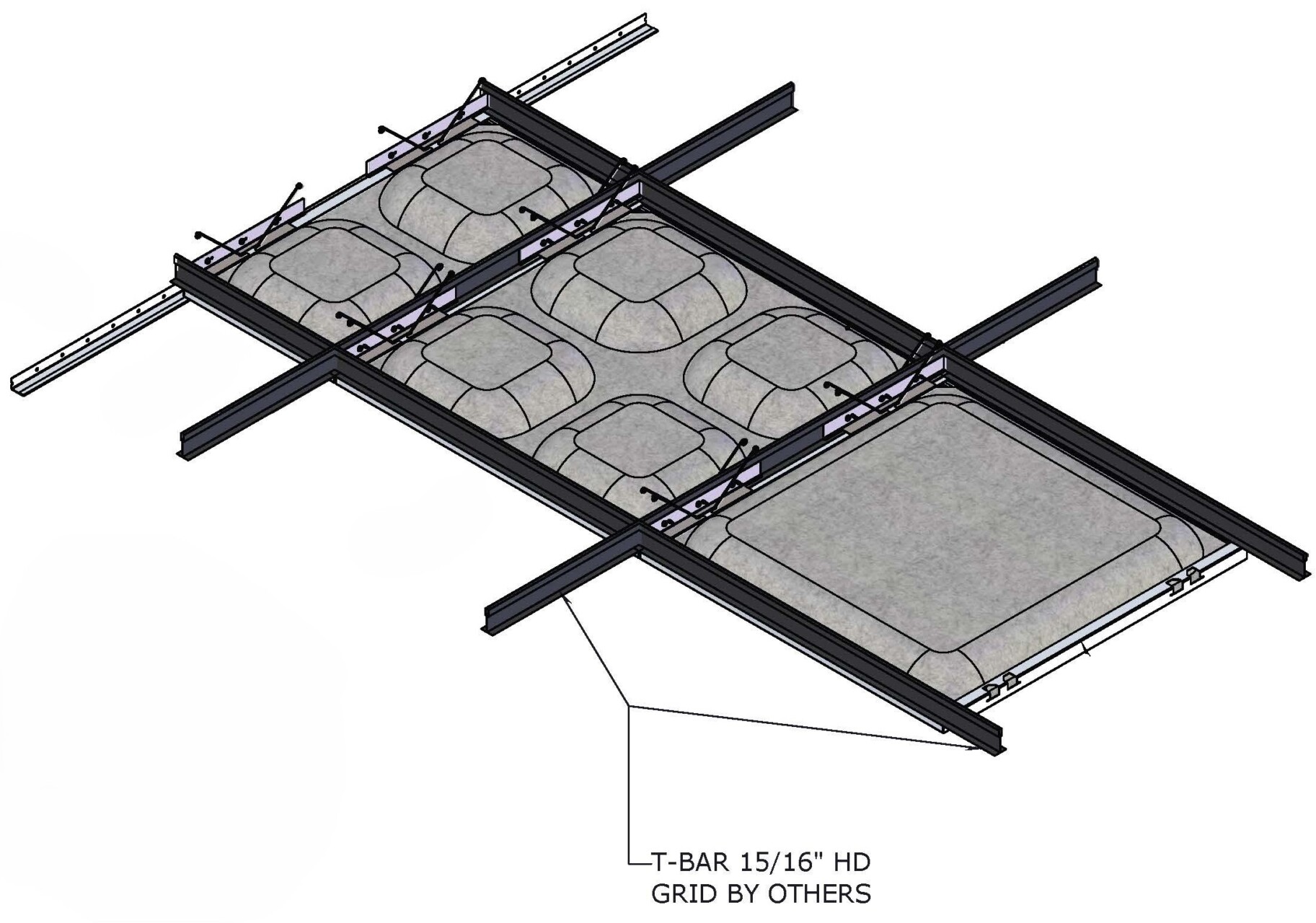

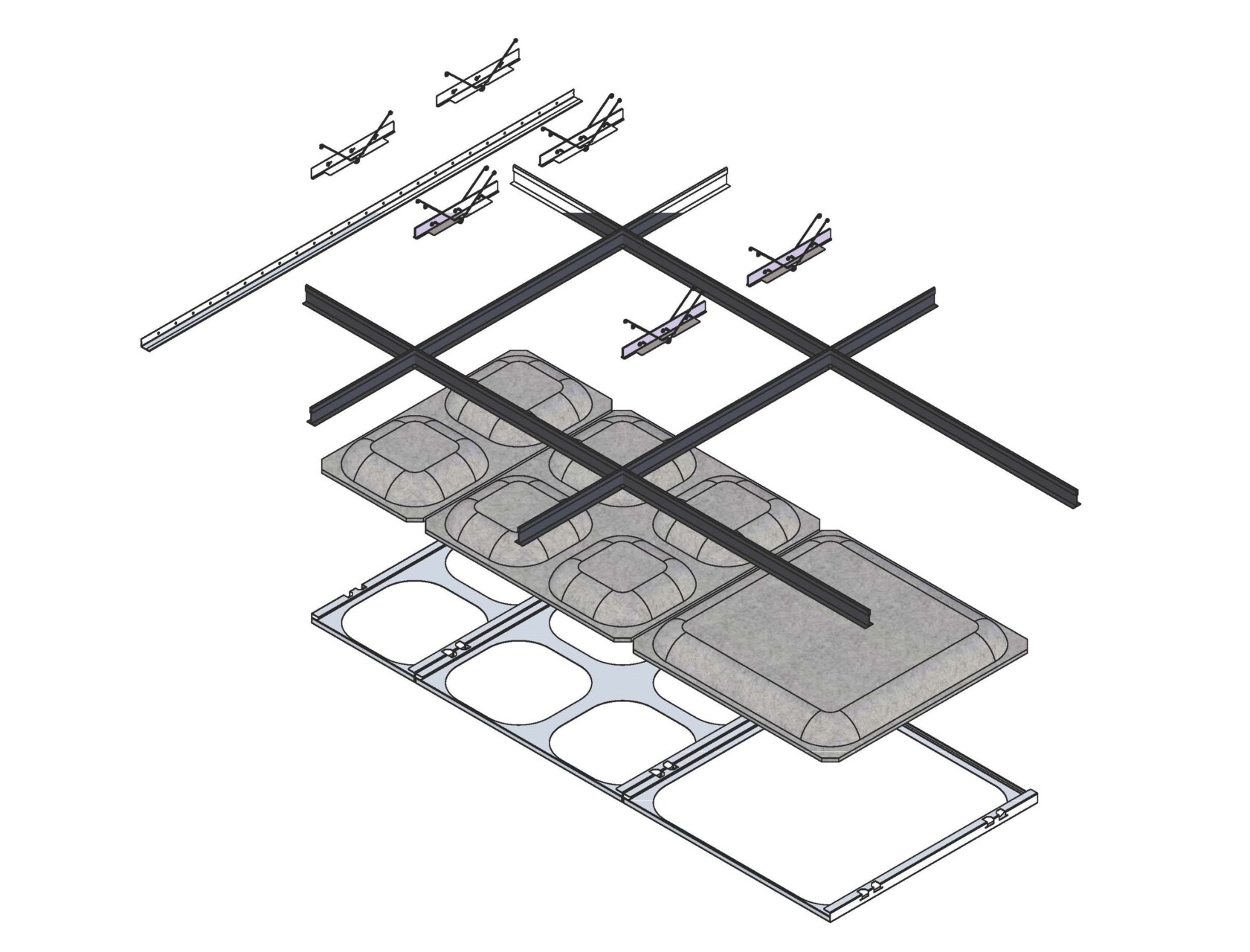

Assembly
Material and Finishing Options
-
Beige
-
Grey
-
White
(Interior & Exterior) Formaldehyde-Free.
-
Golden Bronze
-
Metallic Sterling Silver
-
Soft Nickel
-
Blush Copper
-
Dark Bronze
-
Forged Charcoal
-
Gold
Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.
-
Chalkstone White
2-6 Gloss | LRV 85-86
-
White
12-20 Gloss | LRV 79-80
-
Snow White
25-30 Gloss | LRV 83-84
-
Black
25-35 Gloss
-
Blush Rose
20 Gloss
-
Sunrise Yellow
20 Gloss
-
Forest Green
20 Gloss
-
Pure Orange
20 Gloss
-
Tan Straw
20 Gloss
-
Mid Beige
20 Gloss
-
Sterling Silver
20 Gloss
-
Grey
65-75 Gloss
Wood look powder coated paint finishes for interior and exterior use. Formaldehyde-Free.
-
National Walnut
Wood look powder coated paint finish
-
Chestnut
Wood look powder coated paint finish
-
Rosewood
Wood look powder coated paint finish
-
European Cherry
Wood look powder coated paint finish
-
Knotty Pine
Wood look powder coated paint finish
-
Oak Fine
Wood look powder coated paint finish
-
Maple
Wood look powder coated paint finish
-
American Maple
Wood look powder coated paint finish
-
American Douglas
Wood look powder coated paint finish
-
Teak
Wood look powder coated paint finish
Standard Laminated (Film) Finishes for interior use only. Formaldehyde-free.
-
Brazilian Walnut
Wood look laminated film finish
-
Black Walnut
Wood look laminated film finish
-
North Oak
Wood look laminated film finish
-
Italian Walnut
Wood look laminated film finish
-
Canadian Oak
Wood look laminated film finish
-
White Oak
Wood look laminated film finish
-
American Natural
Wood look laminated film finish
All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.
-
Raven
Quick Ship
-

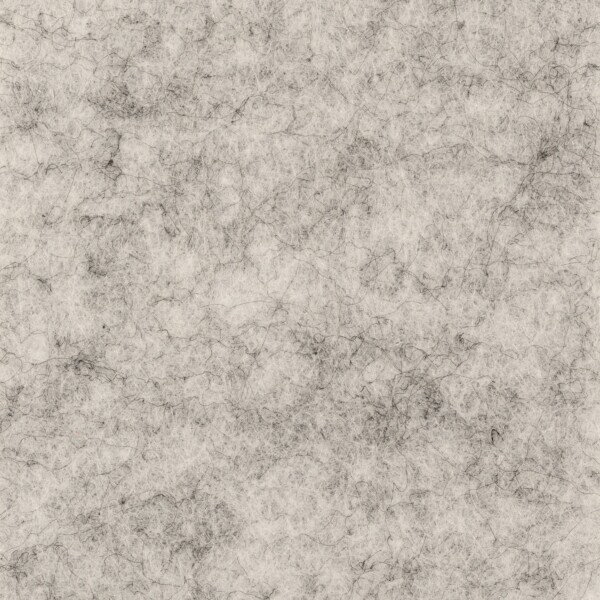

White Quartz
Quick Ship
-
Ivory
Quick Ship
-
Caramel
Quick Ship
-
Smoke
Quick Ship
-
Grey Quartz
Quick Ship
-
Cream Marble
Quick Ship
-
Olive Grey
Quick Ship
-
Mulberry
-
Sea Green
-
Jade
-
Honeycomb
-

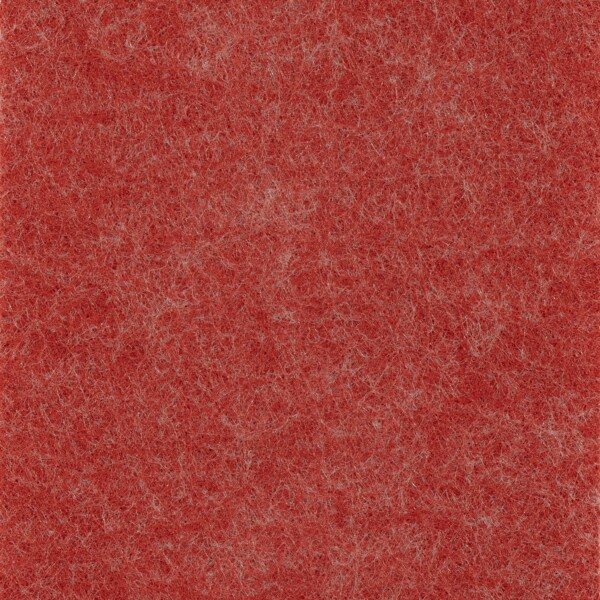

Raspberry
-
Ocean
-
Chestnut
-
Thyme
-
Burnt Orange
-
Sage
-
Cloud
-
Driftwood
-
Steel
-
Beige Plaster
-

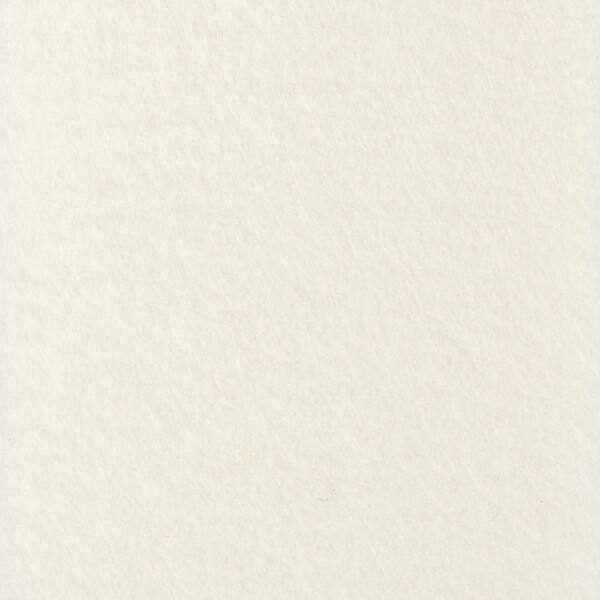

Cotton
-

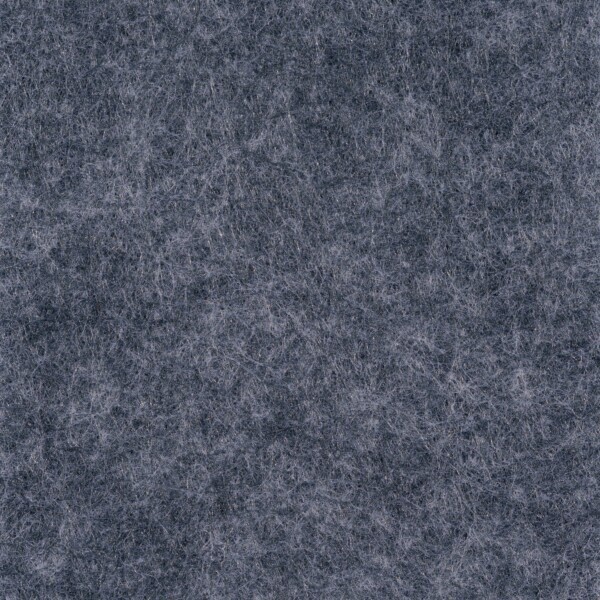

Denim
-

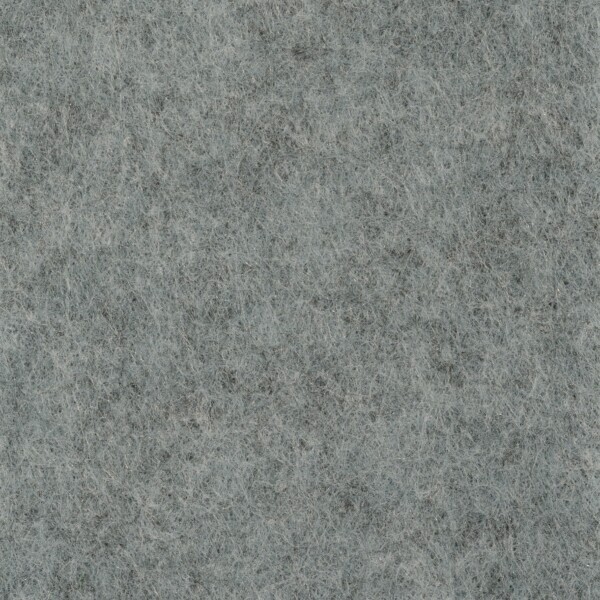

Smokey Blue
-
Lavender Mist
-

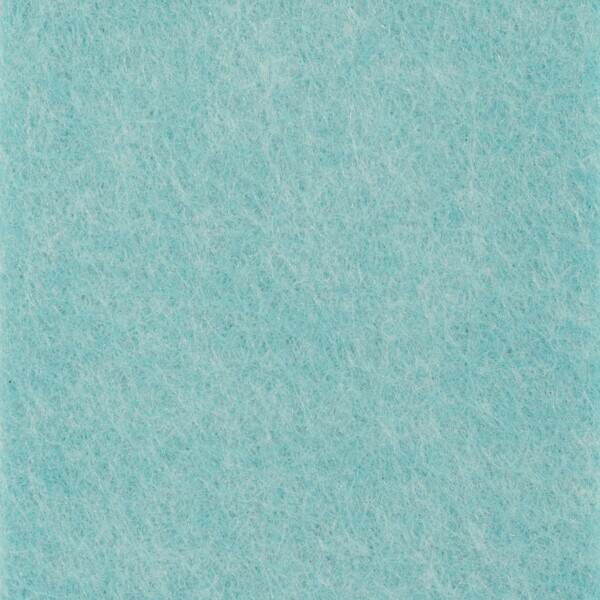

Aqua
-
Clear Blue
-

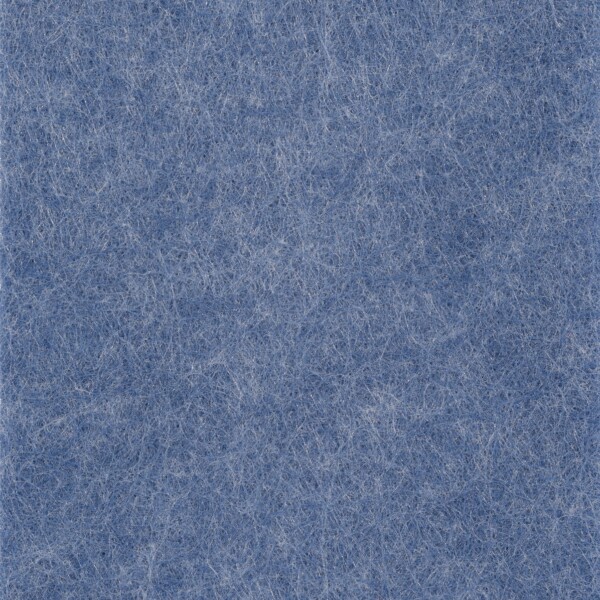

Iris
-
Cornflower
-
Cyan
-
Amethyst
-
Kiwi
-
Amber
-
Cobalt
-
Persimmon
-
Strawberry
Timbercast™ Wood Look Colors
-
Weathered Grey
Timbercast™ Wood Look Colors
-
Dark Walnut
Timbercast™ Wood Look Colors
-
Red Oak
Timbercast™ Wood Look Colors
-

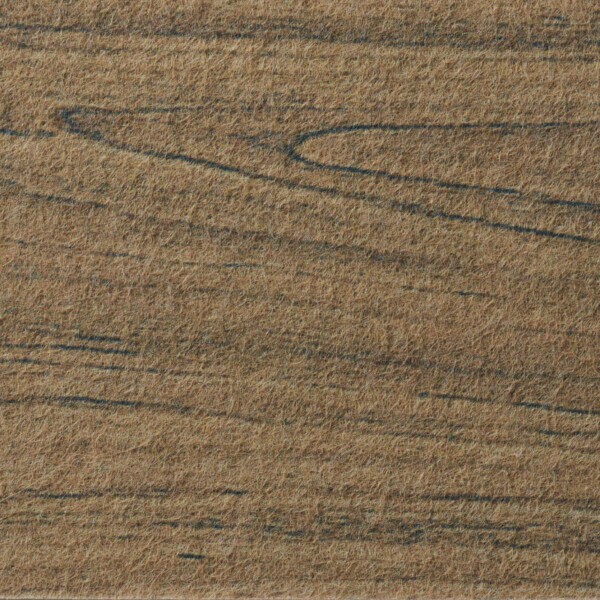

Natural Maple
