Fabricated Ceiling Panel System

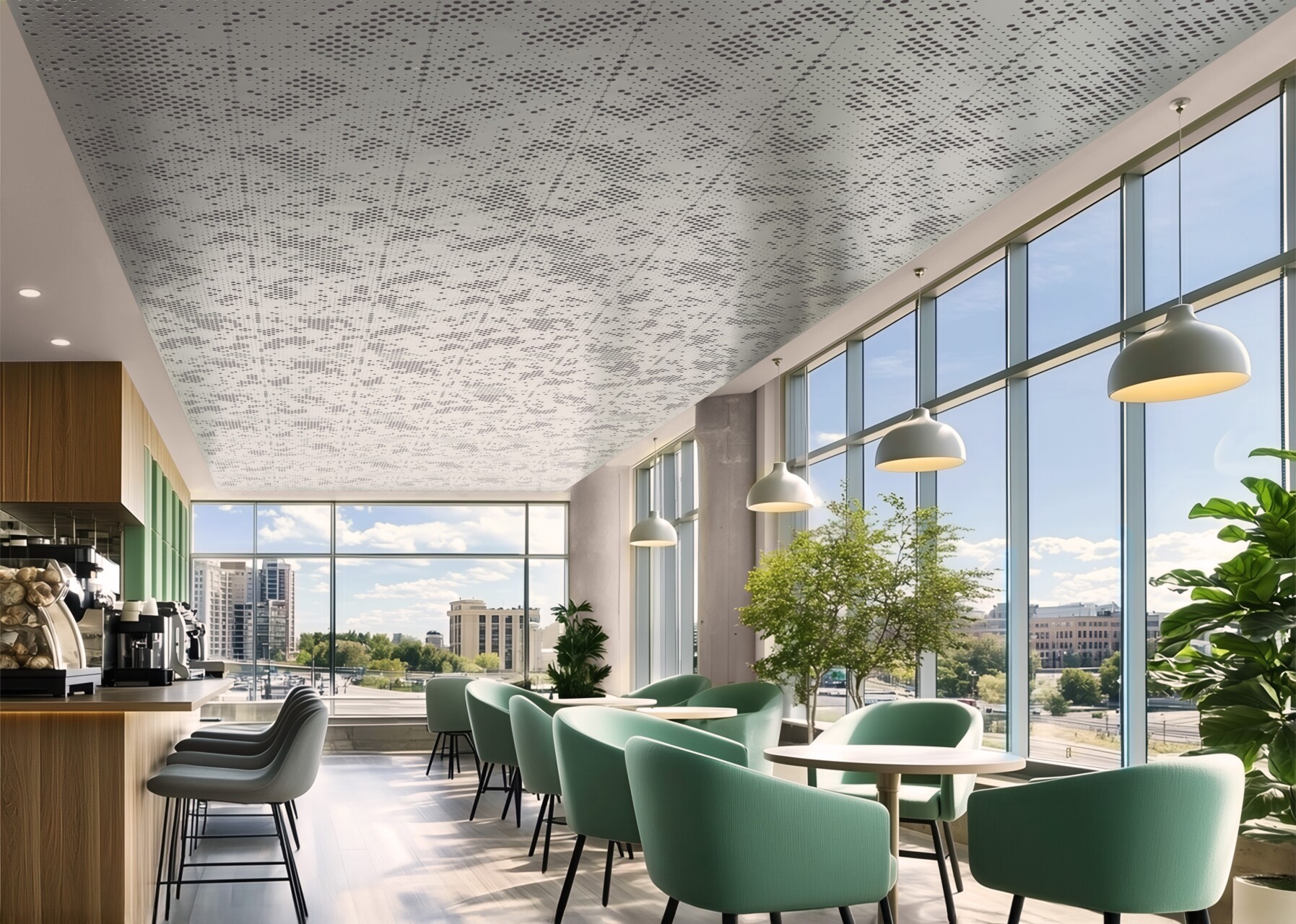

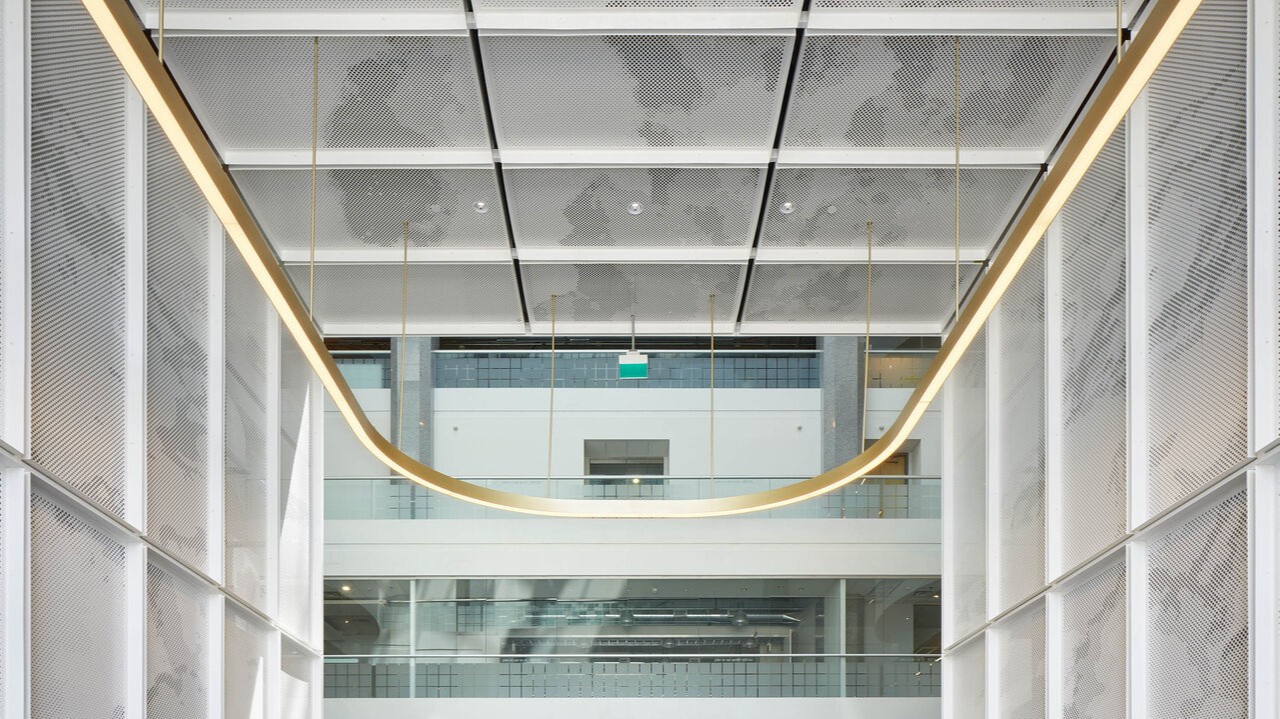

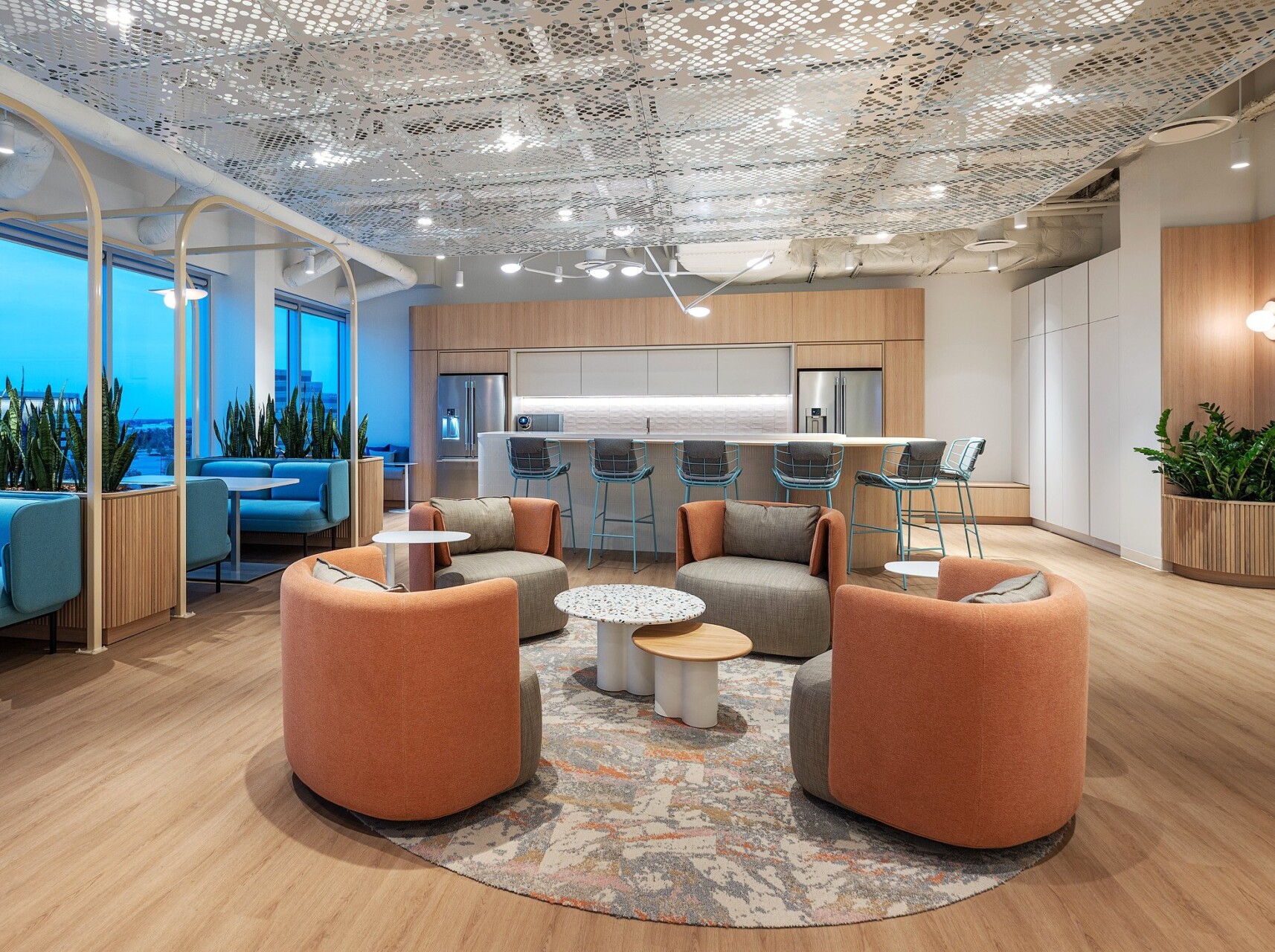

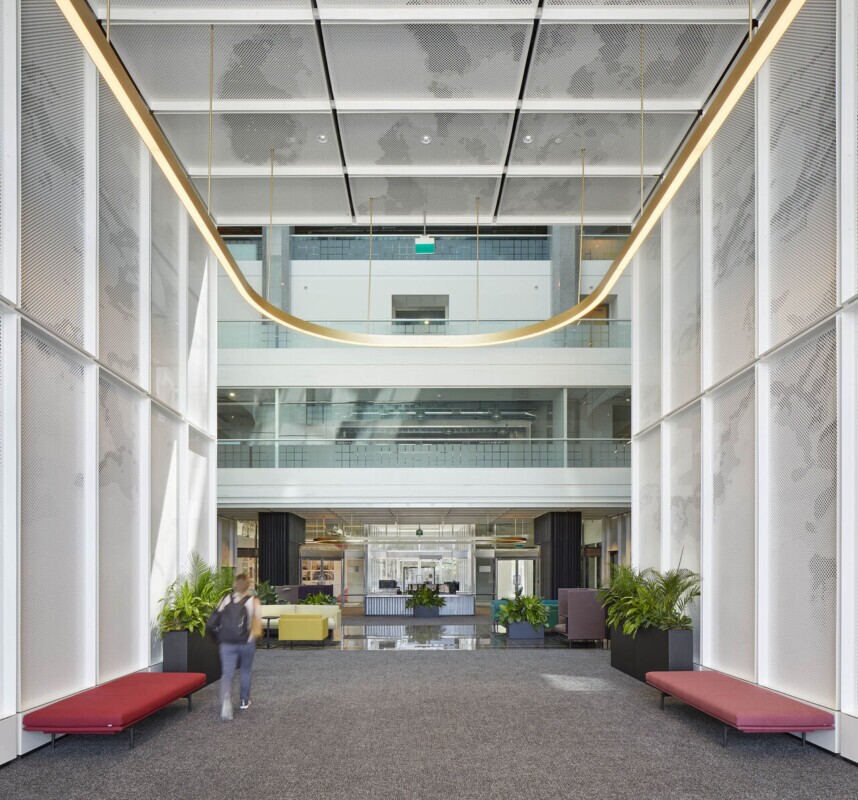

PANEL:Form Design Perforated Ceiling Panels

Improve acoustic quality and complement contemporary interiors.

Get Started

Resources

Specifications

Product Details
Sustainability
Features

Material: Aluminum | Fabricated
Weight: Varies from 1.0-1.5 lbs./sq.ft.
Thickness: .041” - .060” design dependent
Surface Finish: Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look Powder-Coated and laminated.
Acoustic Performance: Perforated panels can be fitted with acoustic infills or architectural felt to reduce noise and enhance visual interest.
Seismic Performance: This product has been engineered for use in all seismic areas. Installations may require additional attachment from panel to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.

LEED Points: MEAL - LEED BD+C v4 (MR: Regional & Recycled Materials) ; Schools EQ: Acoustic Performance ; ID+C EQ: Low-Emitting Materials
FELT - BD+C v4 (MR: Product Disclosure, Recycled Content) ; Schools EQ: Acoustic Performance
Declarations: No VOCs
EPD & GREENGUARD Gold certified
Recycled Content: Aluminum contains up to 80% recycled content & Up to 60% post-consumer PET felt

Finishes: - Create custom perforation patterns for elevated design.
- Unlimited finish options - custom colors, wood looks, and films.
- Perforations run to the panel edge and are matched to adjacent panels for a more seamless appearance.
- Linear lights can be integrated upon request.
- Torsion spring design allows for easy access to plenum. Panels can remain hinged to suspension to avoid damage.
Custom Options: At Maxxit custom is what we do best. We will make any shape or size you can design.
Installation: Attaches to both traditional 15/16” HD Grid and Maxxit’s custom suspension system.
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

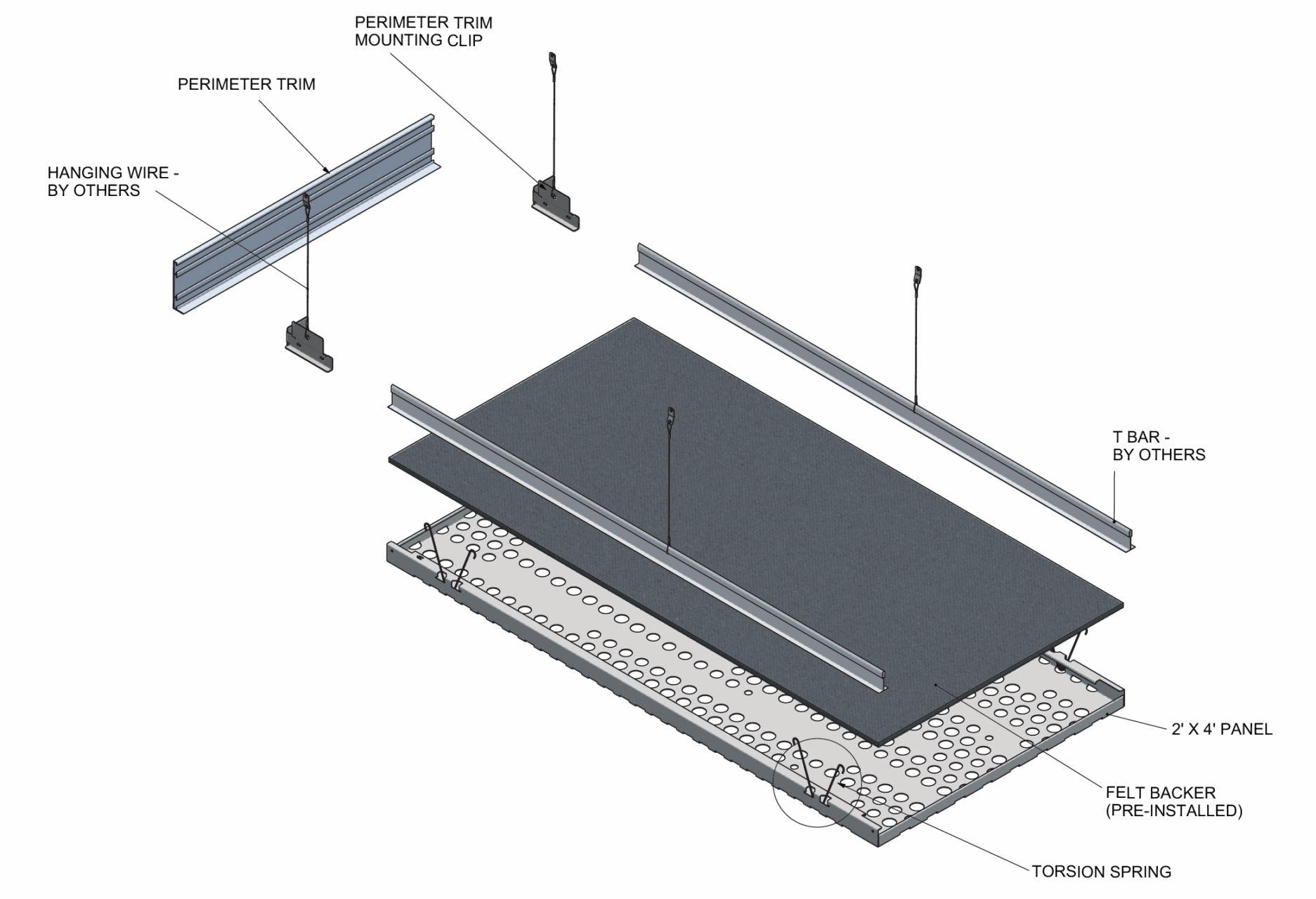

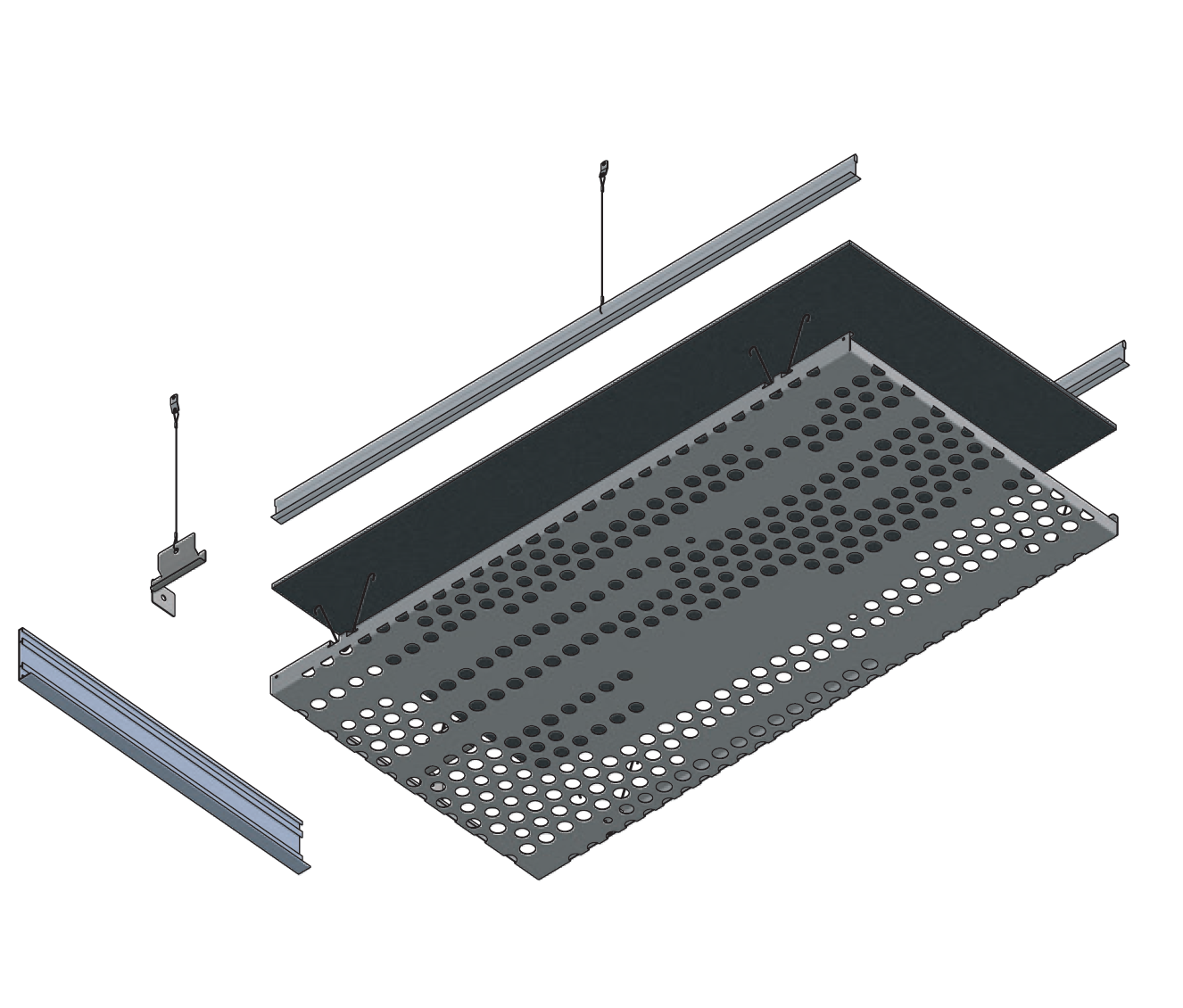

Assembly

Material and Finishing Options

Limestone (limestone-felt-finish)

Beige
Grey
White

Bonded Metallic Finish (bonded-metallic-finish)

Golden Bronze
Metallic Sterling Silver
Soft Nickel
Blush Copper
Dark Bronze
Forged Charcoal
Gold

(Interior & Exterior) Formaldehyde-Free.

Solid Color Paint (solid-color-paint)

Chalkstone White

2-6 Gloss | LRV 85-86
White

12-20 Gloss | LRV 79-80
Snow White

25-30 Gloss | LRV 83-84
Black

25-35 Gloss
Blush Rose

20 Gloss
Sunrise Yellow

20 Gloss
Forest Green

20 Gloss
Pure Orange

20 Gloss
Tan Straw

20 Gloss
Mid Beige

20 Gloss
Sterling Silver

20 Gloss
Grey

65-75 Gloss

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

Standard Powder Coated Woodgrain Paint Finish (woodgrain-paint)

National Walnut

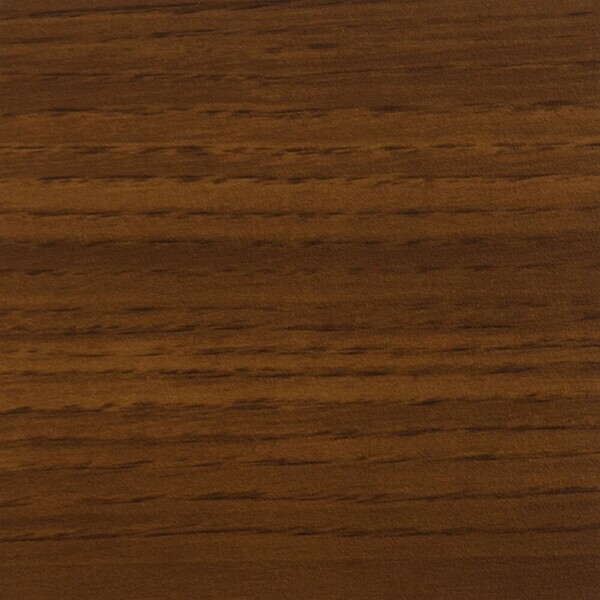

Chestnut

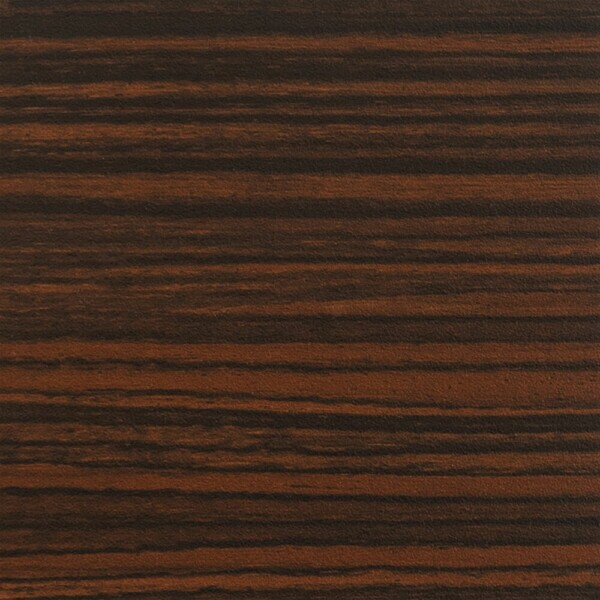

Rosewood
European Cherry
Knotty Pine
Oak Fine
Maple
American Maple
American Douglas
Teak

Wood look powder coated paint finish

For interior and exterior. Formaldehyde-free.

Standard Laminated (Film) Finish (standard-laminated-film-finish)

Brazilian Walnut
Black Walnut
North Oak

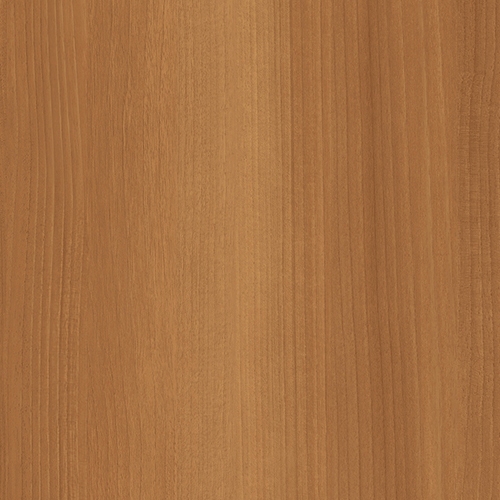

Italian Walnut
Canadian Oak
White Oak
American Natural

For interior use only. Formaldehyde-free.

PET Felt - Solid Color (pet-felt-solid-color)

Quick Ship

Raven
Quick Ship

White Quartz
Quick Ship

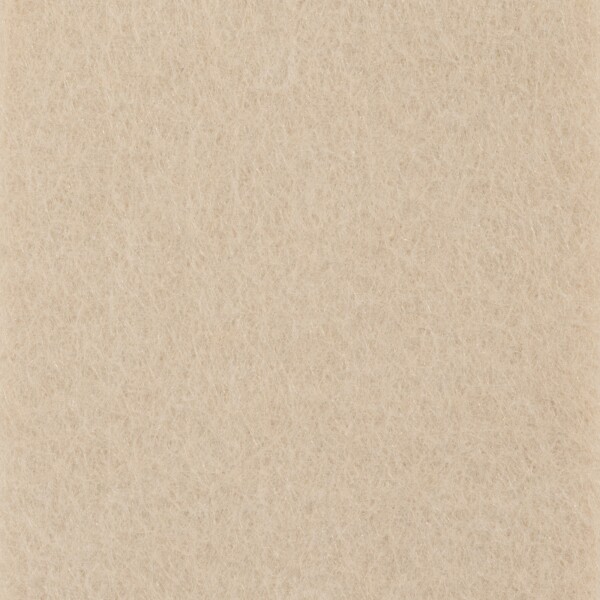

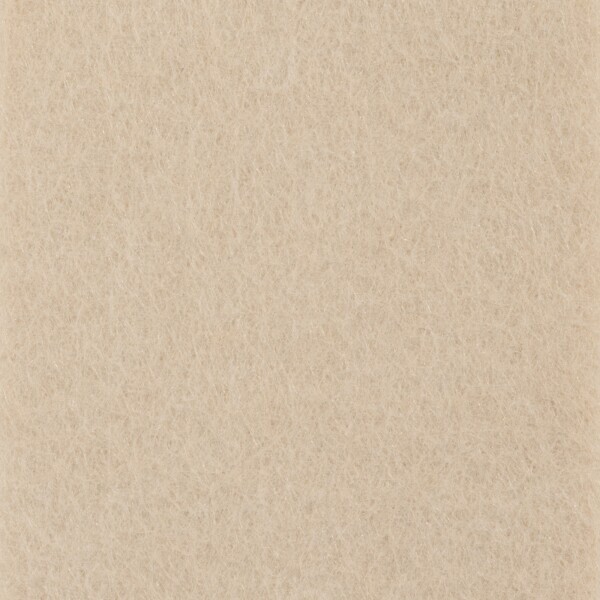

Ivory
Quick Ship

Caramel
Quick Ship

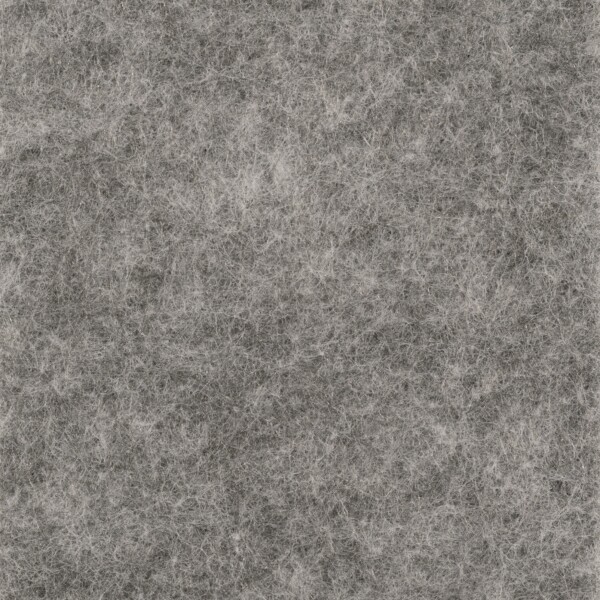

Smoke
Quick Ship

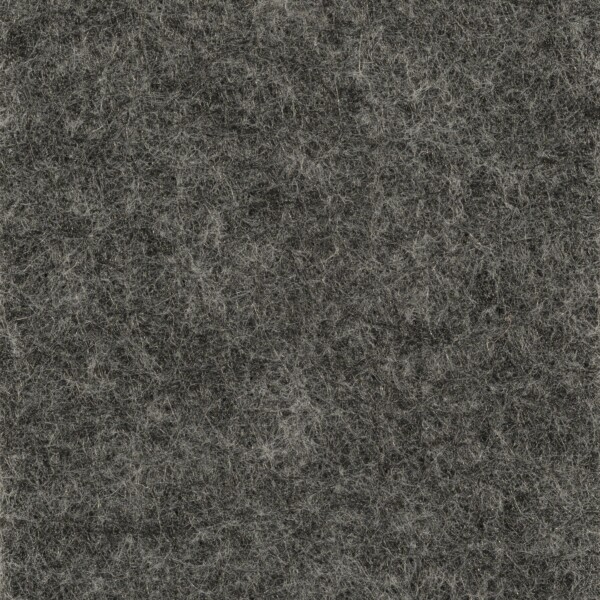

Grey Quartz
Quick Ship

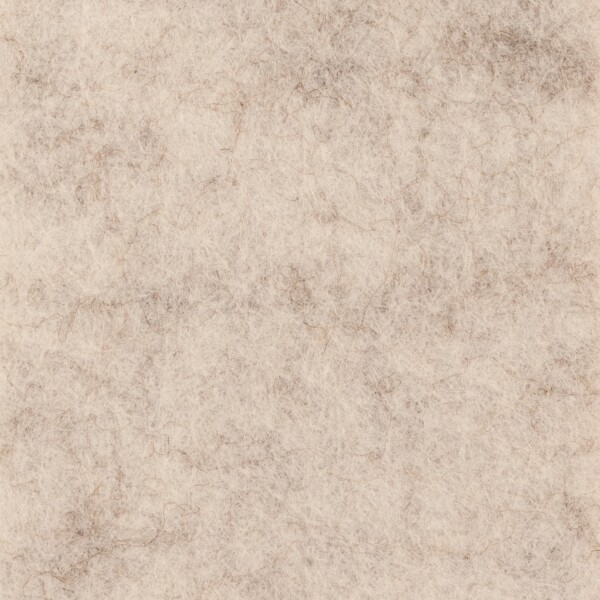

Cream Marble
Quick Ship

Olive Grey

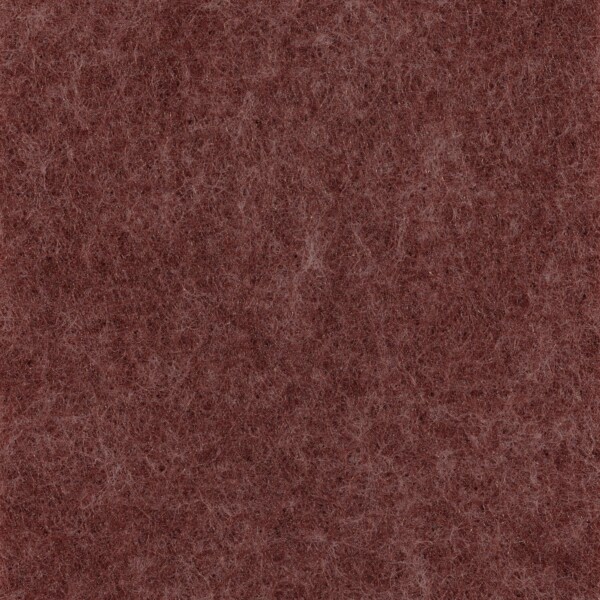

Mulberry
Sea Green
Jade
Honeycomb
Raspberry
Ocean
Chestnut

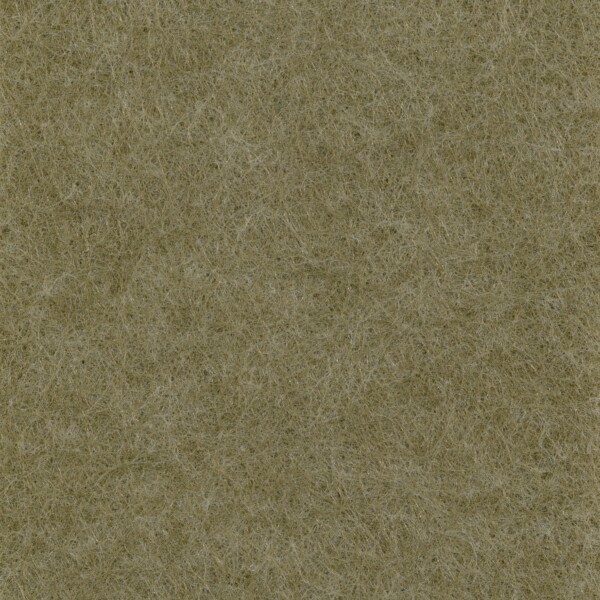

Thyme
Burnt Orange
Sage
Cloud

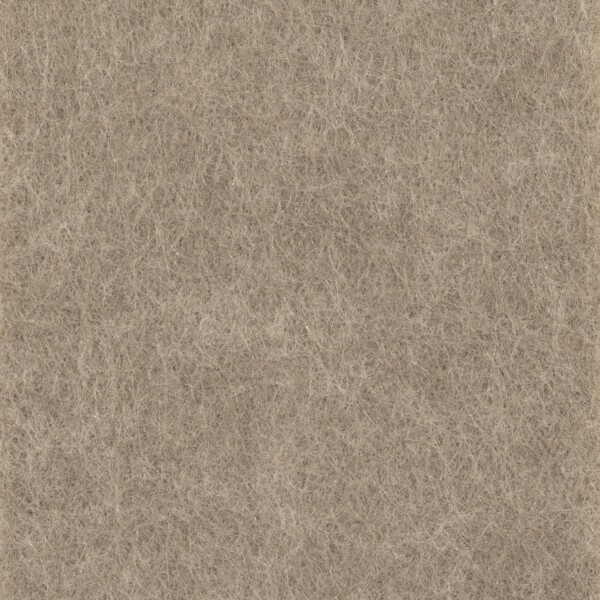

Driftwood
Steel
Beige Plaster
Cotton
Denim
Smokey Blue

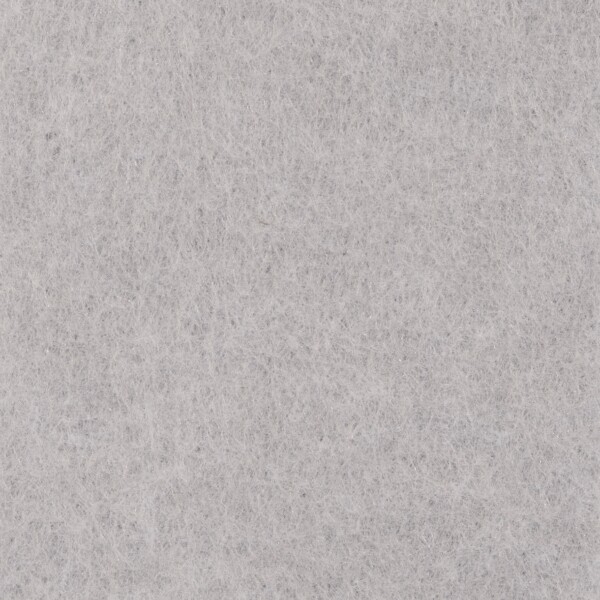

Lavender Mist
Aqua
Clear Blue
Iris
Cornflower
Cyan

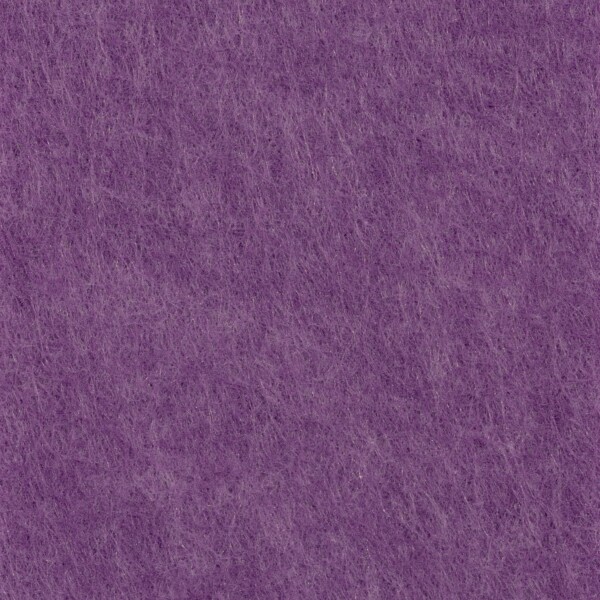

Amethyst

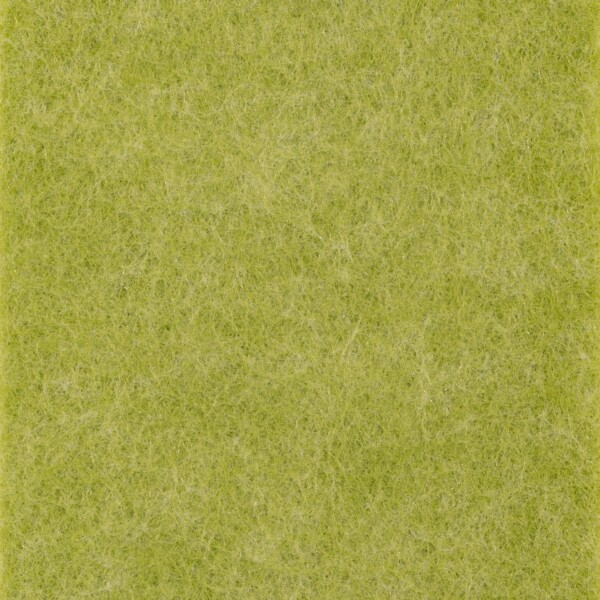

Kiwi
Amber
Cobalt

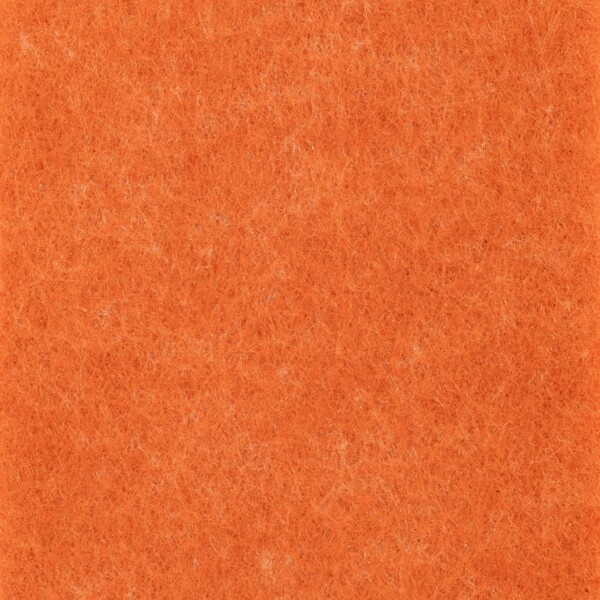

Persimmon
Strawberry

All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.

Woodgrain (woodgrain-felt)

Weathered Grey

Timbercast™ Wood Look Colors
Dark Walnut

Timbercast™ Wood Look Colors
Red Oak

Timbercast™ Wood Look Colors
Natural Maple

Timbercast™ Wood Look Colors

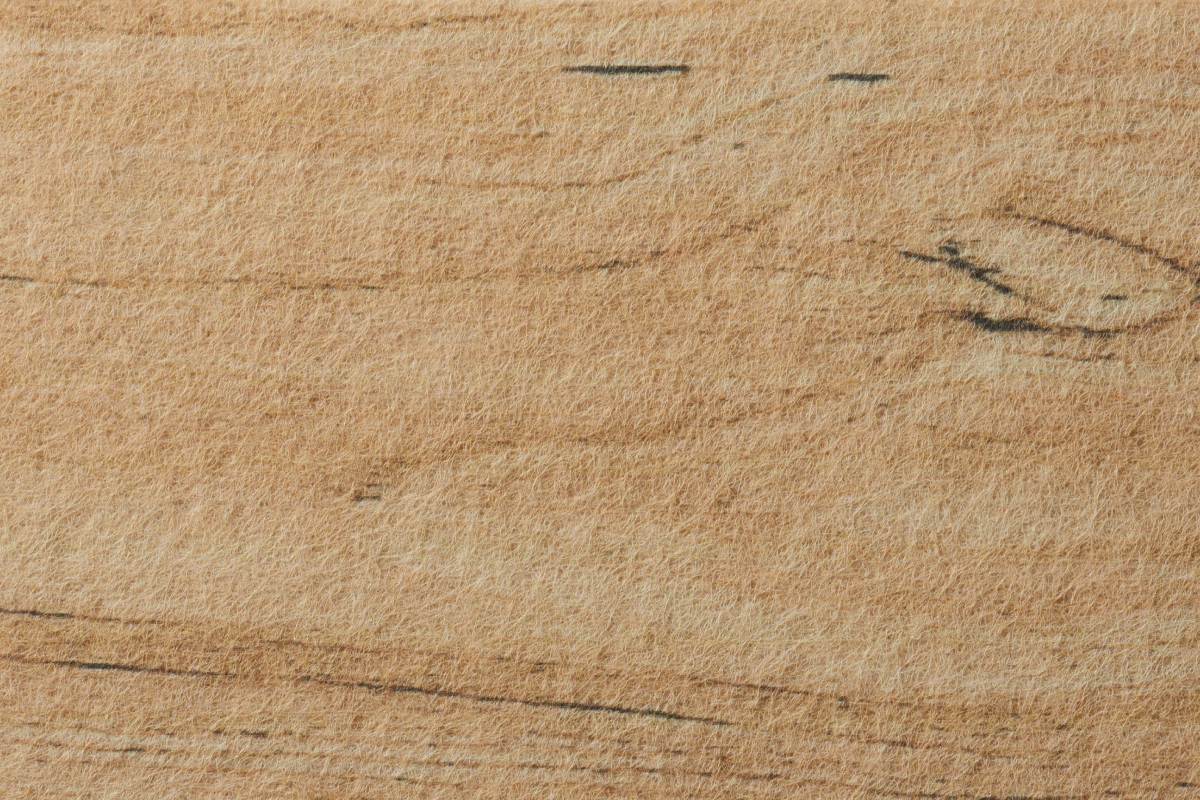

White Oak

Timbercast™ Wood Look Colors

All colors are available in both 9mm and 12mm, with the Quick Ship option offered exclusively in 9mm.

Design Perforated Patterns (design-perforated-patterns)

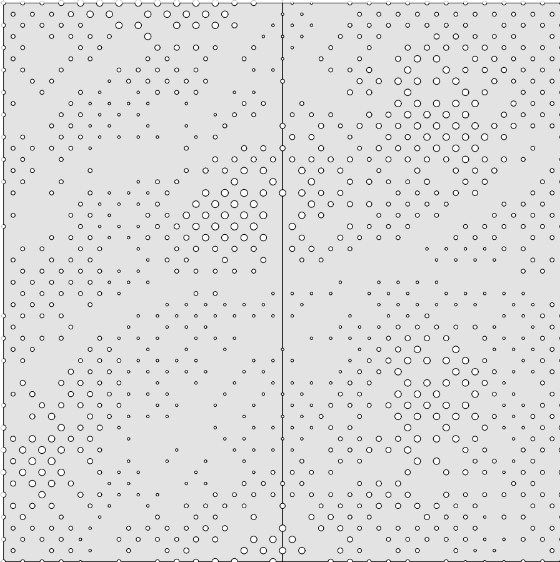

Woodland

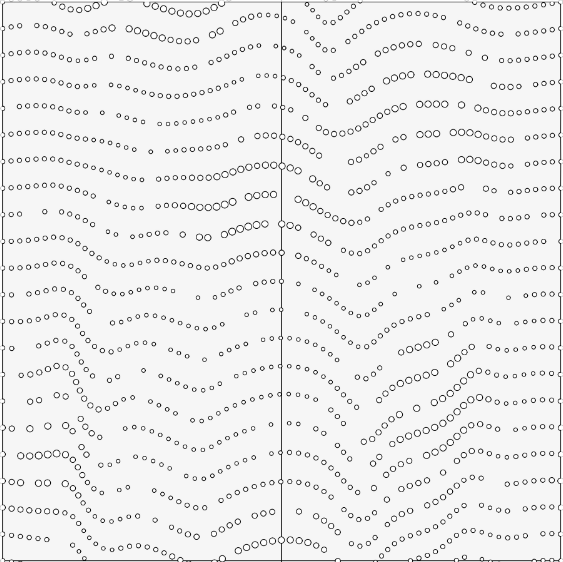

Ripple

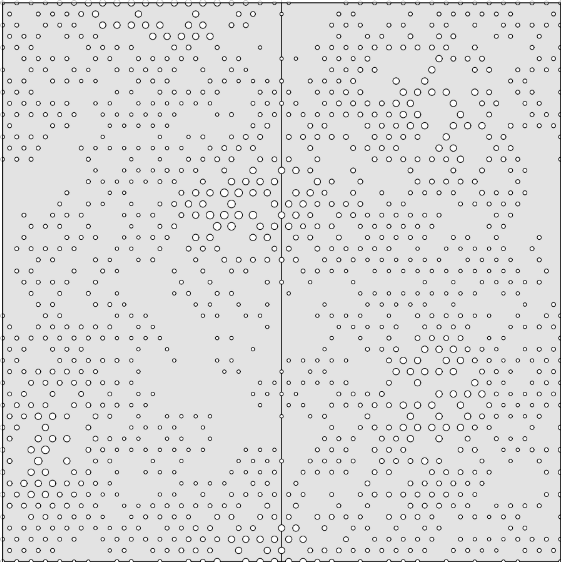

Nebula Mist

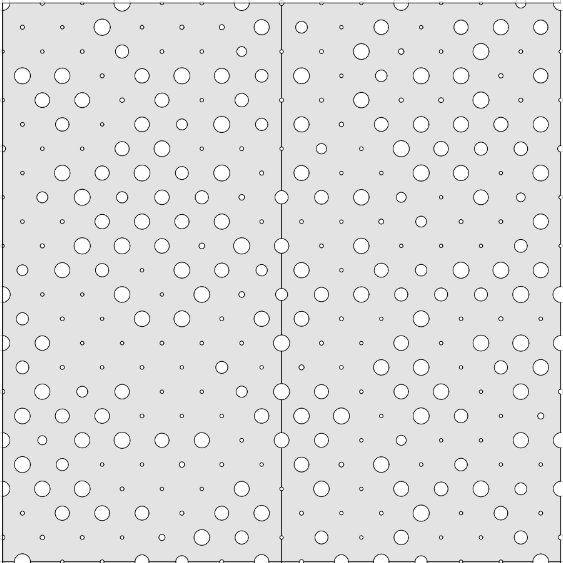

Starlight

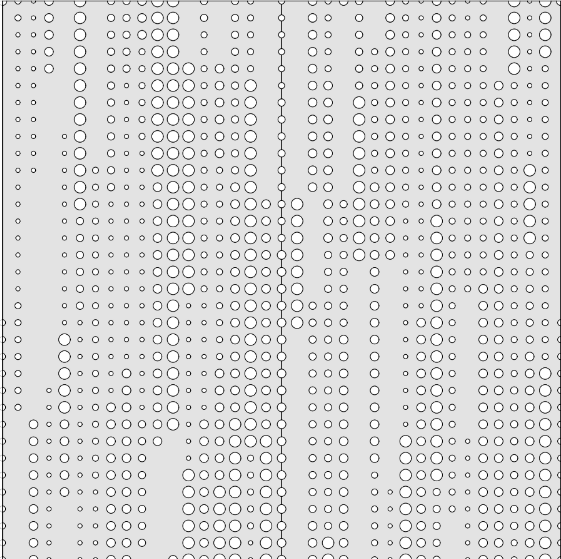

Bitstream

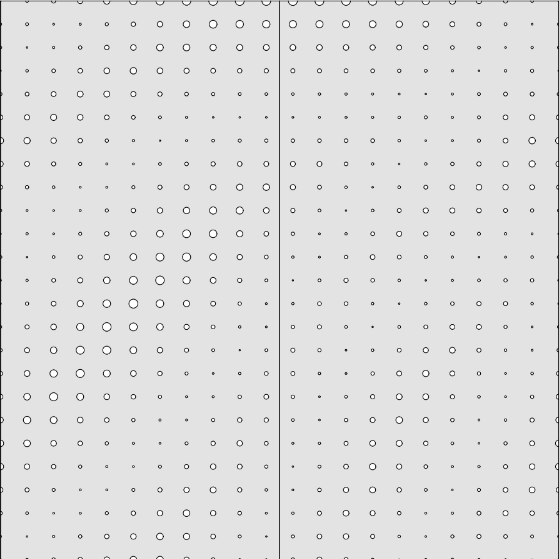

Aqua Flow

Six distinct design families, each with customizable parameters. Whether it’s adjusting hole diameter, pattern density, or scale, we can create virtually endless variations of each pattern to suit individual needs and preferences.
