PANEL:Form Fusion Ceiling Panels – Vertex
Fusion Ceiling Panels integrate metal and felt materials to enhance acoustic performance, durability and aesthetic appeal in modern interior spaces.

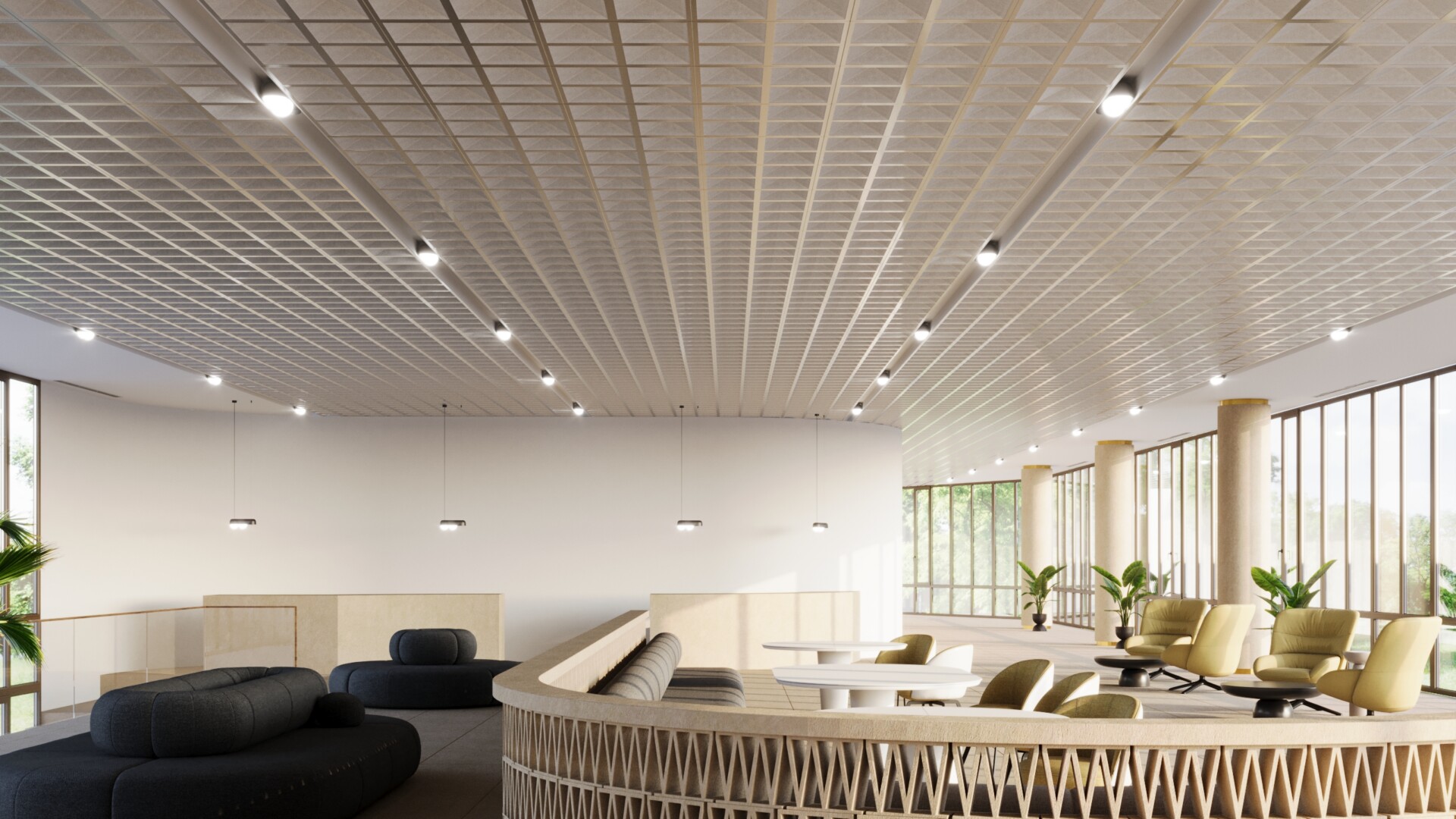

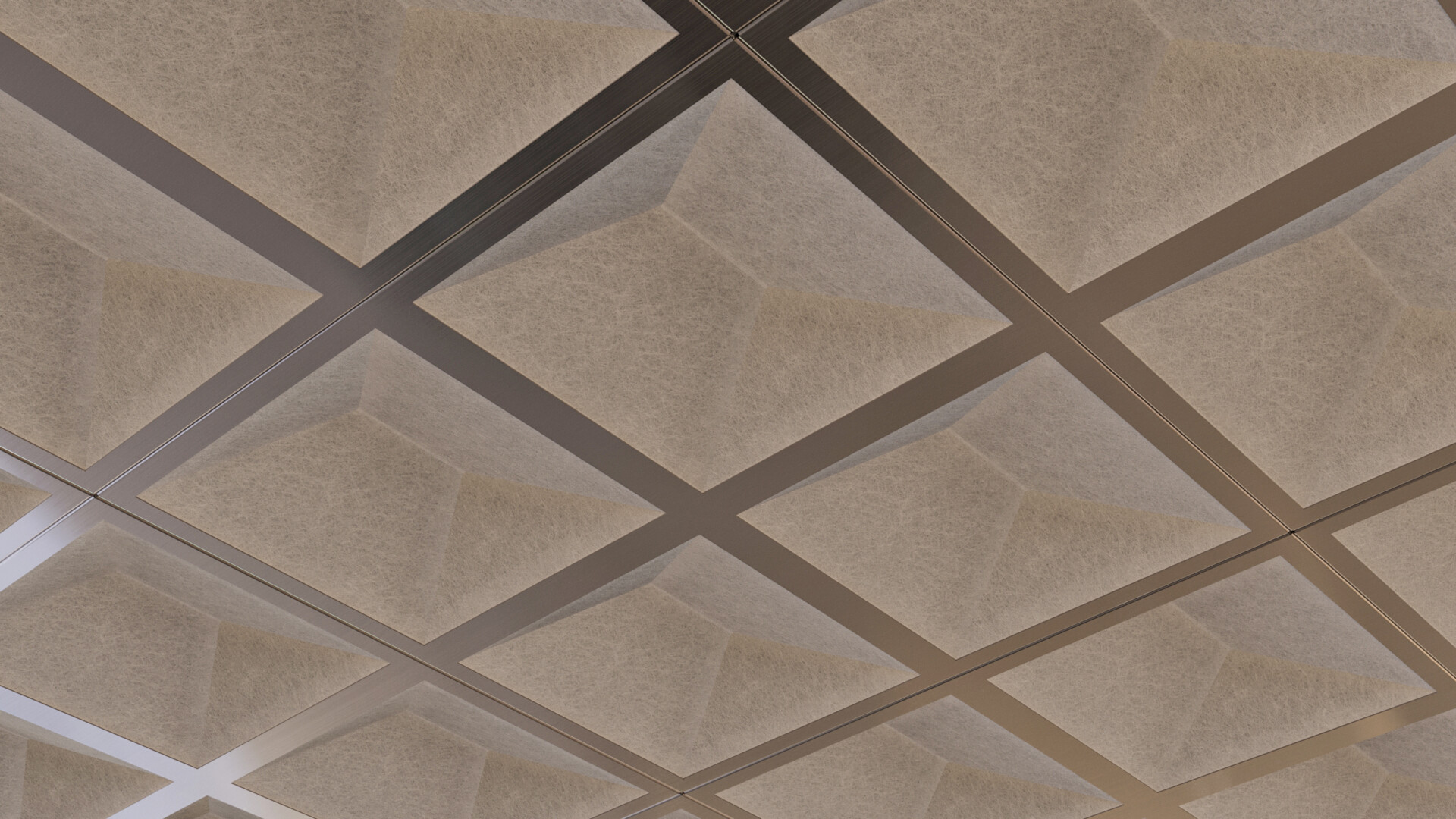

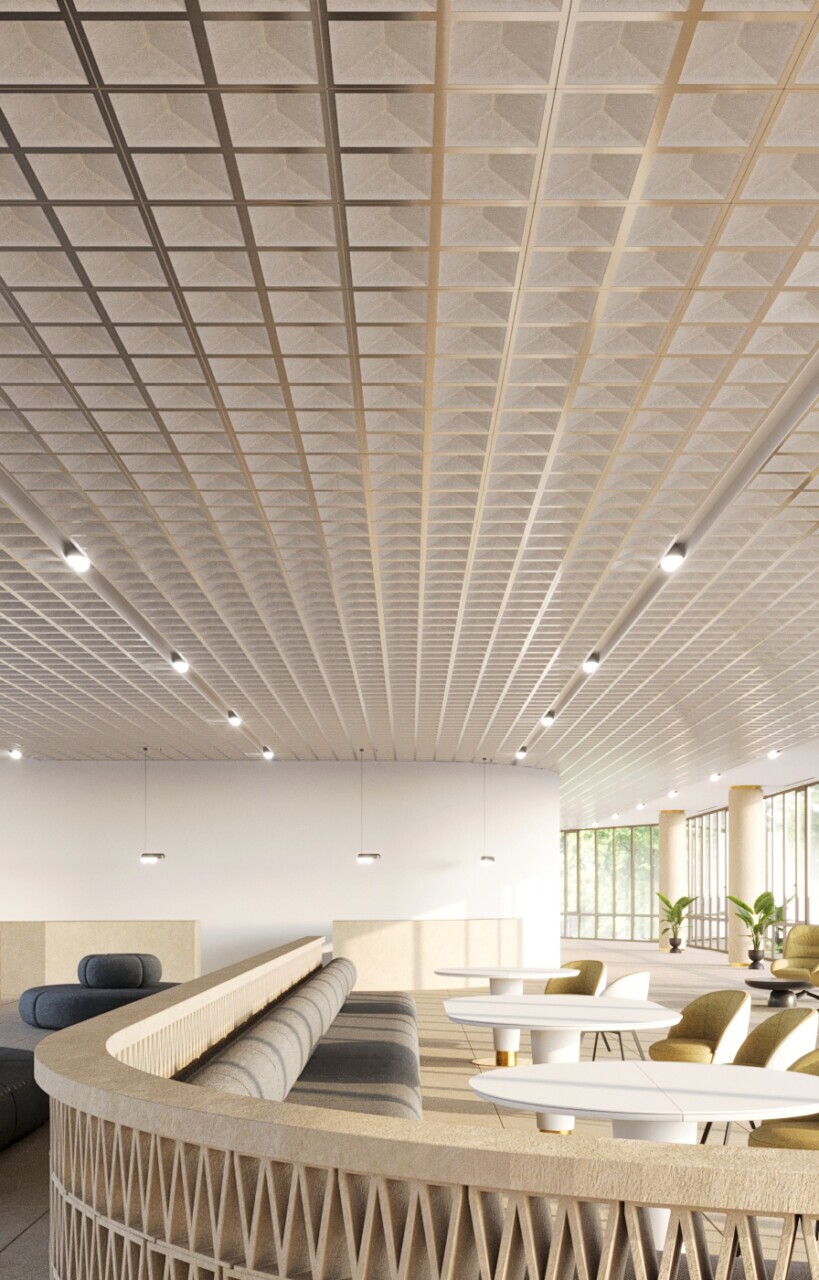

The Vertex design features inward-formed angular facets that create a bold geometric ceiling surface, enhancing visual texture through light and shadow.
Resources
Specifications
- Material
- (PET) acoustic felt, 18 ga aluminum
- Weight
- 0.7 to 0.8 lbs./ sq.ft.
- Thickness
- Felt thickness – 3/8”
- Surface Finish
- Aluminum - Factory-applied polyester paint. Available in Standard Colors, Color Matched
Felt - 30+ colors to choose from - Acoustic Performance
- NRC up to 0.90
- Seismic Performance
- This product has been engineered for use in all seismic areas. Check with local code officials or a licensed engineer for additional requirements.
- Fire Performance
- Class A per ASTM E84, CAN/ULC 102.2
- LEED Points
-
- METAL: LEED BD+C v4 (MR: Regional & Recycled Materials) ; Schools EQ: Acoustic Performance ; ID+C EQ: Low-Emitting Materials.
- FELT: BD+C v4 (MR: Product Disclosure, Recycled Content) ; Schools EQ: Acoustic Performance.
- Declarations
- No VOCS
EPDs available
GREENGUARD Gold certified - Certifications
- Carbon Neutral Certified manufacturer for Scope 1 and Scope 2 emissions.
- Recycled Content
- Aluminum contains up to 80% recycled content.
- Finishes
- - Combines metal and felt materials, featuring formed shapes that enhance both acoustic performance and aesthetic appeal.
- Lighting Integration – optional flat integration panels are available to accommodate lighting cutouts. Utility channels are also available for routing services and facilitating fixture integration.
- Trim options include field-trimmable panels in either all aluminum or with a flat felt inlay. Angle ell brackets and push-down clips are included. - Standard Options

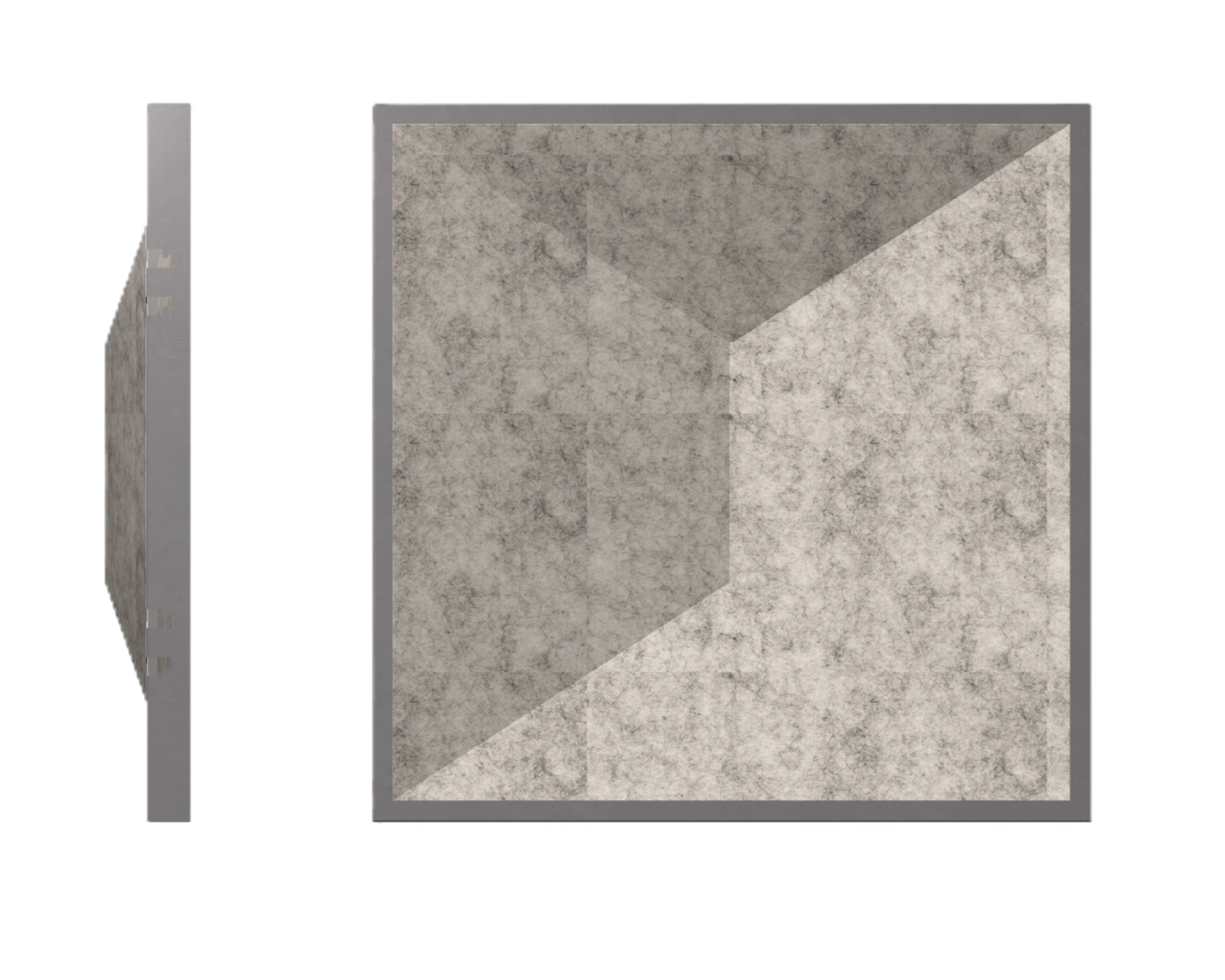

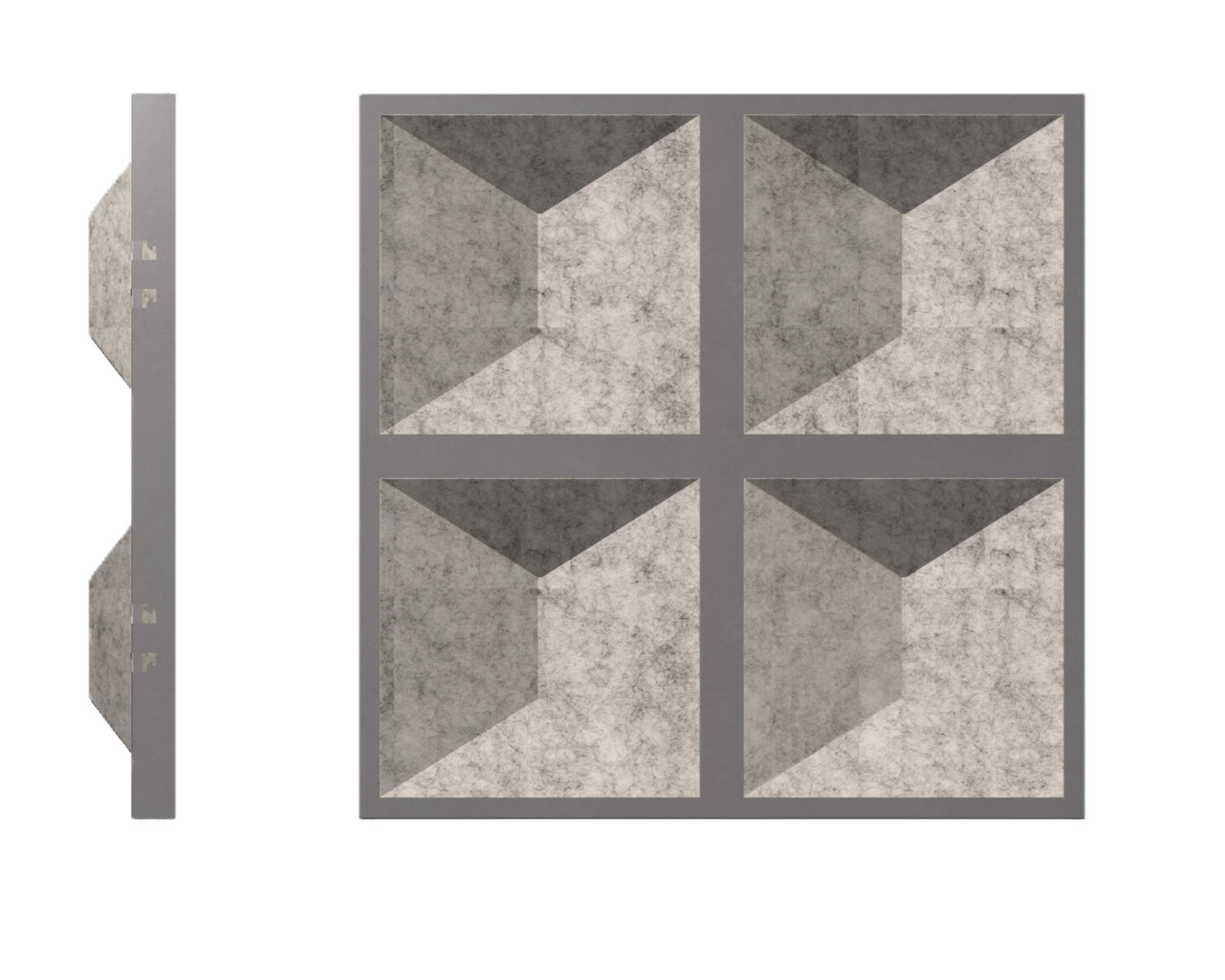

- 2’ x 2’ panel
2’ x 4’ panel - Installation
- Torsion spring attachment to most standard T-bar grids (supplied by others).
- Care & Maintenance
- Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

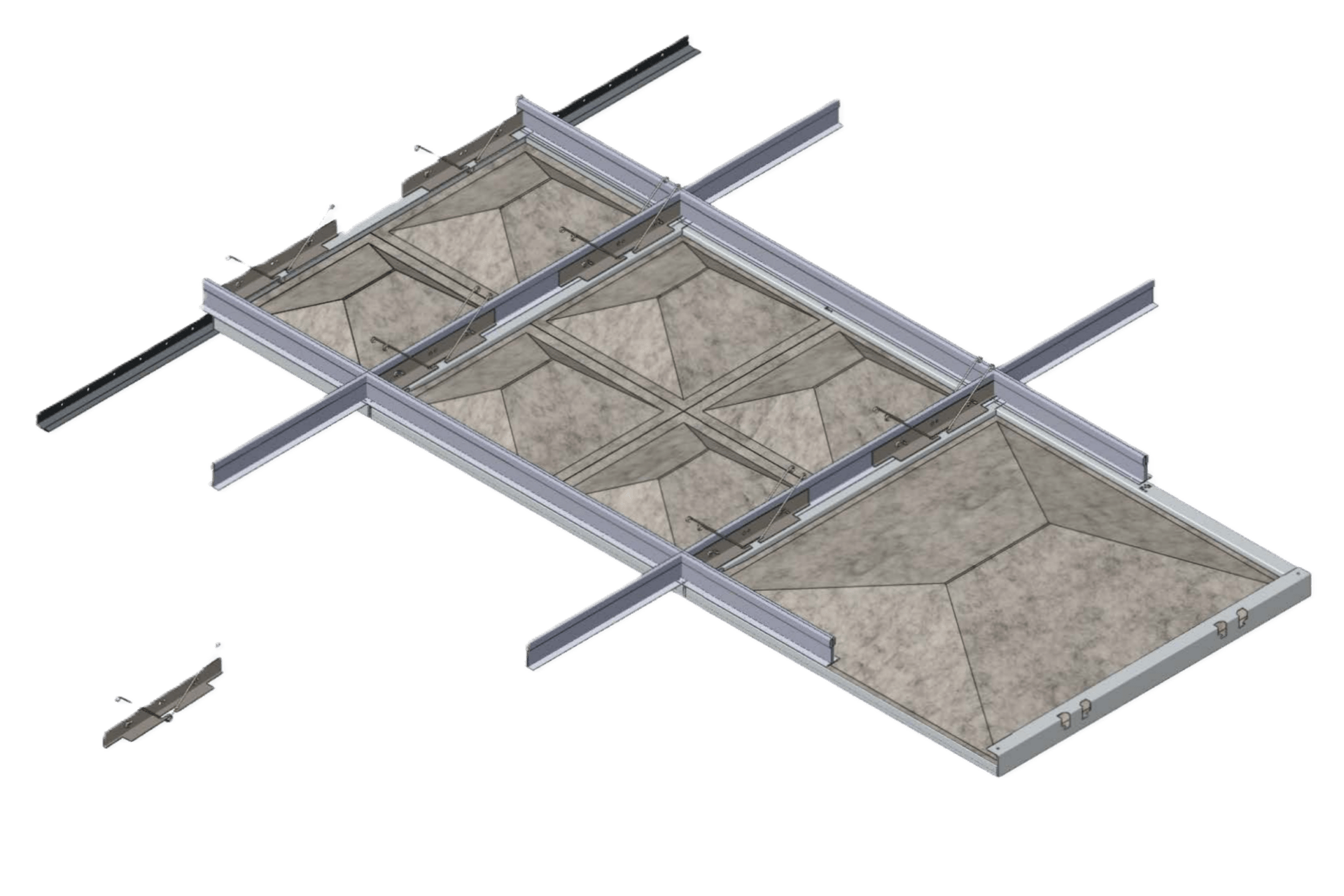

Assembly
Material and Finishing Options
Bonded Metallic Finish (bonded-metallic-finish)
-
Golden Bronze
-
Metallic Sterling Silver
-
Soft Nickel
-
Blush Copper
-
Dark Bronze
-
Forged Charcoal
-
Gold
(Interior & Exterior) Formaldehyde-Free.
Solid Color Paint (solid-color-paint)
-
Chalkstone White
2-6 Gloss | LRV 85-86
-
White
12-20 Gloss | LRV 79-80
-
Snow White
25-30 Gloss | LRV 83-84
-
Black
25-35 Gloss
-
Blush Rose
20 Gloss
-
Sunrise Yellow
20 Gloss
-
Forest Green
20 Gloss
-
Pure Orange
20 Gloss
-
Tan Straw
20 Gloss
-
Mid Beige
20 Gloss
-
Sterling Silver
20 Gloss
-
Grey
65-75 Gloss
Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.
Standard Powder Coated Woodgrain Paint Finish (woodgrain-paint)
-
National Walnut
-
Chestnut
-
Rosewood
-
European Cherry
-
Knotty Pine
-
Oak Fine
-
Maple
-
American Maple
-
American Douglas
-
Teak
Wood look powder coated paint finish
For interior and exterior. Formaldehyde-free.
Standard Laminated Finish (standard-laminated-film-finish)
-
Black Ash
-
Brazilian Walnut
-
European Walnut
-
North Oak
-
Canadian Oak
-
White Oak
-
American Natural
For interior use only. Formaldehyde-free.
PET Felt - Solid Color (pet-felt-solid-color)
-
Quick Ship
Raven
-
Quick Ship
White Quartz
-
Quick Ship
Ivory
-
Quick Ship
Caramel
-
Quick Ship
Smoke
-
Quick Ship
Grey Quartz
-
Quick Ship
Cream Marble
-
Quick Ship
Olive Grey
-
Mulberry
-
Sea Green
-
Jade
-
Honeycomb
-
Raspberry
-
Ocean
-
Chestnut
-
Thyme
-
Burnt Orange
-
Sage
-
Cloud
-
Driftwood
-
Steel
-
Beige Plaster
-
Cotton
-
Denim
-
Smokey Blue
-
Lavender Mist
-
Aqua
-
Clear Blue
-
Iris
-
Cornflower
-
Cyan
-
Amethyst
-
Kiwi
-
Amber
-
Cobalt
-
Persimmon
-
Strawberry
All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Minimum order quantities and extended lead times apply. For further information, contact your sales representative.
Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.
