PANEL:Form Mesh Ceiling Panels

Fabricated Metal Panel System

Offer a sleek industrial aesthetic that incorporates enhanced airflow, light transmission and expansive views of the plenum into your design.

Specifications

Material
Aluminum (Fabricated)
Weight
1.0 - 3.0 lbs. / sq.ft.
Thickness
0.040" - 0.060" (design-dependent)
Surface Finish
Solid Color Powder Coat
Acoustic Performance
Perforated panels are supplied with acoustic infills to absorb sound - NRC values include .60, .70, .90, .95, 1.0, 1.1
Seismic Performance
This product has been engineered for use in all seismic areas. Installations may require additional attachments. Check with local code officials or a licensed engineer for additional requirements.
LEED Points
  • ALUMINUM: LEED BD+C v4 (MR: Regional & Recycled Materials) ; Schools EQ: Acoustic Performance ; ID+C EQ: Low-Emitting Materials
  • STEEL: Supports LEED v5 principles by offering long-term durability, design flexibility, and minimal maintenance over its service life. Made from highly recyclable materials with significant recycled content, metal mesh reduces the need for virgin resource extraction. At end of life, it is 100% recyclable, contributing to circular economy goals and lowering environmental impacts associated with replacement or disposal.
Declarations
No VOCs
EPDs available
Recycled Content
Steel is 100% recyclable
Finishes
Unlimited finish options – custom colors, wood looks, films & wood veneers. 16 standard wood look finishes
Custom Options
Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options
2' x 2' panel
2' x 4' panel
3' x 3' panel
Installation
  • Lightweight, pre-assembled & easy to install
  • Maxxit's custom suspension system offers easy downward access, onsite adjustments and accommodates a large variety of panel sizes.
  • Integrated mechanical trough allows for device and light fixture mounting
  • Versatile attachment - spring clips allow downward access panel removal
  • Engineered suspension needs fewer ceiling connection points
Care & Maintenance
Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe

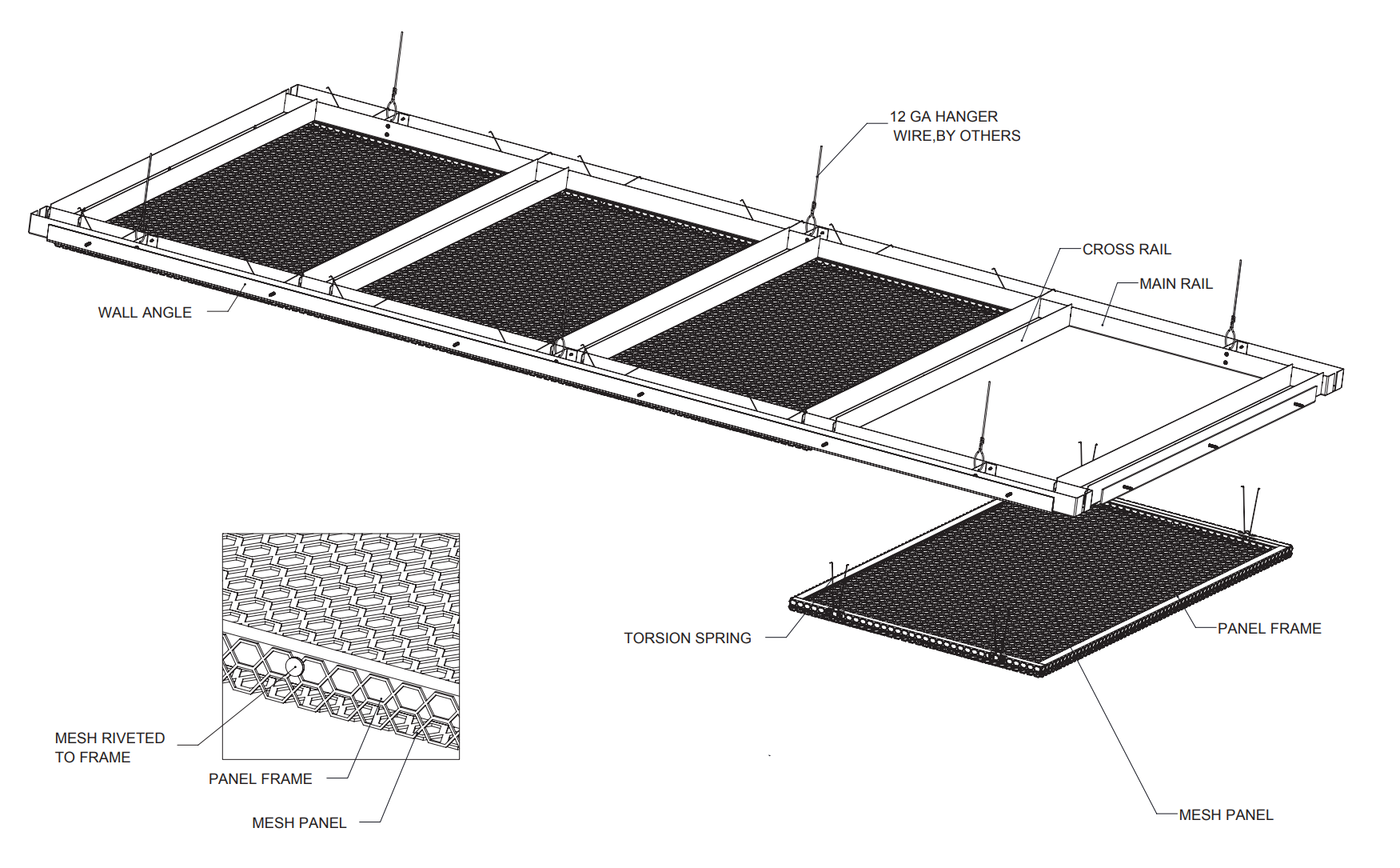

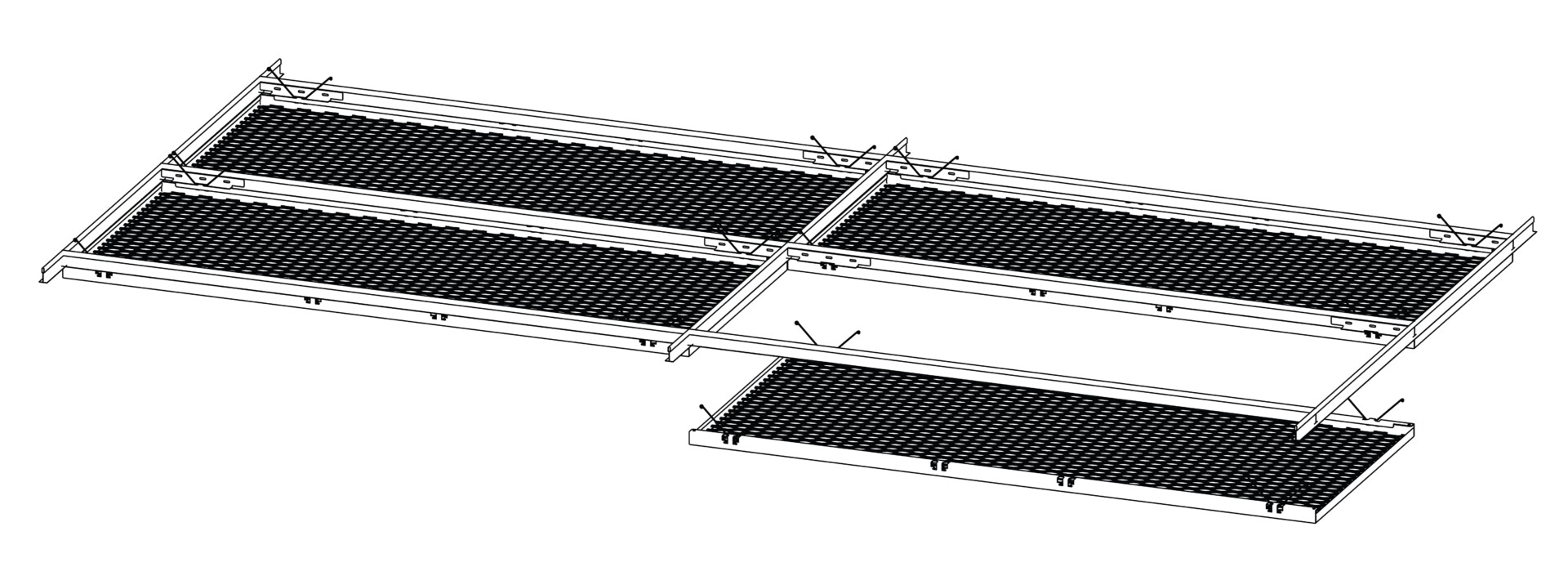

Assembly

Material and Finishing Options

(Interior & Exterior) Formaldehyde-Free.

  • Golden Bronze

  • Metallic Sterling Silver

  • Soft Nickel

  • Blush Copper

  • Dark Bronze

  • Forged Charcoal

  • Gold

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

  • Chalkstone White

    2-6 Gloss | LRV 85-86

  • White

    12-20 Gloss | LRV 79-80

  • Snow White

    25-30 Gloss | LRV 83-84

  • Black

    25-35 Gloss

  • Blush Rose

    20 Gloss

  • Sunrise Yellow

    20 Gloss

  • Forest Green

    20 Gloss

  • Pure Orange

    20 Gloss

  • Tan Straw

    20 Gloss

  • Mid Beige

    20 Gloss

  • Sterling Silver

    20 Gloss

  • Grey

    65-75 Gloss

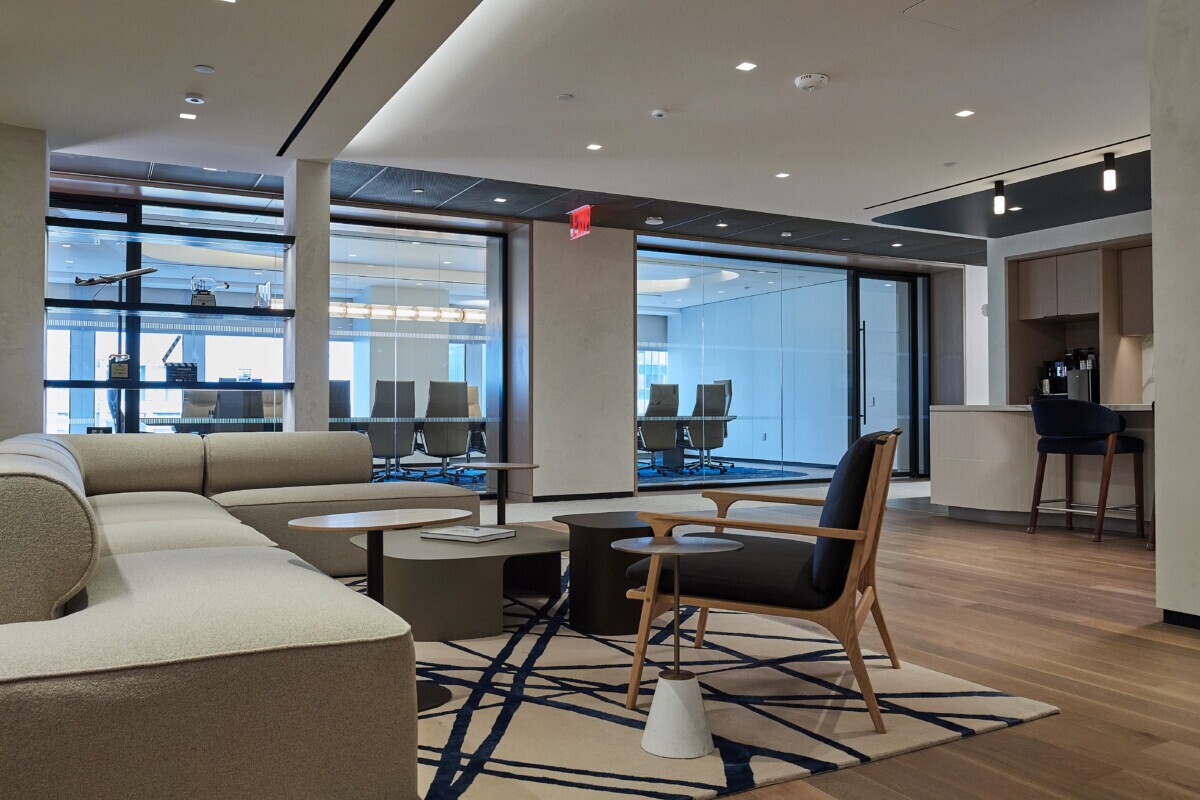

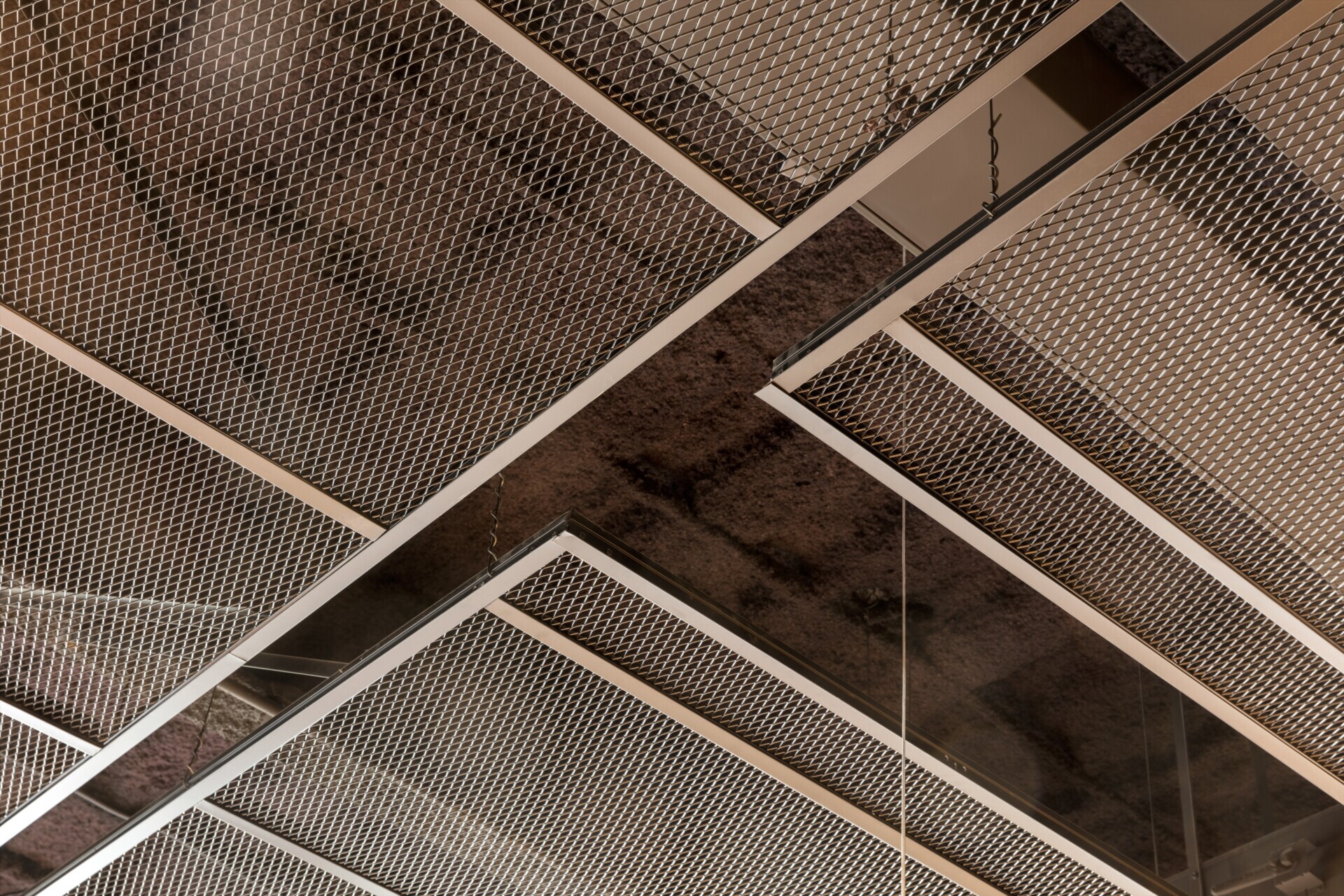

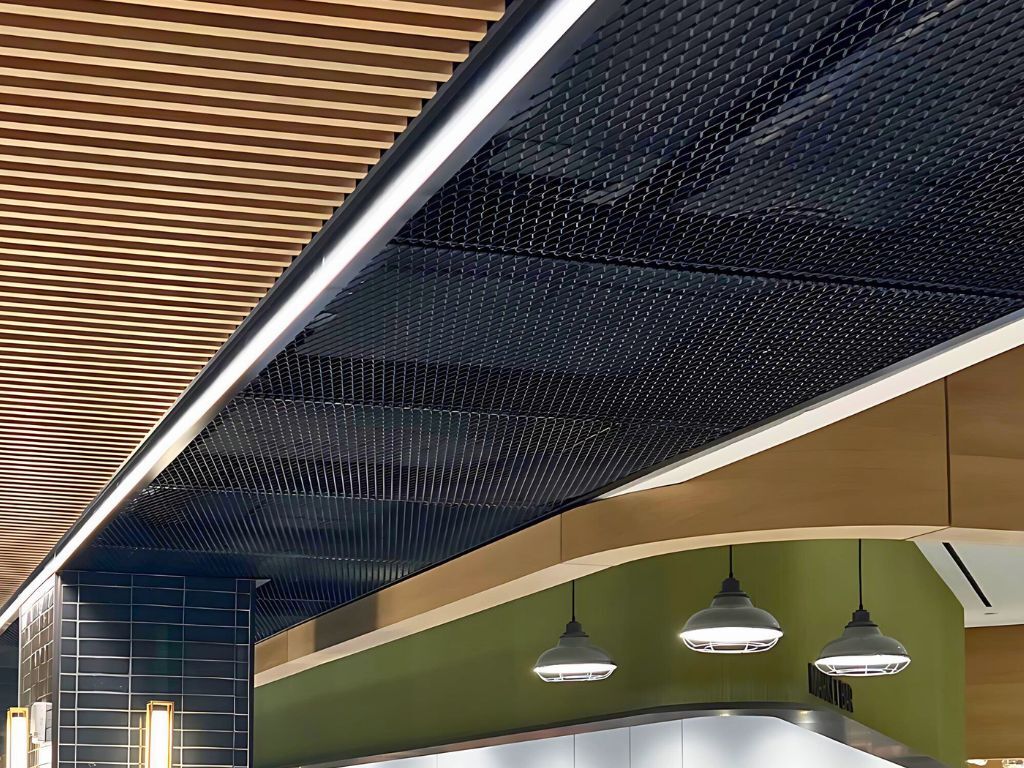

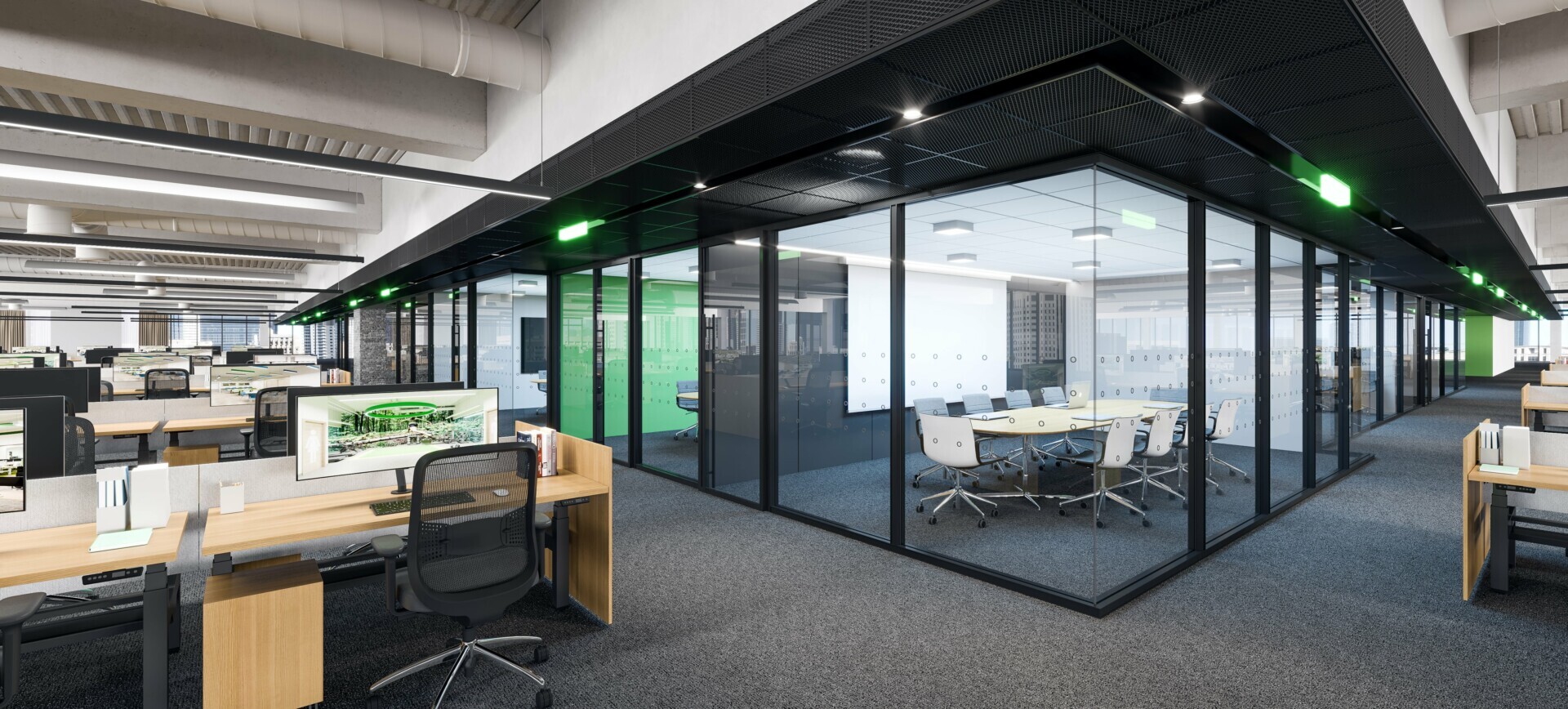

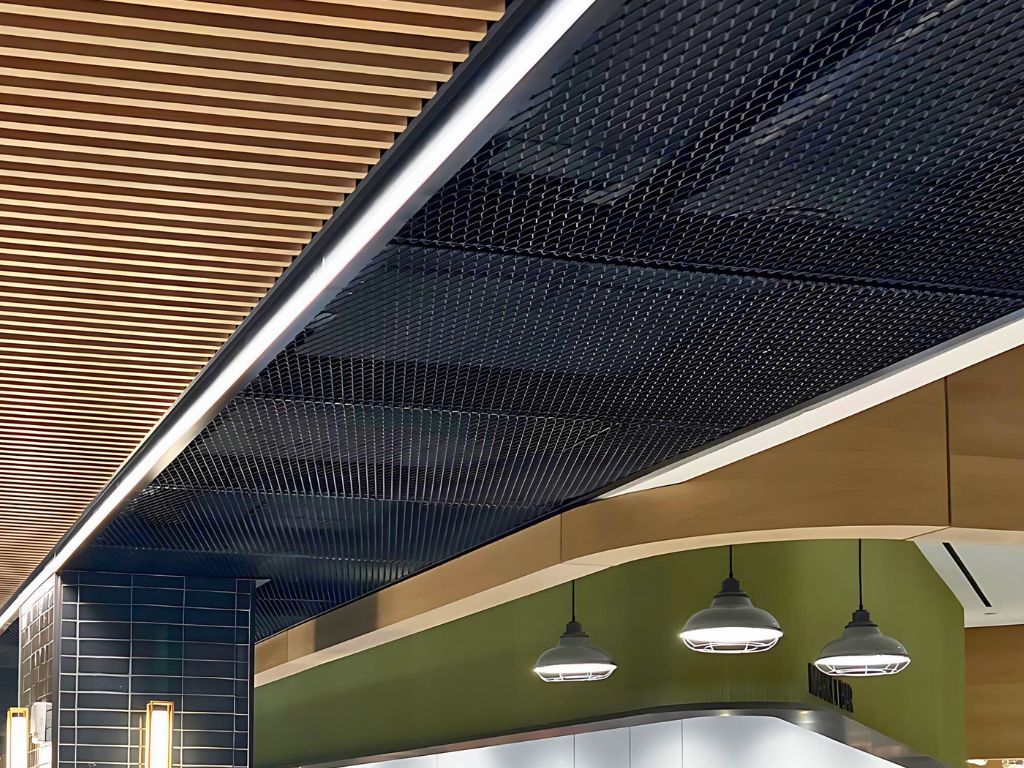

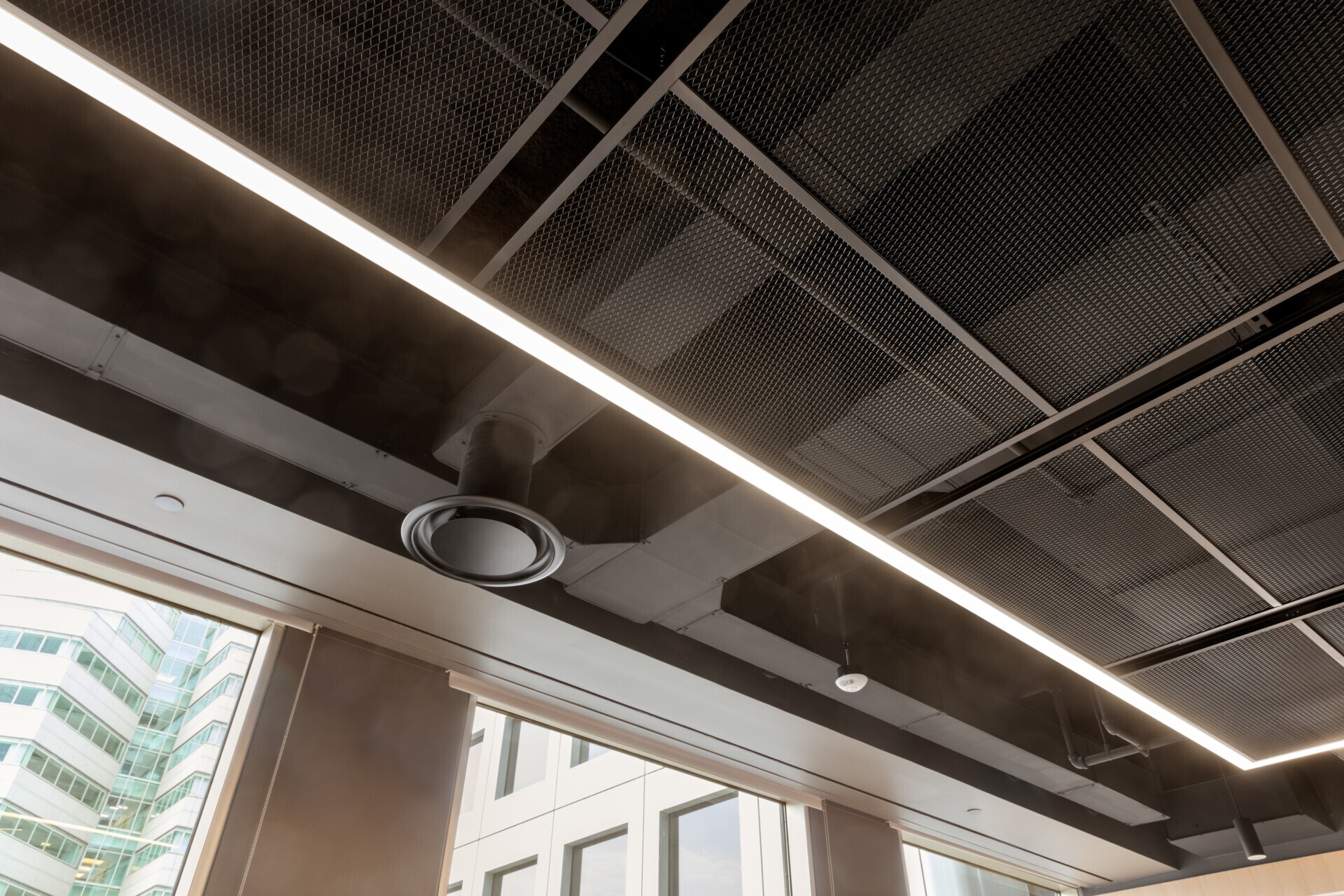

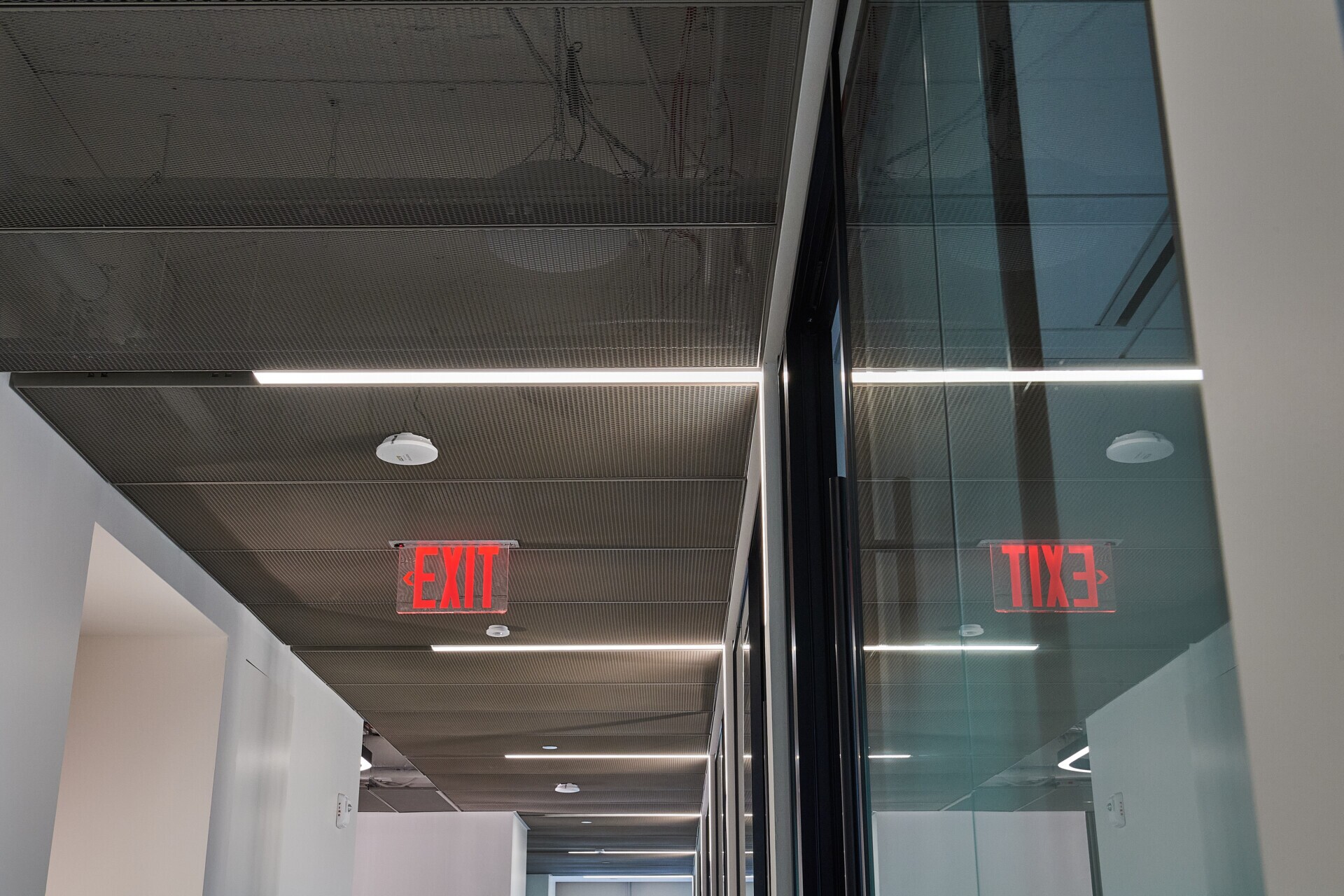

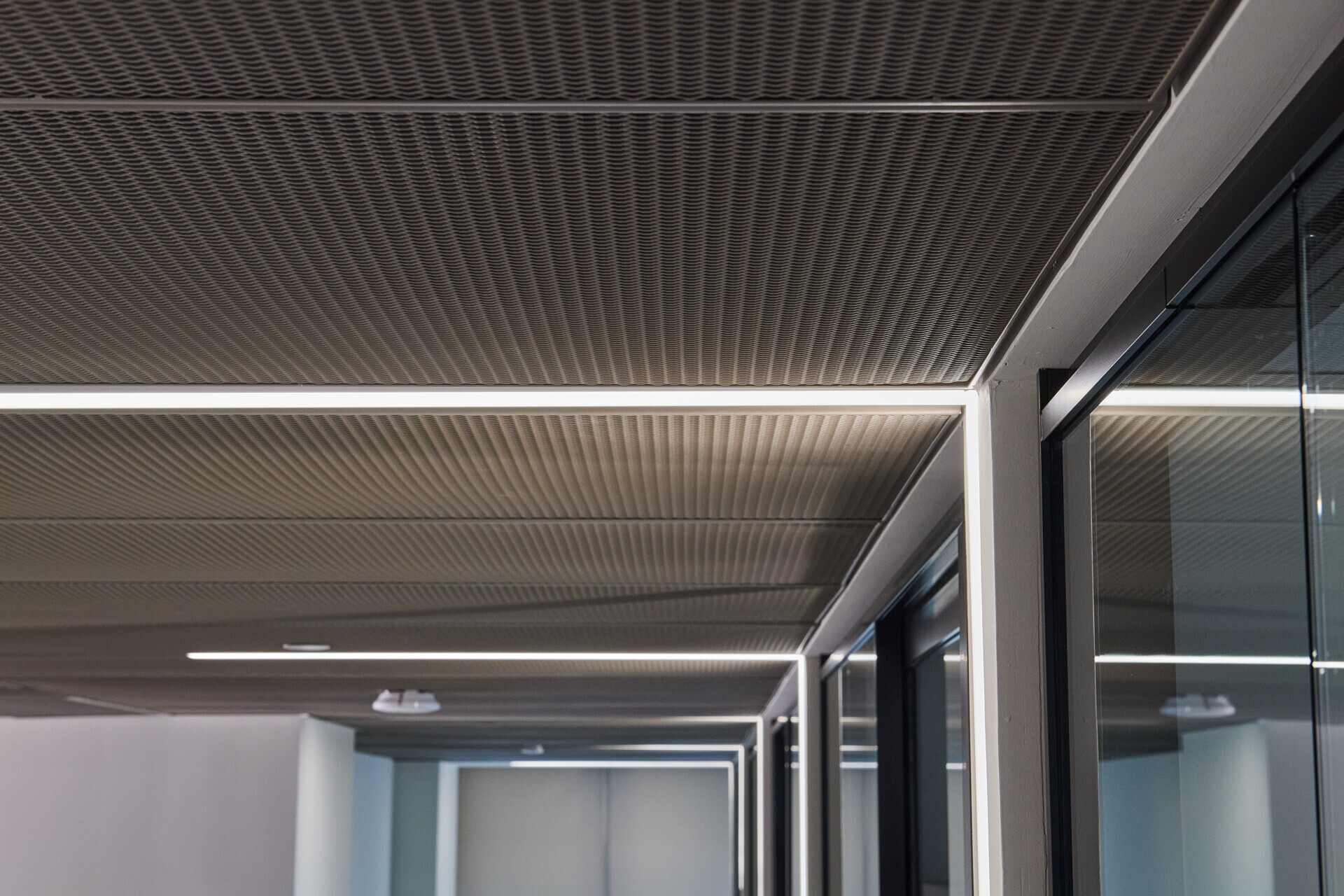

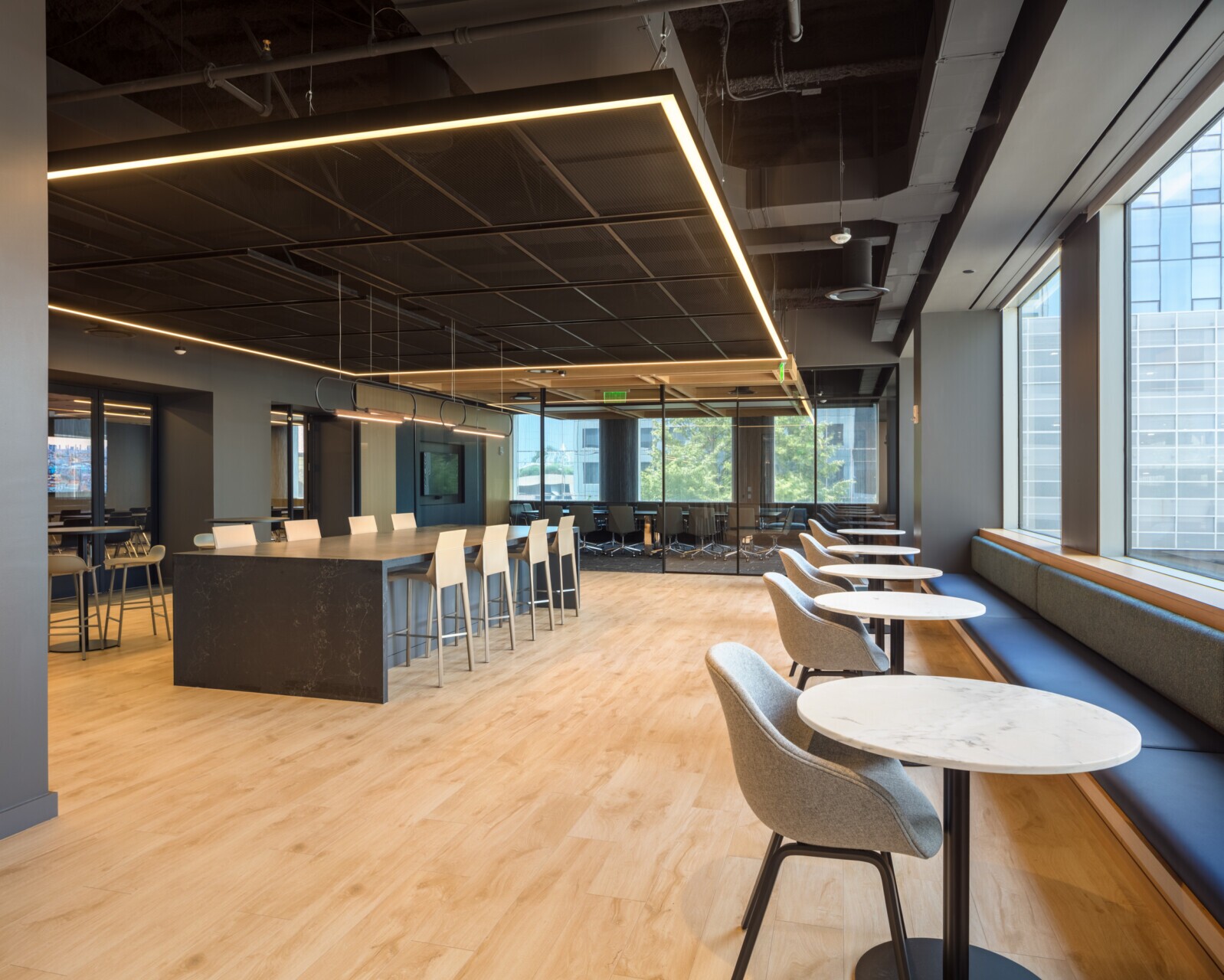

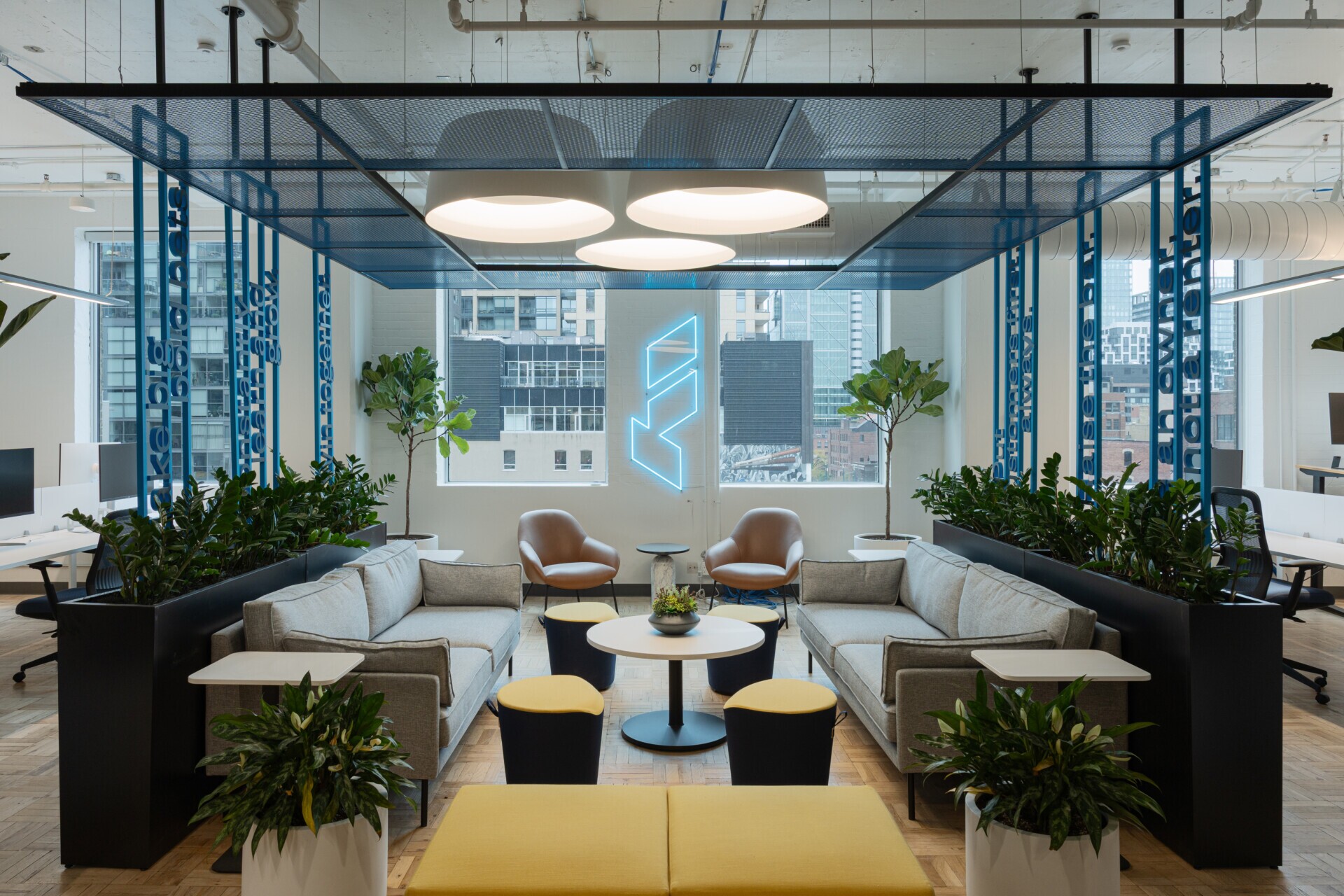

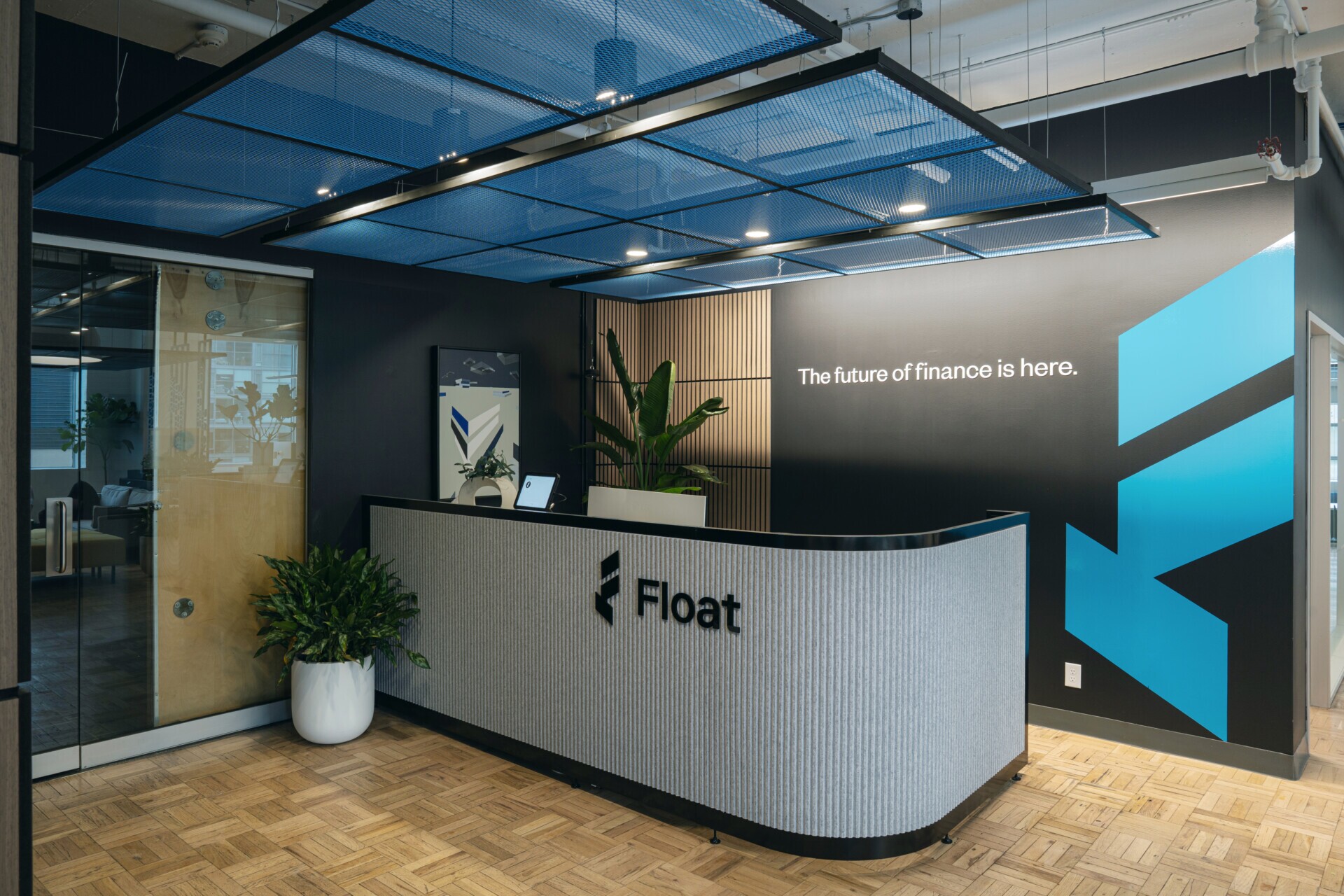

PANEL:Form Mesh Ceiling Panels in application
