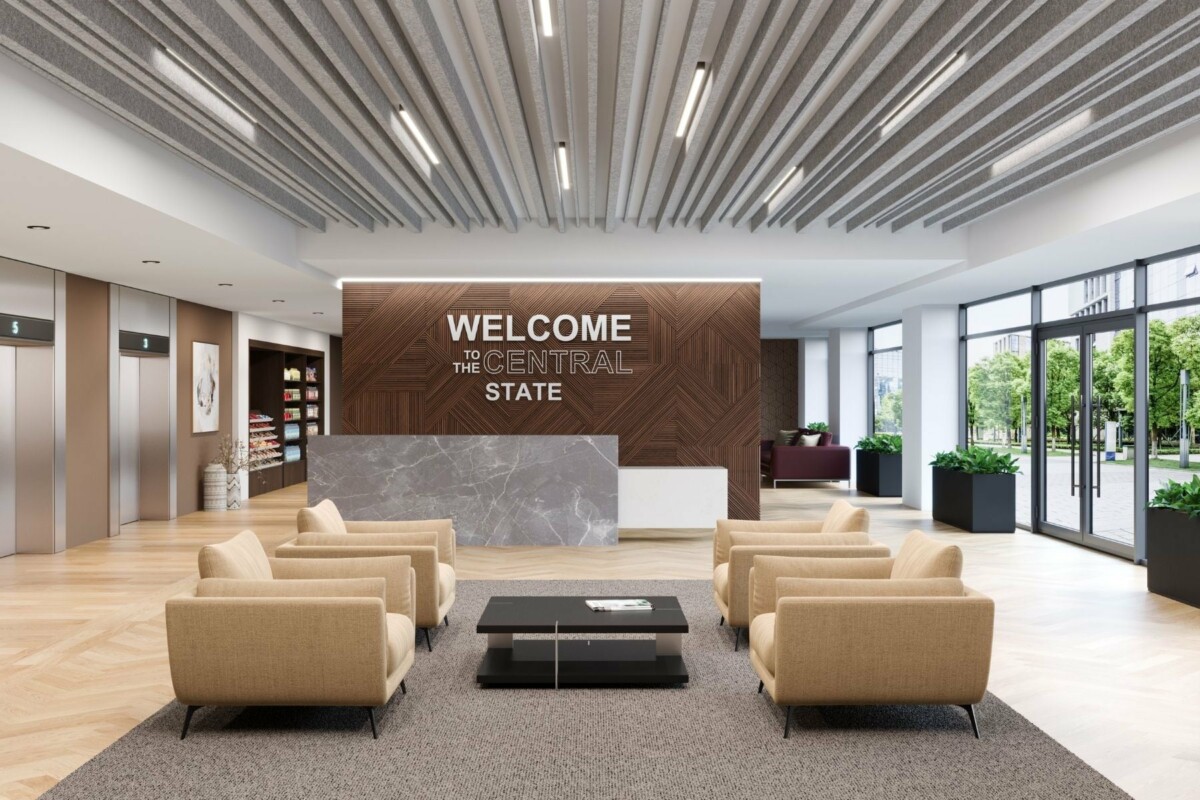

Fabricated Profile Felt Ceiling Baffle System

LINE:Form Elevations Baffle

Delivers bold texture and directional flow in a design that can be scaled for small, medium and large spaces.

Get Started

Resources

Specifications

Product Details
Sustainability
Features

Material: PET Felt
Weight: 0.69 - 1.17 lbs. / ln.ft.
Thickness: 3/8” nominal (9 mm) ; 1/5" nominal (12 mm)
Surface Finish: PET Felt - Solid Color
PET Felt - Woodgrain Printed
PET Felt - Limestone Printed
Acoustic Performance: NRC depends on baffle size and spacing. Baffles spaced closely together can achieve higher NRC.
Seismic Performance: This product has been engineered for use in all seismic areas. Installations may require additional attachments. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: ASTM E84, Class A. CAN/ULC – S102.2
Applications: This product is not approved for exterior application
Do not install near sources of heat greater than 158º F

LEED Points: BD+C v4 (MR: Product Disclosure, Recycled Content)
Schools EQ: Acoustic Performance
Declarations: No VOCs
EPD & GREENGUARD Gold certified
Recycled Content: Up to 60% post-consumer PET felt

Finishes: 37 standard colors to choose from; 8 'Quick Ship.'
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options: Lengths - up to 8'
Depths - up to 12"
Widths - 1.5", 2" (Minimum width is 1.5")
Installation: Lightweight, pre-assembled & easy to install
Versatile attachment options for Unistrut®, 15/16” HD Grid and cable-suspended applications
Easy plenum access – attachment hardware allows baffles to slide for easy plenum access and adjustment during installation
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe

Assembly

Material and Finishing Options

Limestone (limestone-felt-finish)

Beige
Grey
White

PET Felt - Solid Color (pet-felt-solid-color)

Quick Ship

Raven
Quick Ship

White Quartz
Quick Ship

Ivory
Quick Ship

Caramel
Quick Ship

Smoke
Quick Ship

Grey Quartz
Quick Ship

Cream Marble
Quick Ship

Olive Grey
Mulberry
Sea Green
Jade
Honeycomb
Raspberry
Ocean
Chestnut
Thyme
Burnt Orange
Sage
Cloud
Driftwood
Steel
Beige Plaster
Cotton
Denim
Smokey Blue
Lavender Mist
Aqua
Clear Blue
Iris
Cornflower
Cyan
Amethyst
Kiwi
Amber
Cobalt
Persimmon
Strawberry

All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.

Woodgrain (woodgrain-felt)

Weathered Grey

Timbercast™ Wood Look Colors
Dark Walnut

Timbercast™ Wood Look Colors
Red Oak

Timbercast™ Wood Look Colors
Natural Maple

Timbercast™ Wood Look Colors
White Oak

Timbercast™ Wood Look Colors

All colors are available in both 9mm and 12mm, with the Quick Ship option offered exclusively in 9mm.
