Silentia Profile Networks
Fabricated Profile Felt Ceiling Open Cell SystemFeatures interconnected beams that form shapes from traditional cubes to bespoke designs in floating and wall to wall configurations.
Specifications
- Material
- PET Felt
- Weight
- 0.69 - 1.17 lbs. / ln.ft.
- Thickness
- 3/8" nominal (9mm)
- Surface Finish
- PET Felt - Solid Color
PET Felt - Woodgrain Printed - Acoustic Performance
- NRC - 0.85 per ISO 11654
- Seismic Performance
- This product has been engineered for use in all seismic areas. Installations may require additional attachments. Check with local code officials or a licensed engineer for additional requirements.
- Fire Performance
- Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.
- Applications
- Silentia is not approved for exterior application
Do not install near sources of heat greater than 158º F
- LEED Points
- LEED BD+C: New Construction v4; MR: Regional Materials; MR: Recycled Content
- LEED BD+C: Schools v4; EQ: Acoustic Performance
- LEED ID+C: Commercial Interiors v4; EQ: Low-Emitting Material
- Declarations
- Compliant with California Department of Public Health
- Recycled Content
- Up to 60% Pre-Consumer Recycled Content in Polyester Felt
- Finishes
- 35 ‘Quick Ship’ colors to choose from. Variation – With all felt products color and texture may vary from order to order
- Custom Options
- Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
- Standard Options
- Lengths - up to 8'
Depths - up to 12"
Widths - 1.5", 2" (Minimum width is 1.5") - Installation
- Lightweight, pre-assembled & easy to install
- Versatile attachment options for Unistrut®, 15/16” HD Grid and cable-suspended applications
- Easy plenum access – attachment hardware allows baffles to slide for easy plenum access and adjustment during installation
- Care & Maintenance
- Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe

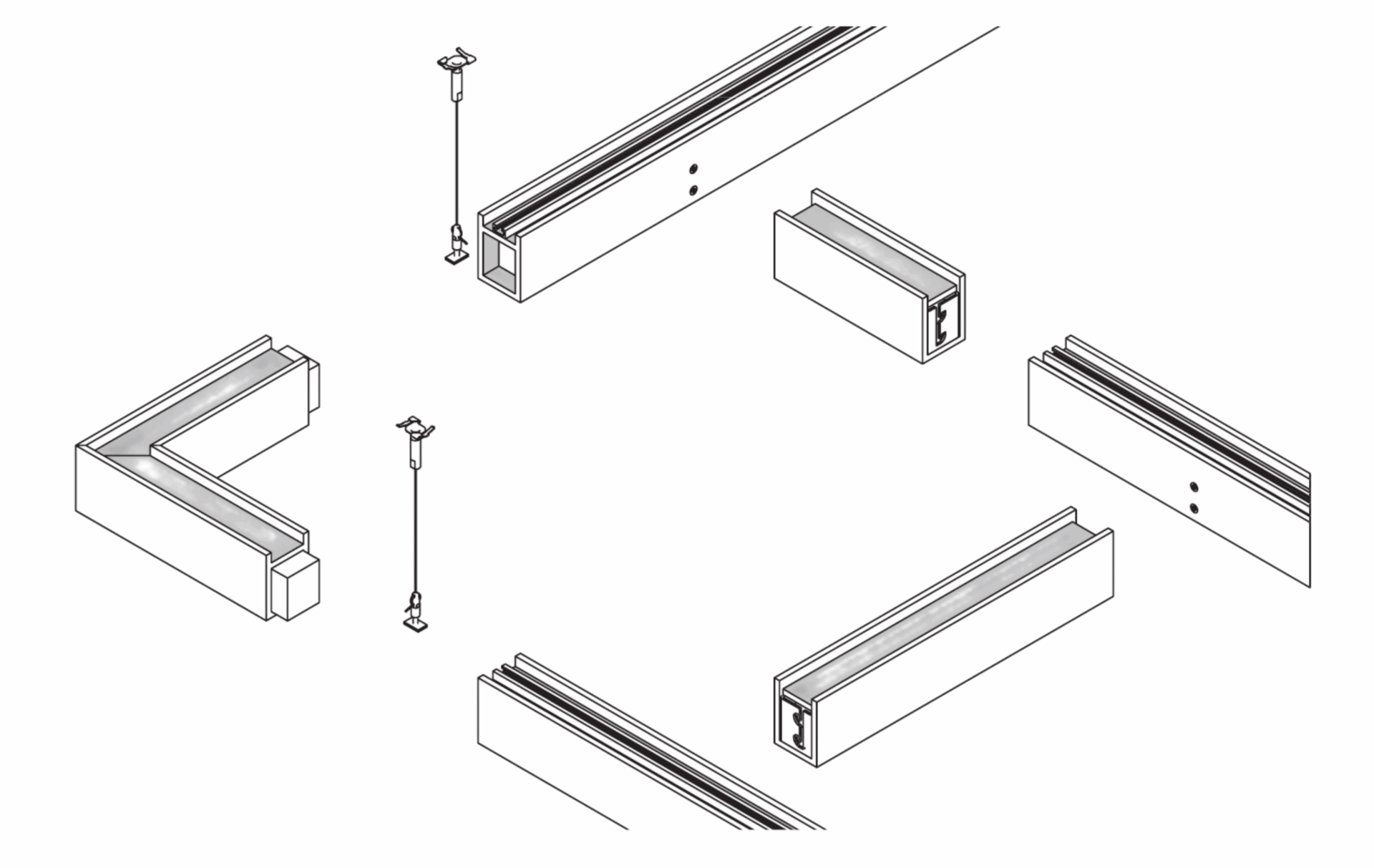

Assembly
Material and Finishing Options
Wood look (PET) polyester felt finish
-
Weathered Grey
Wood look (PET) polyester felt finish
-
Walnut
Wood look (PET) polyester felt finish
-
Red Oak
Wood look (PET) polyester felt finish
-
Natural Maple
Wood look (PET) polyester felt finish
-
Coastal Oak
Wood look (PET) polyester felt finish
(PET) polyester felt finish
-
Yellow
(PET) polyester felt finish
-
White
(PET) polyester felt finish
-
Violet
(PET) polyester felt finish
-
Teal
(PET) polyester felt finish
-
Stone
(PET) polyester felt finish
-
Sky Blue
(PET) polyester felt finish
-
Sand
(PET) polyester felt finish
-
Salmon
(PET) polyester felt finish
-
Red
(PET) polyester felt finish
-
Purple
(PET) polyester felt finish
-
Pumpkin
(PET) polyester felt finish
-
Plum
(PET) polyester felt finish
-
Pink
(PET) polyester felt finish
-
Periwinkle
(PET) polyester felt finish
-
Pepper
(PET) polyester felt finish
-
Pear
(PET) polyester felt finish
-
Orange
(PET) polyester felt finish
-
Oat
(PET) polyester felt finish
-
Navy
(PET) polyester felt finish
-
Maroon
(PET) polyester felt finish
-
Lime
(PET) polyester felt finish
-
Lemon
(PET) polyester felt finish
-
Leaf Green
(PET) polyester felt finish
-
Hickory
(PET) polyester felt finish
-
Green
(PET) polyester felt finish
-
Gray
(PET) polyester felt finish
-
Dew
(PET) polyester felt finish
-
Deep Blue
(PET) polyester felt finish
-
Dark Brown
(PET) polyester felt finish
-
Charcoal
(PET) polyester felt finish
-
Brown
(PET) polyester felt finish
-
Blue Jean
(PET) polyester felt finish
-
Black
(PET) polyester felt finish
-
Berry
(PET) polyester felt finish
-
Alabaster
(PET) polyester felt finish
