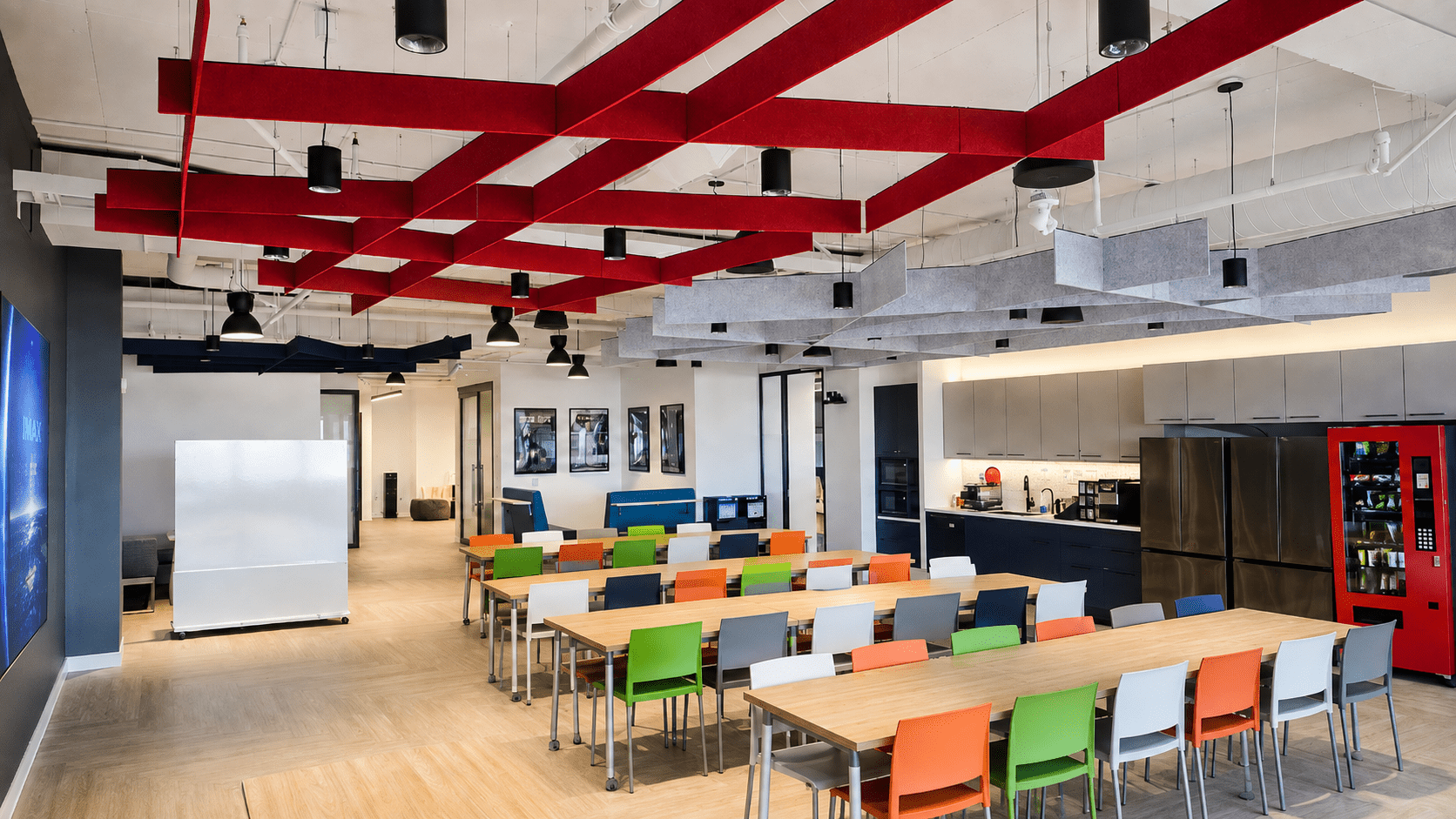

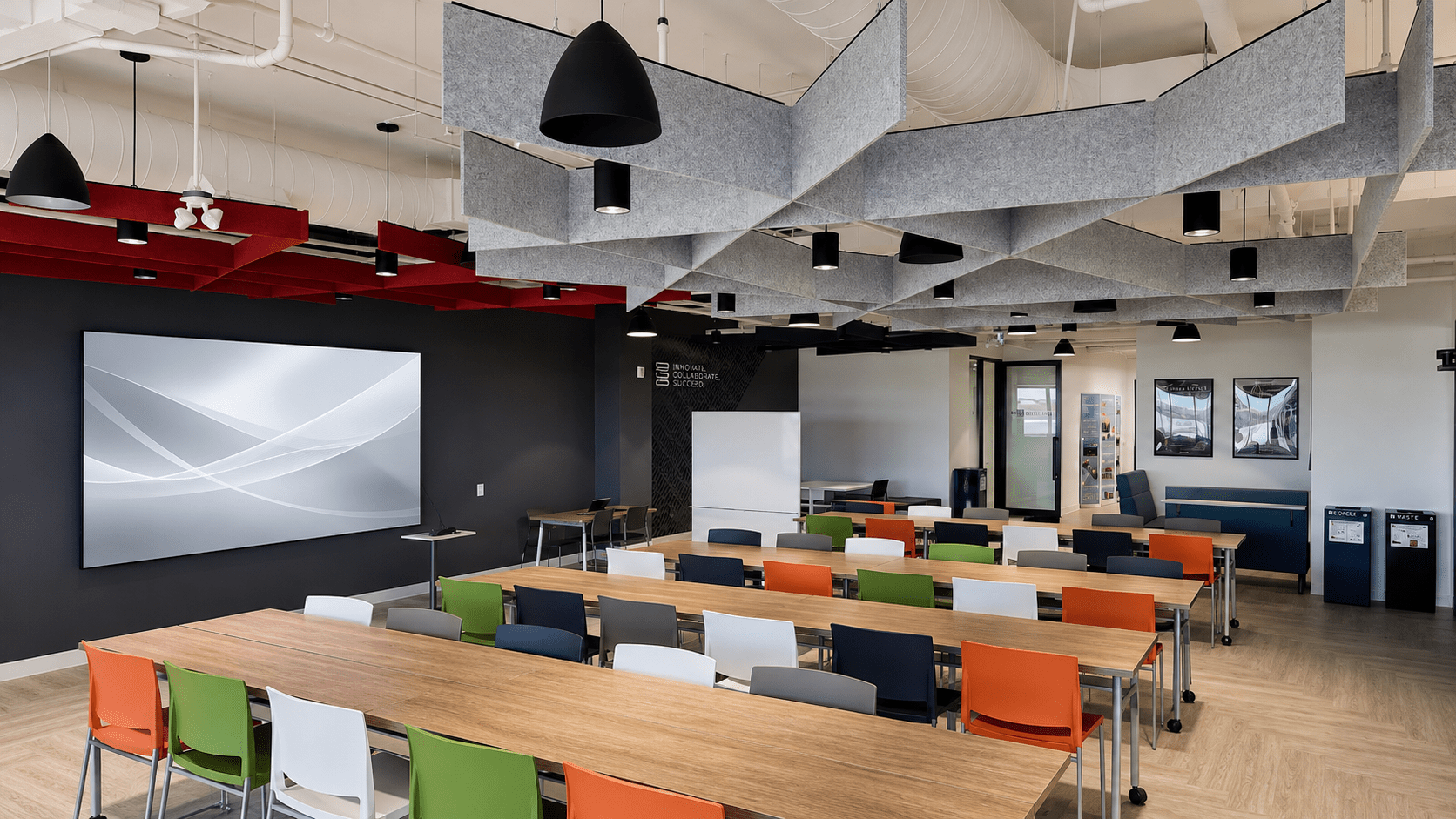

Felt Ceiling Baffle System

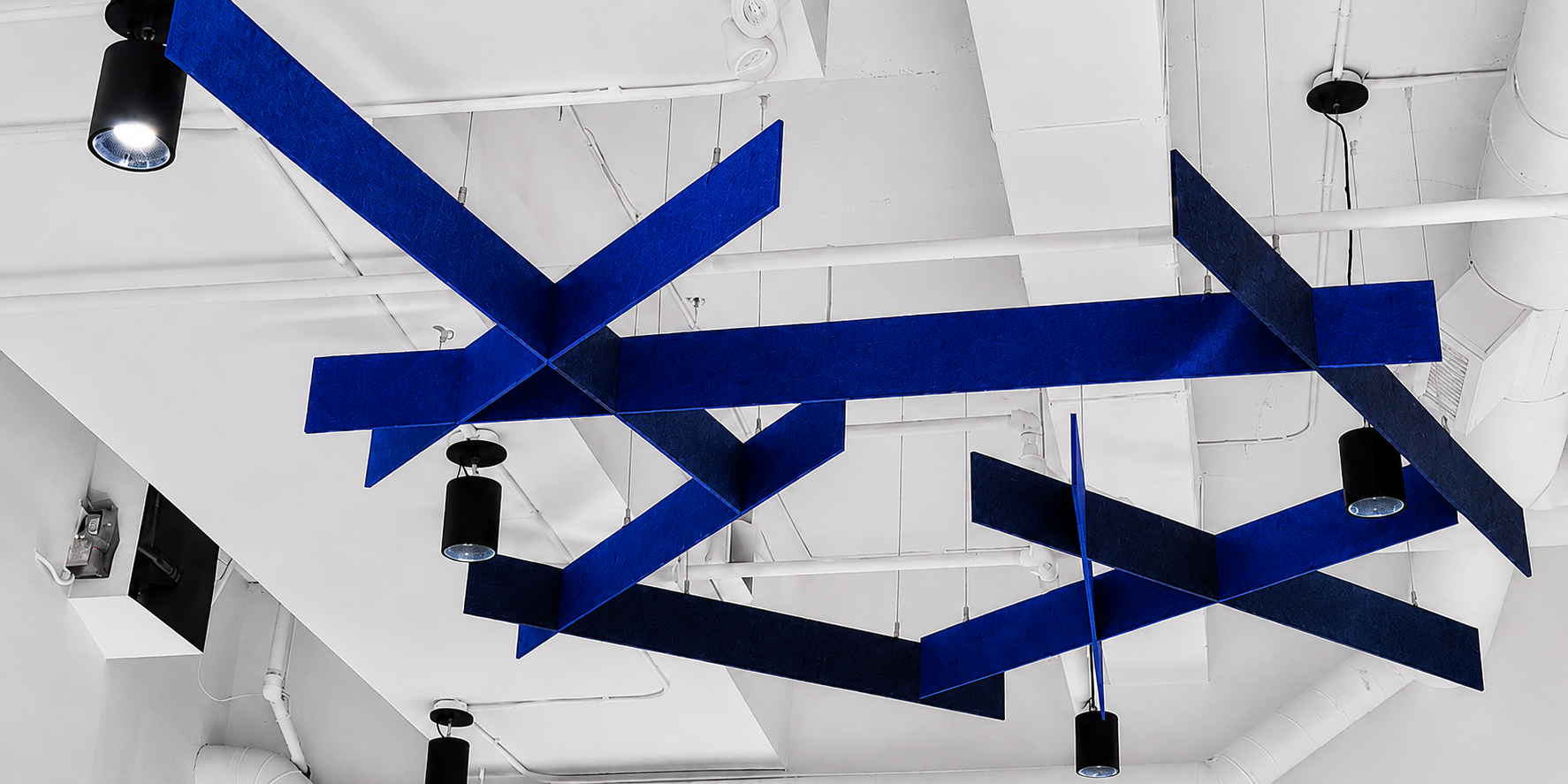

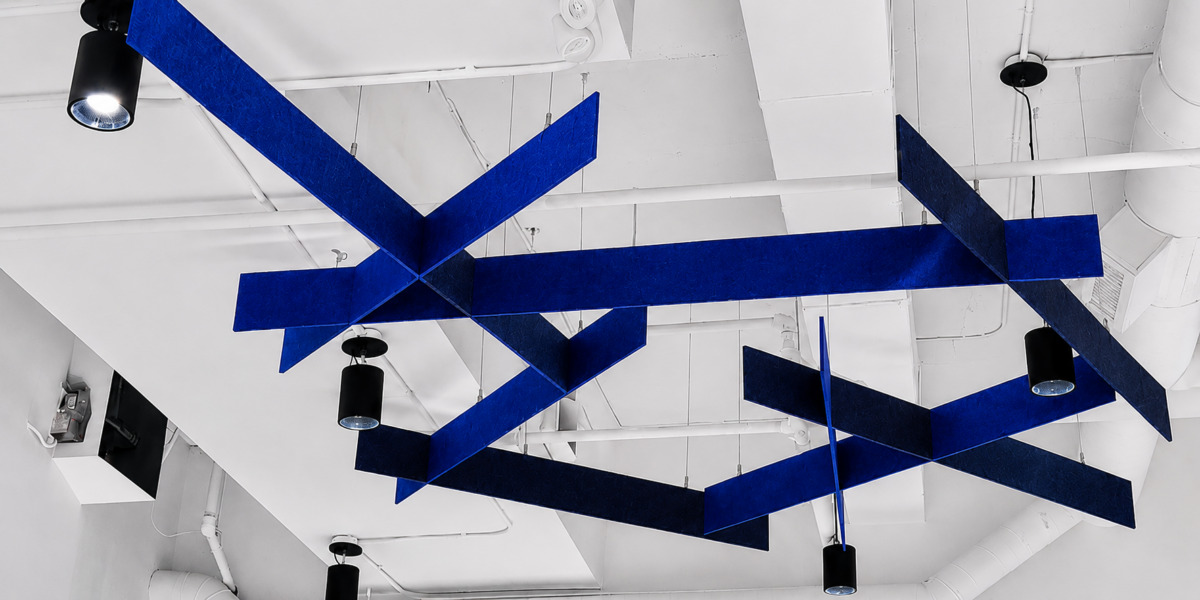

AERO:Form Crossroads Open Cell

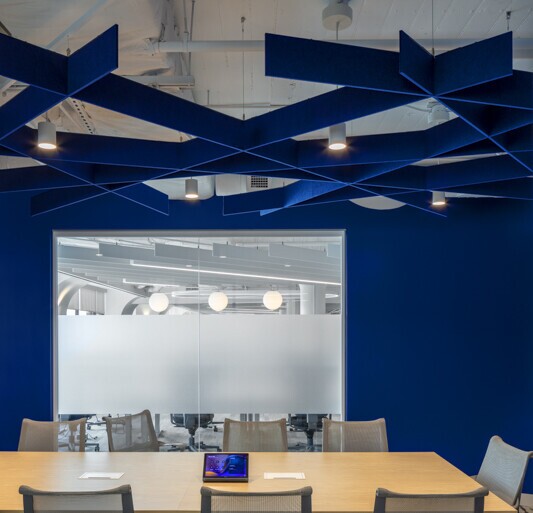

Interconnected baffles that form shapes from traditional cubes to curved, bent and 3D custom designs.

Get Started

Resources

Specifications

Product Details
Sustainability
Features

Material: PET Felt
Weight: 0.20 - 0.33 lbs. / ln.ft.
Thickness: 3/8” nominal (9 mm) ; 1/5" nominal (12 mm)
Surface Finish: PET Felt - Solid Color
PET Felt - Woodgrain Printed
PET Felt - Limestone Printed
Acoustic Performance: NRC depends on baffle size and spacing. Baffles spaced closely together can achieve higher NRC.
Seismic Performance: This product has been engineered for use in all seismic areas. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: ASTM E84 Class A, CAN / ULC S102.2
Applications: This product is not approved for exterior application. Do not install near sources of heat greater than 158º F.

LEED Points: BD+C v4 (MR: Product Disclosure, Recycled Content)
Schools EQ: Acoustic Performance
Declarations: No VOCs
EPD & GREENGUARD GOLD certified
Recycled Content: Up to 60% post-consumer PET felt

Finishes: 3/8” width delivers a clean linear look. 37 standard colors to choose from; 8 'Quick Ship.'
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best.
We will make any shape or size you can design.
Standard Options: Lengths - up to 8’
Depths - up to 24”
Installation: Lightweight and easy to install.

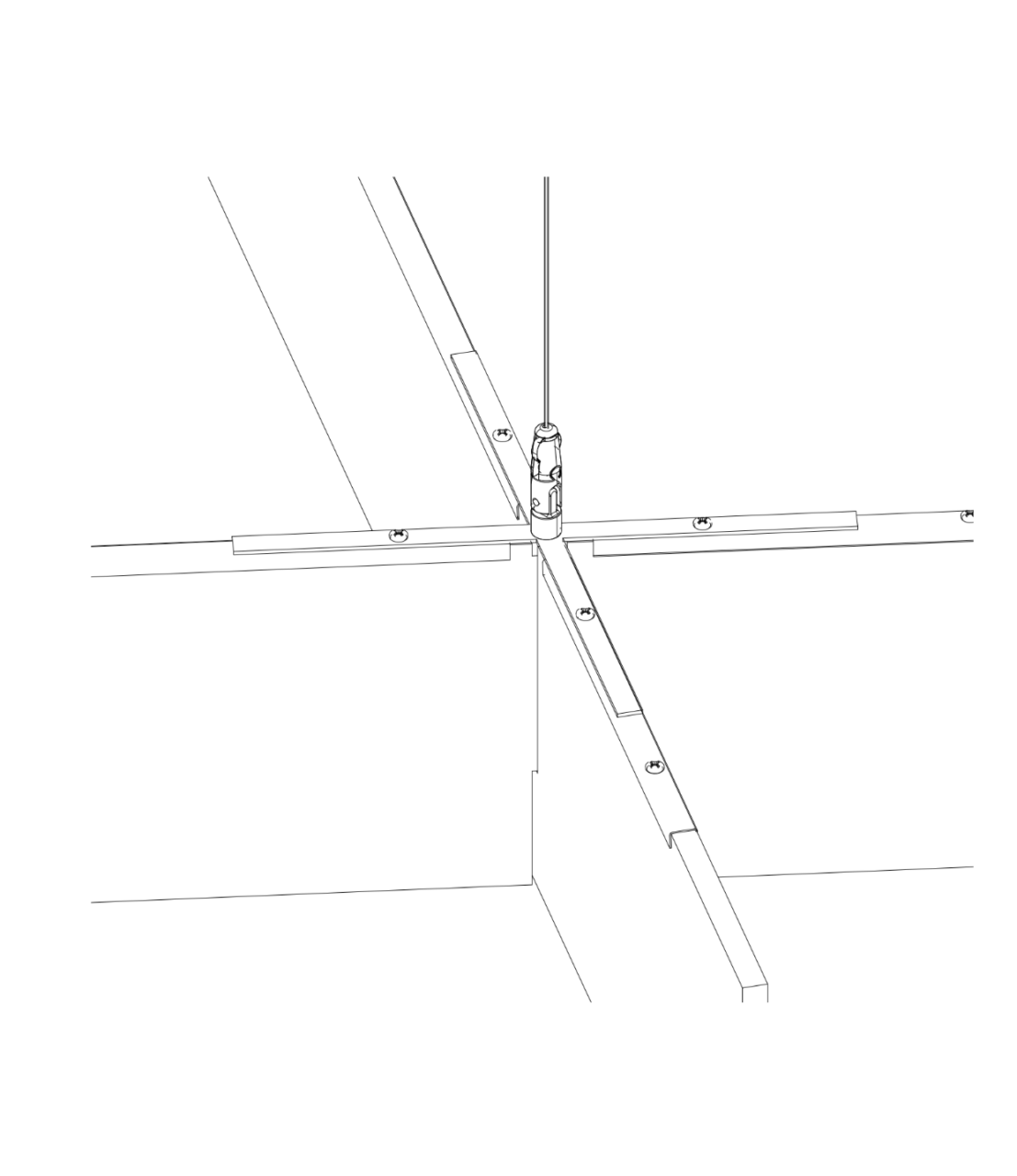

Flexible and economical cable-hung attachment.
Easy plenum access – attachment hardware allows baffles to unhook for easy plenum access and adjustment during installation.
Baffles can be arranged in various ways to accommodate design and architectural elements.

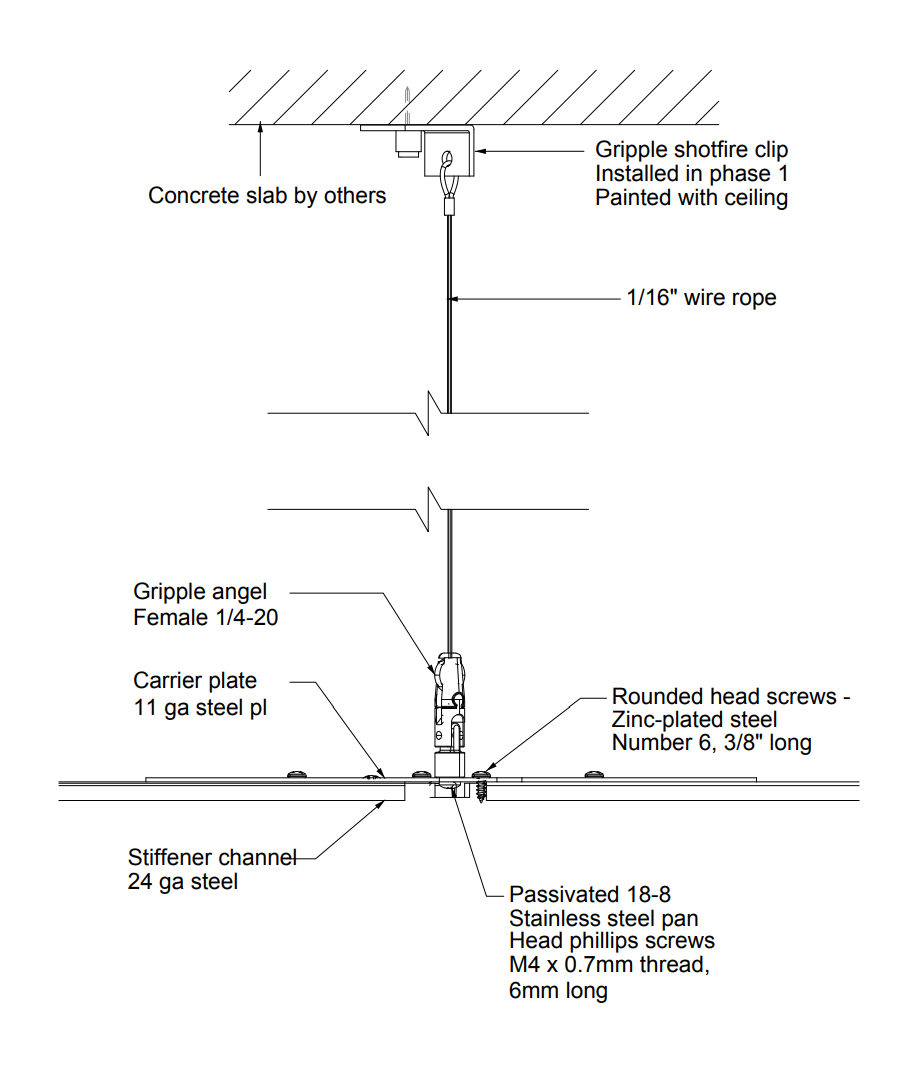

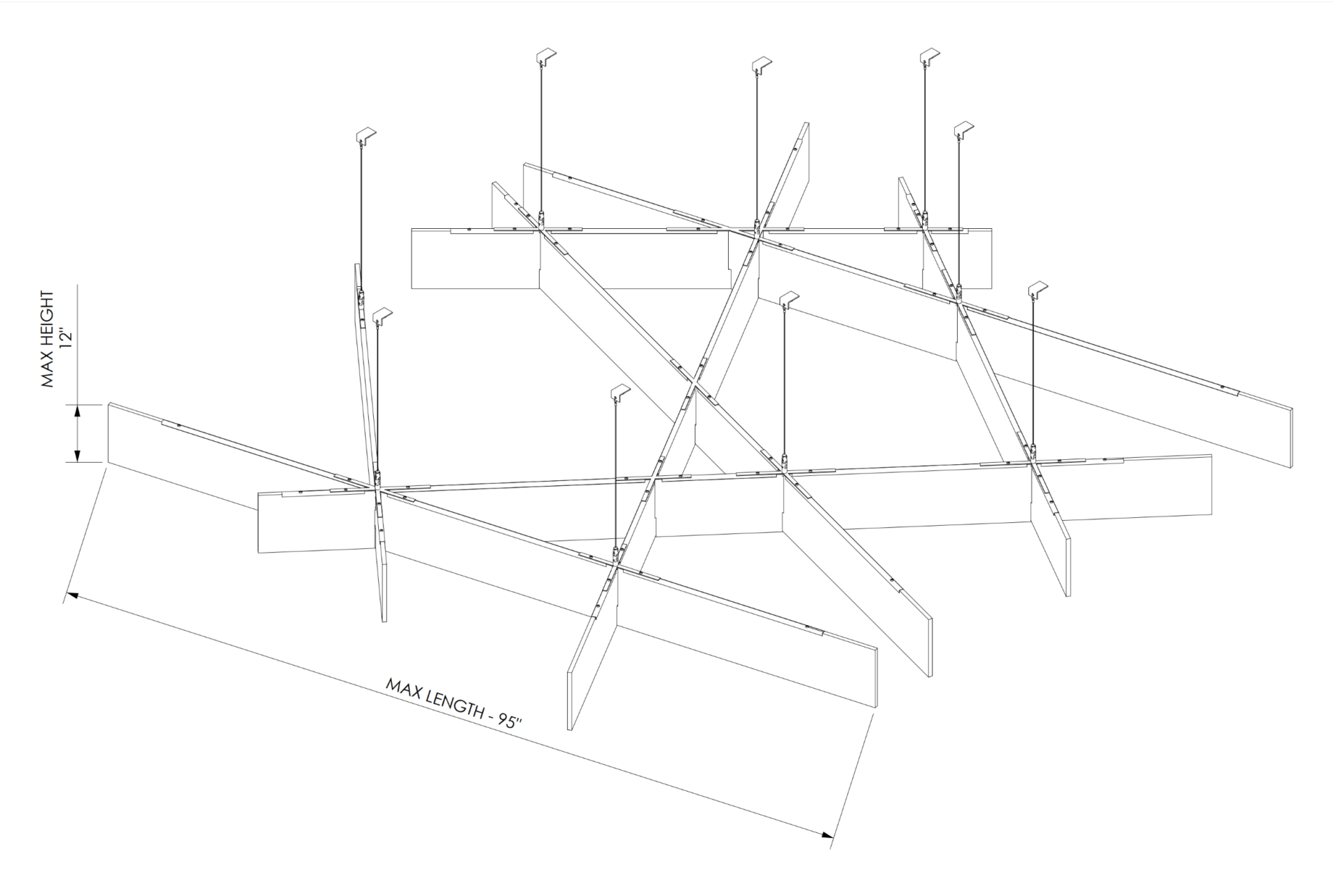

Assembly

Material and Finishing Options

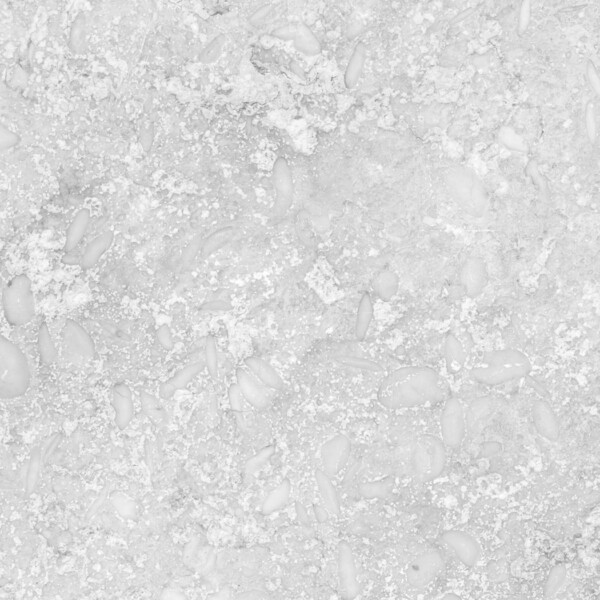

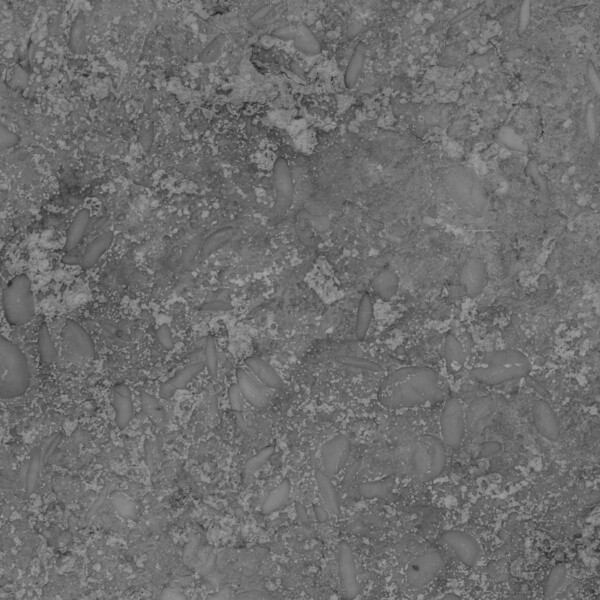

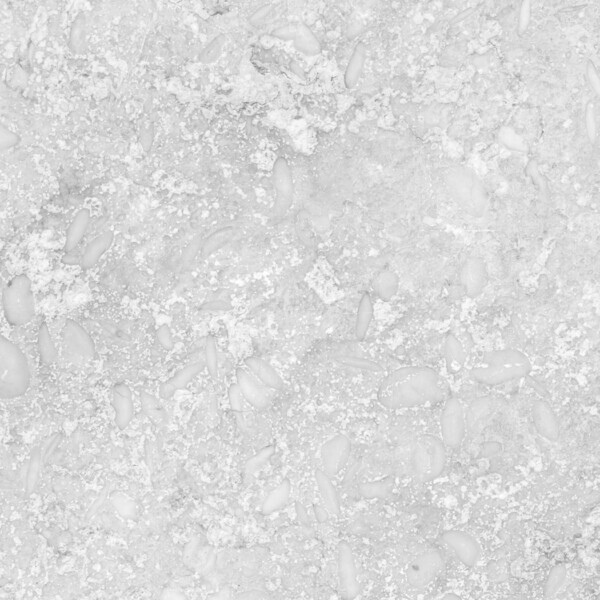

Limestone (limestone-felt-finish)

Beige
Grey
White

PET Felt - Solid Color (pet-felt-solid-color)

Quick Ship

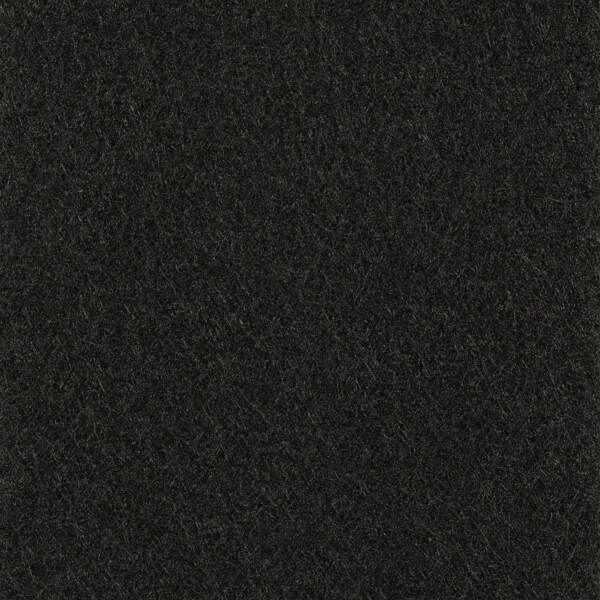

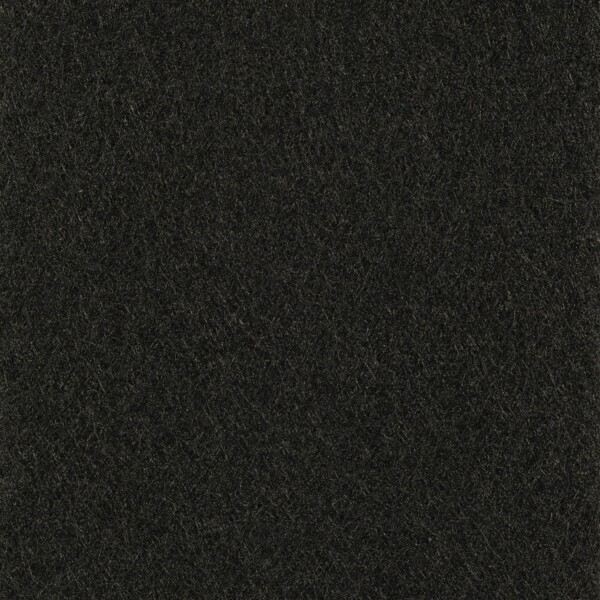

Raven
Quick Ship

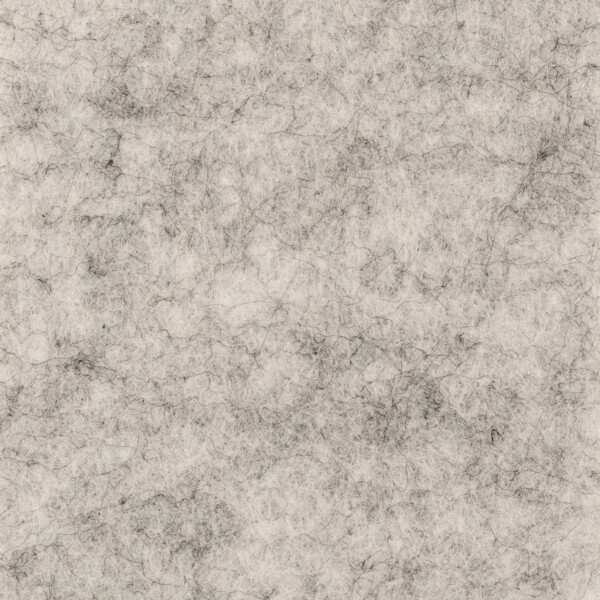

White Quartz
Quick Ship

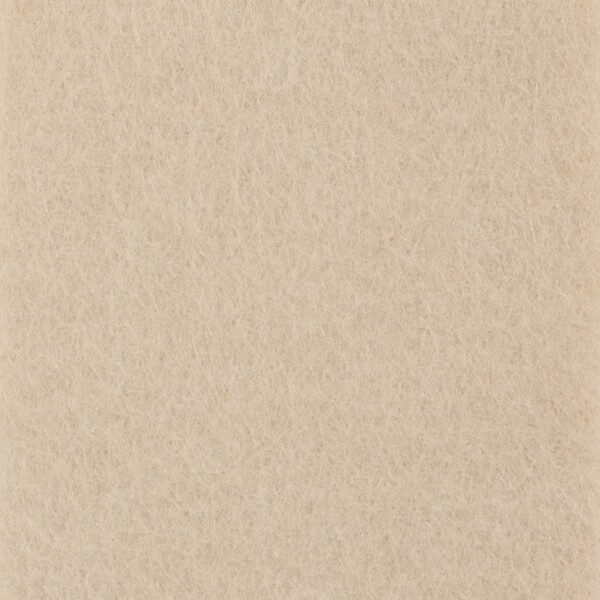

Ivory
Quick Ship

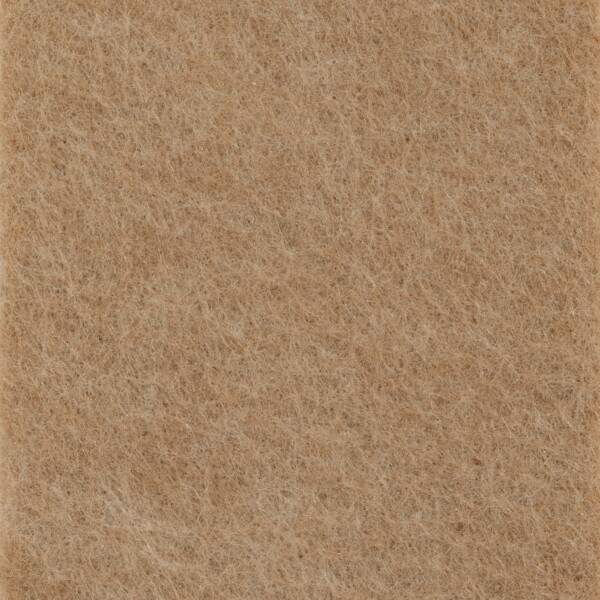

Caramel
Quick Ship

Smoke
Quick Ship

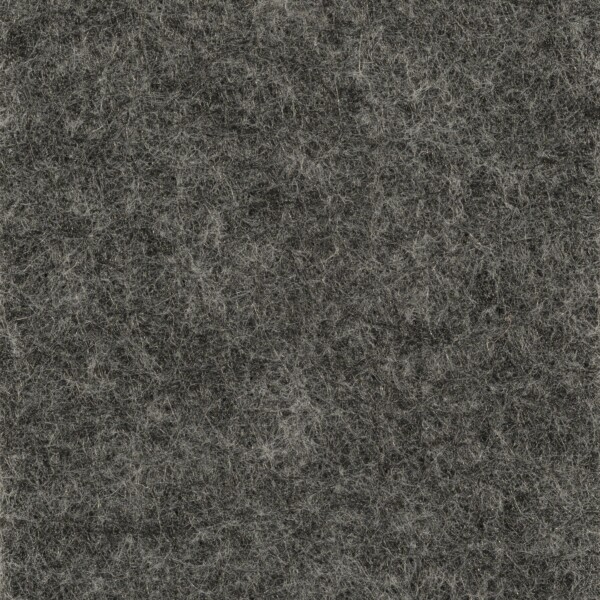

Grey Quartz
Quick Ship

Cream Marble
Quick Ship

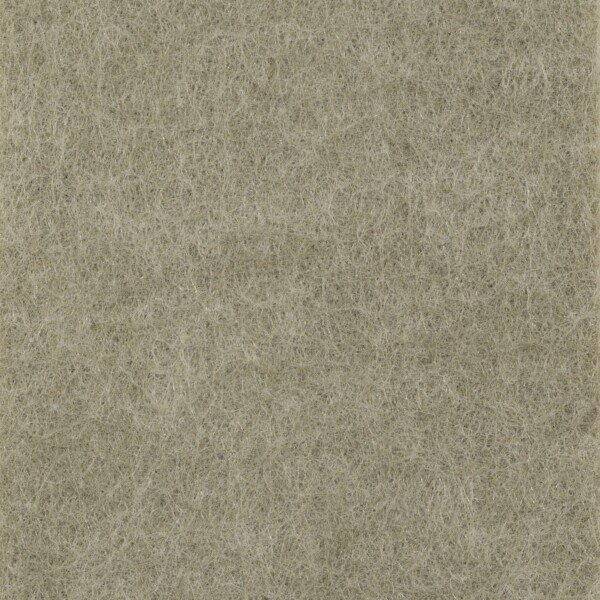

Olive Grey

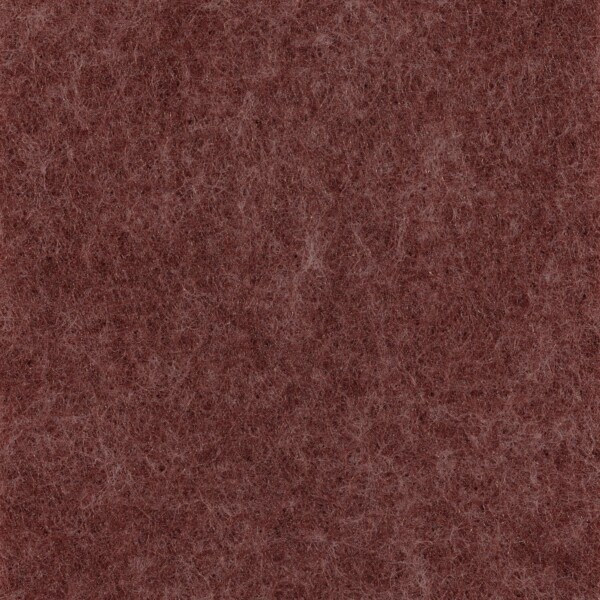

Mulberry

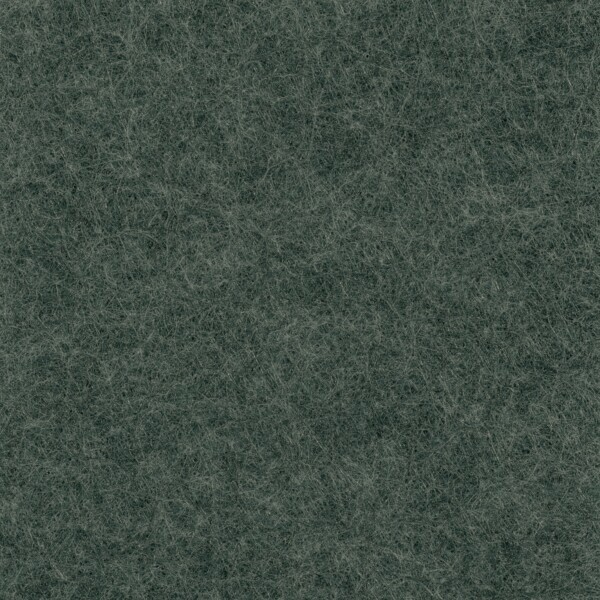

Sea Green

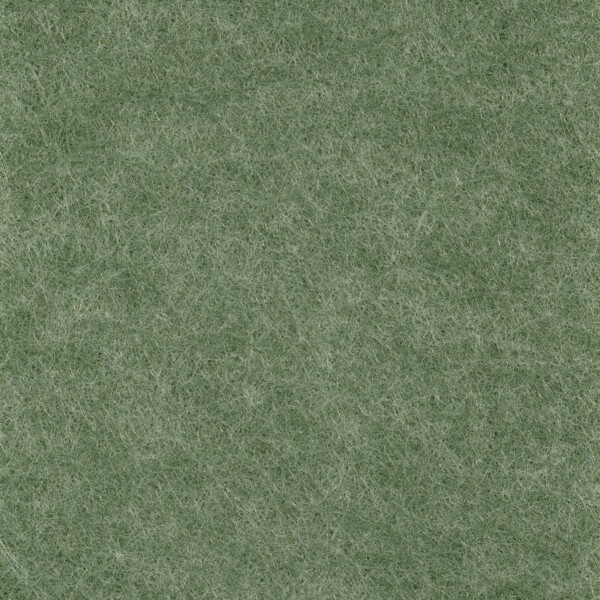

Jade

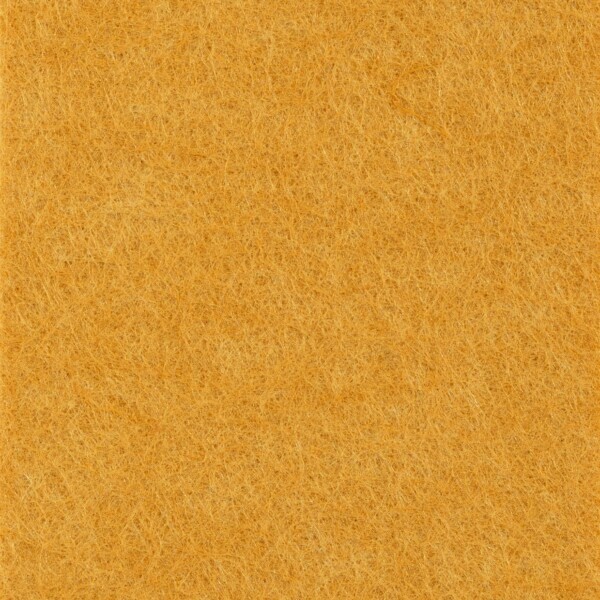

Honeycomb
Raspberry

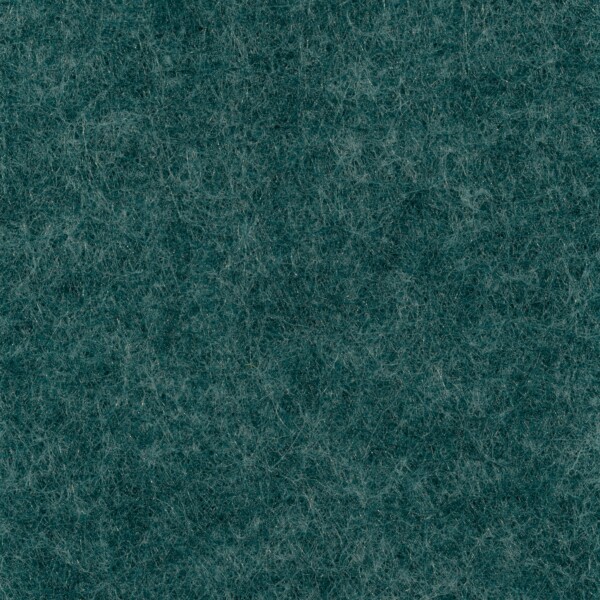

Ocean

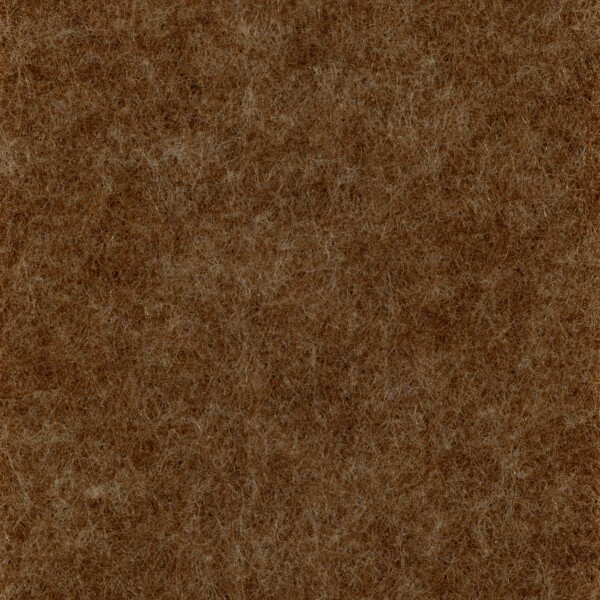

Chestnut

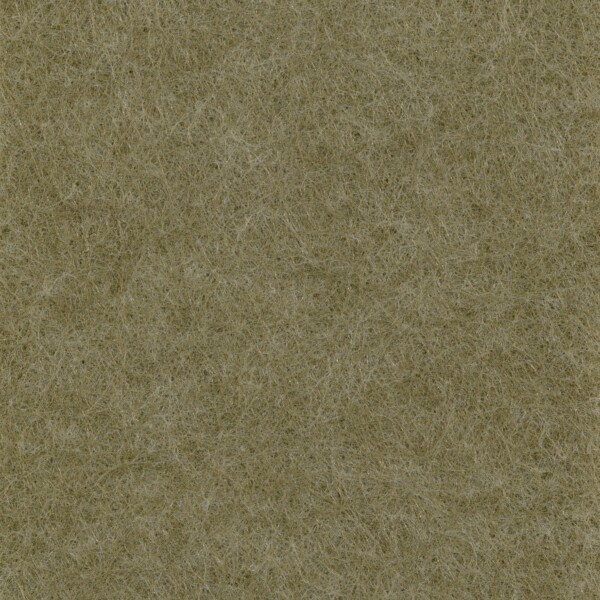

Thyme
Burnt Orange

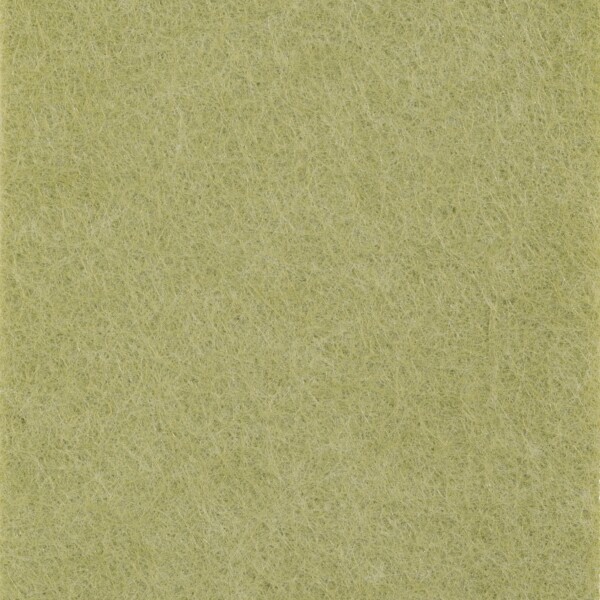

Sage

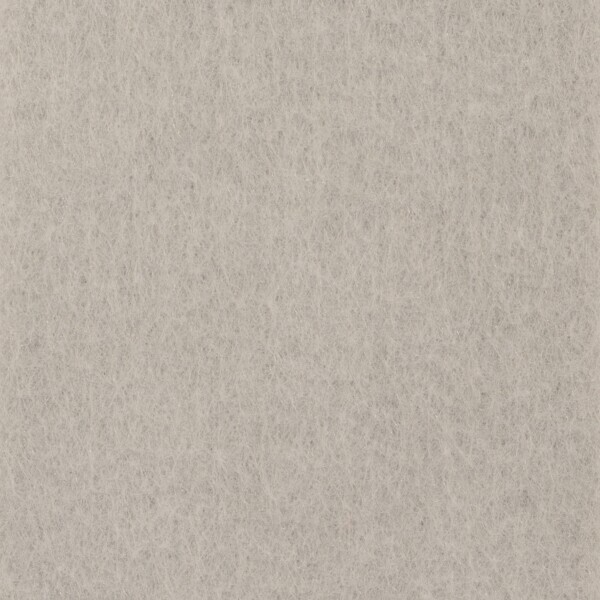

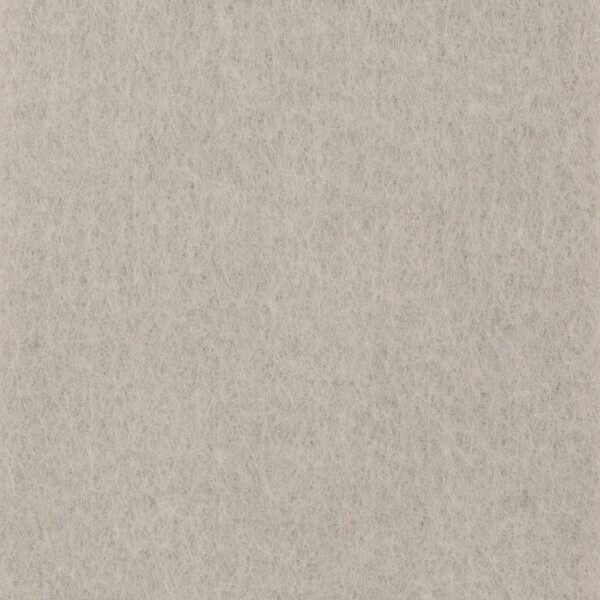

Cloud

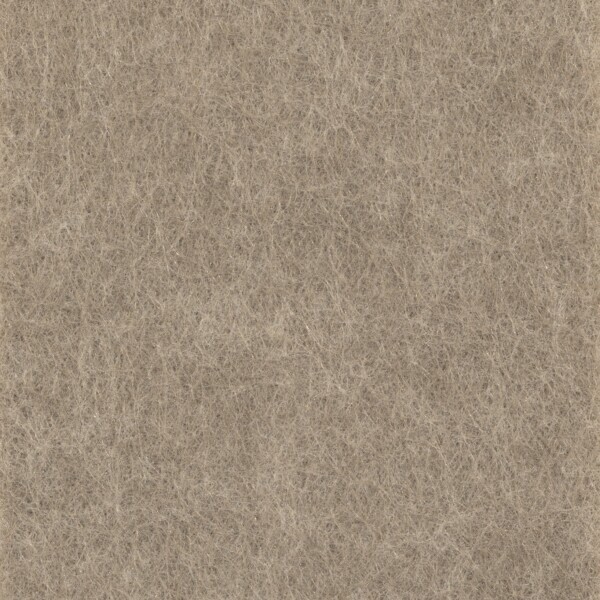

Driftwood

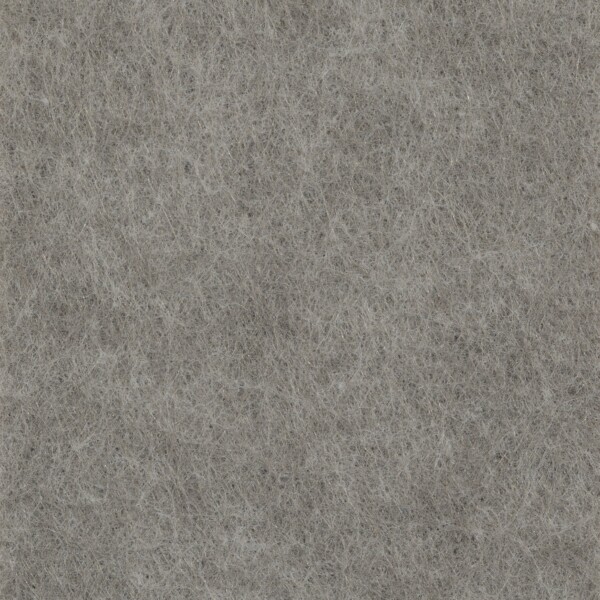

Steel
Beige Plaster
Cotton

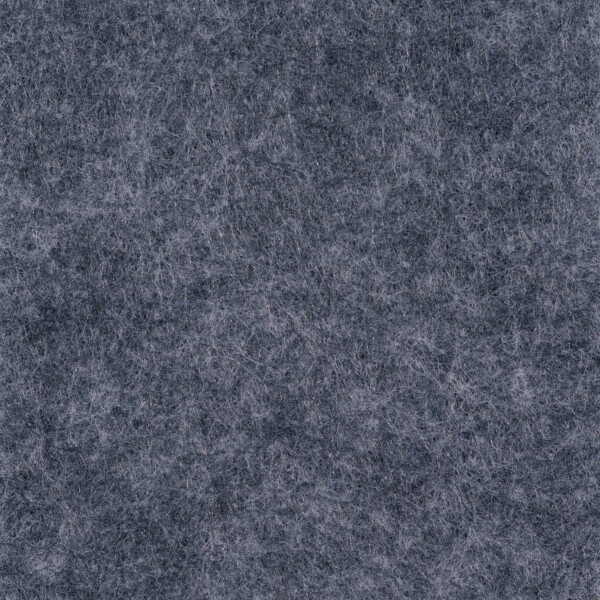

Denim

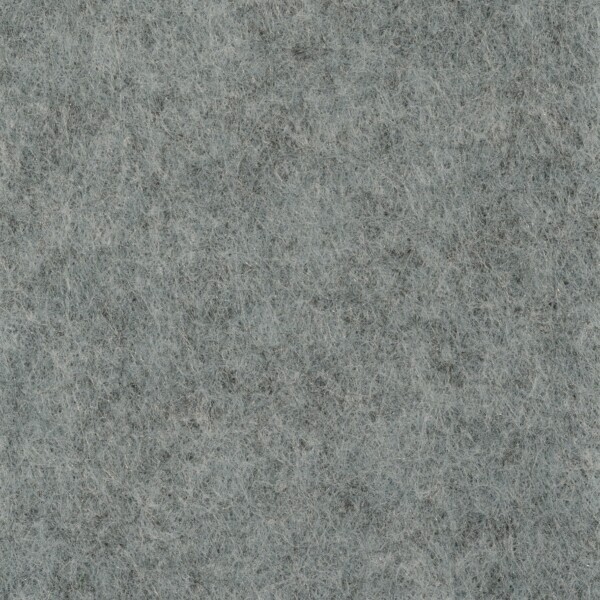

Smokey Blue

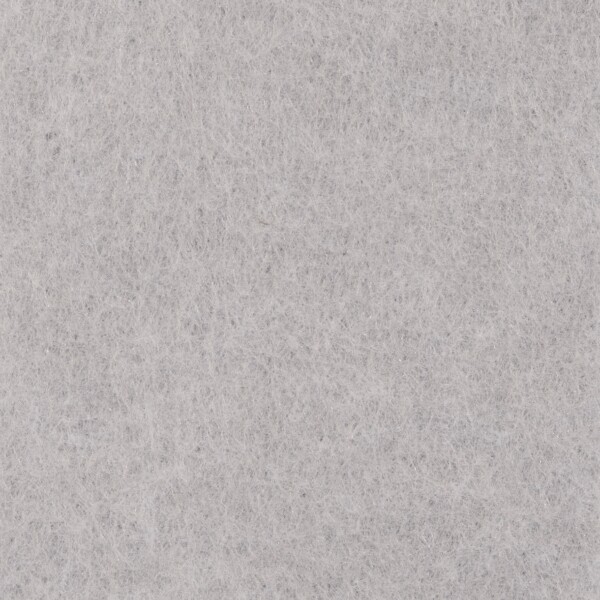

Lavender Mist
Aqua

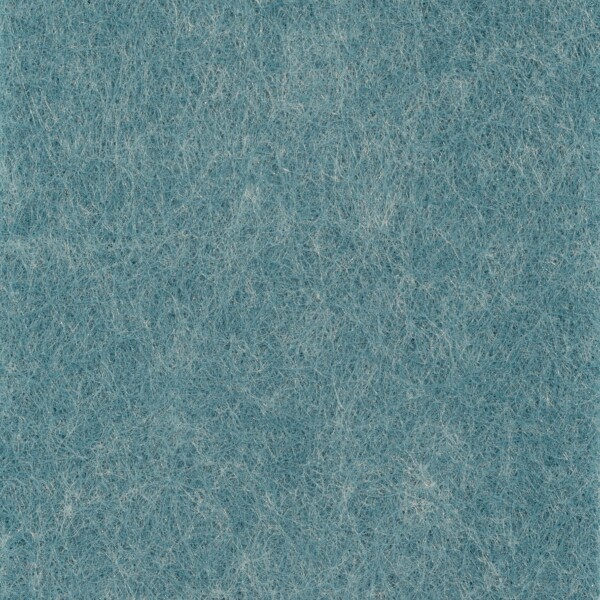

Clear Blue

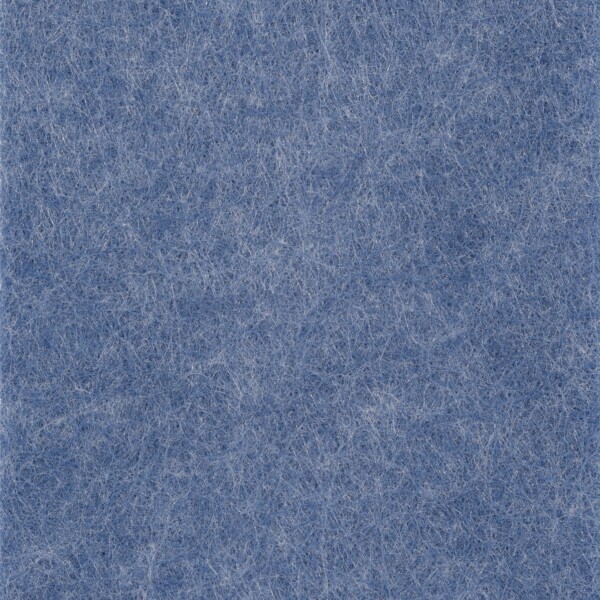

Iris

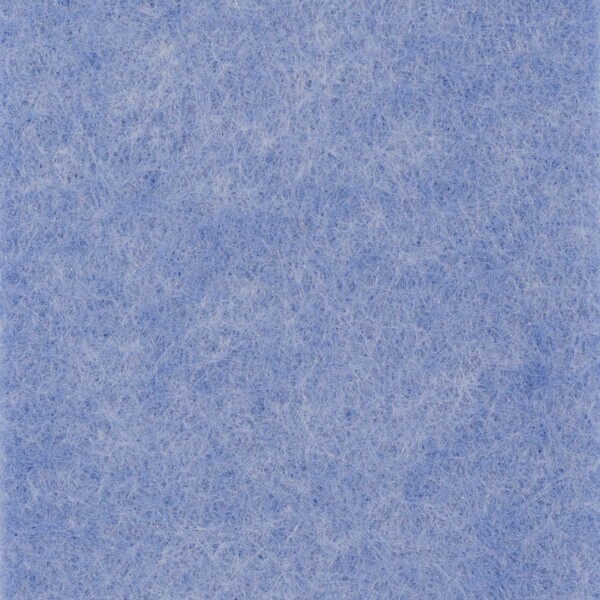

Cornflower

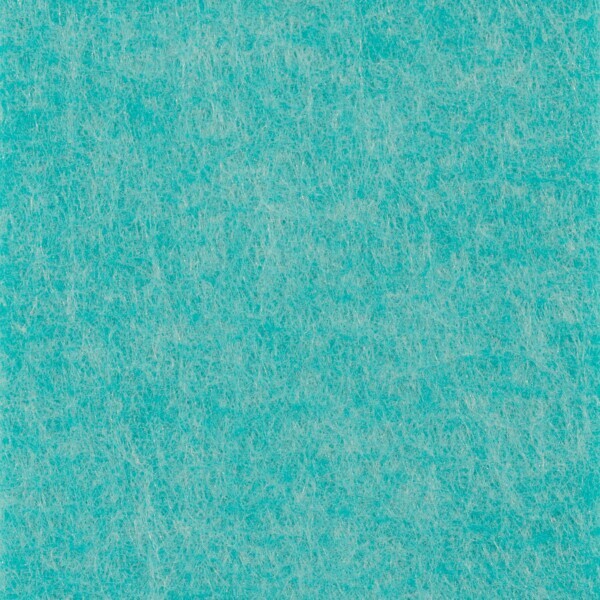

Cyan

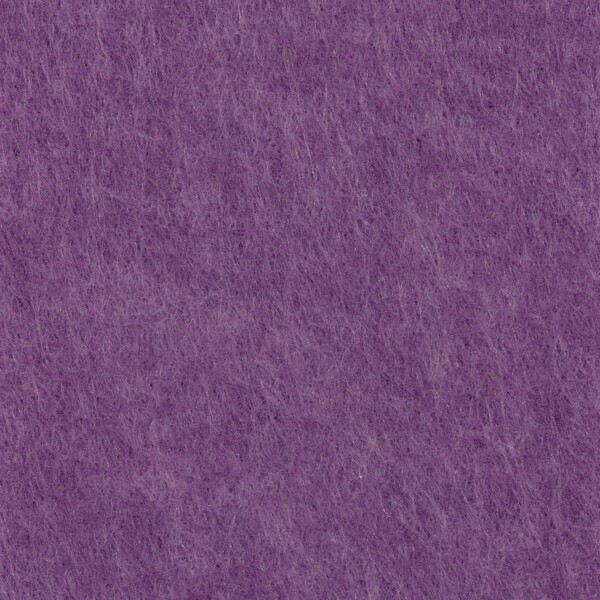

Amethyst

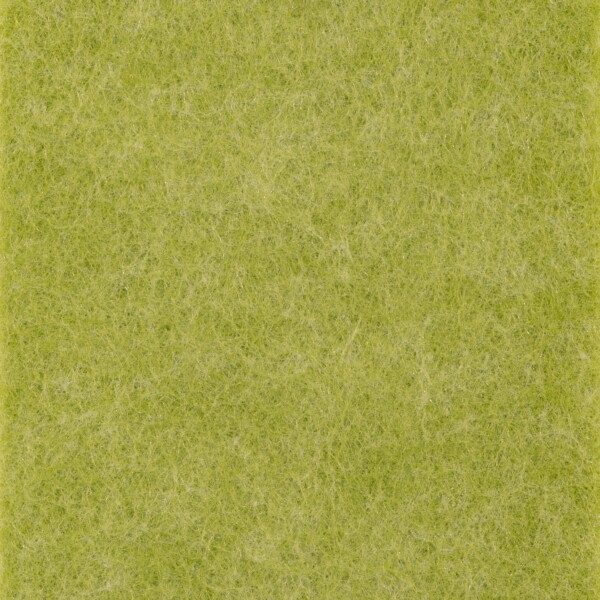

Kiwi

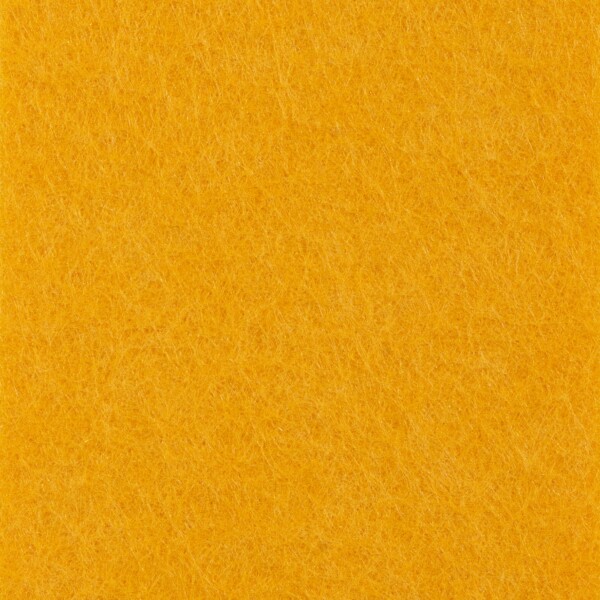

Amber
Cobalt
Persimmon

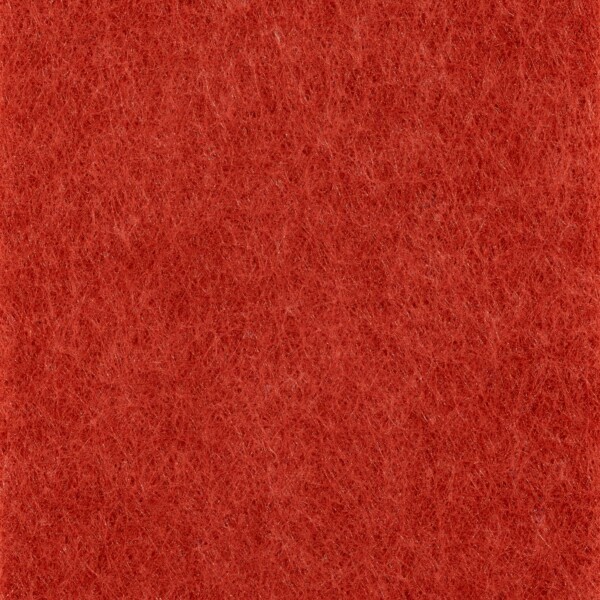

Strawberry

All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.

Woodgrain (woodgrain-felt)

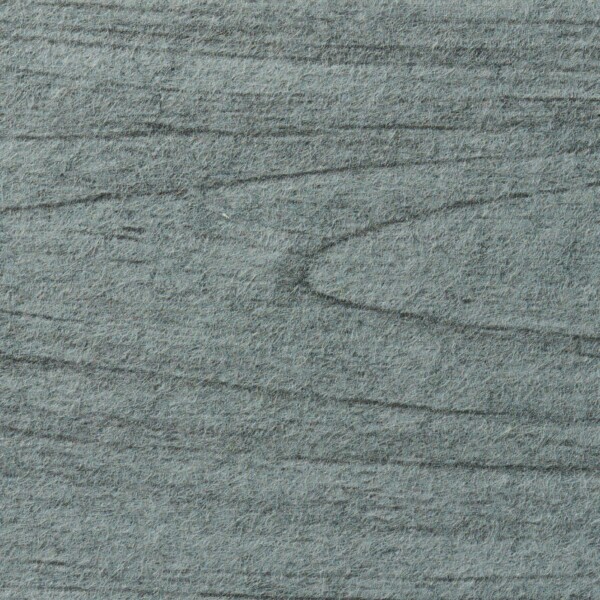

Weathered Grey

Timbercast™ Wood Look Colors

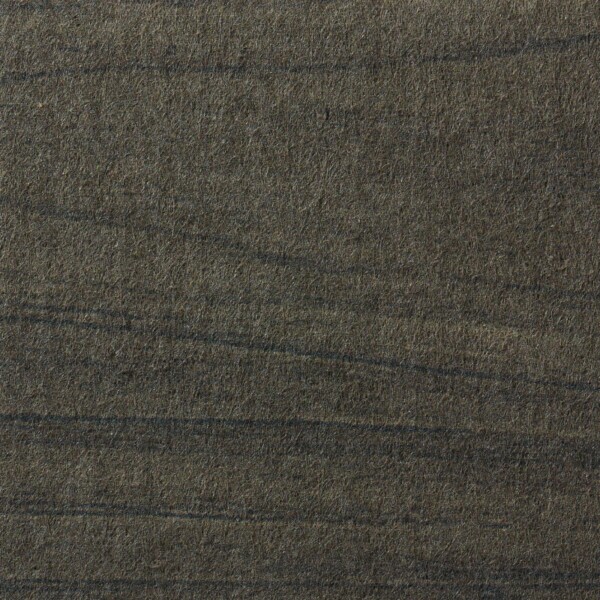

Dark Walnut

Timbercast™ Wood Look Colors
Red Oak

Timbercast™ Wood Look Colors

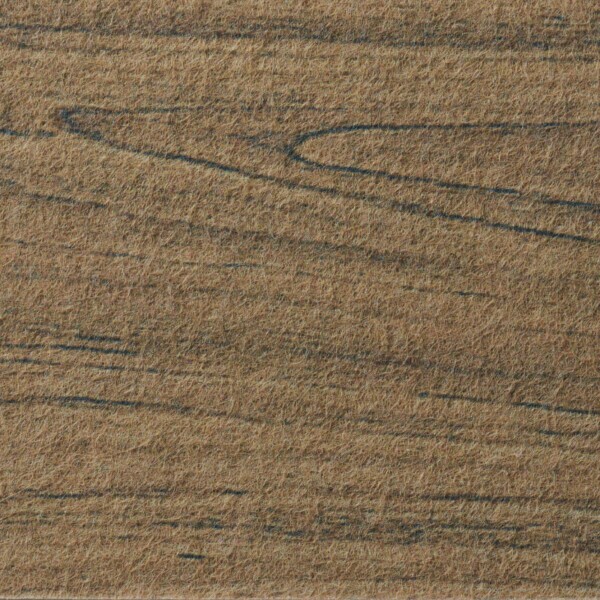

Natural Maple

Timbercast™ Wood Look Colors

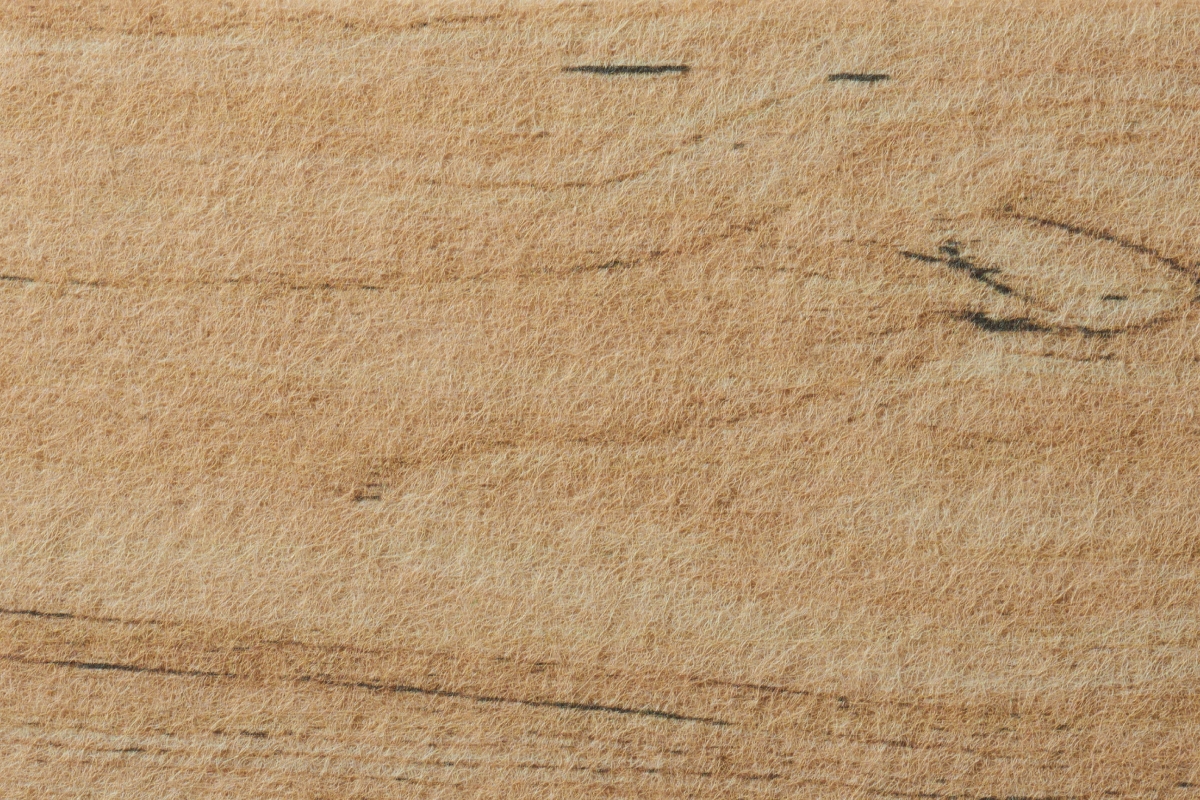

White Oak

Timbercast™ Wood Look Colors

All colors are available in both 9mm and 12mm, with the Quick Ship option offered exclusively in 9mm.
