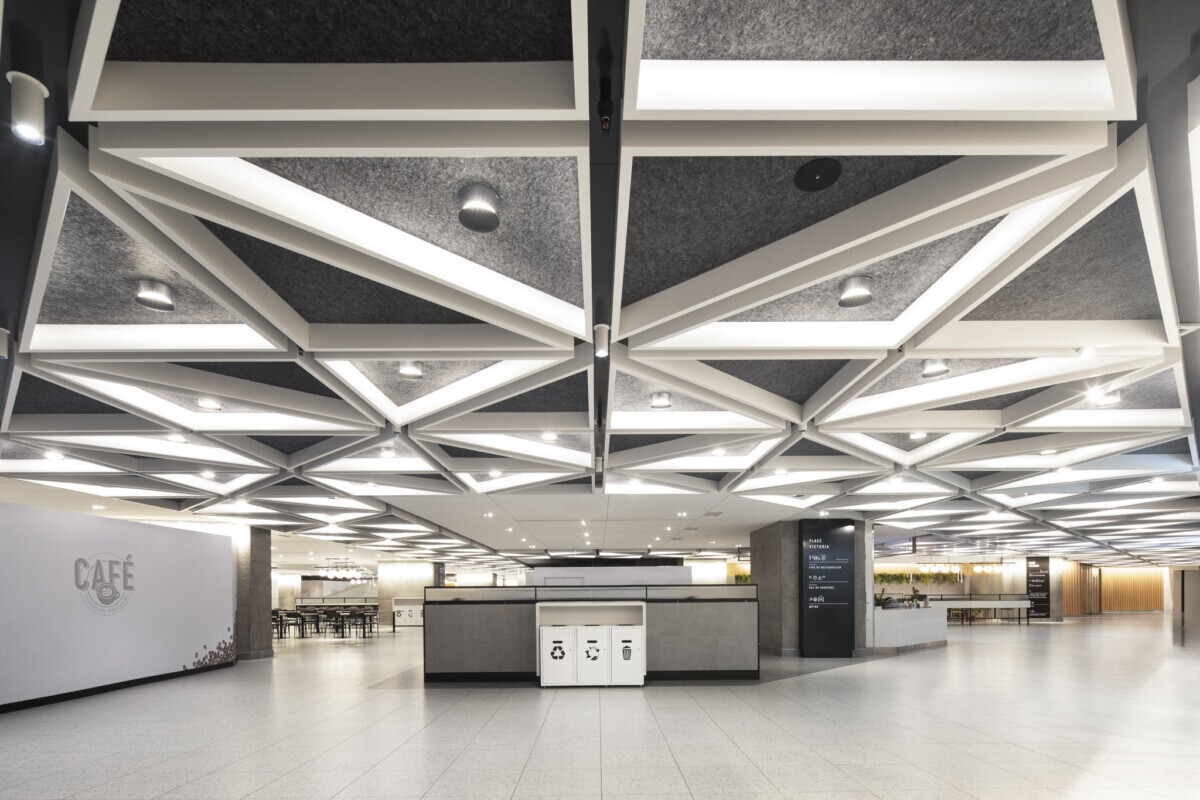

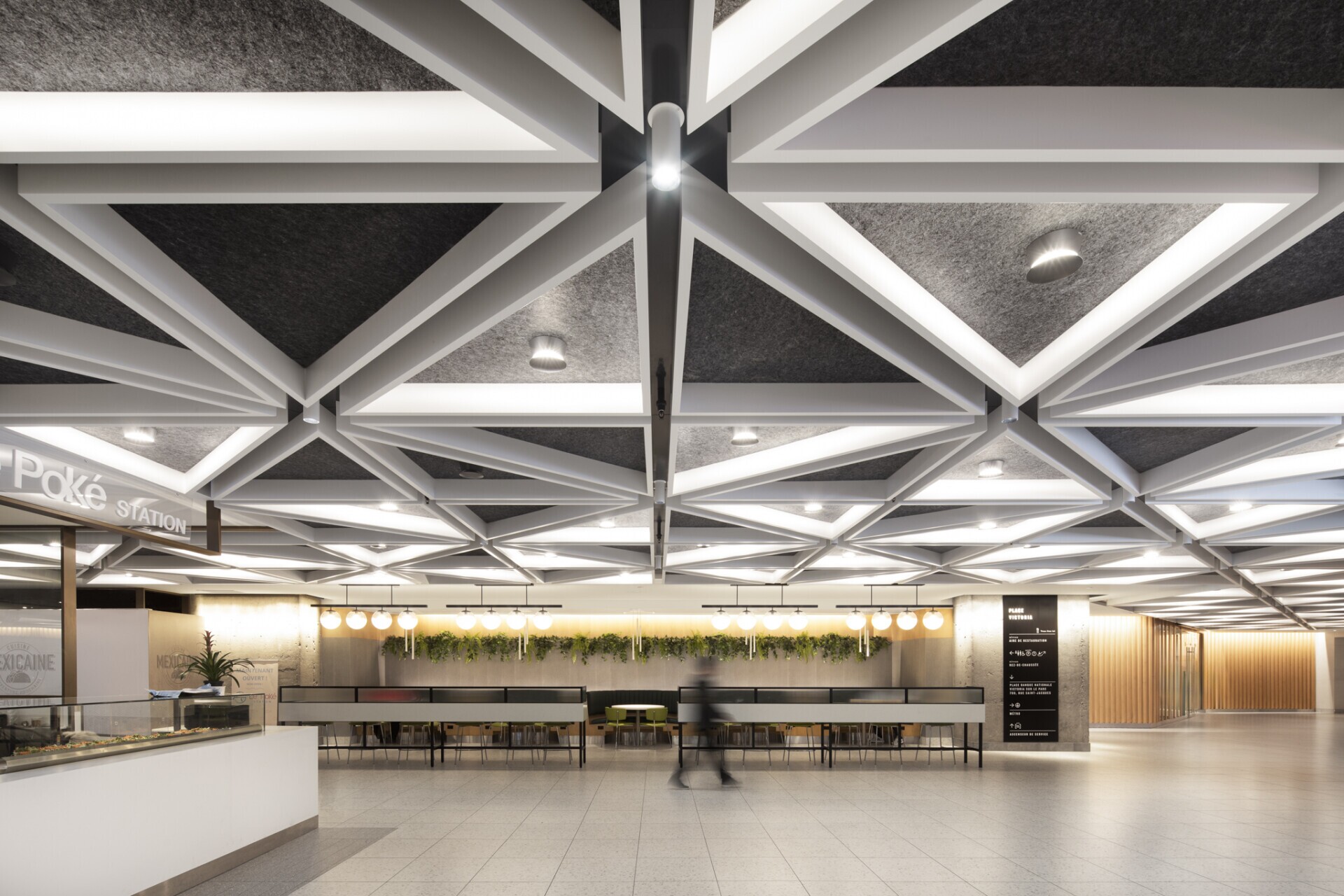

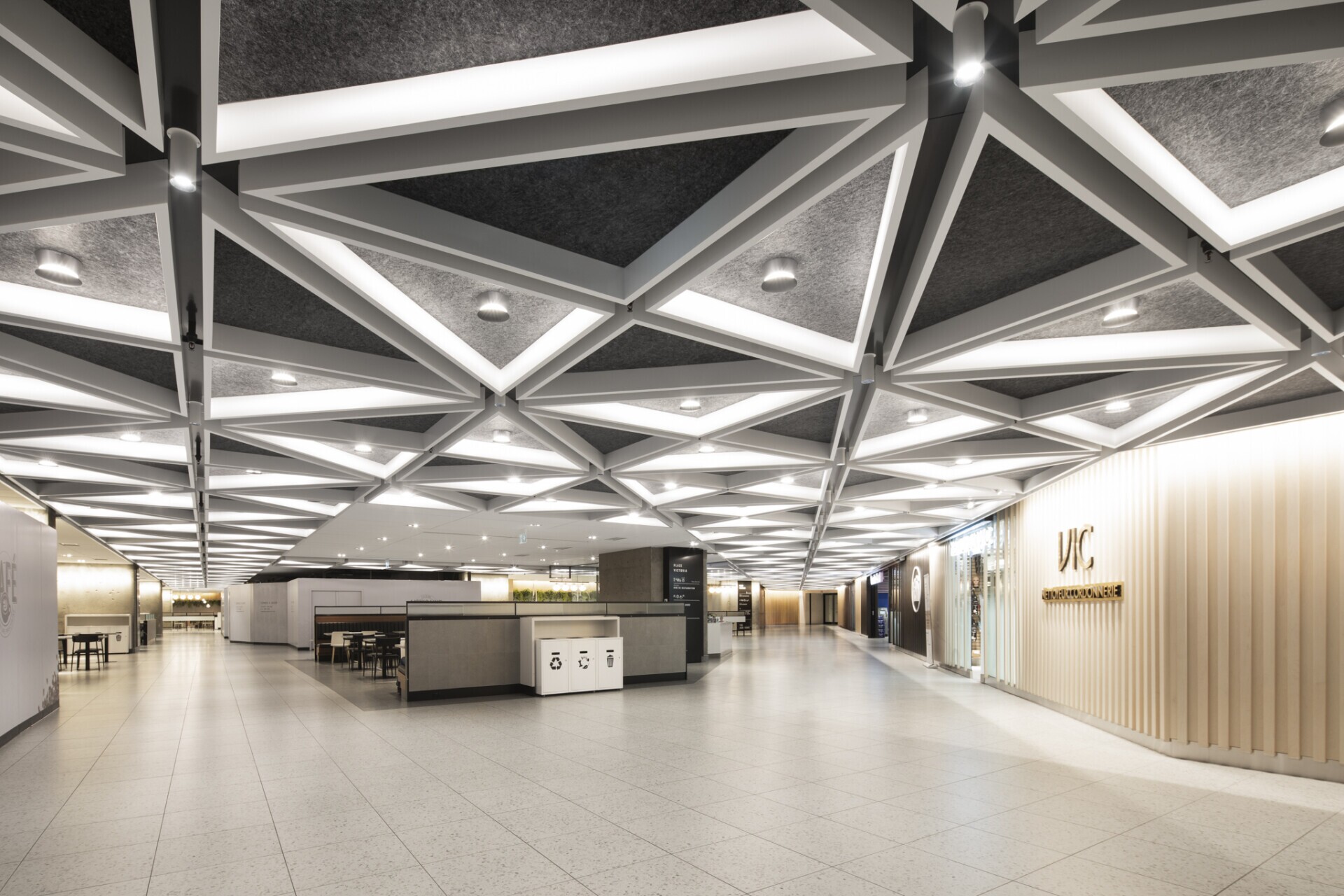

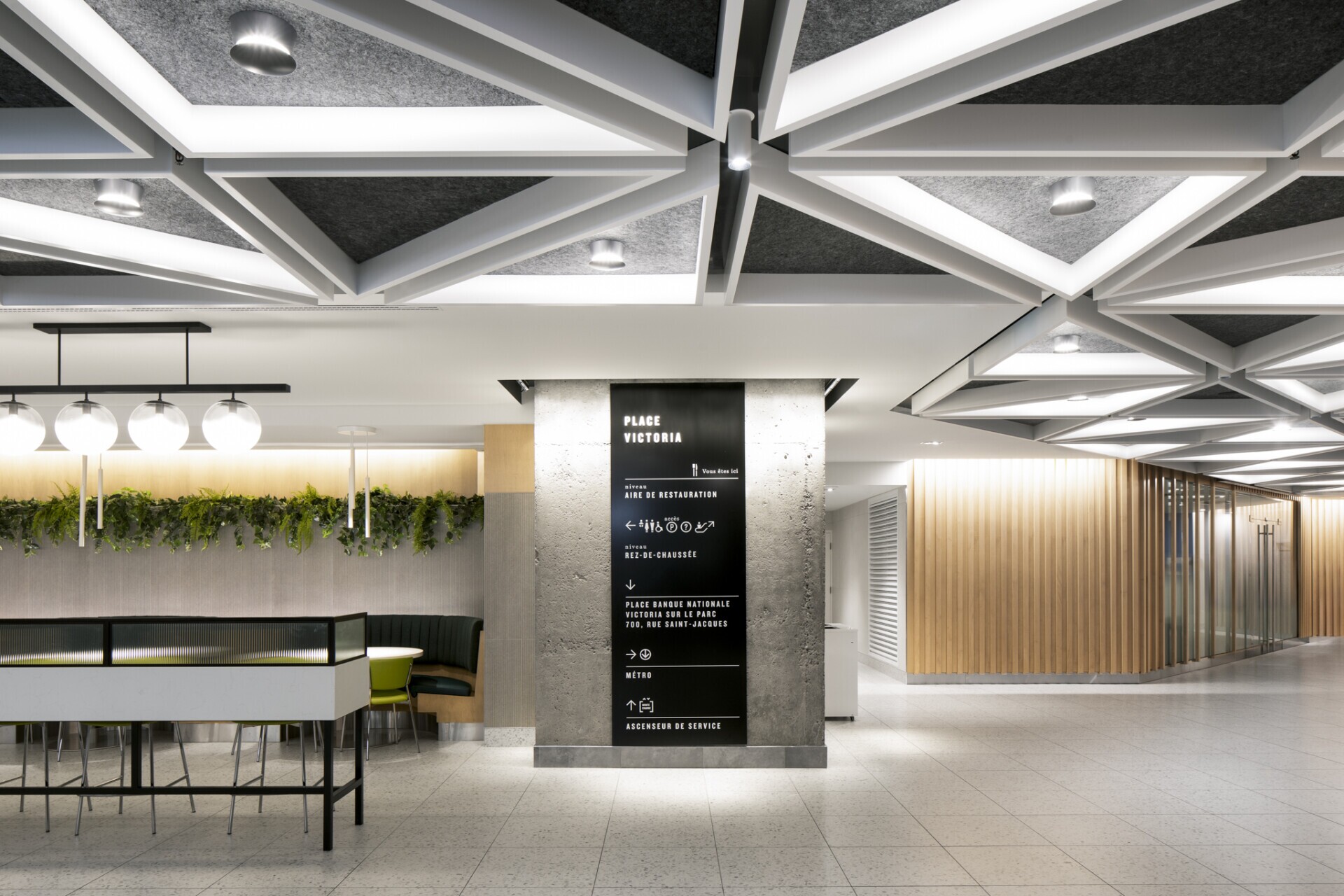

AERO:Form Trilateral Open Cell

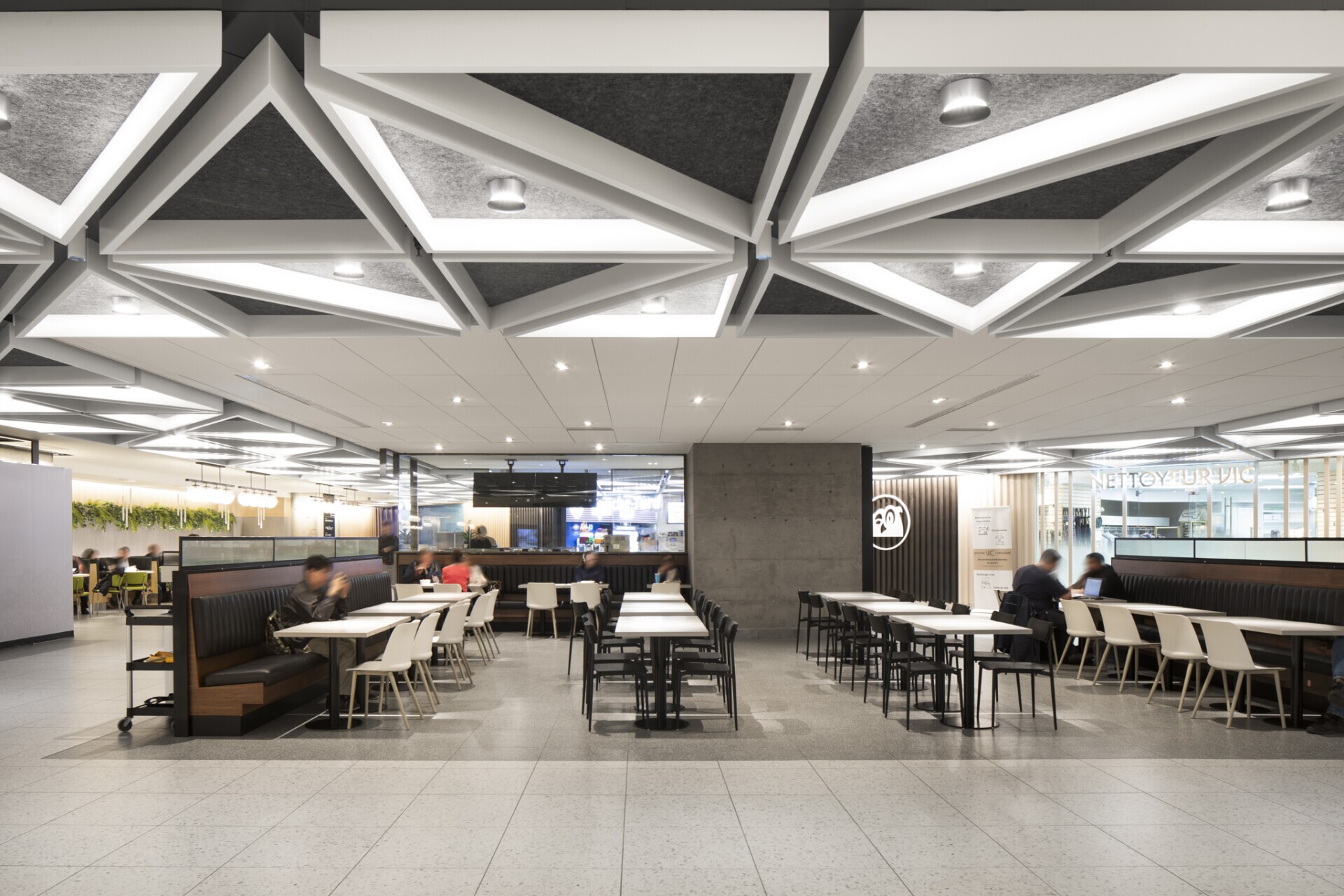

Fabricated Metal Open Cell Ceiling SystemFeature triangular beam patterns with optional panels for design versatility.
Specifications
- Material
- Aluminum | Extruded
- Weight
- Varies from 1.03 - 1.92 lbs./ln.ft.
- Thickness
- 0.100”
- Surface Finish
- Beams - Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look.
Panels - Factory-applied polyester paint. Available in Standard Colors, Color Matched, Stainless Steel, Wood Look and Felt colors.
Perforation options not available on beams. - Acoustic Performance
- Perforated panels are supplied with acoustic infills to absorb sound - NRC values depend on design and configuration.
- Seismic Performance
- Protero has been engineered for use in all seismic areas. Installations may require additional attachment from baffle to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
- Fire Performance
- Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.
- LEED Points
- LEED BD+C v4 (MR: Regional & Recycled Materials)
- Schools EQ: Acoustic Performance
- ID+C EQ: Low-Emitting Materials
- Declarations
- No VOCs
EPD available - Recycled Content
- Aluminum contains up to 80% recycled content
- Finishes

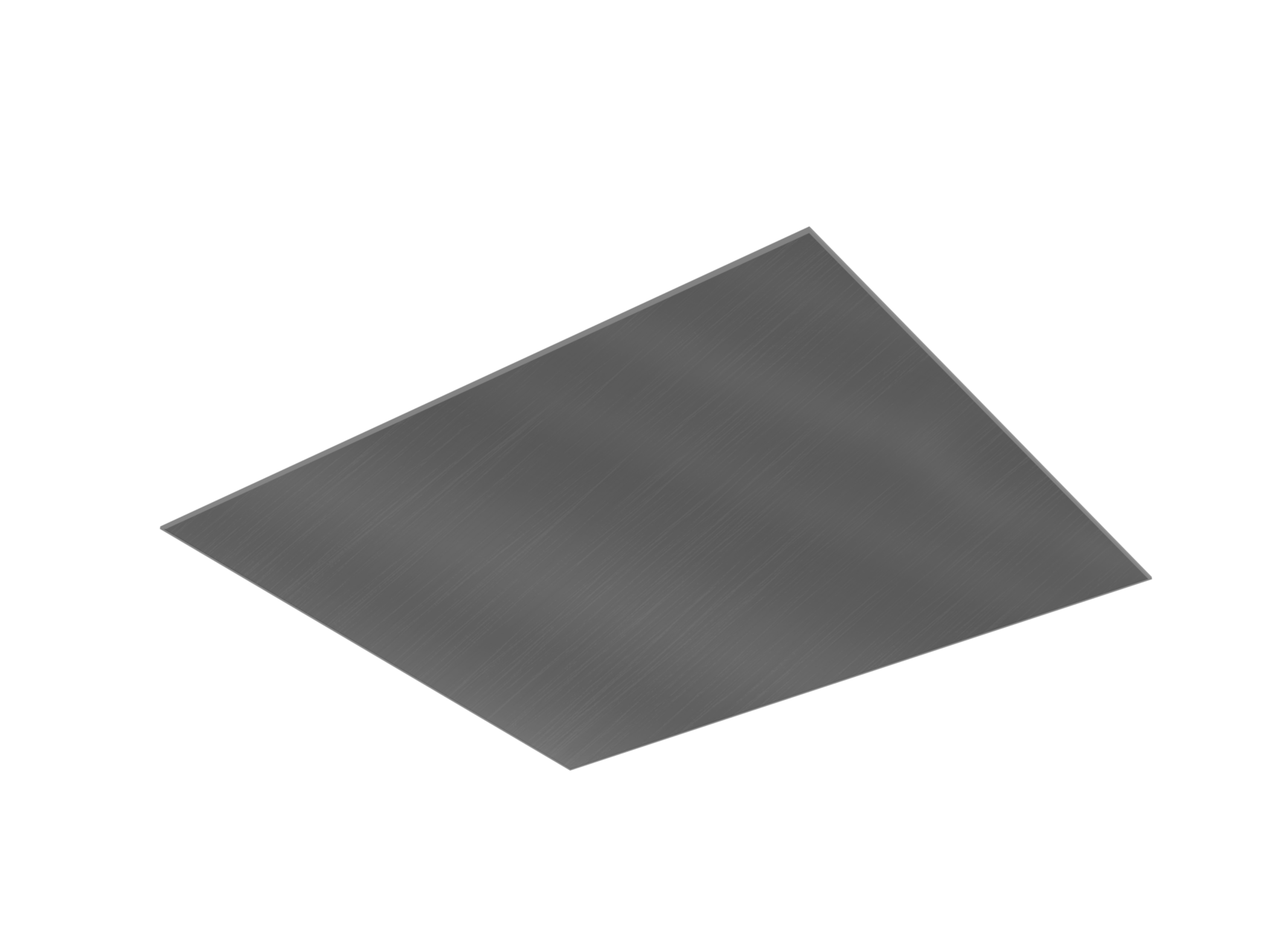

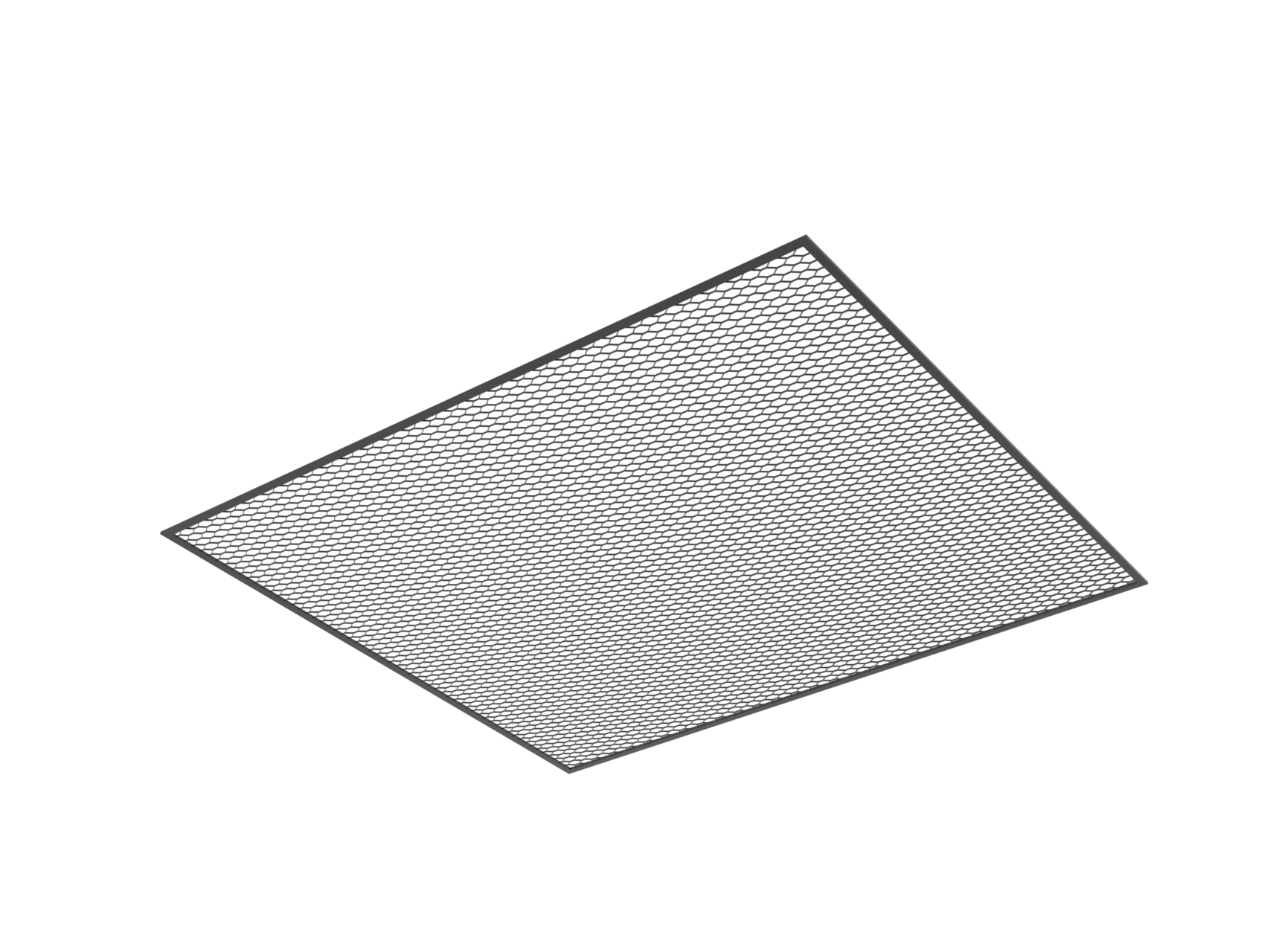

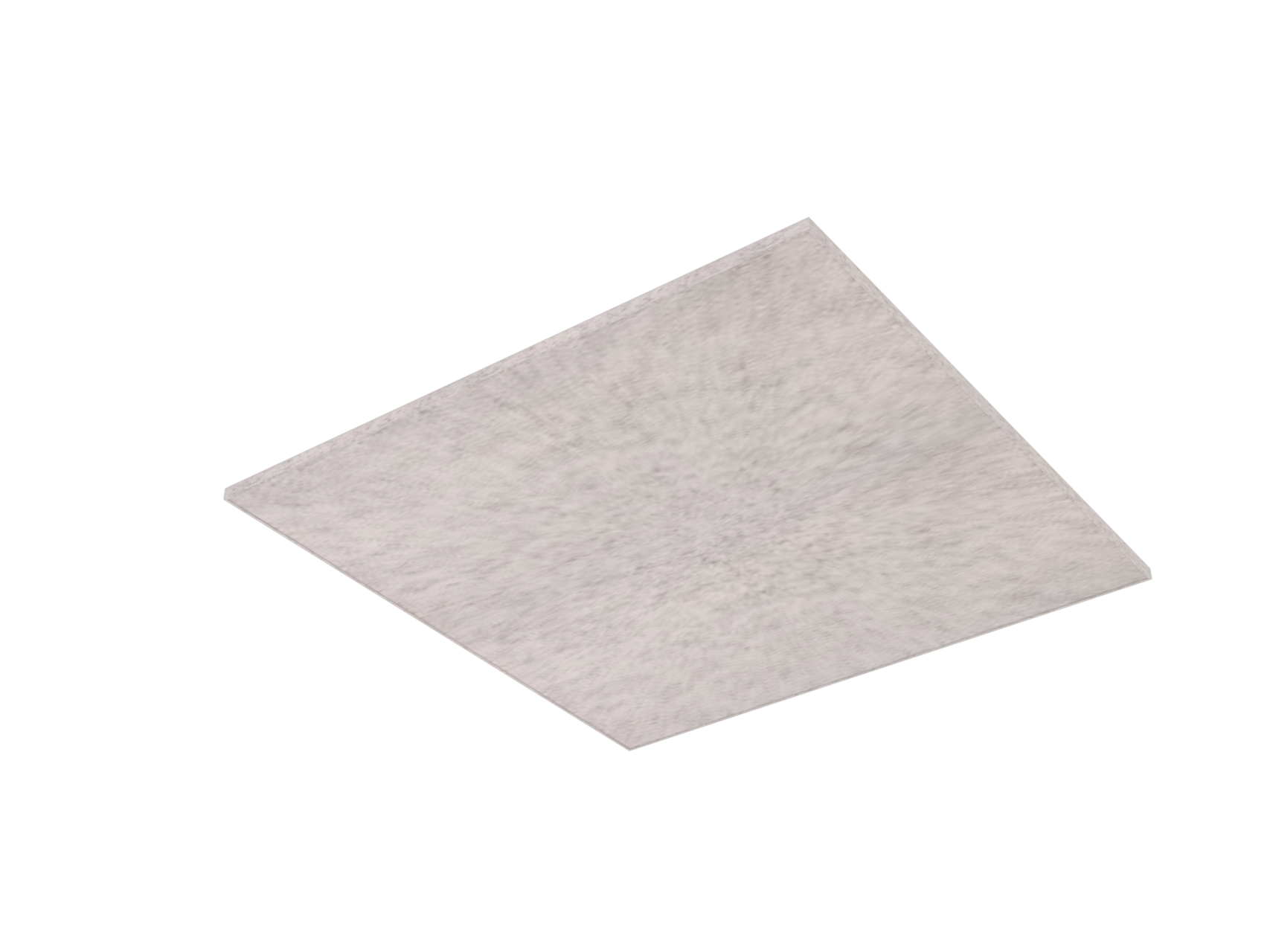

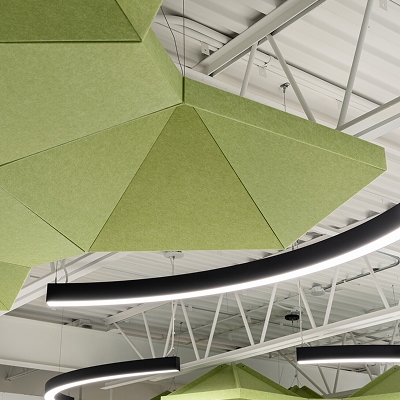

- - Available as open cell or with metal, metal mesh, and felt panels
- Integrated lighting options available
- Metal panels are available perforated with optional acoustic infills
- Perforation options not available on beams - Custom Options
- Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
- Standard Options
- Standard sizes - In addition to custom we also have quick ship standard products available made to order:
- Lengths - up to 12’
- Standard Size - 1-3/8”x 3-3/8”
- Standard Size - 1-1/2”x 6”
- Standard Size - 2”x 6”
- Installation

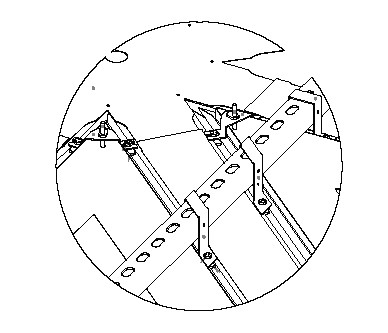

- Versatile attachment options for Unistrut,® custom attachment solutions are available
- Open cell design seamlessly accommodates and provides easy access to lighting, sprinklers, and HVAC components
- Care & Maintenance
- Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

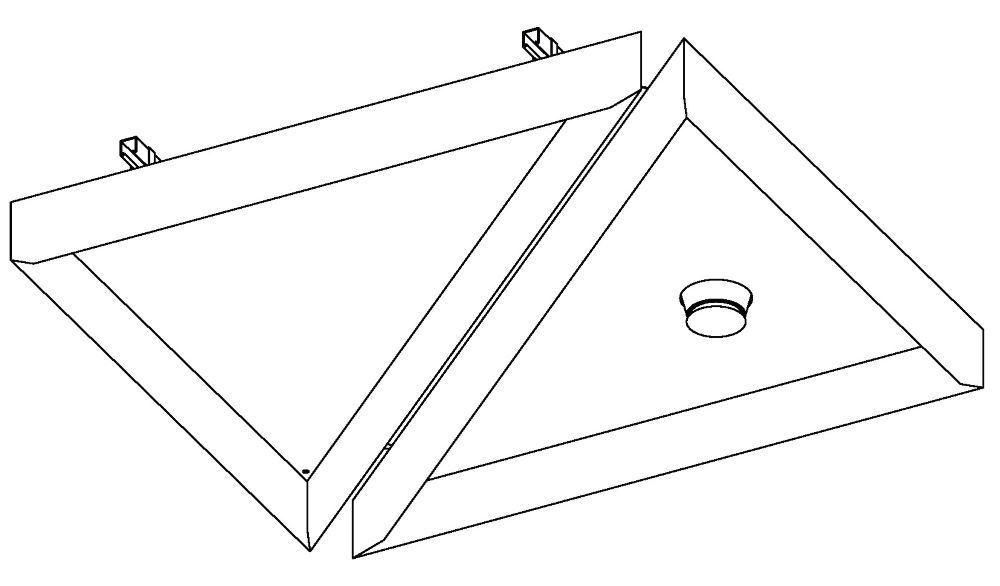

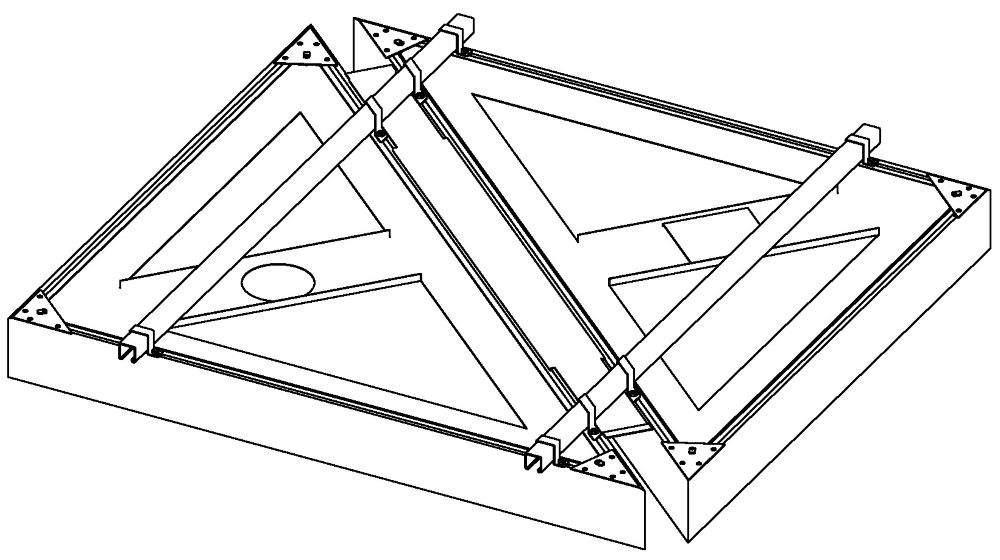

Assembly
Material and Finishing Options
(Interior & Exterior) Formaldehyde-Free.
-
Golden Bronze
-
Metallic Sterling Silver
-
Soft Nickel
-

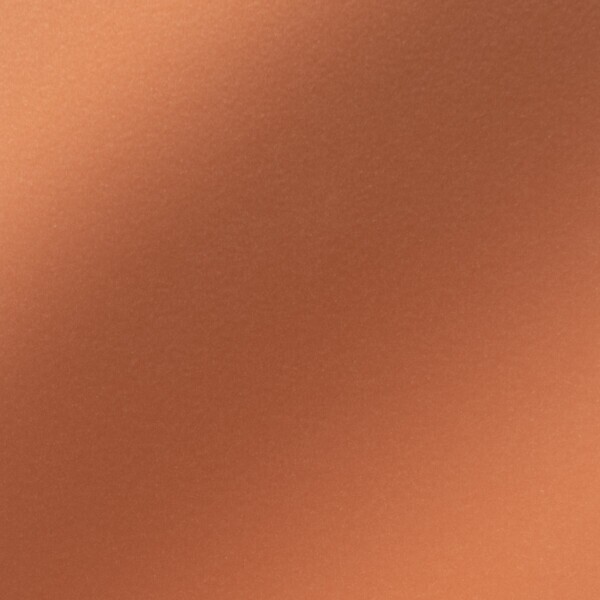

Blush Copper
-
Dark Bronze
-

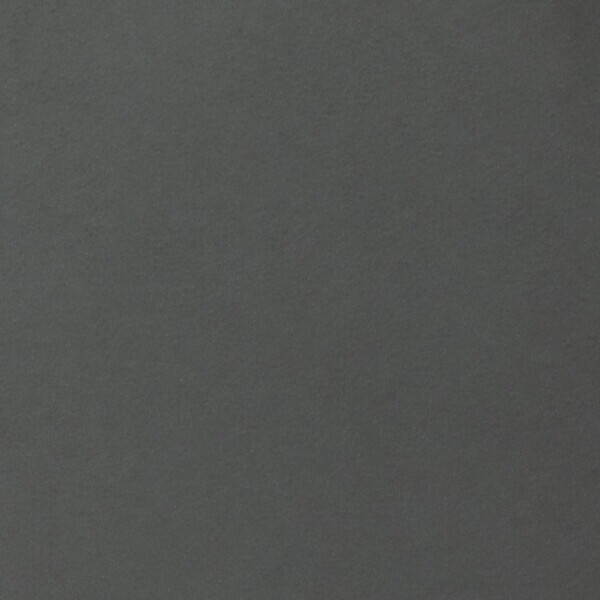

Forged Charcoal
-
Gold
Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.
-
Chalkstone White
2-6 Gloss | LRV 85-86
-
White
12-20 Gloss | LRV 79-80
-
Snow White
25-30 Gloss | LRV 83-84
-
Black
25-35 Gloss
-
Blush Rose
20 Gloss
-
Sunrise Yellow
20 Gloss
-
Forest Green
20 Gloss
-
Pure Orange
20 Gloss
-
Tan Straw
20 Gloss
-
Mid Beige
20 Gloss
-
Sterling Silver
20 Gloss
-
Grey
65-75 Gloss
Wood look powder coated paint finishes for interior and exterior use. Formaldehyde-Free.
-

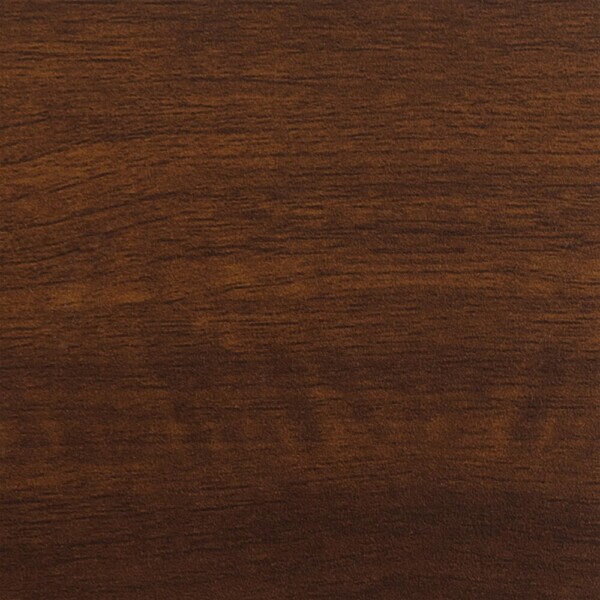

National Walnut
Wood look powder coated paint finish
-
Chestnut
Wood look powder coated paint finish
-
Rosewood
Wood look powder coated paint finish
-
European Cherry
Wood look powder coated paint finish
-
Knotty Pine
Wood look powder coated paint finish
-
Oak Fine
Wood look powder coated paint finish
-
Maple
Wood look powder coated paint finish
-
American Maple
Wood look powder coated paint finish
-
American Douglas
Wood look powder coated paint finish
-
Teak
Wood look powder coated paint finish
Standard Laminated (Film) Finishes for interior use only. Formaldehyde-free.
-
Brazilian Walnut
Wood look laminated film finish
-
Black Walnut
Wood look laminated film finish
-
North Oak
Wood look laminated film finish
-
Italian Walnut
Wood look laminated film finish
-
Canadian Oak
Wood look laminated film finish
-
White Oak
Wood look laminated film finish
-
American Natural
Wood look laminated film finish
Angles – Staggered 60°
-
Unperforated
-

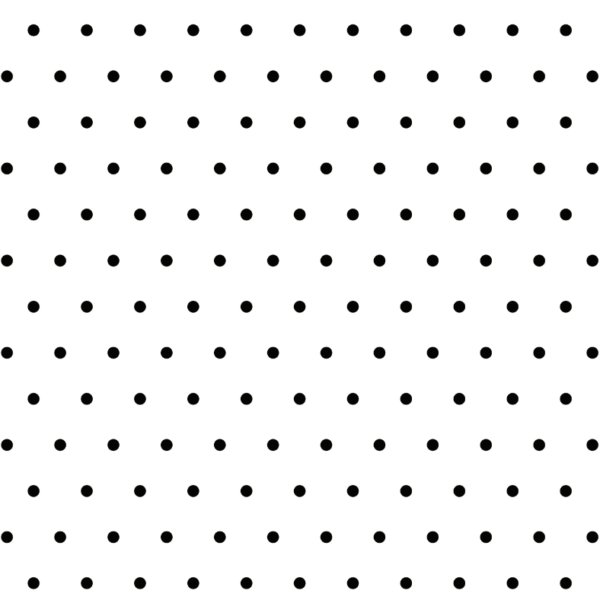

S02 Staggered
-

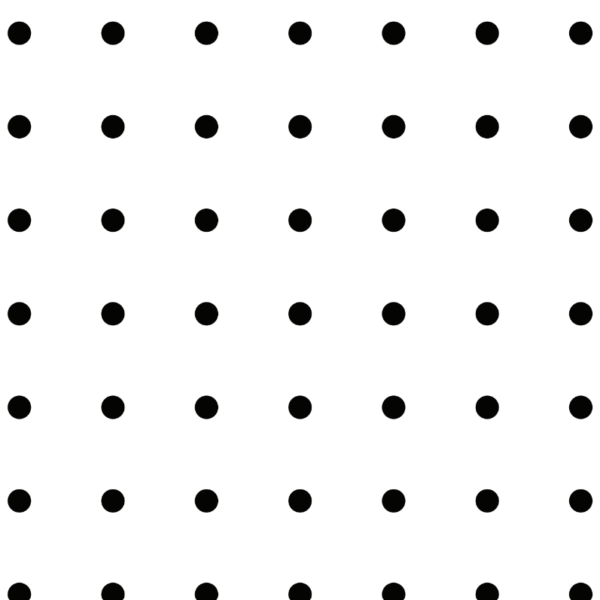

S03 Straight
-
S04 Staggered
-

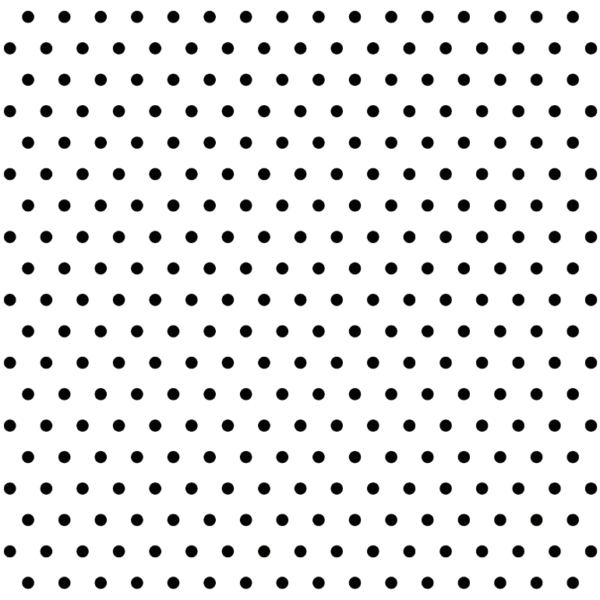

S05 Staggered
-

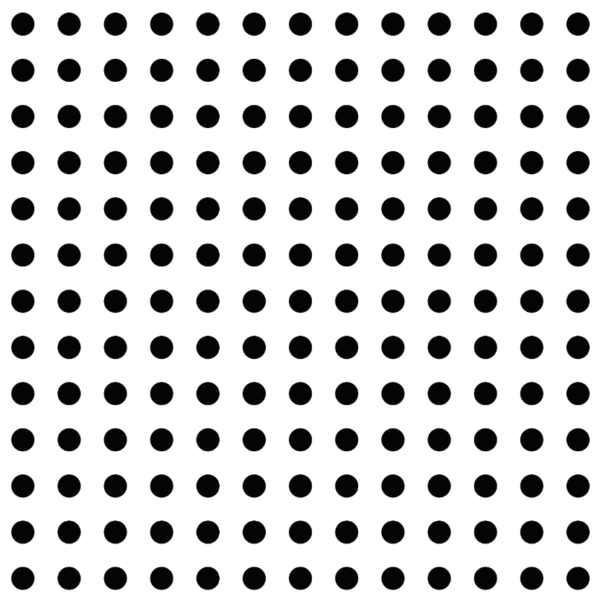

S06 Straight
-

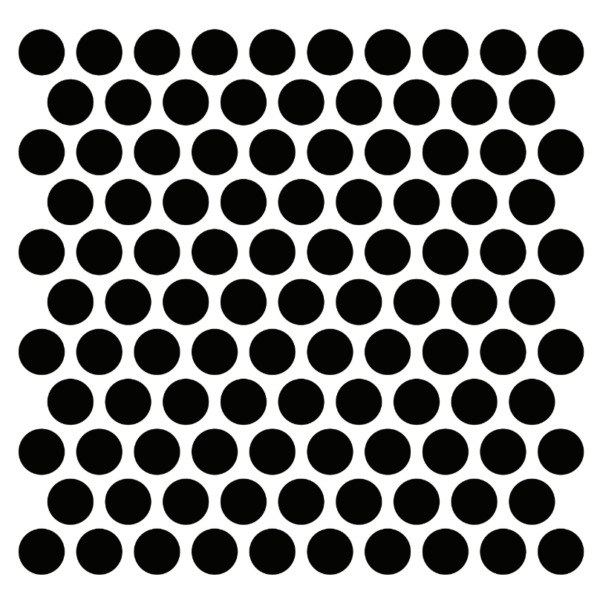

S07 Staggered
-

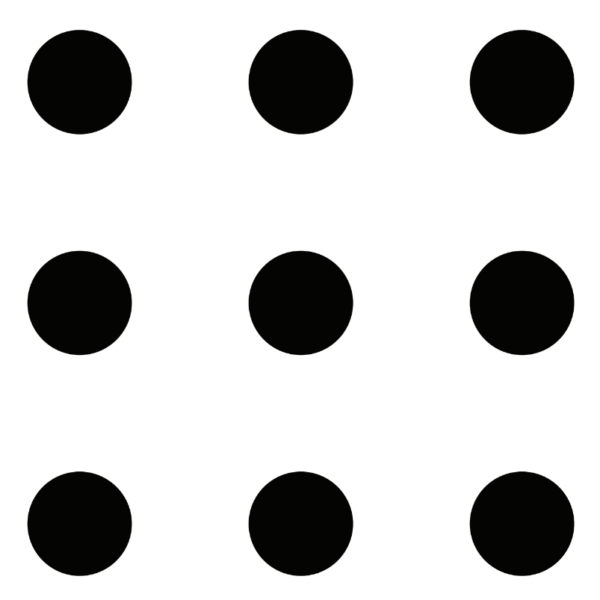

S08 Straight
-

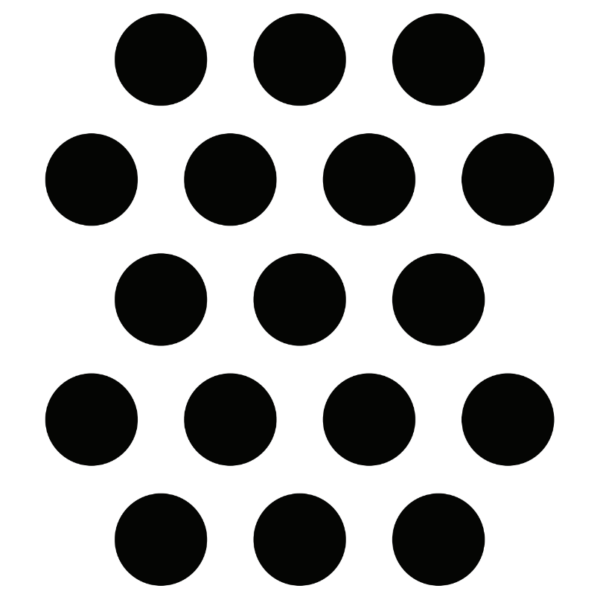

S09 Staggered
-

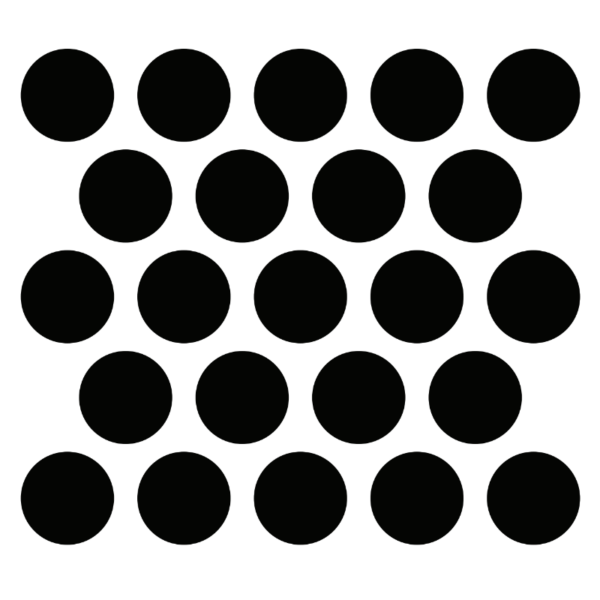

S10 Staggered
All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.
-
Raven
Quick Ship
-
White Quartz
Quick Ship
-
Ivory
Quick Ship
-
Caramel
Quick Ship
-
Smoke
Quick Ship
-

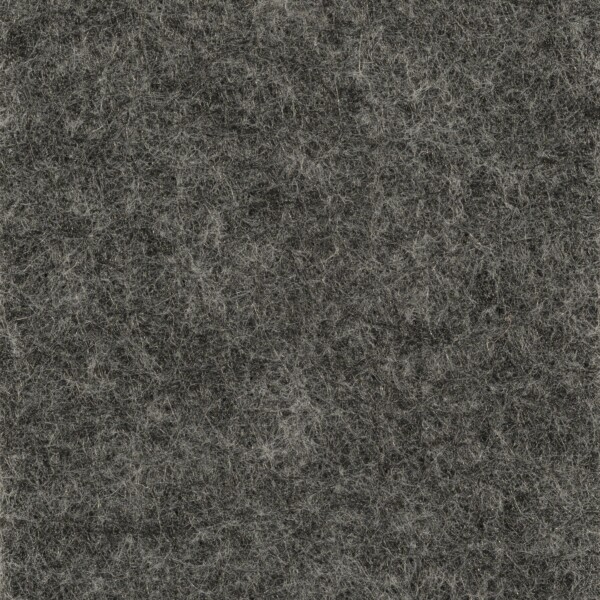

Grey Quartz
Quick Ship
-
Cream Marble
Quick Ship
-
Olive Grey
Quick Ship
-
Mulberry
-
Sea Green
-
Jade
-
Honeycomb
-
Raspberry
-
Ocean
-
Chestnut
-
Thyme
-
Burnt Orange
-
Sage
-
Cloud
-
Driftwood
-
Steel
-
Beige Plaster
-
Cotton
-
Denim
-
Smokey Blue
-
Lavender Mist
-
Aqua
-
Clear Blue
-
Iris
-
Cornflower
-
Cyan
-
Amethyst
-

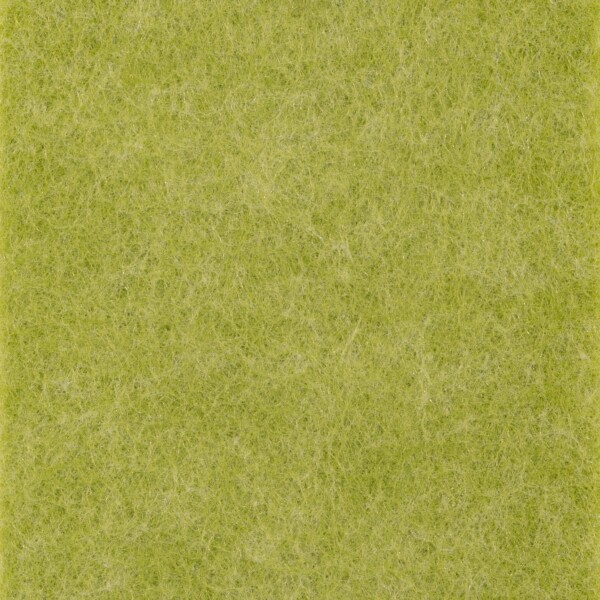

Kiwi
-
Amber
-
Cobalt
-

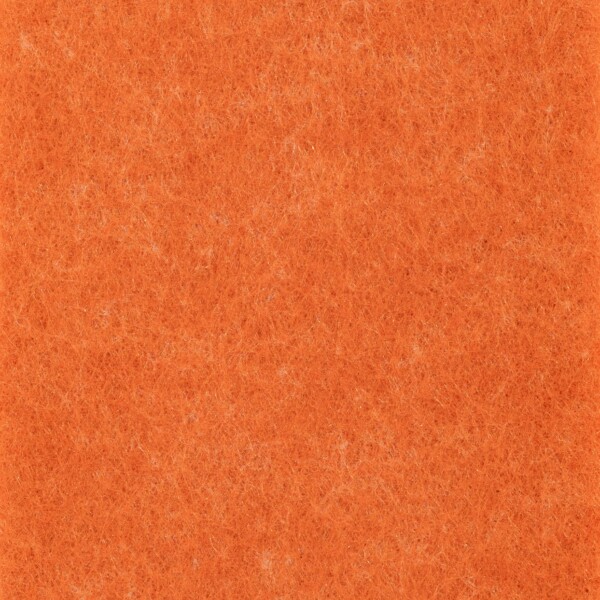

Persimmon
-
Strawberry
Timbercast™ Wood Look Colors
-
Weathered Grey
Timbercast™ Wood Look Colors
-
Dark Walnut
Timbercast™ Wood Look Colors
-
Red Oak
Timbercast™ Wood Look Colors
-
Natural Maple
Timbercast™ Wood Look Colors
-
White Oak
Timbercast™ Wood Look Colors
