LINE:Form Traditional Baffle

Felt Ceiling Baffle System

Offers clean linear styling in a light weight, high strength, ultra durable baffle.

Get Started

Specifications

Product Details
Sustainability
Features

Material: PET Felt
Weight: 0.20 - 0.33 lbs./ln.ft.
Thickness: 3/8" nominal (9mm) ; 1/5" nominal (12 mm)

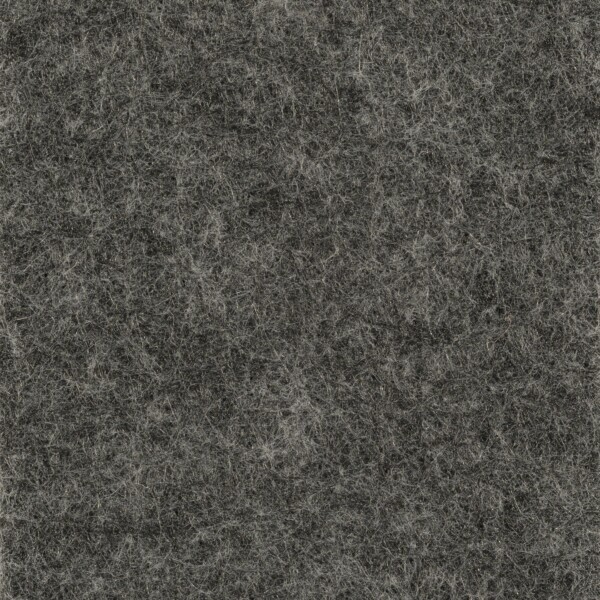

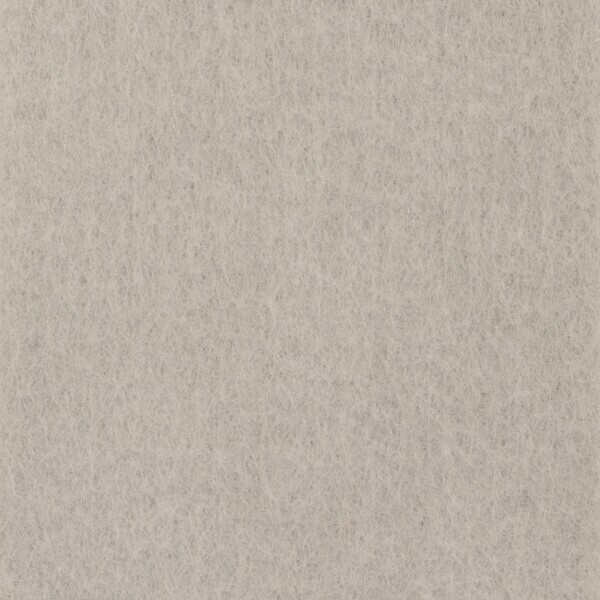

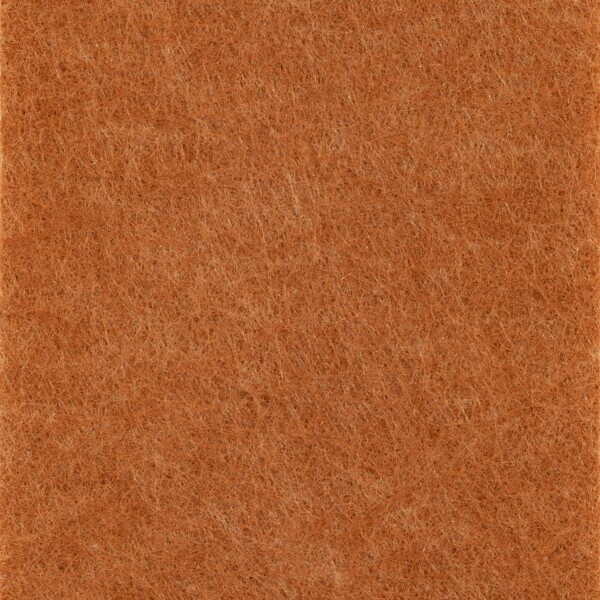

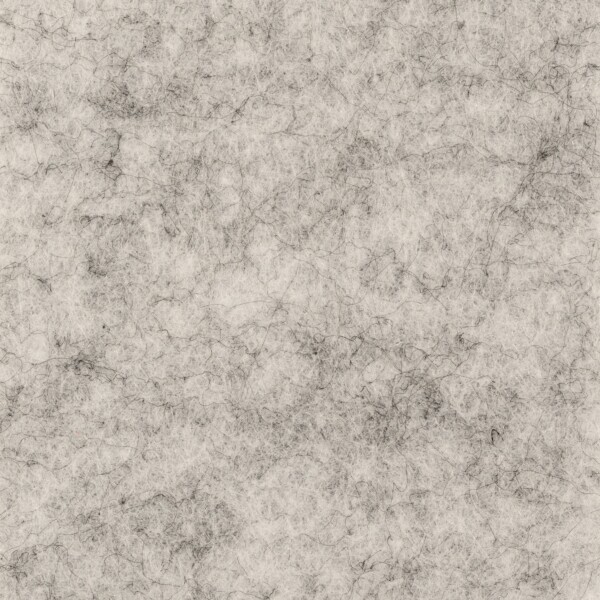

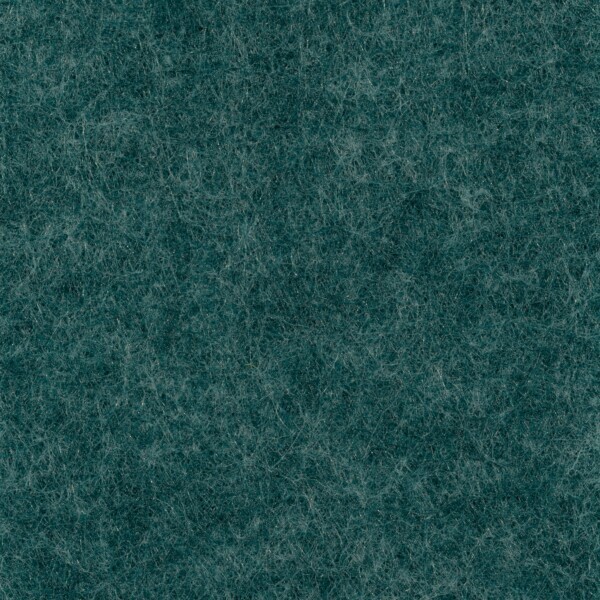

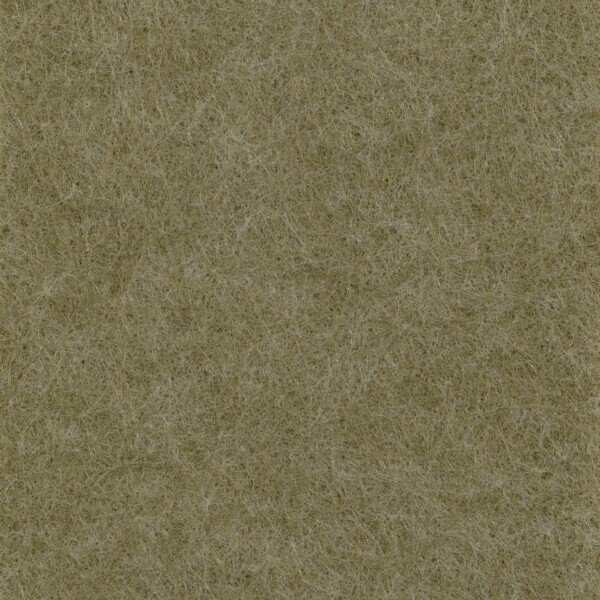

Surface Finish: PET Felt - Solid Color

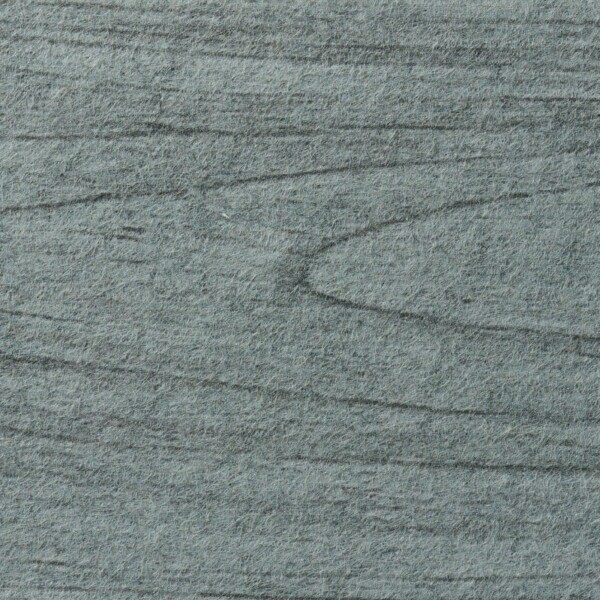

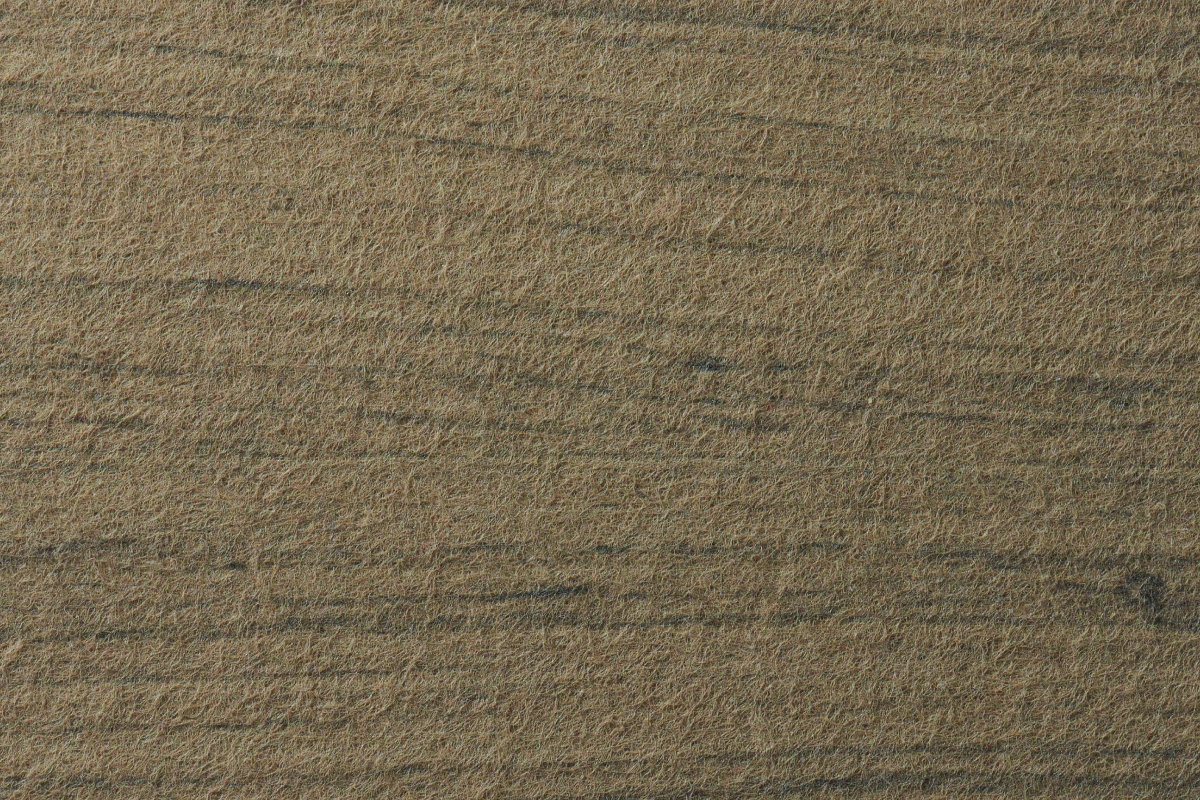

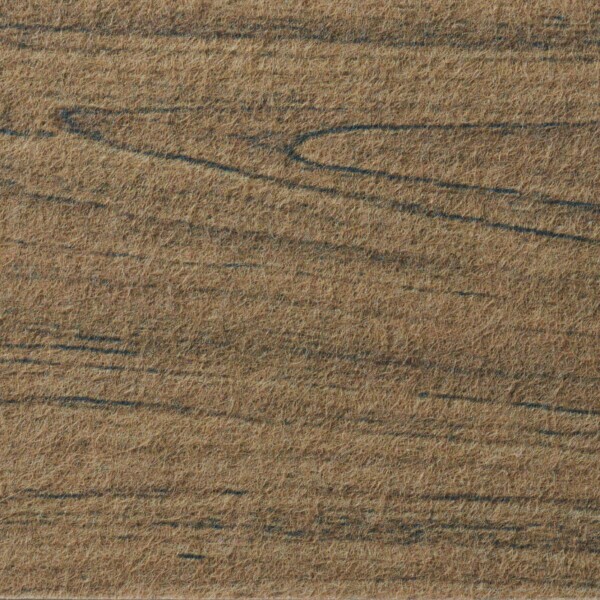

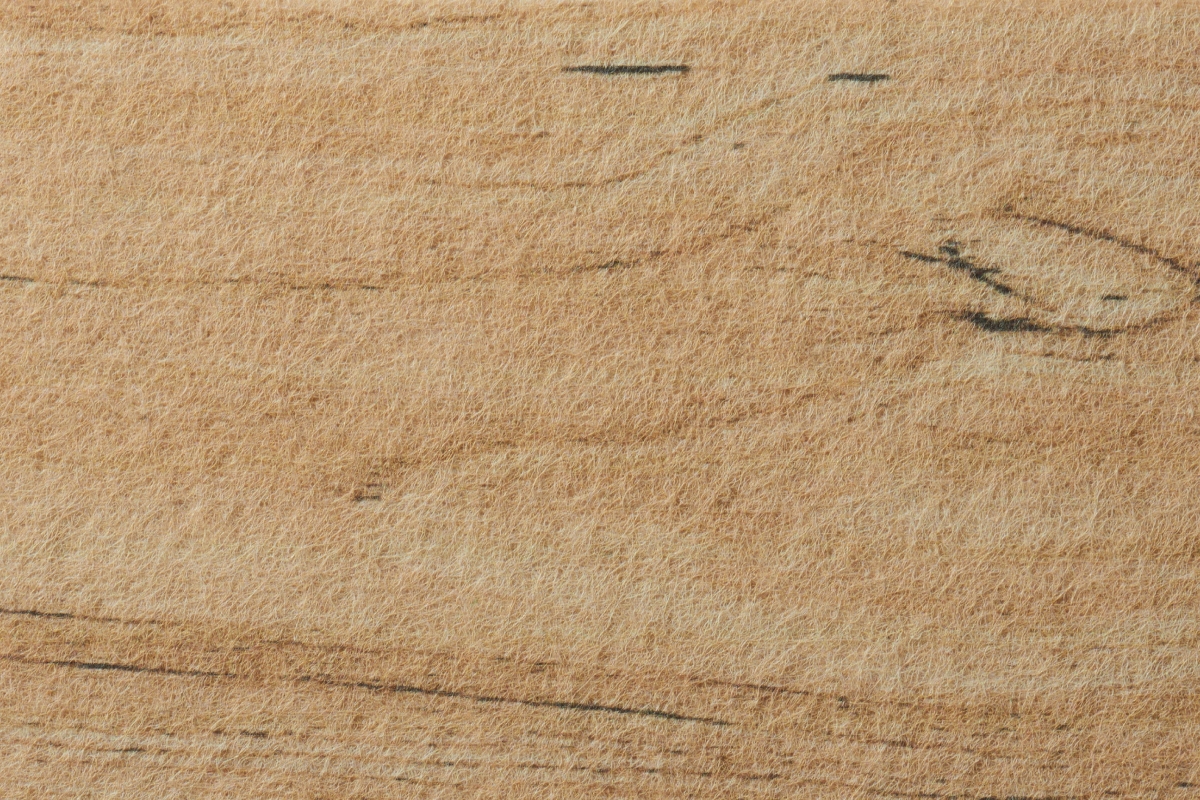

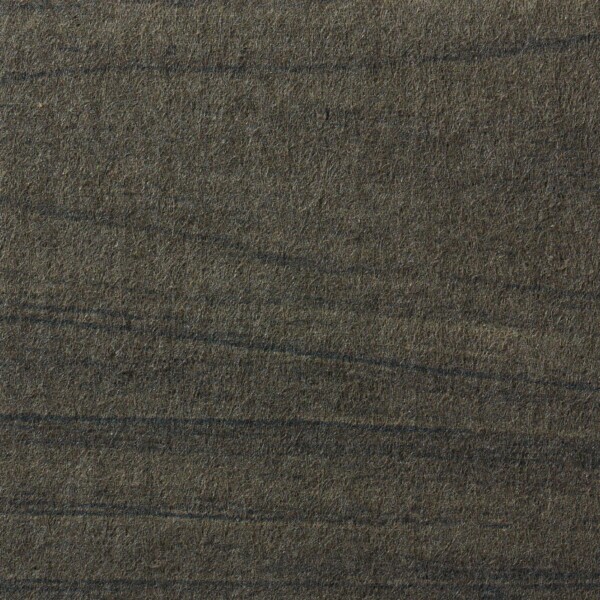

PET Felt - Woodgrain Printed
PET Felt - Limestone Printed
Acoustic Performance: NRC depends on baffle size and spacing. Baffles spaced closely together can achieve higher NRC.
Seismic Performance: This product has been engineered for use in all seismic areas. Installations may require additional attachments. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: ASTM E84, Class A ; CAN/ULC – S102.2.
Applications: This product is not approved for exterior application
Do not install near sources of heat greater than 158º F

LEED Points: BD+C v4 (MR: Product Disclosure, Recycled Content)
Schools EQ: Acoustic Performance
Declarations: No VOCs
EPD & GREENGUARD Gold certified
Recycled Content: Up to 60% post-consumer PET felt

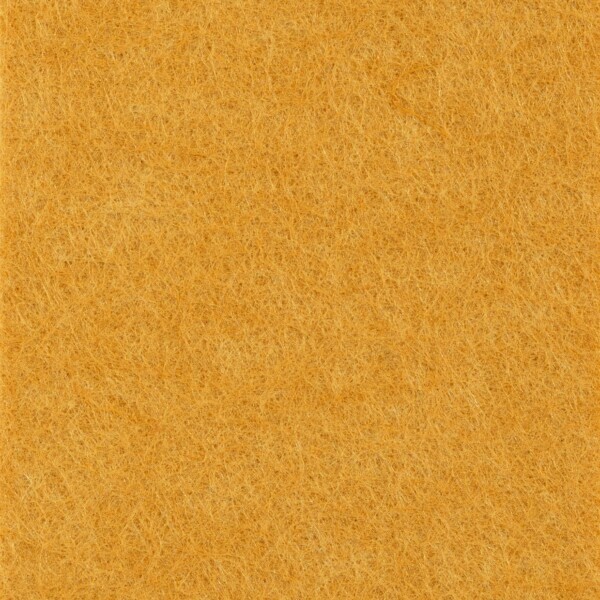

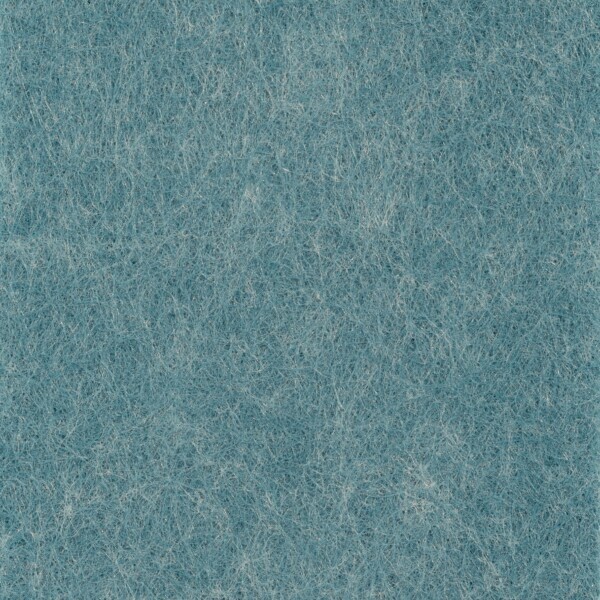

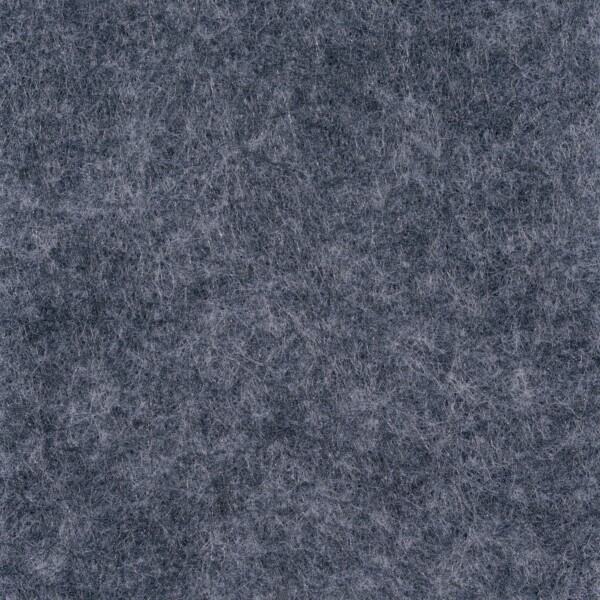

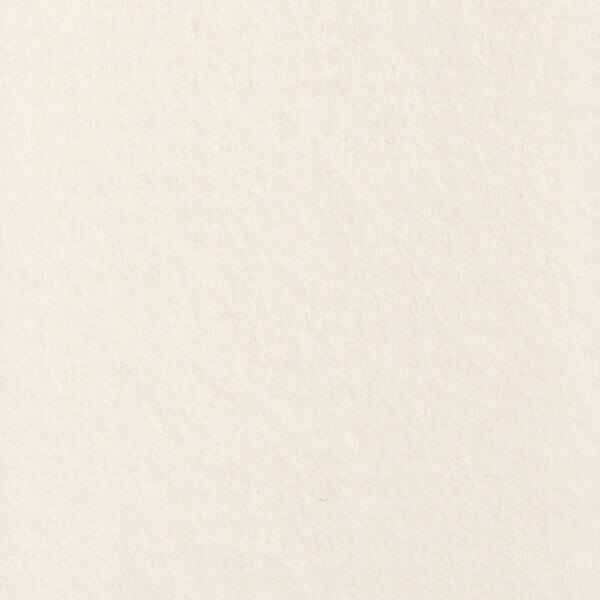

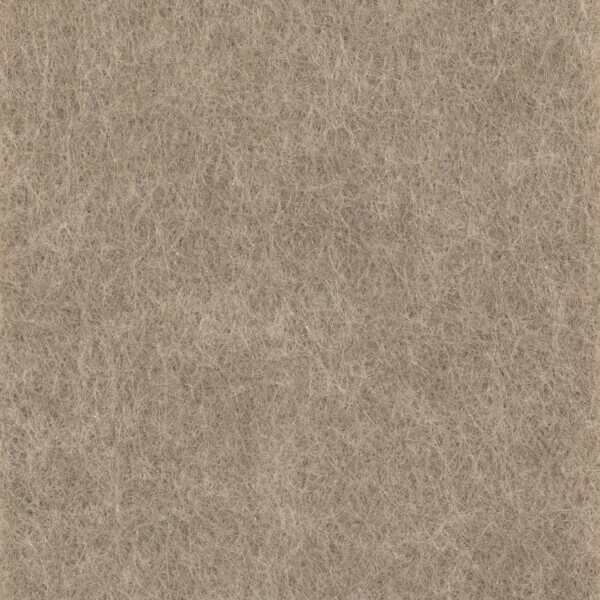

Finishes: 37 standard colors to choose from; 8 'Quick Ship.'
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options: Lengths - up to 8'
Depths - up to 48"
Width - 3/8"
Installation: Lightweight, pre-assembled & easy to install

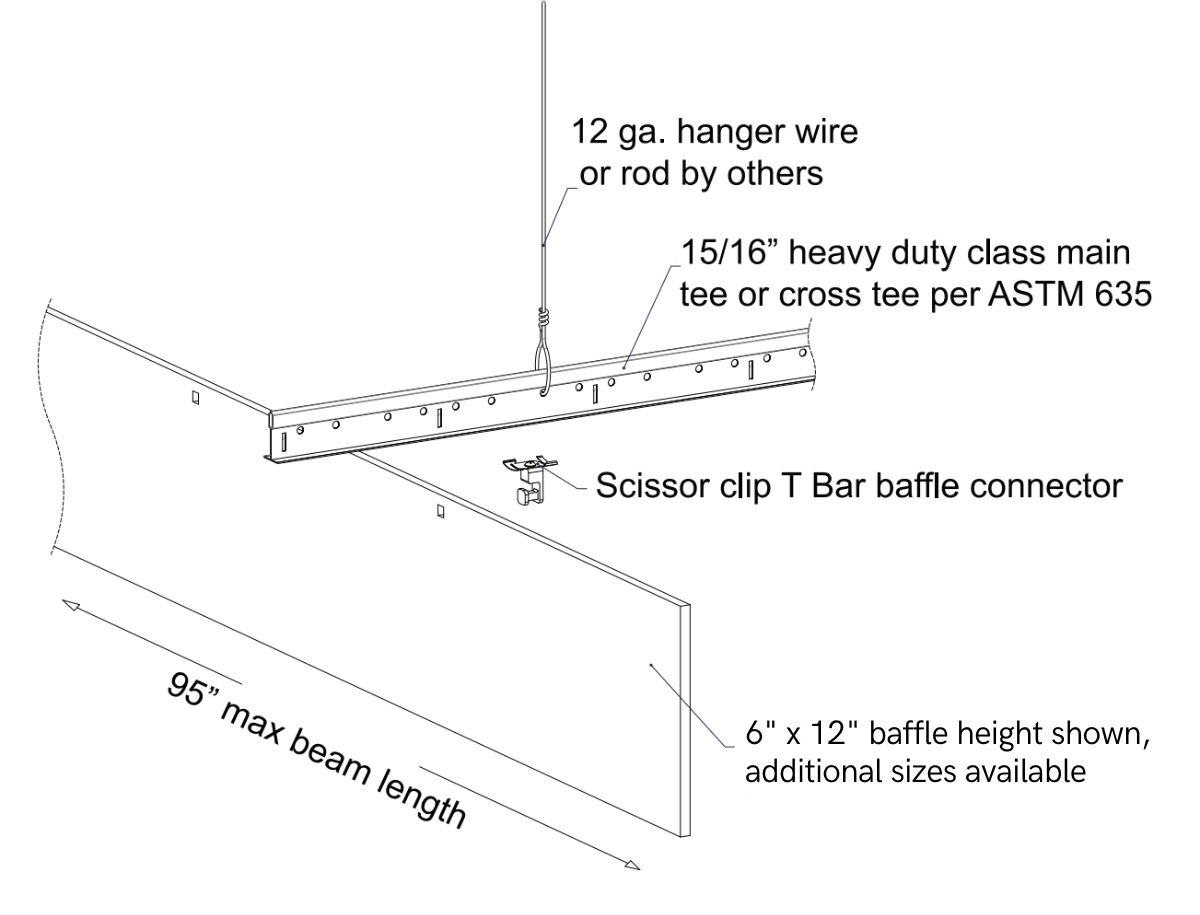

Versatile attachment options for Unistrut,® 15/16” HD Grid and cable-suspended applications
Easy plenum access – attachment hardware allows baffles to slide for easy plenum access and adjustment during installation
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe

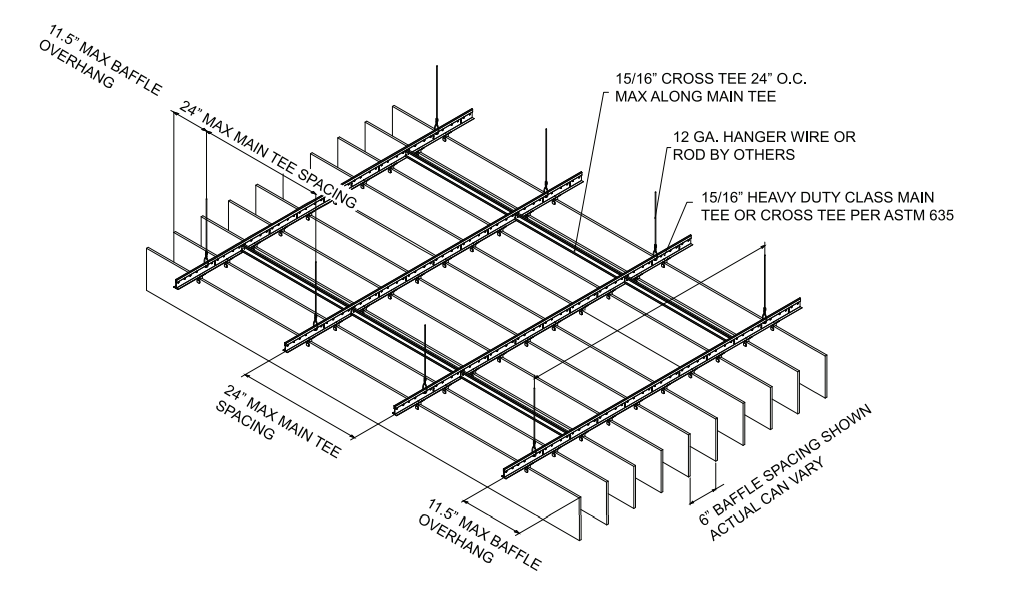

Assembly

Beige
Grey
White

All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.
