Protero Trilateral Networks

Fabricated Metal Ceiling Open Cell System

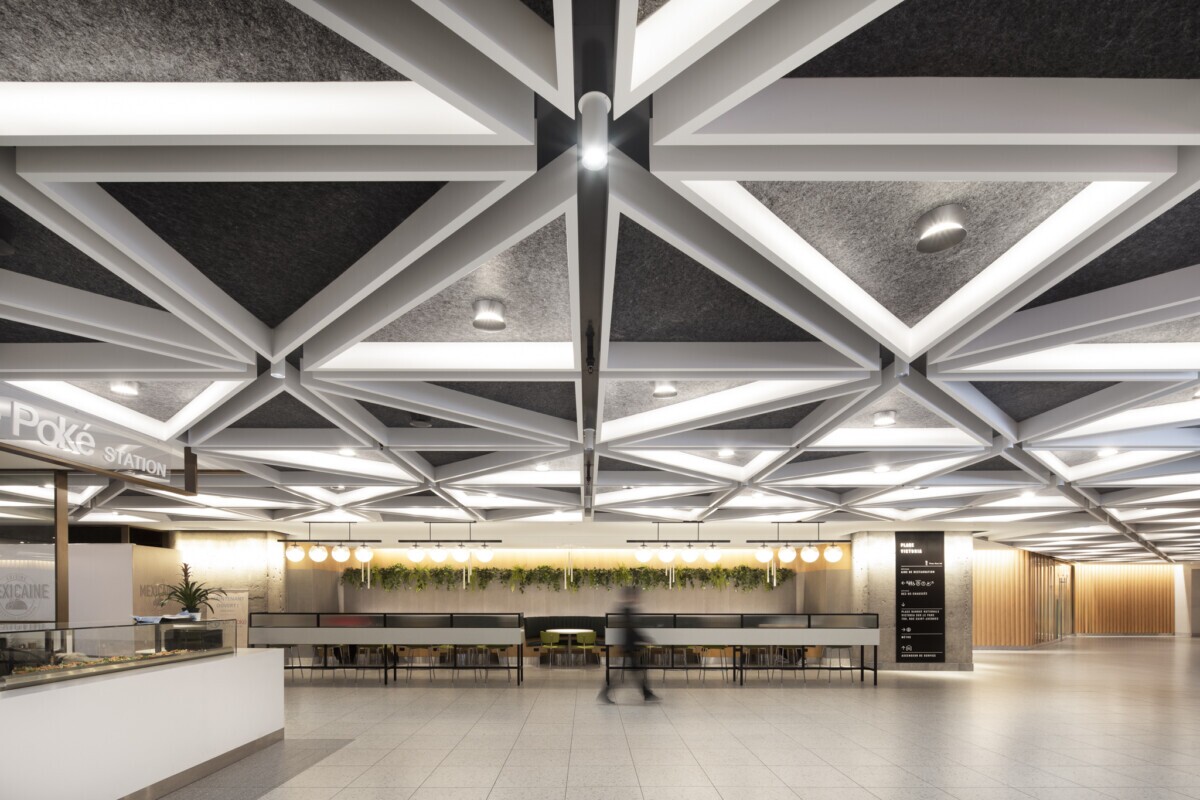

Feature triangular beam patterns with optional panels for design versatility.

Get Started

Specifications

Product Details
Sustainability
Features

Material: Aluminum | Extruded
Weight: Varies from 1.03 - 1.92 lbs./ln.ft.
Thickness: 0.100”
Surface Finish: Beams - Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look.
Panels - Factory-applied polyester paint. Available in Standard Colors, Color Matched, Stainless Steel, Wood Look and Felt colors.

Perforation options not available on beams.
Acoustic Performance: Perforated panels are supplied with acoustic infills to absorb sound - NRC values depend on design and configuration.
Seismic Performance: Protero has been engineered for use in all seismic areas. Installations may require additional attachment from baffle to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance: Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.

LEED Points: LEED BD+C: New Construction v4; MR: Regional Materials; MR: Recycled Content
LEED BD+C: Schools v4; EQ: Acoustic Performance
LEED ID+C: Commercial Interiors v4; EQ: Low-Emitting Material
Declarations: No VOC’S: No added urea–formaldehyde
EPD ‘Environmental Product Declaration’ for raw material components
Certifications: Sustainability certificates are available for aluminum & felt
Recycled Content: Recycled Content - Aluminum up to 80%, Felt minimum 60%

Finishes: - Available as open cell or with metal, metal mesh, and felt panels
- Integrated lighting options available
- Metal panels are available perforated with optional acoustic infills
- Perforation options not available on beams
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options: Standard sizes - In addition to custom we also have quick ship standard products available made to order:
- Lengths - up to 12’
- Standard Size - 1-3/8”x 3-3/8”
- Standard Size - 1-1/2”x 6”
- Standard Size - 2”x 6”
Installation: Versatile attachment options for Unistrut,® custom attachment solutions are available
Open cell design seamlessly accommodates and provides easy access to lighting, sprinklers, and HVAC components
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

Assembly

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

White
Snow White
Black
Blush Rose

(20 gloss)
Sunrise Yellow

(20 gloss)
Forest Green

(20 gloss)
Pure Orange

(20 gloss)
Gold

(20 gloss)
Metallic Bronze

(20 gloss)
Tan Straw

(20 gloss)
Mid Beige

(20 gloss)
Metallic Sterling Silver

(20 gloss)
Charcoal

(20 Gloss)
Sterling Silver

(20 gloss)
Grey

(65-75 Gloss)

Wood look powder coated paint finishes for interior and exterior use. Formaldehyde-Free.

National Walnut

Wood look powder coated paint finish
Chestnut

Wood look powder coated paint finish
Rosewood

Wood look powder coated paint finish
European Cherry

Wood look powder coated paint finish
Knotty Pine

Wood look powder coated paint finish
Oak Fine

Wood look powder coated paint finish
Maple

Wood look powder coated paint finish
American Maple

Wood look powder coated paint finish
American Douglas

Wood look powder coated paint finish
Teak

Wood look powder coated paint finish

Standard Laminated (Film) Finishes for interior use only. Formaldehyde-free.

Brazilian Walnut

Wood look laminated film finish
Black Walnut

Wood look laminated film finish
North Oak

Wood look laminated film finish
Italian Walnut

Wood look laminated film finish
Canadian Oak

Wood look laminated film finish
White Oak

Wood look laminated film finish
American Natural

Wood look laminated film finish

Angles – Staggered 60°

Unperforated
S02 Staggered
S03 Straight
S04 Staggered
S05 Staggered
S06 Straight

Angles – Diagonal 45° | Staggered 60°

P11 Straight
P12 Straight
P13 Diagonal
P14 Diagonal
P18 Staggered
P19 Staggered
P21 Straight

Flow

Stainless steel metal texture finish
Ripple #2

Stainless steel metal texture finish
Soft #2

Stainless steel metal texture finish
Copper

Stainless steel metal color finish
Blue

Stainless steel metal color finish
Black

Stainless steel metal color finish
Champagne

Stainless steel metal color finish
Silver

Stainless steel metal color finish

(PET) polyester felt finish

Yellow

(PET) polyester felt finish
White

(PET) polyester felt finish
Violet

(PET) polyester felt finish
Teal

(PET) polyester felt finish
Stone

(PET) polyester felt finish
Sand

(PET) polyester felt finish
Salmon

(PET) polyester felt finish
Red

(PET) polyester felt finish
Purple

(PET) polyester felt finish
Pumpkin

(PET) polyester felt finish
Plum

(PET) polyester felt finish
Pink

(PET) polyester felt finish
Periwinkle

(PET) polyester felt finish
Pepper

(PET) polyester felt finish
Pear

(PET) polyester felt finish
Orange

(PET) polyester felt finish
Oat

(PET) polyester felt finish
Navy

(PET) polyester felt finish
Maroon

(PET) polyester felt finish
Lime

(PET) polyester felt finish
Lemon

(PET) polyester felt finish
Leaf Green

(PET) polyester felt finish
Hickory

(PET) polyester felt finish
Green

(PET) polyester felt finish
Gray

(PET) polyester felt finish
Dew

(PET) polyester felt finish
Deep Blue

(PET) polyester felt finish
Dark Brown

(PET) polyester felt finish
Charcoal

(PET) polyester felt finish
Brown

(PET) polyester felt finish
Blue Jean

(PET) polyester felt finish
Black

(PET) polyester felt finish
Berry

(PET) polyester felt finish
Alabaster

(PET) polyester felt finish

Timbercast™ Wood Look Colors

Weathered Grey

Timbercast™ Wood Look Colors
Walnut

Timbercast™ Wood Look Colors
Red Oak

Timbercast™ Wood Look Colors
Natural Maple

Timbercast™ Wood Look Colors
White Oak *NEW

Timbercast™ Wood Look Colors
