AERO:Form Grille Open Cell

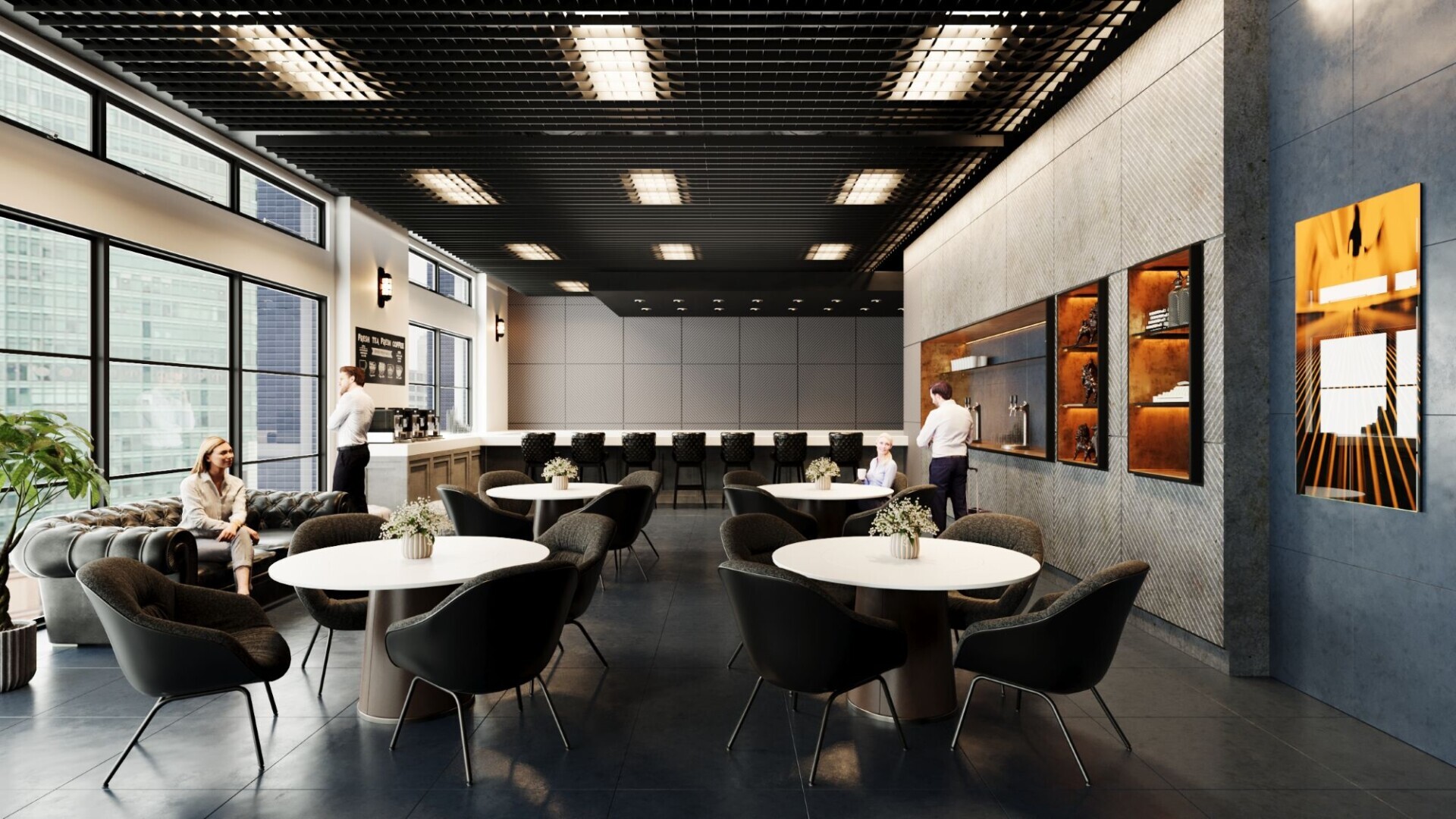

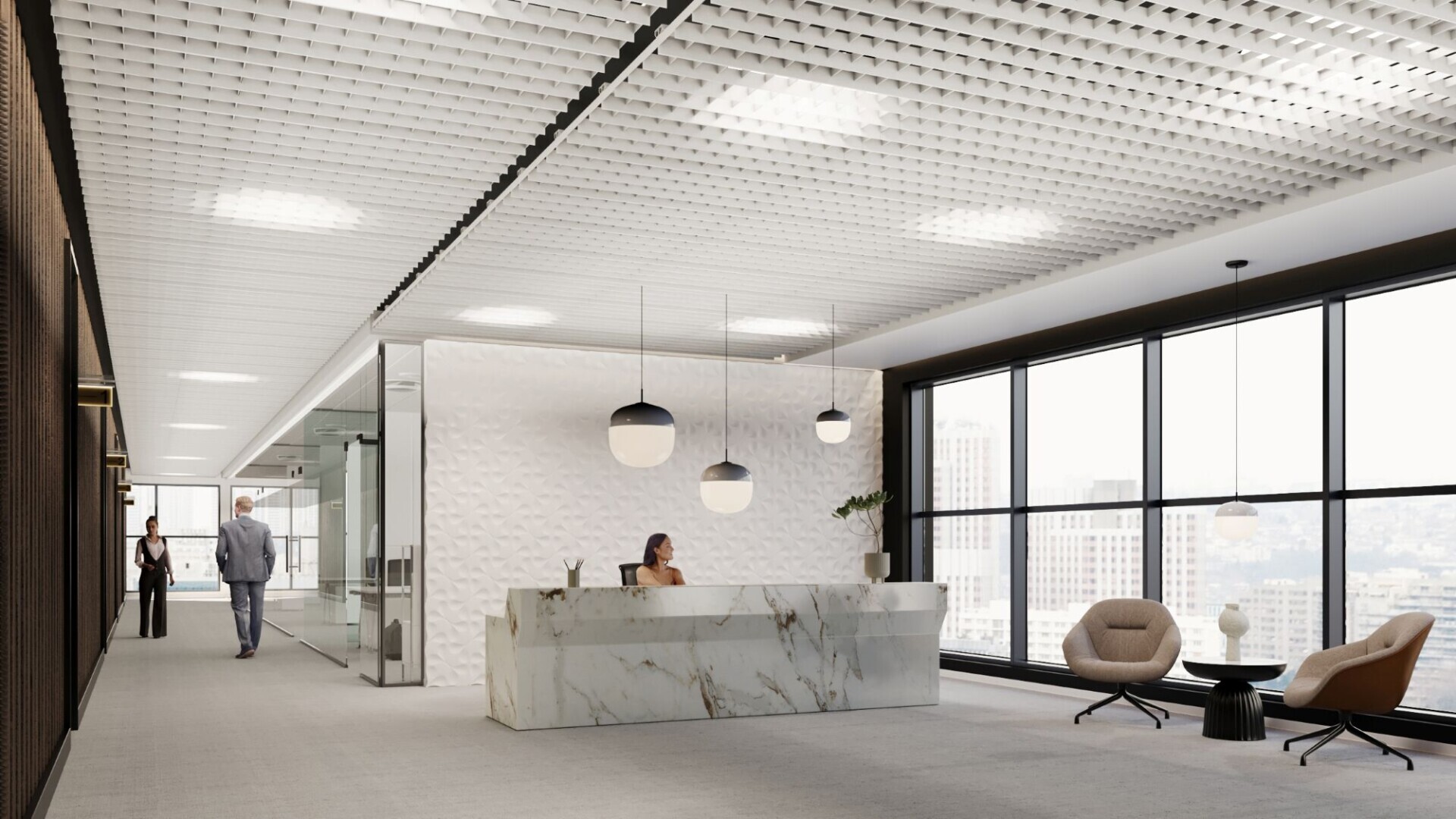

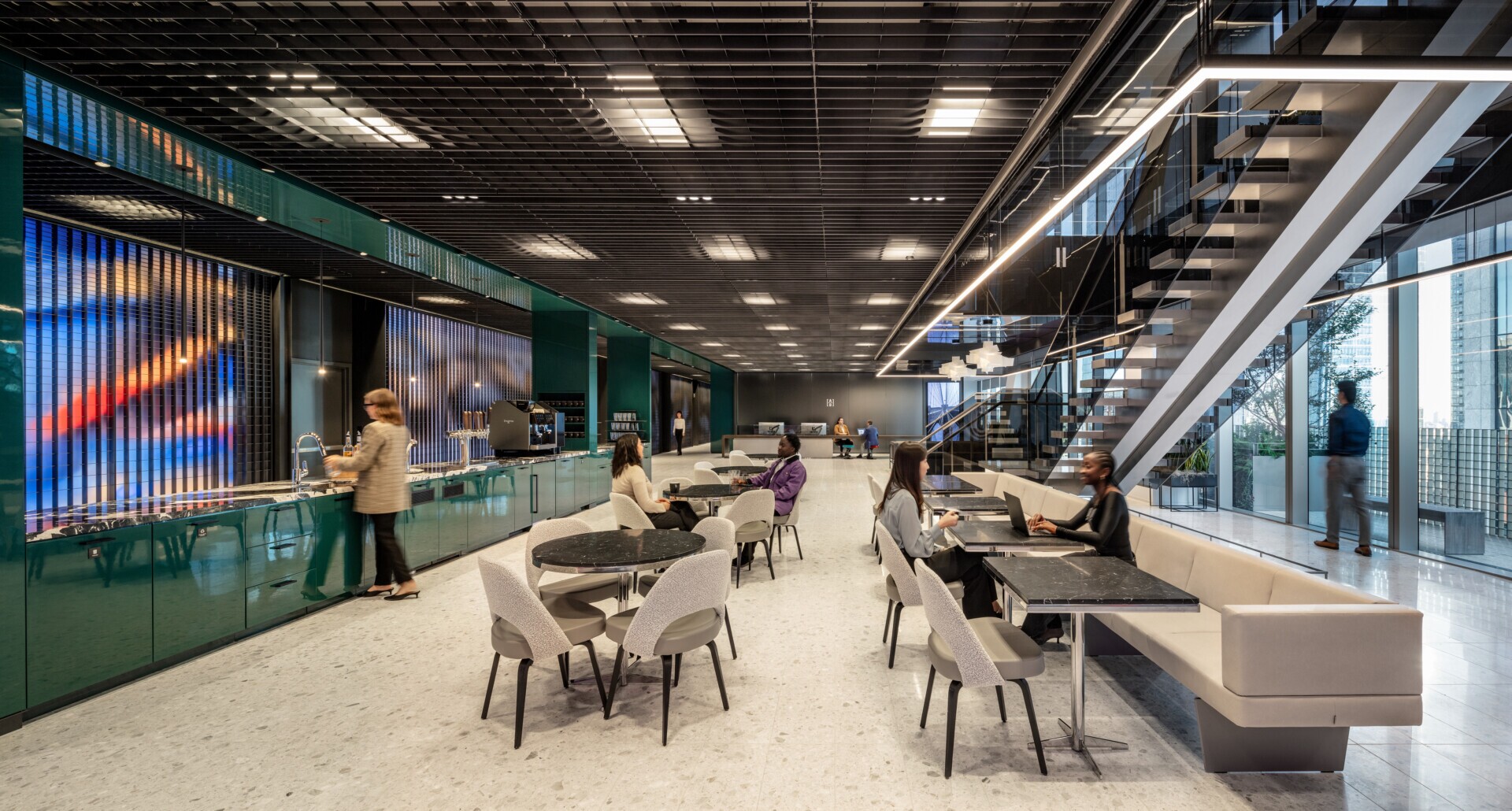

Extruded Metal Open Cell Ceiling SystemFeatures an open linear structure and industrial aesthetic, delivering dynamic, high-impact commercial interiors.
Specifications
- Material
- Aluminum | Extruded
- Weight
- Depends on cell configuration (1.2 - 1.8 lbs/sq ft)
- Thickness
- .125"
- Surface Finish
- Factory-applied polyester paint. Available in Standard Colors and Color Matched.
- Seismic Performance
- Engineered for use in all seismic areas. Installations may require additional attachment from panel to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
- Fire Performance
- Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.
- LEED Points
- LEED BD+C v4 (MR: Regional & Recycled Materials)
- ID+C EQ: Low-Emitting Materials
- Declarations
- No VOCs
EPD available - Recycled Content
- Aluminum contains up to 80% recycled content
- Finishes
- - Open structure design enhances visual depth and promotes airflow for a sleek, industrial look.
- High open area percentage (over 70%) is available when required in sprinklered areas to allow unobstructed water flow.
- Designed for exact fit - no site cutting required.
- Standard Options
- Standard panel sizes:
2' x 2' panel
2' x 4' panel
Grille configurations are available in rectangular and square formats. Standard cell sizes are listed below, custom sizes available:
W/L: 4" x 6", 4" x 8", 6" x 6", 6" x 8", 8" x 6", 8" x 8", 12" x 6" - Installation
- Attaches to 15/16" HD Grid or custom suspension system.

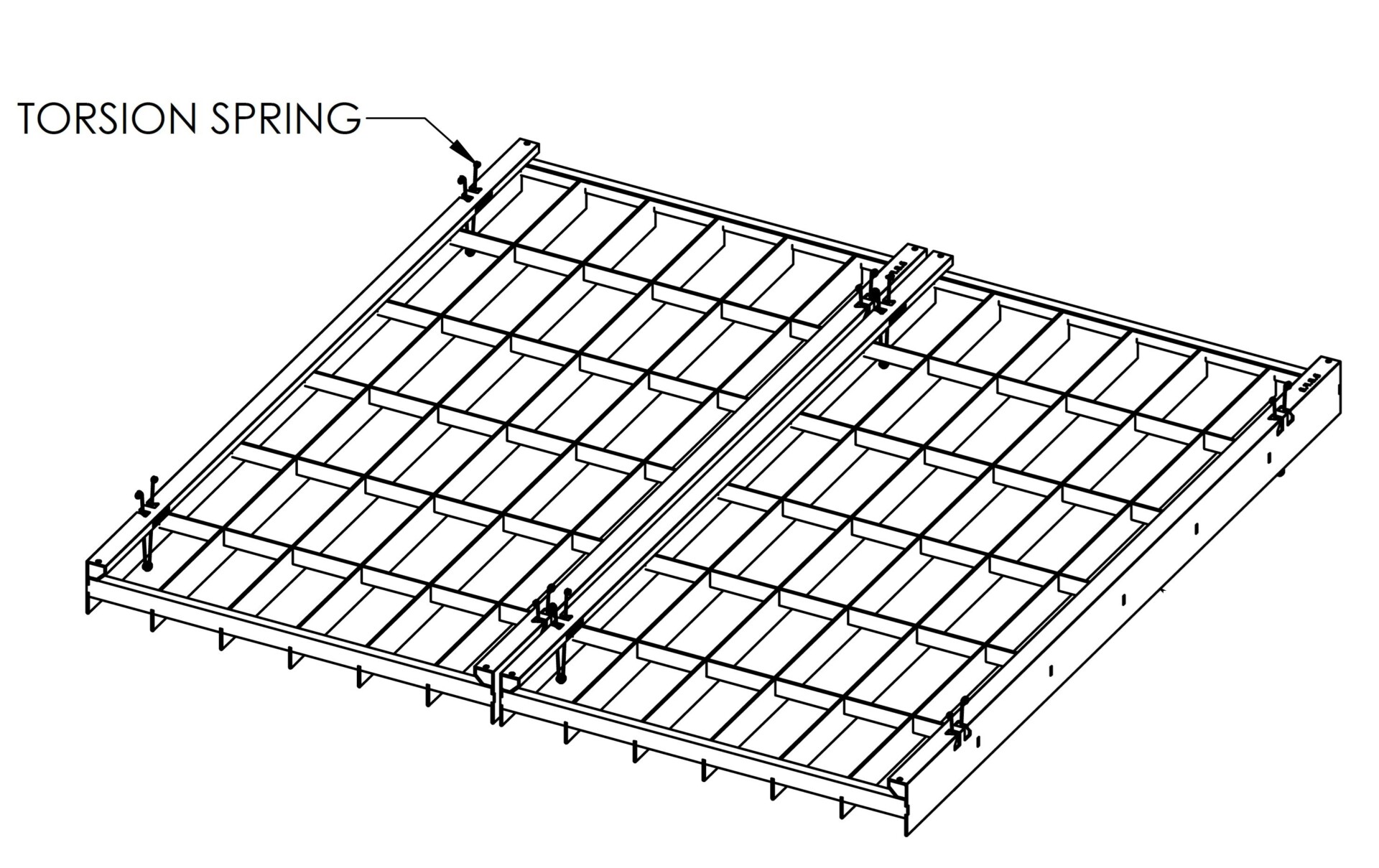

- Torsion spring design allows for easy plenum access. Panels can remain hinged to suspension to avoid damage.
- Care & Maintenance
- Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe. Optional utility troughs discreetly house MEP systems while ensuring easy access for maintenance.

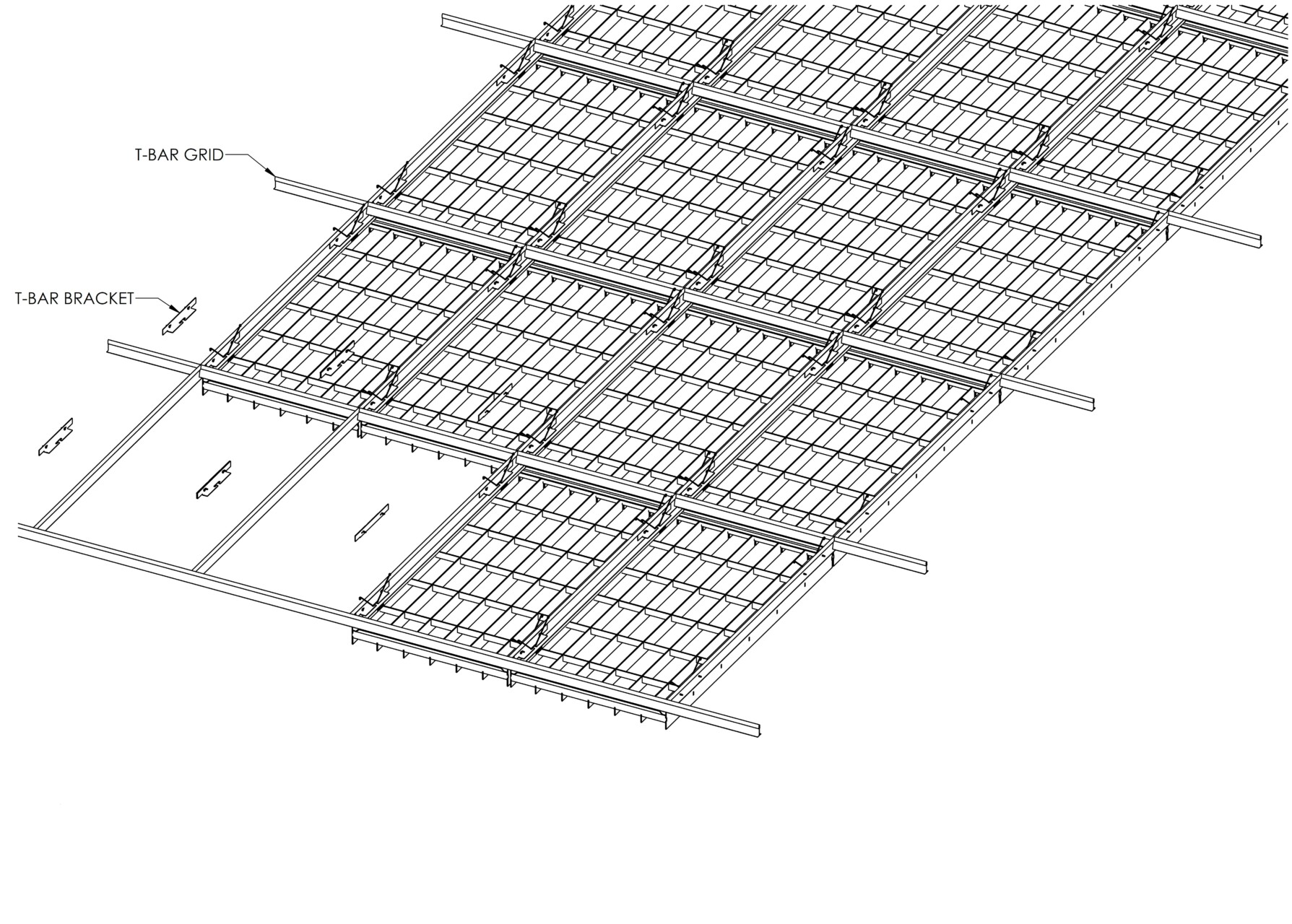

Assembly
Material and Finishing Options
(Interior & Exterior) Formaldehyde-Free.
-
Golden Bronze
-
Metallic Sterling Silver
-
Soft Nickel
-
Blush Copper
-
Dark Bronze
-
Forged Charcoal
-
Gold
Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.
-
Chalkstone White
2-6 Gloss | LRV 85-86
-
White
12-20 Gloss | LRV 79-80
-
Snow White
25-30 Gloss | LRV 83-84
-
Black
25-35 Gloss
-
Blush Rose
20 Gloss
-
Sunrise Yellow
20 Gloss
-
Forest Green
20 Gloss
-
Pure Orange
20 Gloss
-
Tan Straw
20 Gloss
-
Mid Beige
20 Gloss
-
Sterling Silver
20 Gloss
-
Grey
65-75 Gloss
