Fabricated Metal Partition System

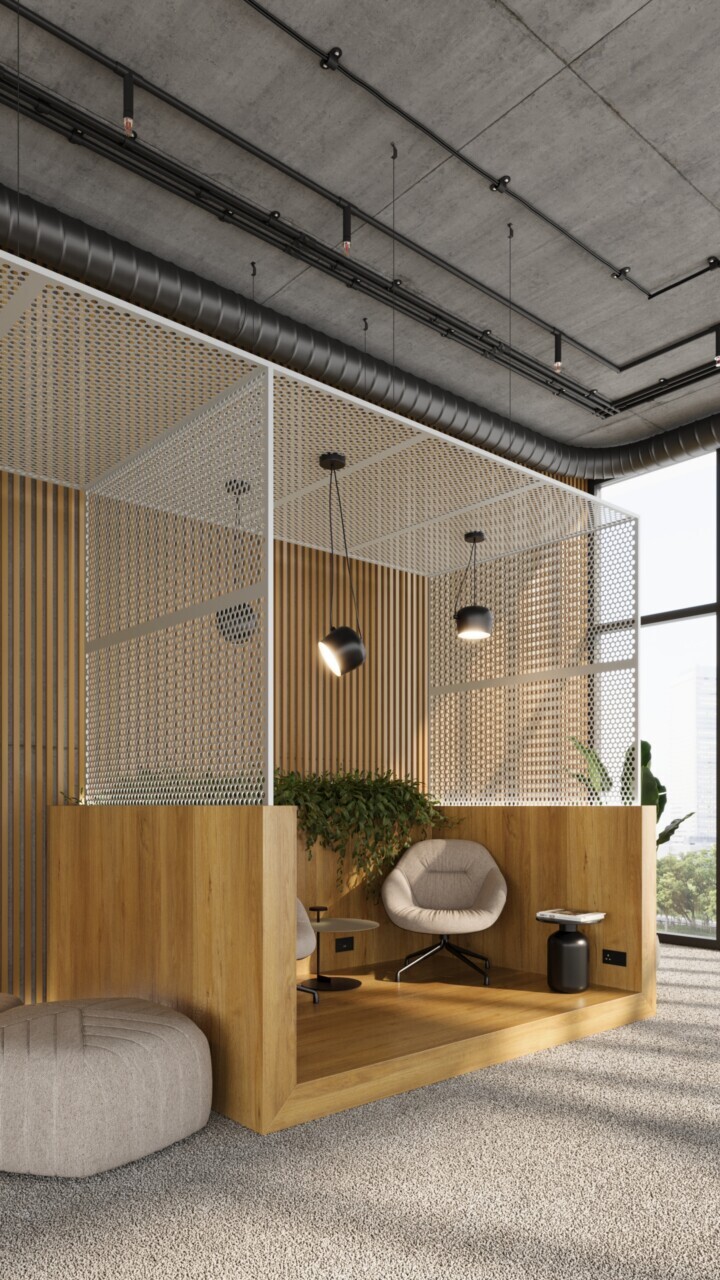

PANEL:Form Canopy Partitions

Establish boundaries and foster a sense of privacy, all while allowing natural light and air to flow freely.

Get Started

Resources

Specifications

Product Details
Sustainability
Features

Material: Aluminum (Fabricated)
Weight: Varies from 0.67 - 1.10 lbs. / ln.ft.
Thickness: 0.41" - 0.60" design dependent
Surface Finish: Factory-Applied Polyester Paint
Available in Standard Colors, Color Matched
Fire Performance: ASTM E84 Class A. CAN/ULC S102.2
Applications: Floor mounted or custom millwork supports available

LEED Points: LEED BD+C: New Construction v4; MR: Regional Materials; MR: Recycled Content
LEED ID+C: Commercial Interiors v4; EQ: Low-Emitting Material
Declarations: No VOC'S: No added urea–formaldehyde
Recycled Content: Recycled Content - up to 80%

Finishes: - Perforated overhead canopy design promotes a sense of privacy while allowing natural flow of air and light
- Available in various configurations to fit a range of applications
- Perforation patterns include Standard, Premium and Custom Perforation
Custom Options: Custom sizes & shapes – At Maxxit custom is what we do best. We will make any shape or size you can design.
Standard Options: Standard sizes – in addition to custom we also have quick ship standard products available made to order; Cable suspension to building structure will be required at certain size combinations.
Installation: Lightweight & easy to install
Care & Maintenance: Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe

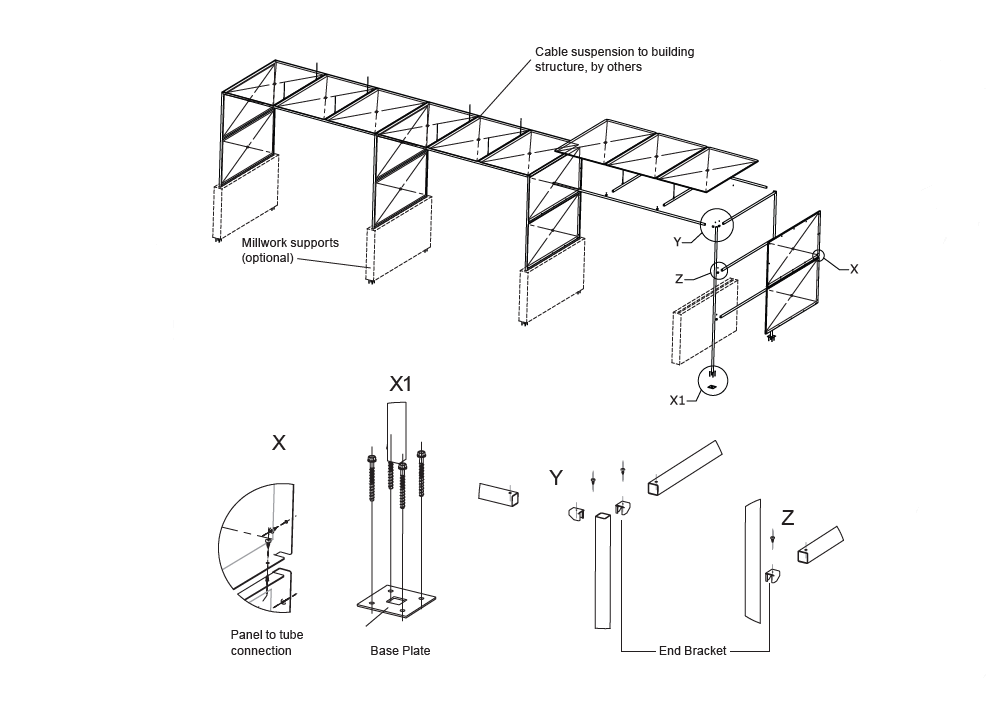

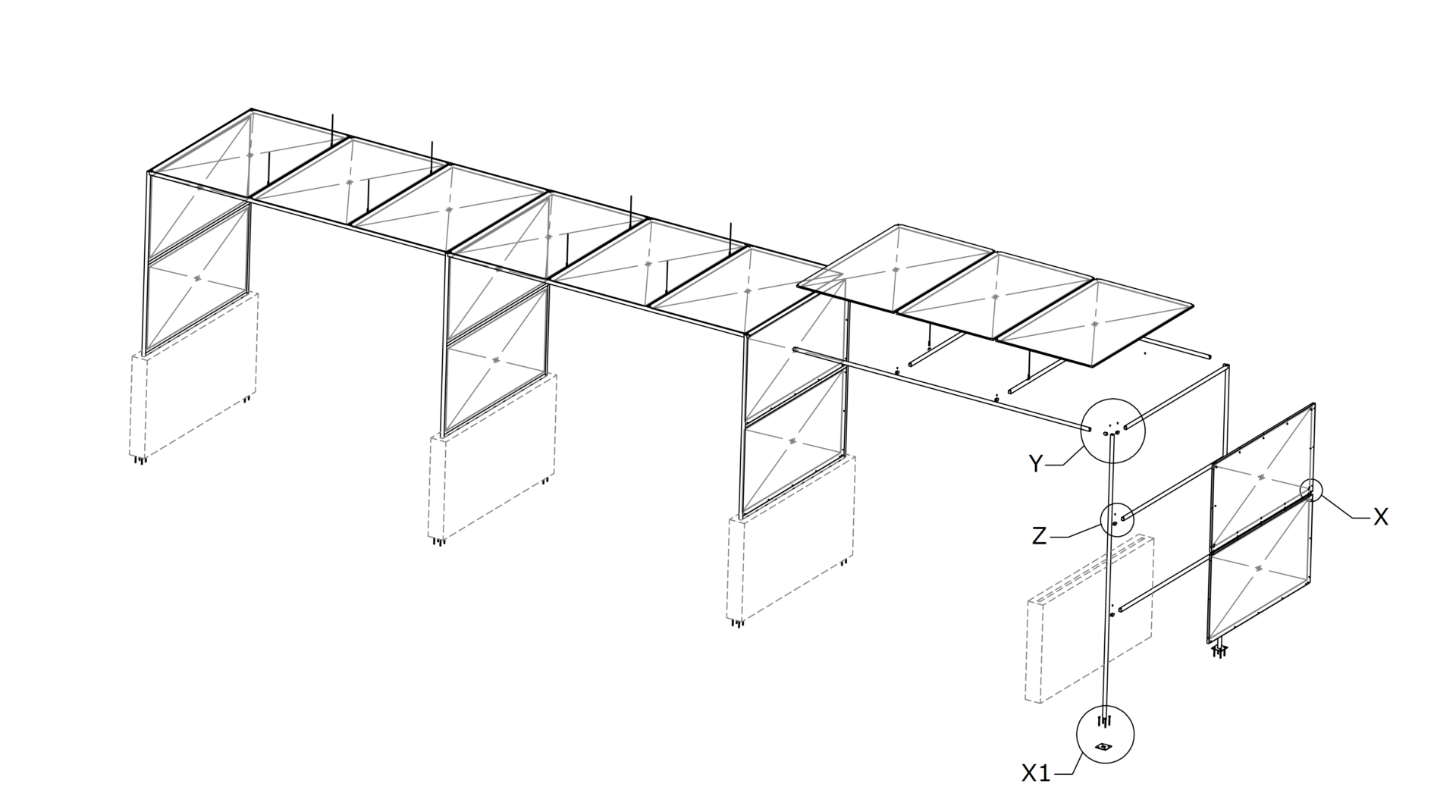

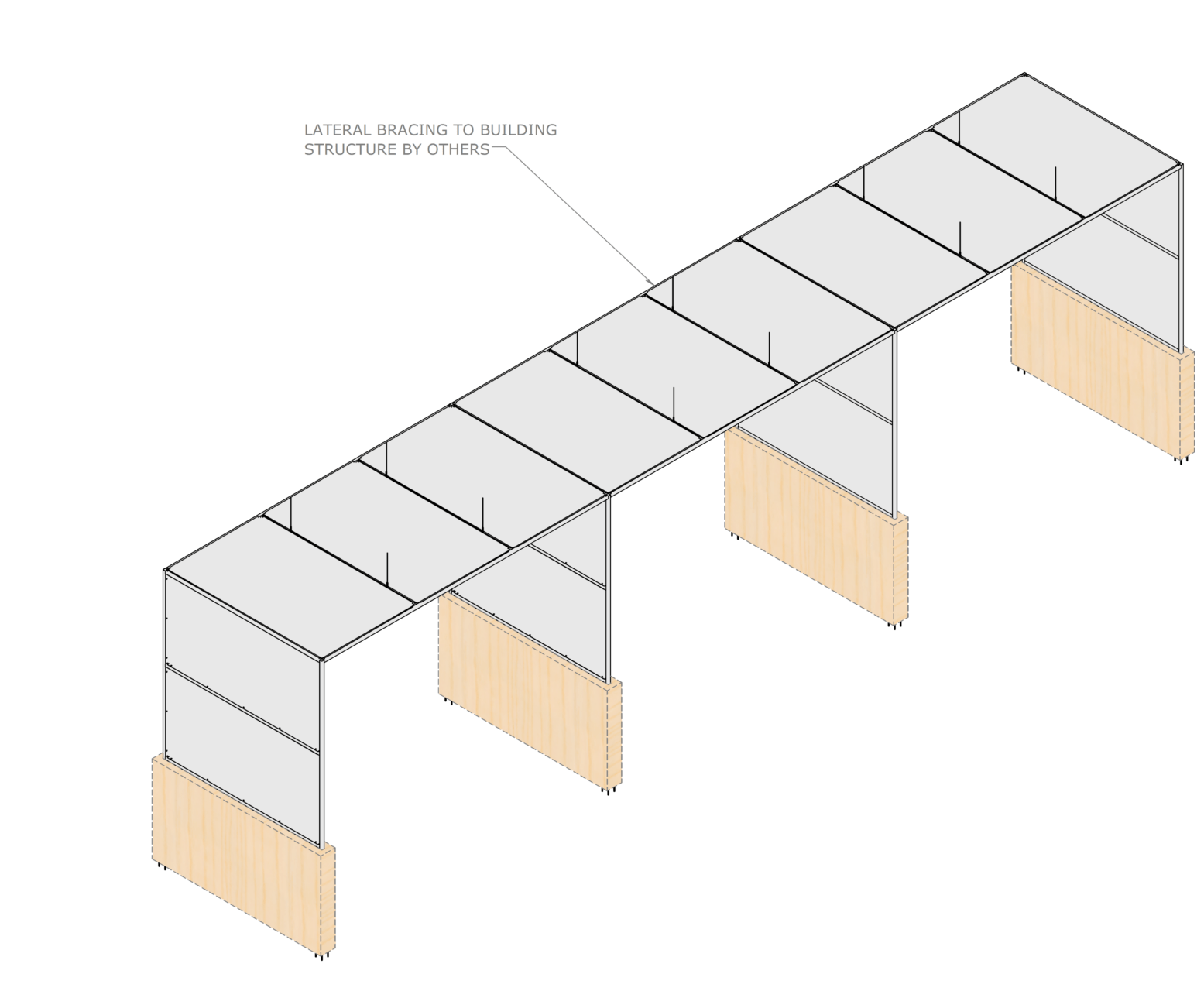

Assembly

Material and Finishing Options

Bonded Metallic Finish (bonded-metallic-finish)

Golden Bronze
Metallic Sterling Silver
Soft Nickel
Blush Copper
Dark Bronze
Forged Charcoal
Gold

(Interior & Exterior) Formaldehyde-Free.

Solid Color Paint (solid-color-paint)

Chalkstone White

2-6 Gloss | LRV 85-86
White

12-20 Gloss | LRV 79-80
Snow White

25-30 Gloss | LRV 83-84
Black

25-35 Gloss
Blush Rose

20 Gloss
Sunrise Yellow

20 Gloss
Forest Green

20 Gloss
Pure Orange

20 Gloss
Tan Straw

20 Gloss
Mid Beige

20 Gloss
Sterling Silver

20 Gloss
Grey

65-75 Gloss

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

Standard Perforation (perforation)

Unperforated
S02 Staggered

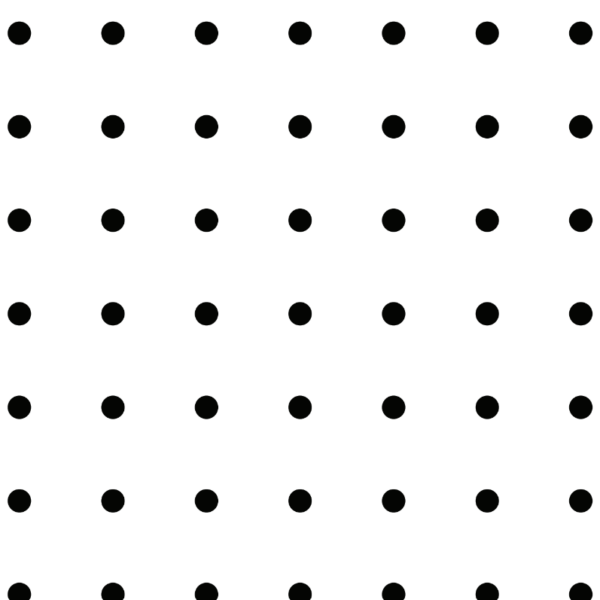

S03 Straight

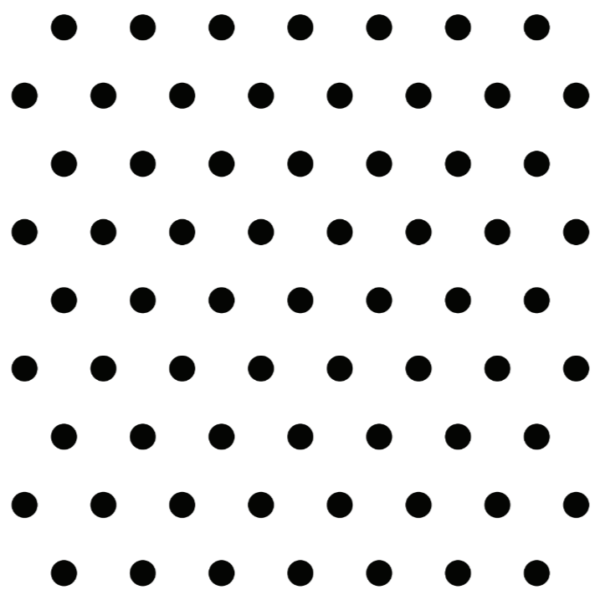

S04 Staggered
S05 Staggered

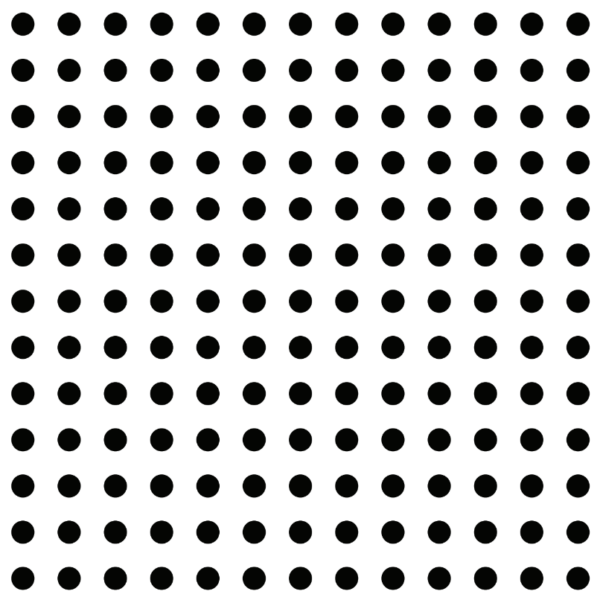

S06 Straight

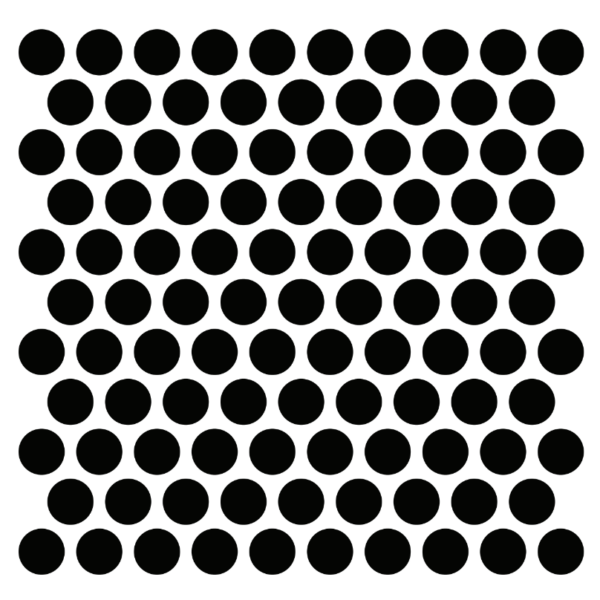

S07 Staggered

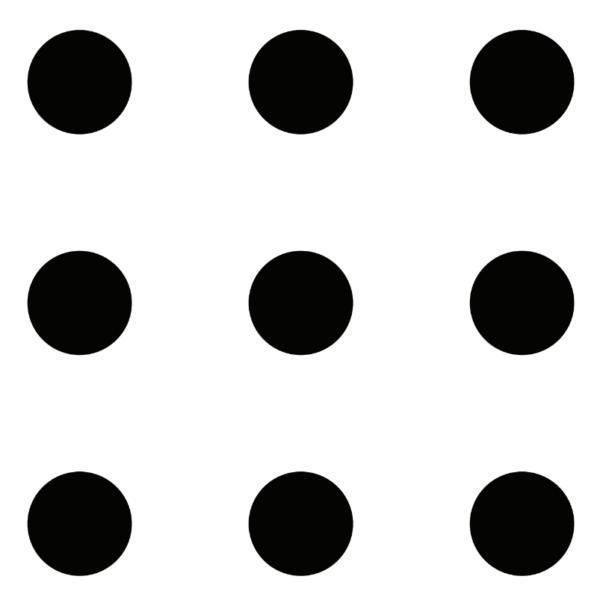

S08 Straight

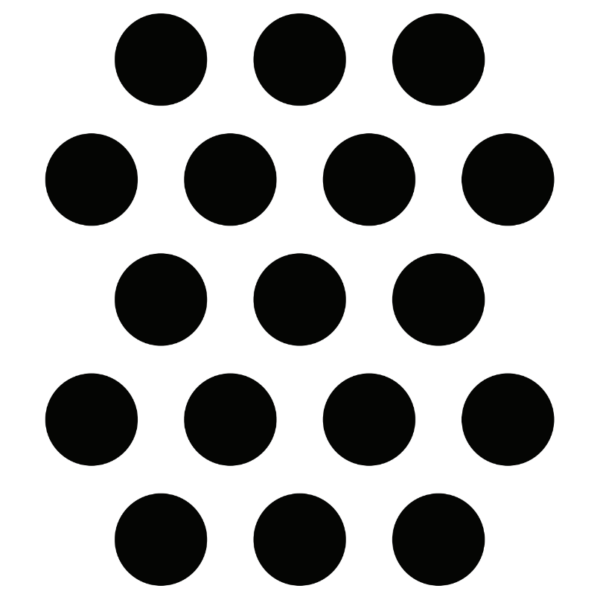

S09 Staggered

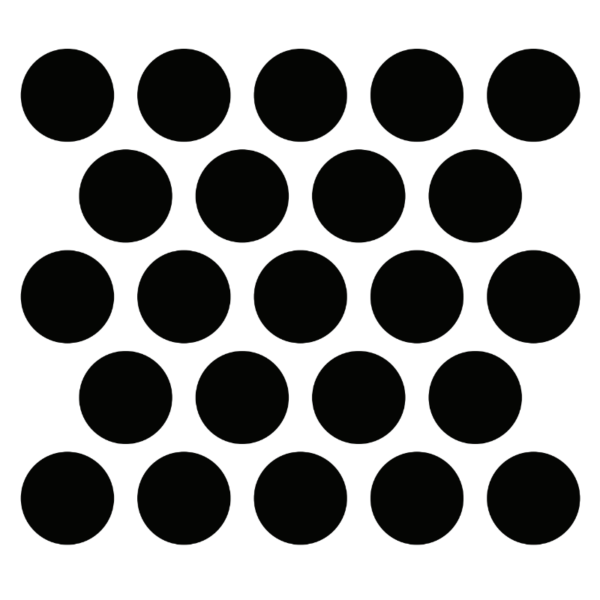

S10 Staggered

Angles – Staggered 60°

Premium Perforation (premium-perforations)

P11 Straight
P12 Straight

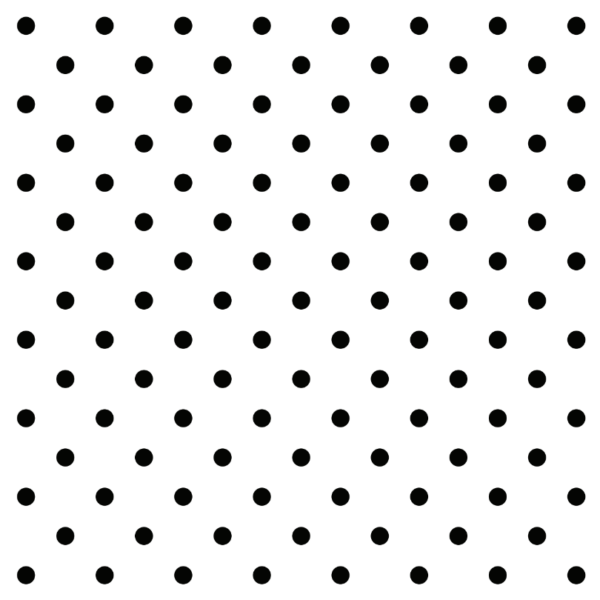

P13 Diagonal
P14 Diagonal

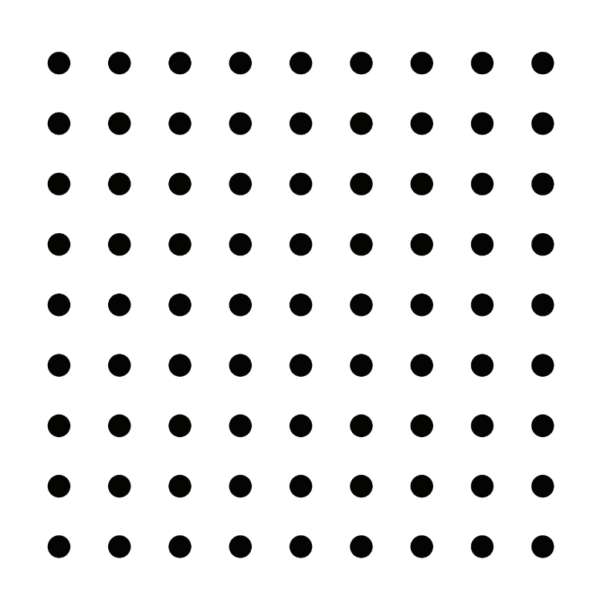

P15 Straight

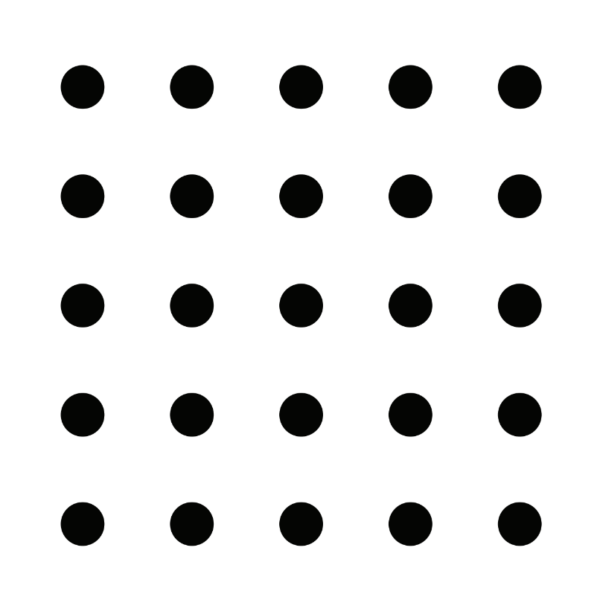

P16 Straight

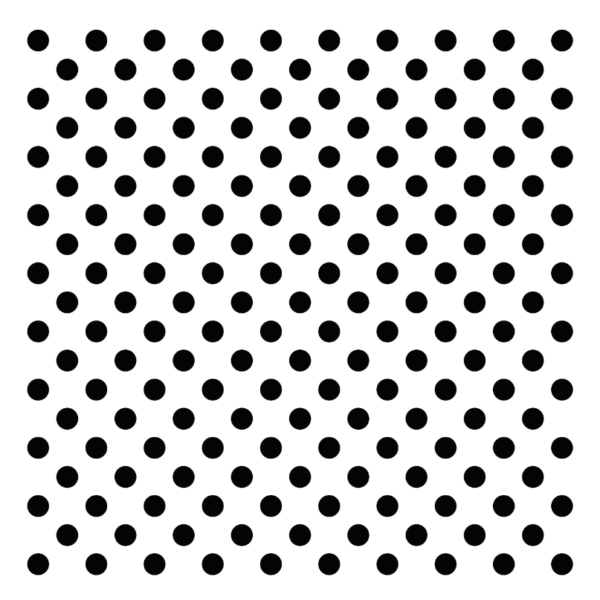

P17 Diagonal

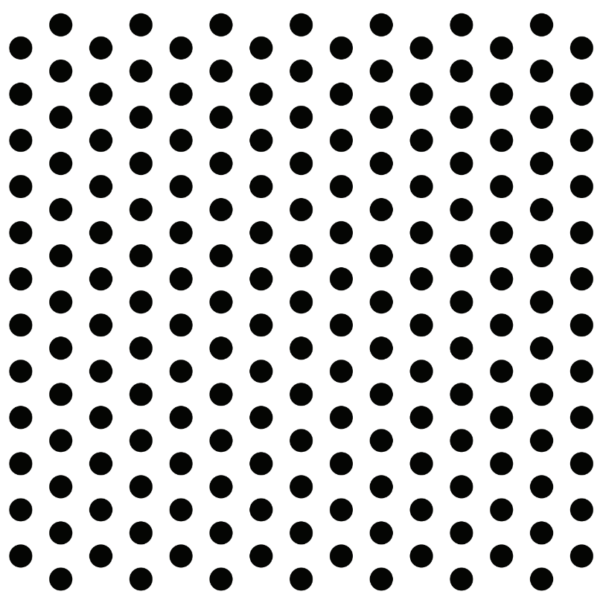

P18 Staggered
P19 Staggered

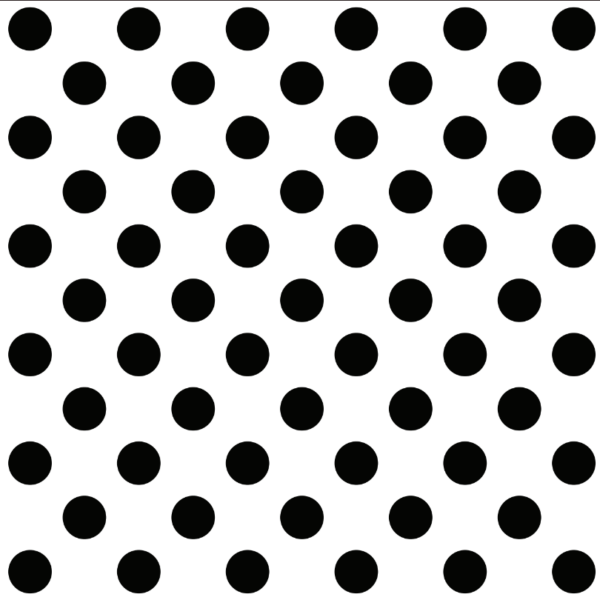

P20 Diagonal

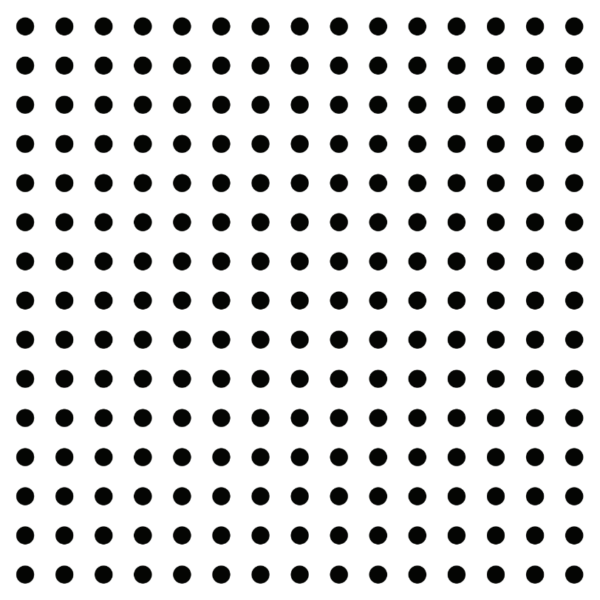

P21 Straight
P22 Square Straight
P23 Square Straight

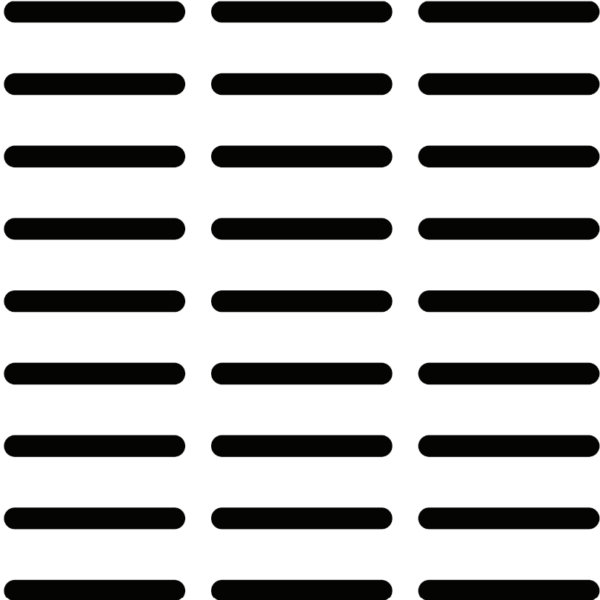

P24 Oblong Straight
P25 Oblong Straight

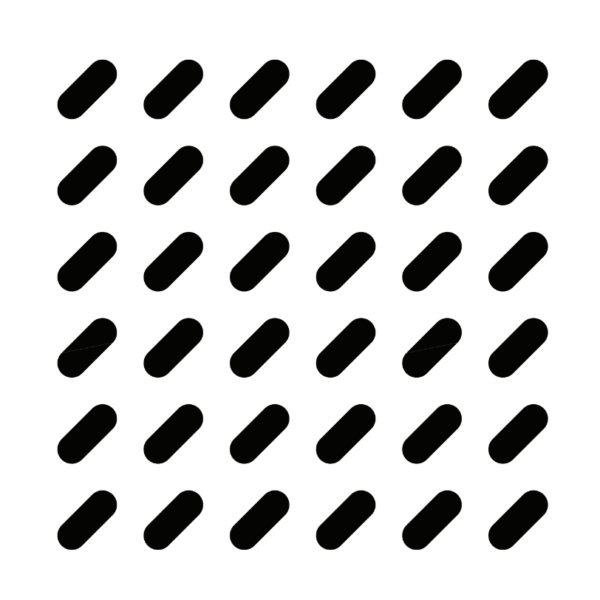

P26 Diagonal

Angles – Diagonal 45° | Staggered 60°

Design Perforated Patterns (design-perforated-patterns)

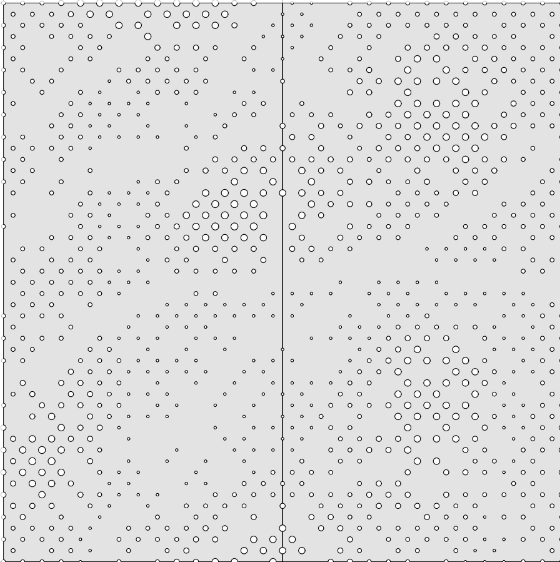

Woodland

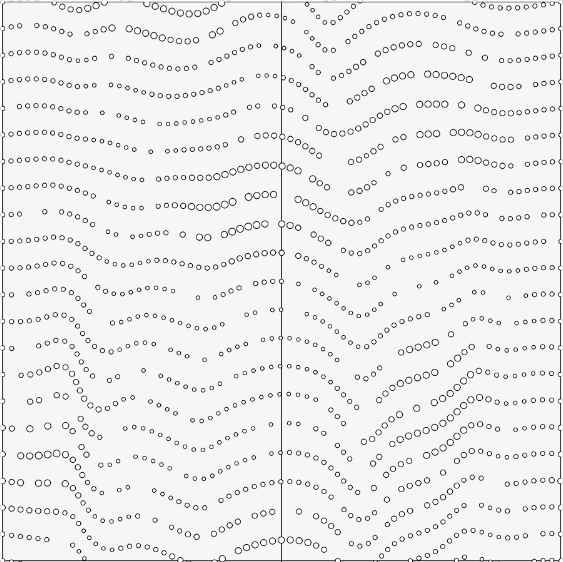

Ripple

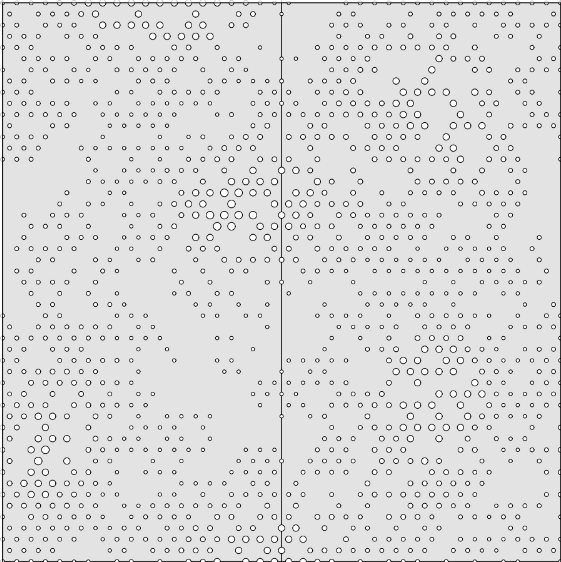

Nebula Mist

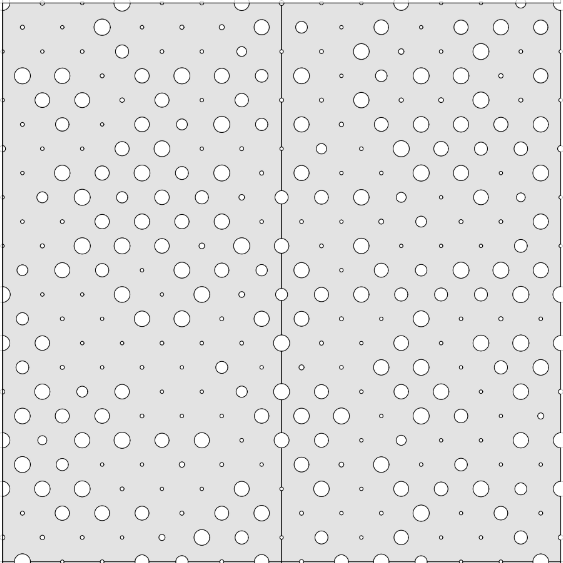

Starlight

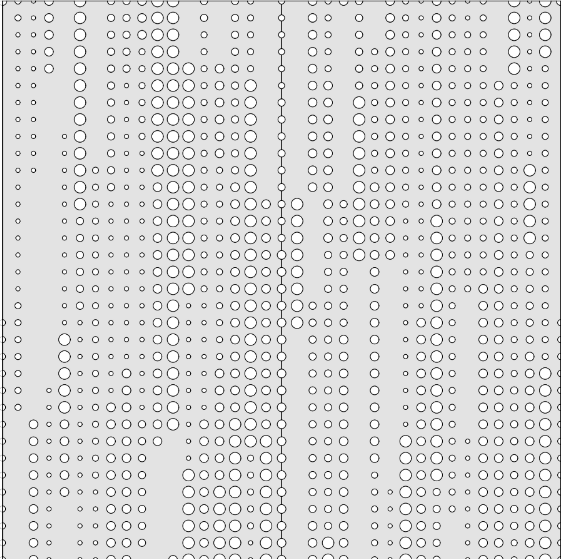

Bitstream

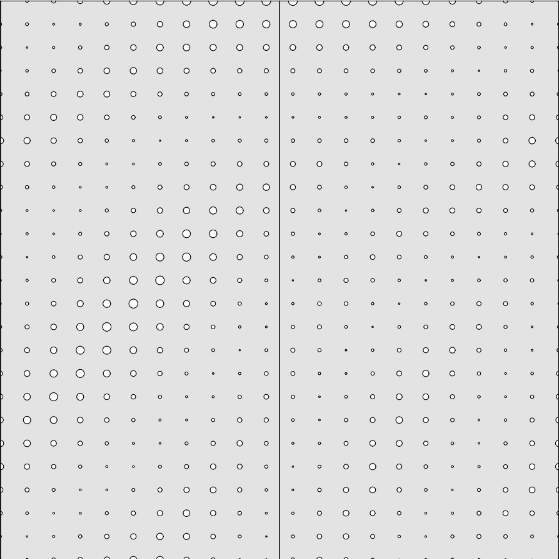

Aqua Flow

Six distinct design families, each with customizable parameters. Whether it’s adjusting hole diameter, pattern density, or scale, we can create virtually endless variations of each pattern to suit individual needs and preferences.
