PANEL:Form Design Perforated Wall Panels

Fabricated Wall Panel System

Present a range of precision-cut perforation patterns, paired with optional acoustic backing or architectural felt.

Get Started

Specifications

Material
Aluminum | Fabricated
Weight
Varies from 1.0-1.5 lbs./sq.ft.
Thickness
.041” - .060” design dependent
Surface Finish
Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look Powder-Coated and laminated.
Acoustic Performance
Perforated panels can be fitted with acoustic infills or architectural felt to reduce noise and enhance visual interest.
Seismic Performance
Design Perforated Wall Panels have been engineered for use in all seismic areas. Installations may require additional attachment from baffle to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
Fire Performance
Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.
LEED Points
  • METAL - LEED BD+C v4 (MR: Regional & Recycled Materials) ; Schools EQ: Acoustic Performance ; ID+C EQ: Low-Emitting Materials.
  • FELT - BD+C v4 (MR: Product Disclosure, Recycled Content) ; Schools EQ: Acoustic Performance.
Declarations
No VOCs
EPD & GREENGUARD Gold certified
Recycled Content
Aluminum contains up to 80% recycled content & up to 60%
Finishes
- Create custom perforation patterns for elevated design.
- Unlimited finish options - custom colors, wood looks, and films.
- Perforations run to the panel edge and are matched to adjacent panels for a more seamless appearance.
Custom Options
At Maxxit custom is what we do best. We will make any shape or size you can design.
Installation

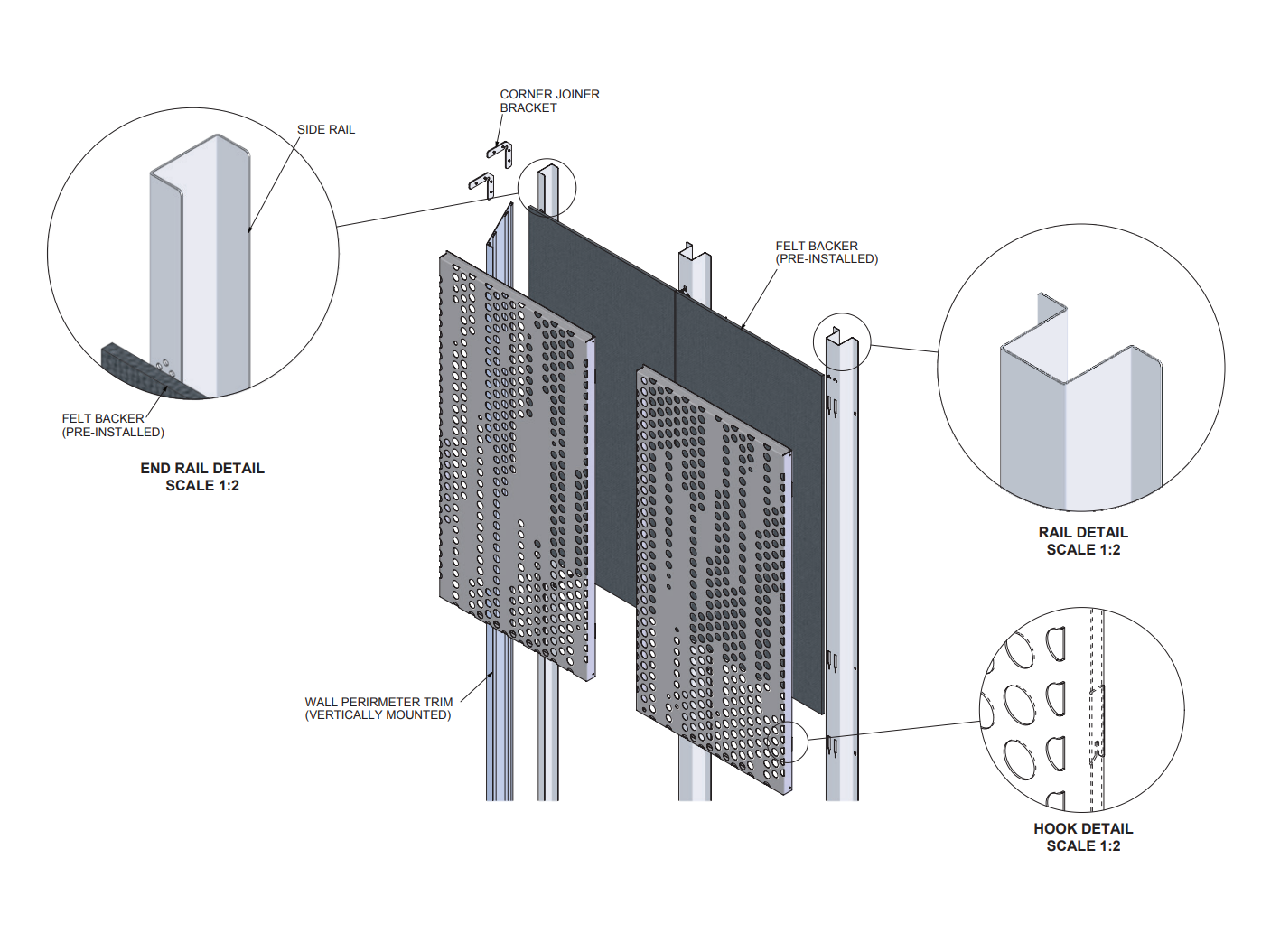

  • The wall attachment system includes a series of rails and hooks designed to securely hold the perforated panels in place.
Care & Maintenance
Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

Material and Finishing Options

  • Beige

  • Grey

  • White

(Interior & Exterior) Formaldehyde-Free.

  • Golden Bronze

  • Metallic Sterling Silver

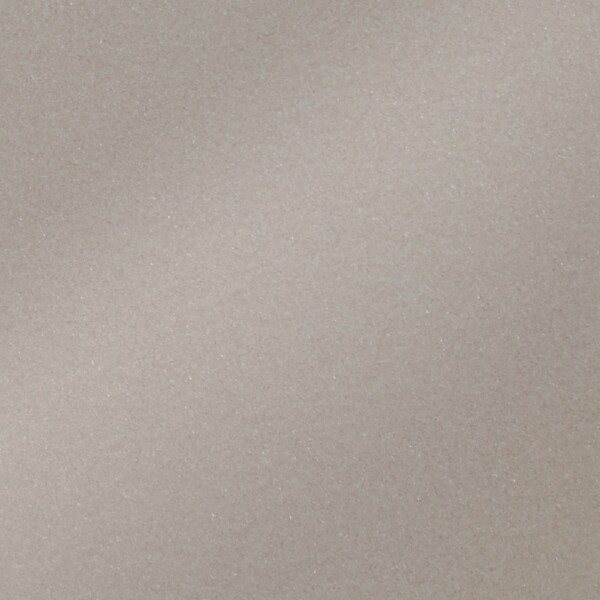

  • Soft Nickel

  • Blush Copper

  • Dark Bronze

  • Forged Charcoal

  • Gold

Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.

  • Chalkstone White

    2-6 Gloss | LRV 85-86

  • White

    12-20 Gloss | LRV 79-80

  • Snow White

    25-30 Gloss | LRV 83-84

  • Black

    25-35 Gloss

  • Blush Rose

    20 Gloss

  • Sunrise Yellow

    20 Gloss

  • Forest Green

    20 Gloss

  • Pure Orange

    20 Gloss

  • Tan Straw

    20 Gloss

  • Mid Beige

    20 Gloss

  • Sterling Silver

    20 Gloss

  • Grey

    65-75 Gloss

Wood look powder coated paint finishes for interior and exterior use. Formaldehyde-Free.

  • National Walnut

    Wood look powder coated paint finish

  • Chestnut

    Wood look powder coated paint finish

  • Rosewood

    Wood look powder coated paint finish

  • European Cherry

    Wood look powder coated paint finish

  • Knotty Pine

    Wood look powder coated paint finish

  • Oak Fine

    Wood look powder coated paint finish

  • Maple

    Wood look powder coated paint finish

  • American Maple

    Wood look powder coated paint finish

  • American Douglas

    Wood look powder coated paint finish

  • Teak

    Wood look powder coated paint finish

Standard Laminated (Film) Finishes for interior use only. Formaldehyde-free.

  • Brazilian Walnut

    Wood look laminated film finish

  • Black Walnut

    Wood look laminated film finish

  • North Oak

    Wood look laminated film finish

  • Italian Walnut

    Wood look laminated film finish

  • Canadian Oak

    Wood look laminated film finish

  • White Oak

    Wood look laminated film finish

  • American Natural

    Wood look laminated film finish

All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.

  • Raven

    Quick Ship

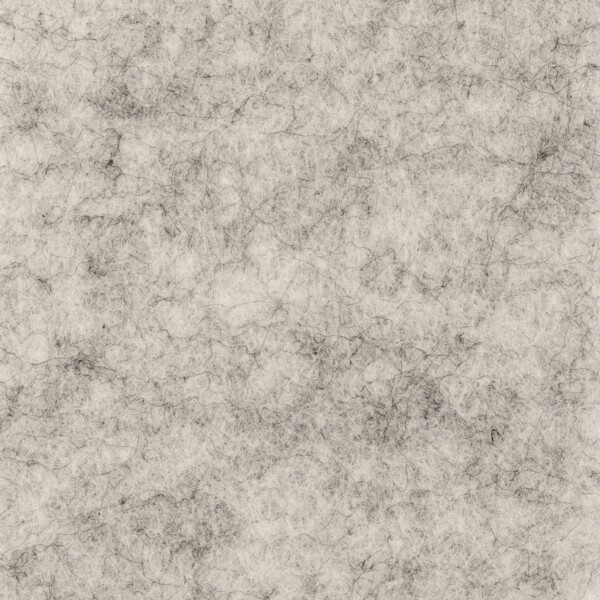

  • White Quartz

    Quick Ship

  • Ivory

    Quick Ship

  • Caramel

    Quick Ship

  • Smoke

    Quick Ship

  • Grey Quartz

    Quick Ship

  • Cream Marble

    Quick Ship

  • Olive Grey

    Quick Ship

  • Mulberry

  • Sea Green

  • Jade

  • Honeycomb

  • Raspberry

  • Ocean

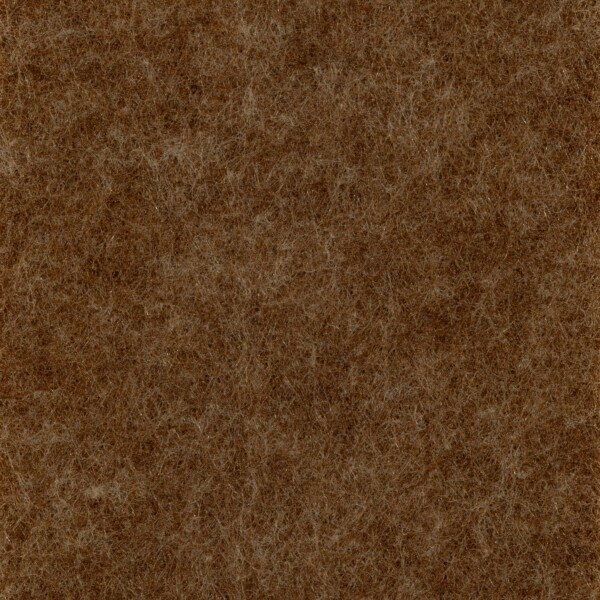

  • Chestnut

  • Thyme

  • Burnt Orange

  • Sage

  • Cloud

  • Driftwood

  • Steel

  • Beige Plaster

  • Cotton

  • Denim

  • Smokey Blue

  • Lavender Mist

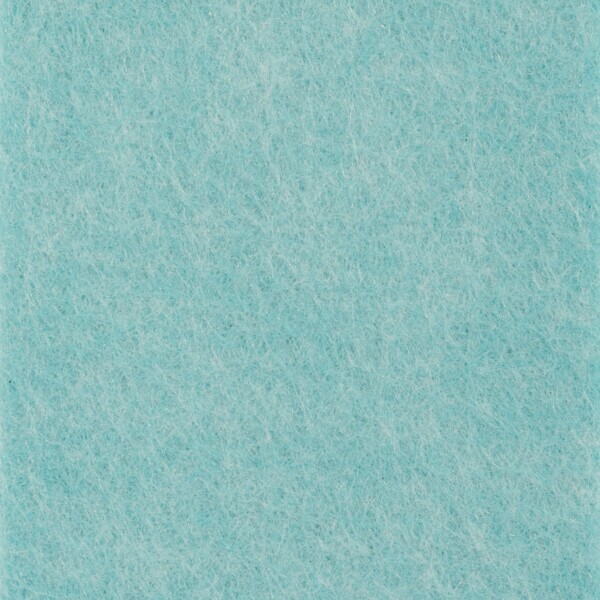

  • Aqua

  • Clear Blue

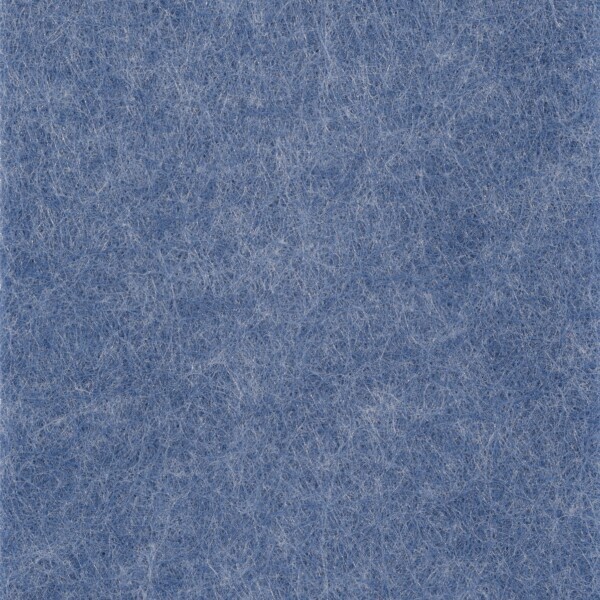

  • Iris

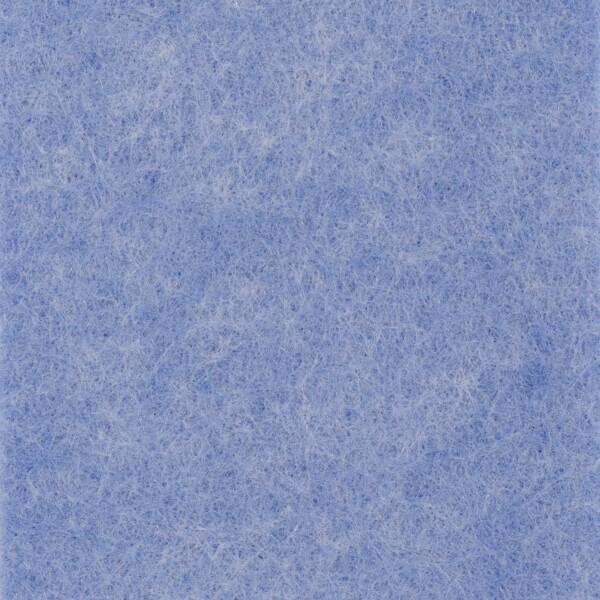

  • Cornflower

  • Cyan

  • Amethyst

  • Kiwi

  • Amber

  • Cobalt

  • Persimmon

  • Strawberry

Timbercast™ Wood Look Colors

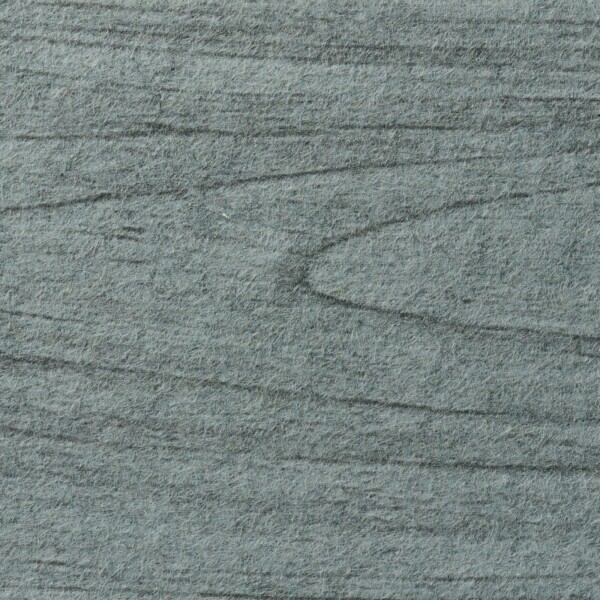

  • Weathered Grey

    Timbercast™ Wood Look Colors

  • Dark Walnut

    Timbercast™ Wood Look Colors

  • Red Oak

    Timbercast™ Wood Look Colors

  • Natural Maple

    Timbercast™ Wood Look Colors

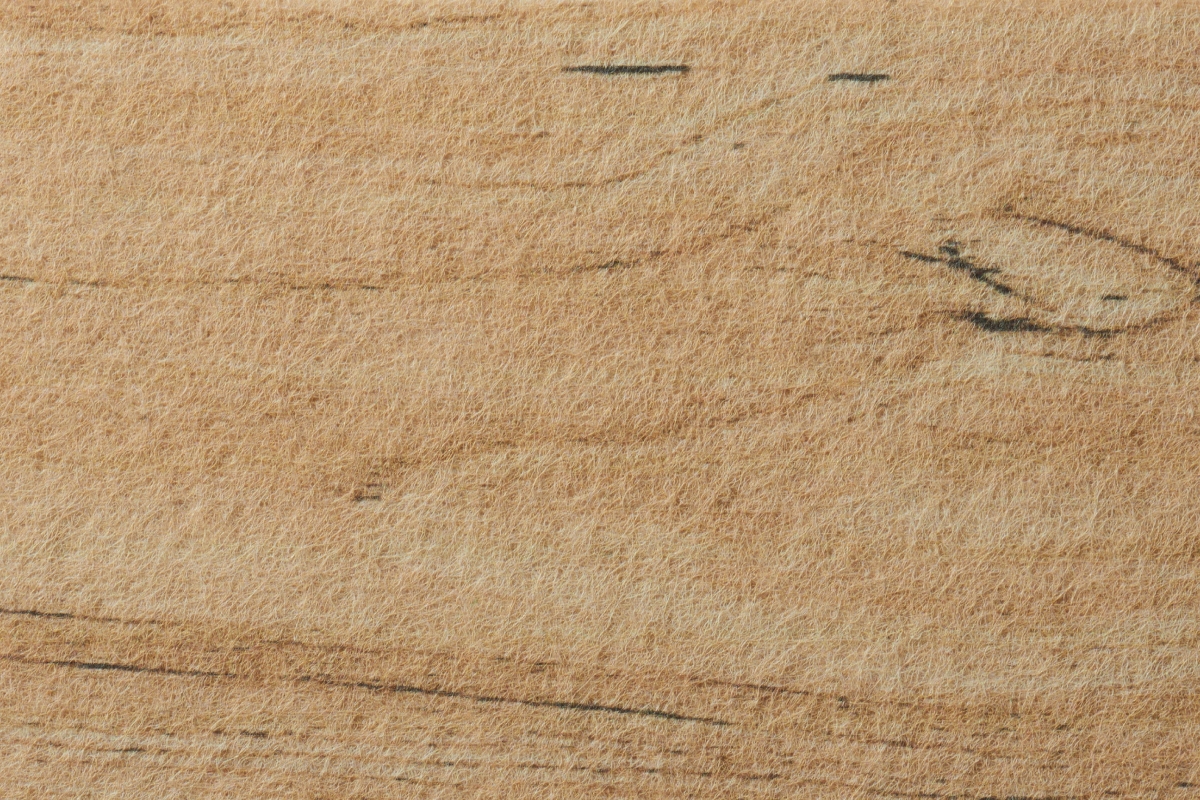

  • White Oak

    Timbercast™ Wood Look Colors

Six distinct design families, each with customizable parameters. Whether it’s adjusting hole diameter, pattern density, or scale, we can create virtually endless variations of each pattern to suit individual needs and preferences.

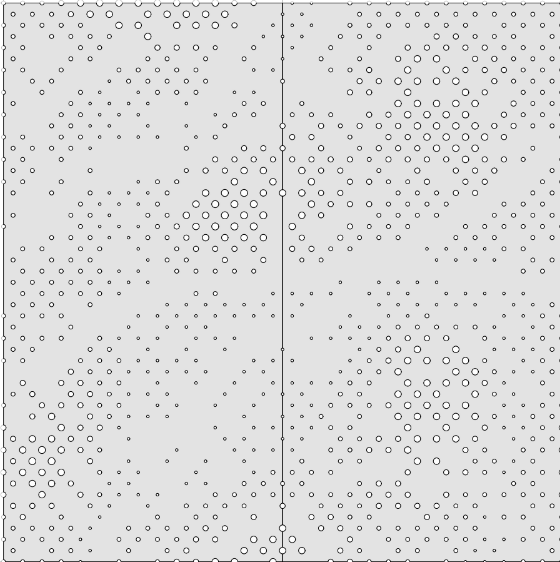

  • Woodland

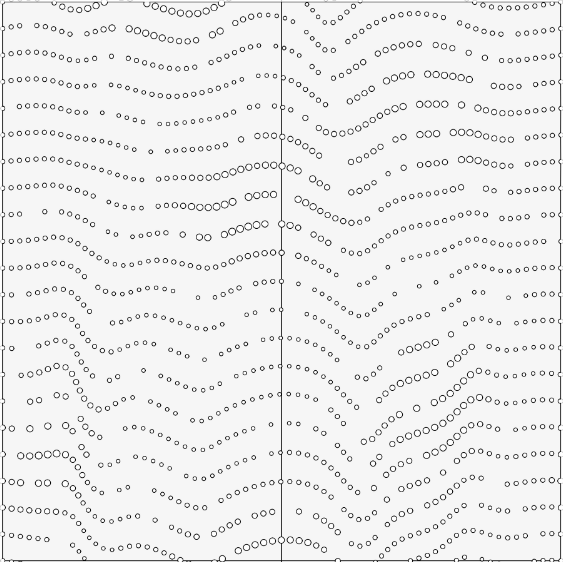

  • Ripple

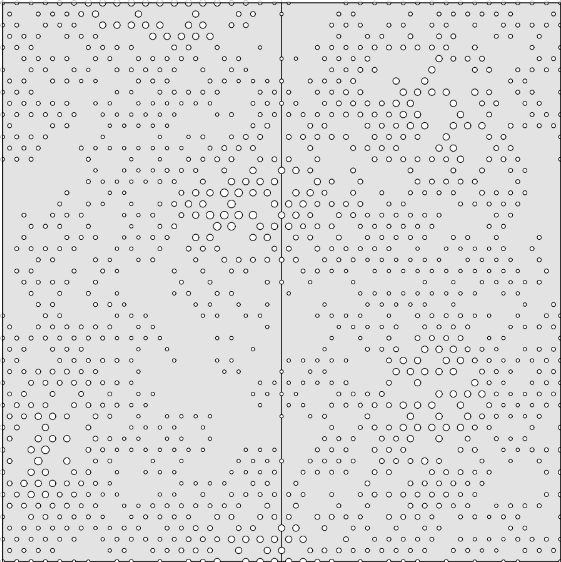

  • Nebula Mist

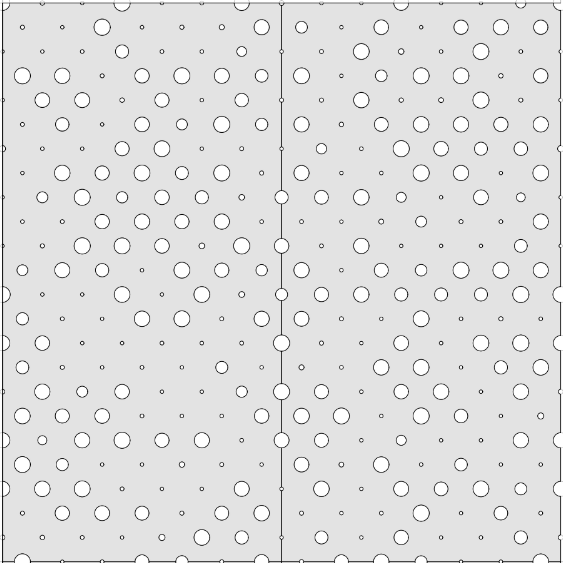

  • Starlight

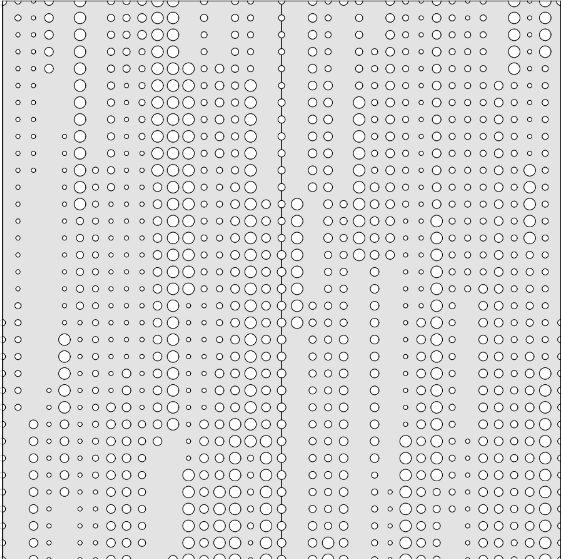

  • Bitstream

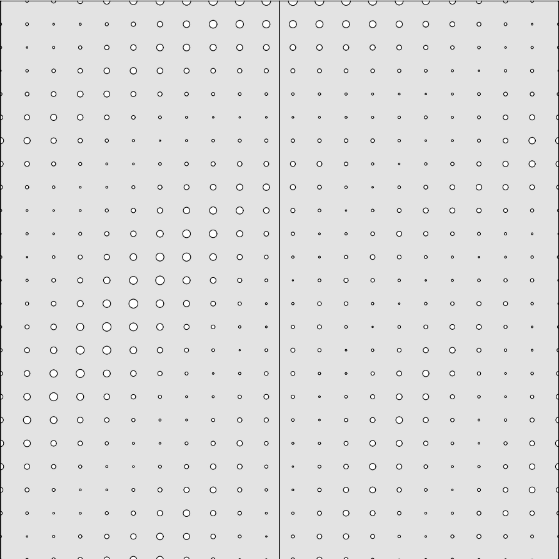

  • Aqua Flow

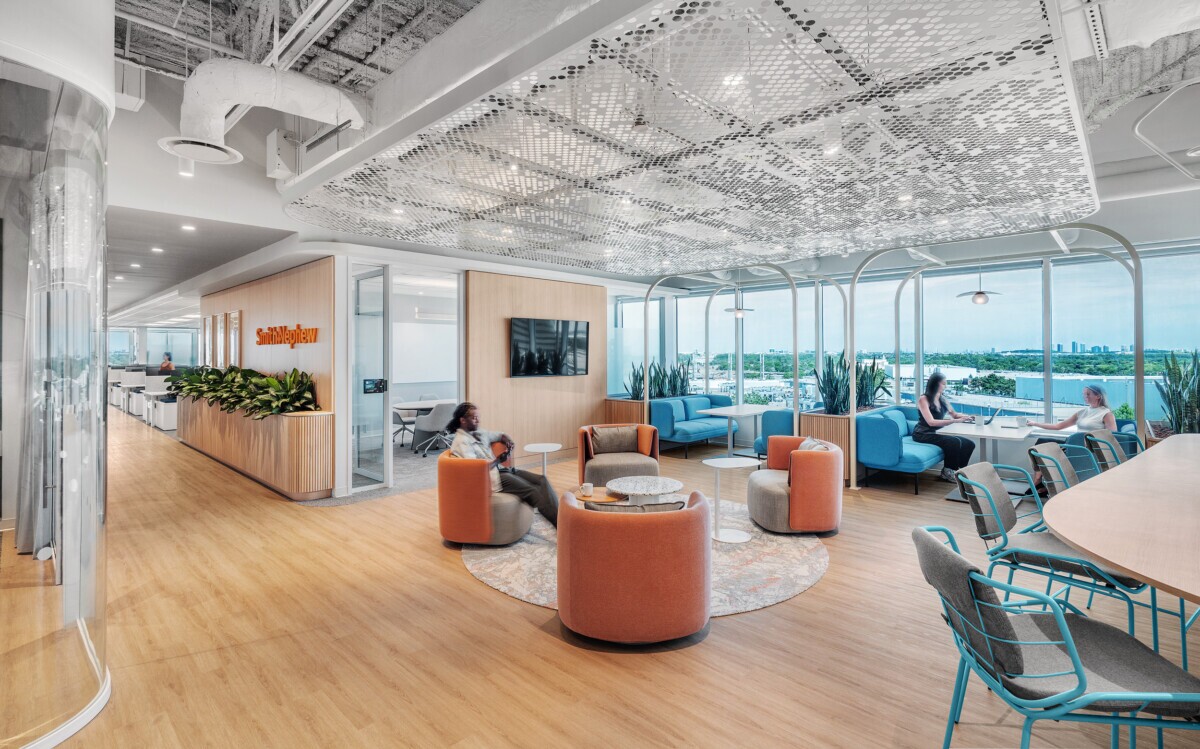

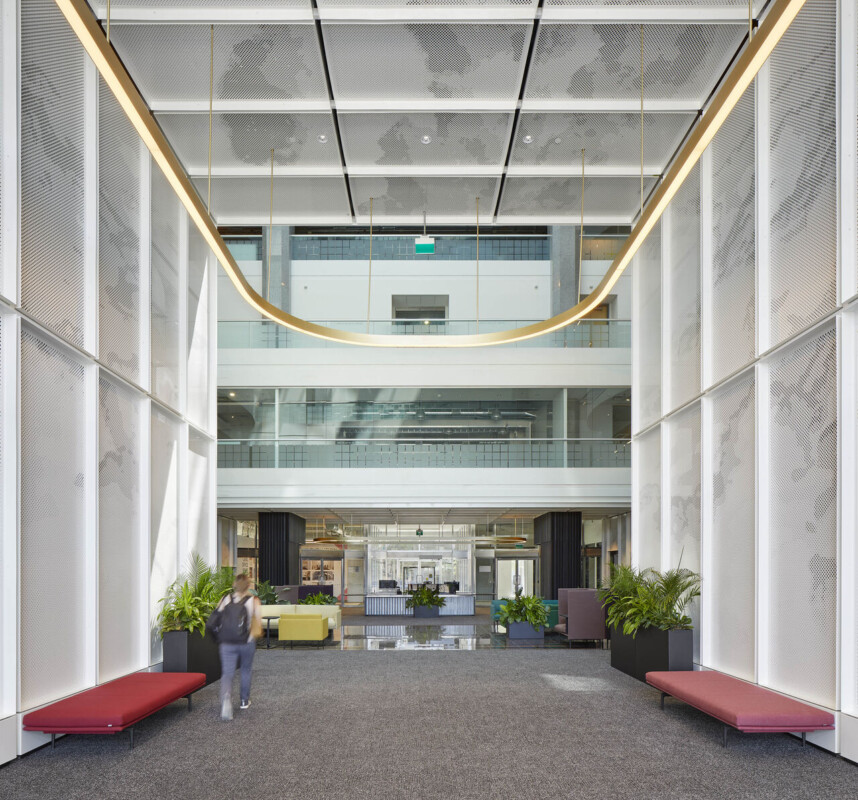

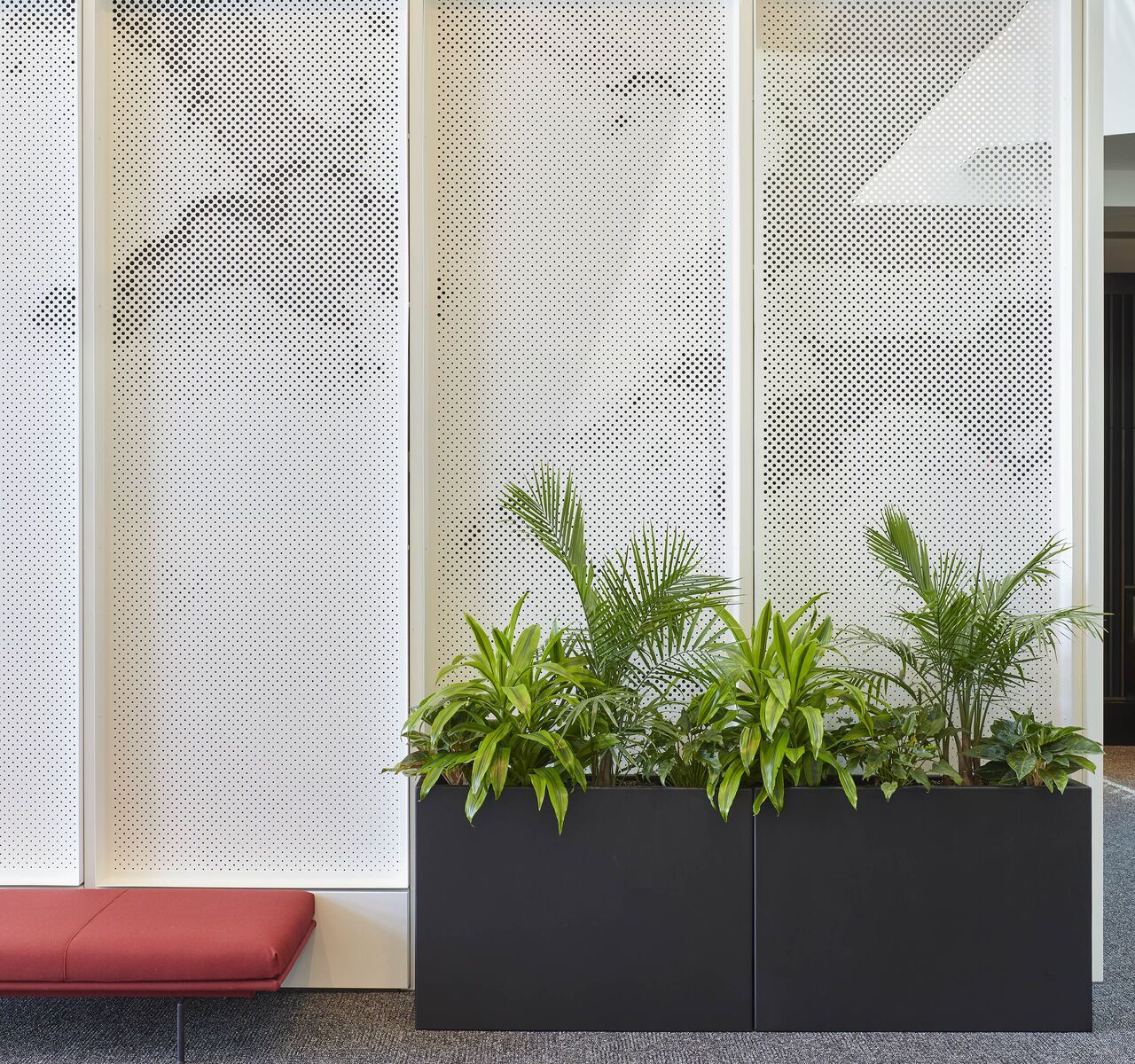

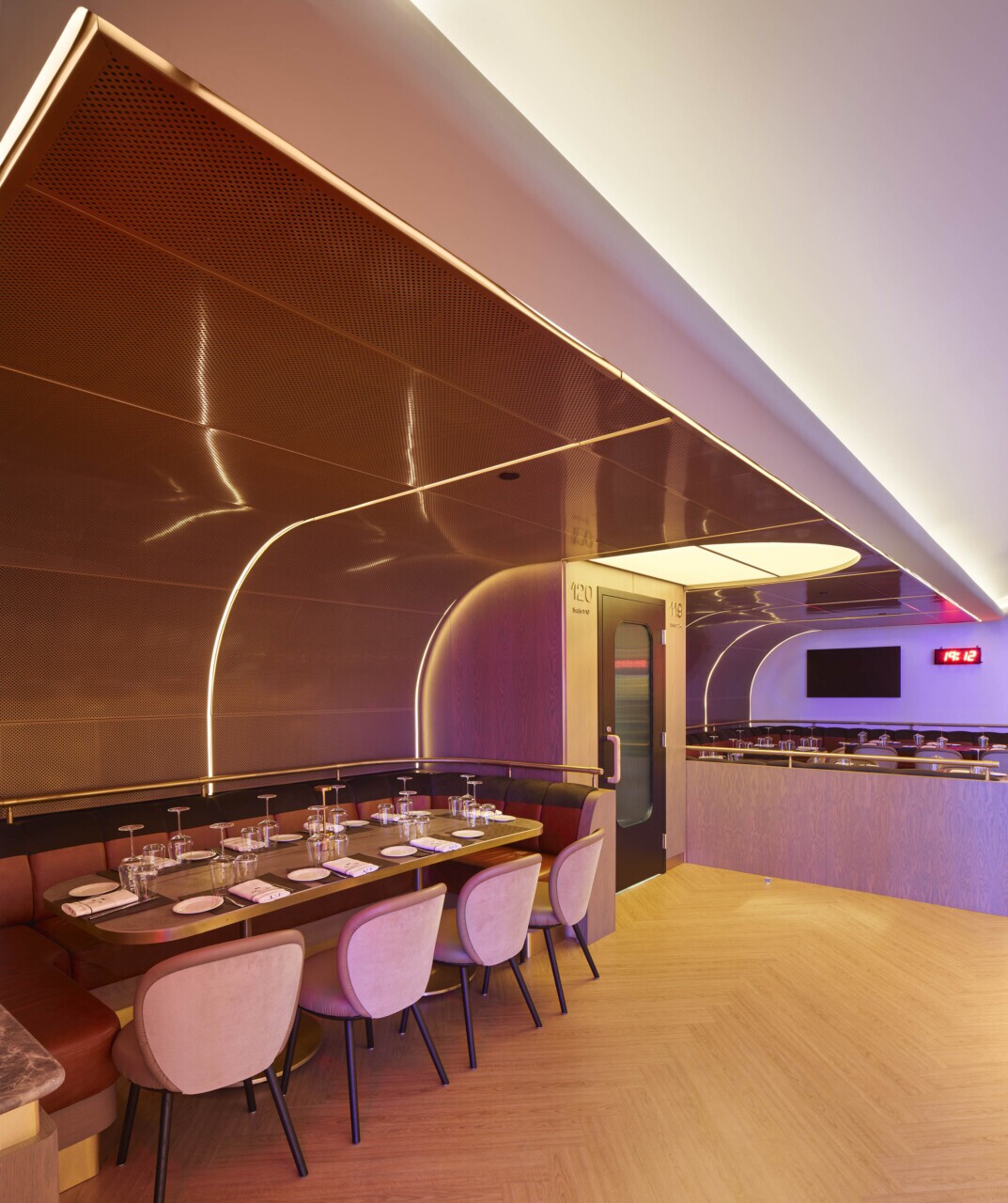

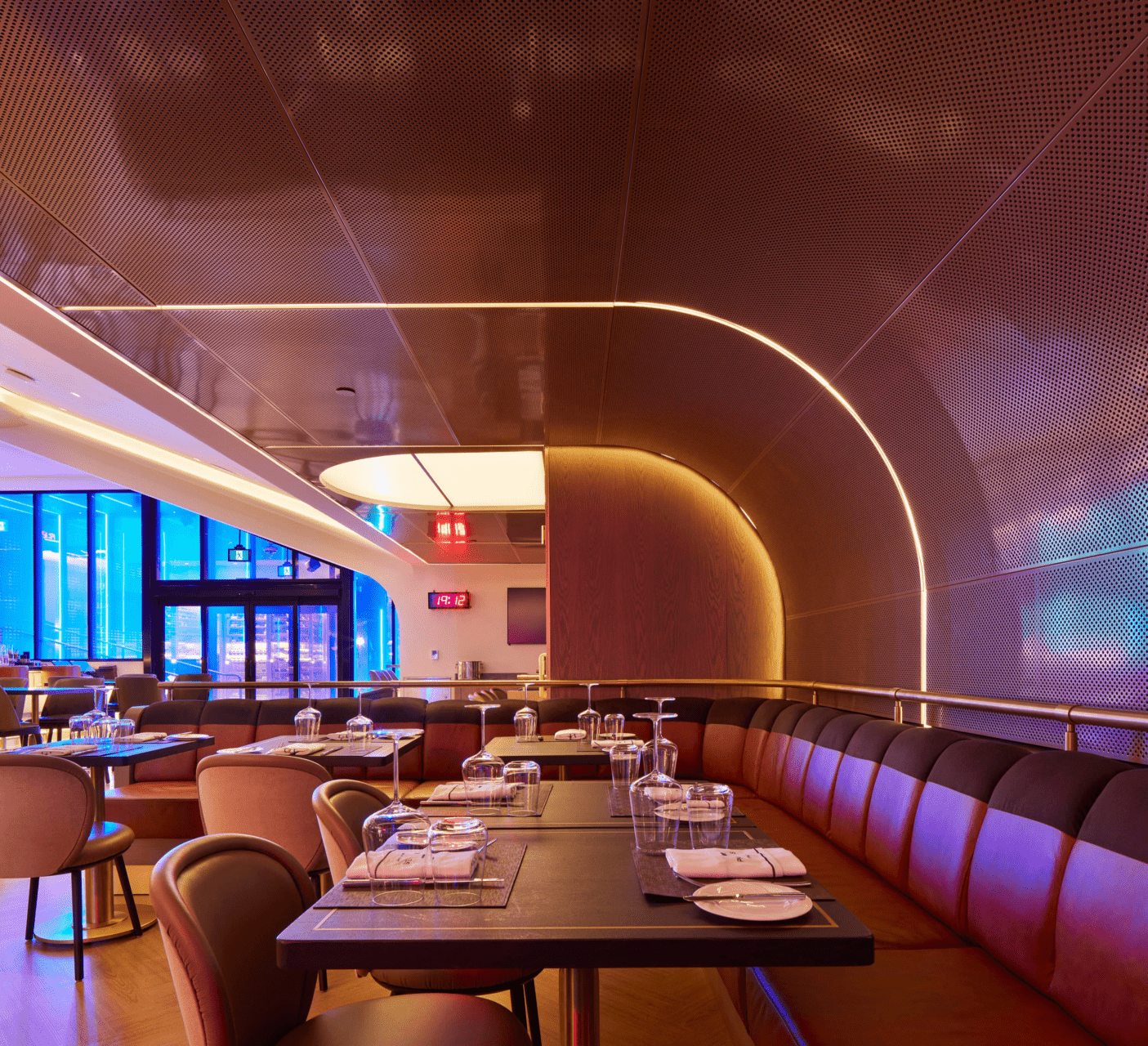

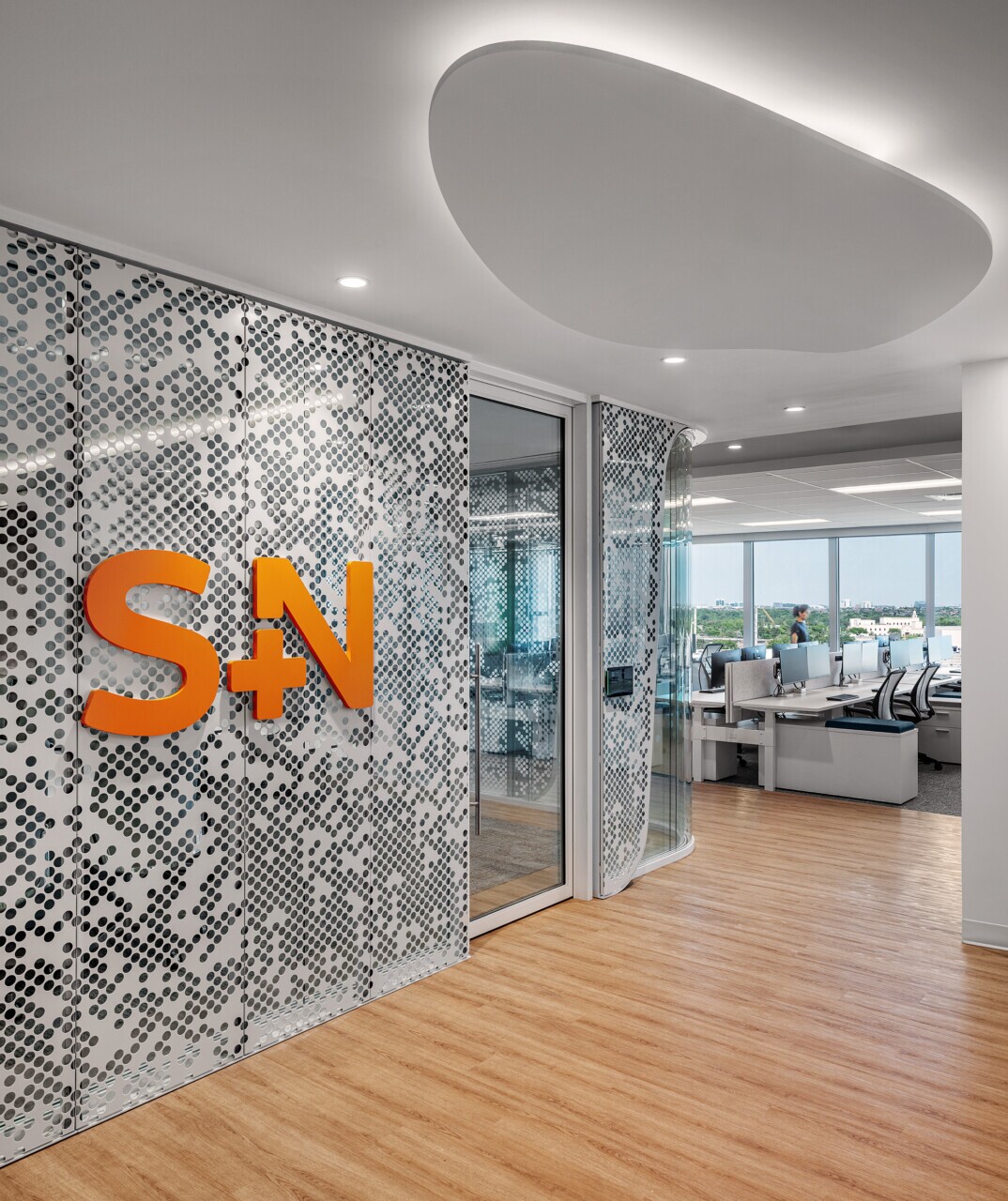

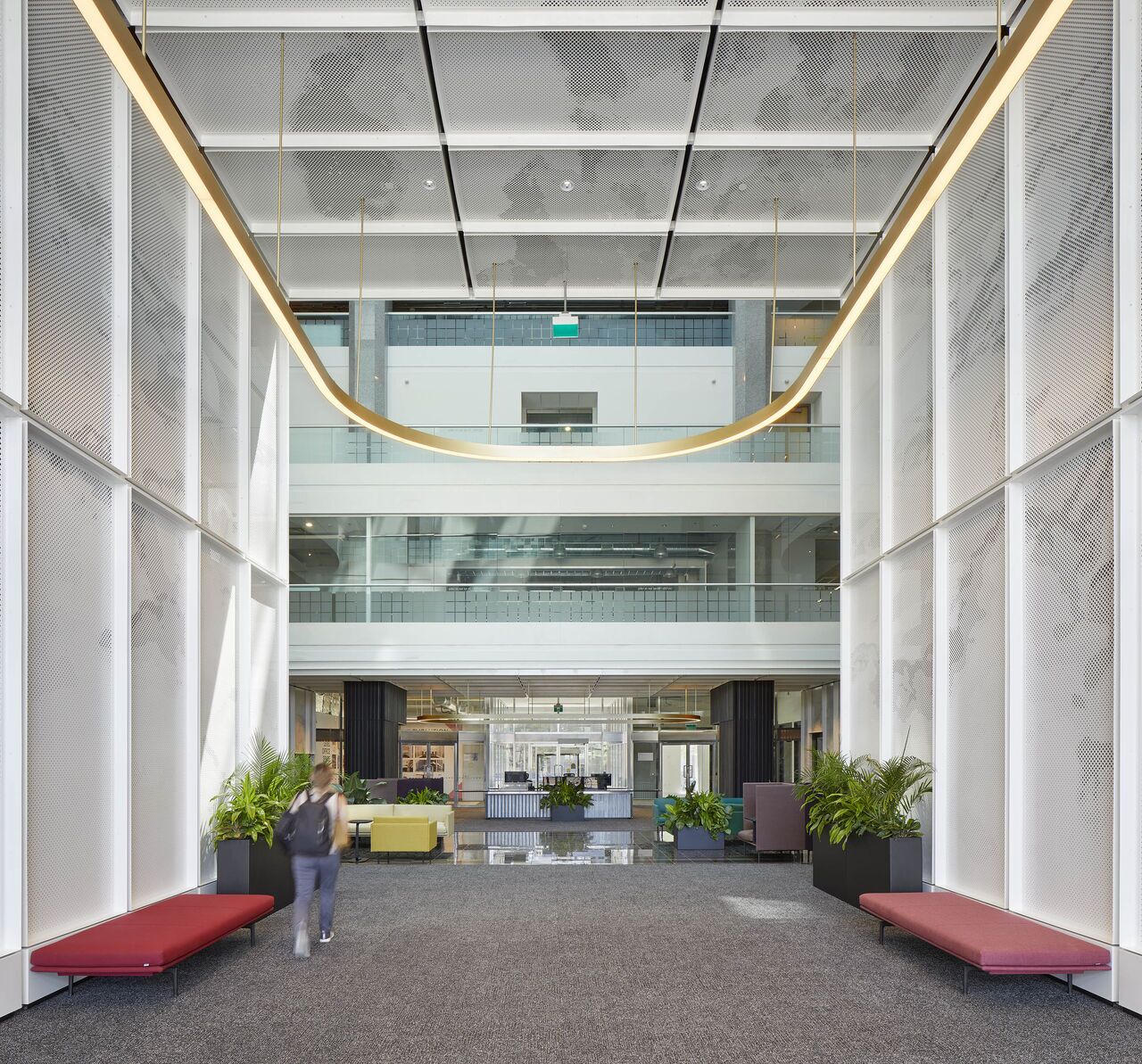

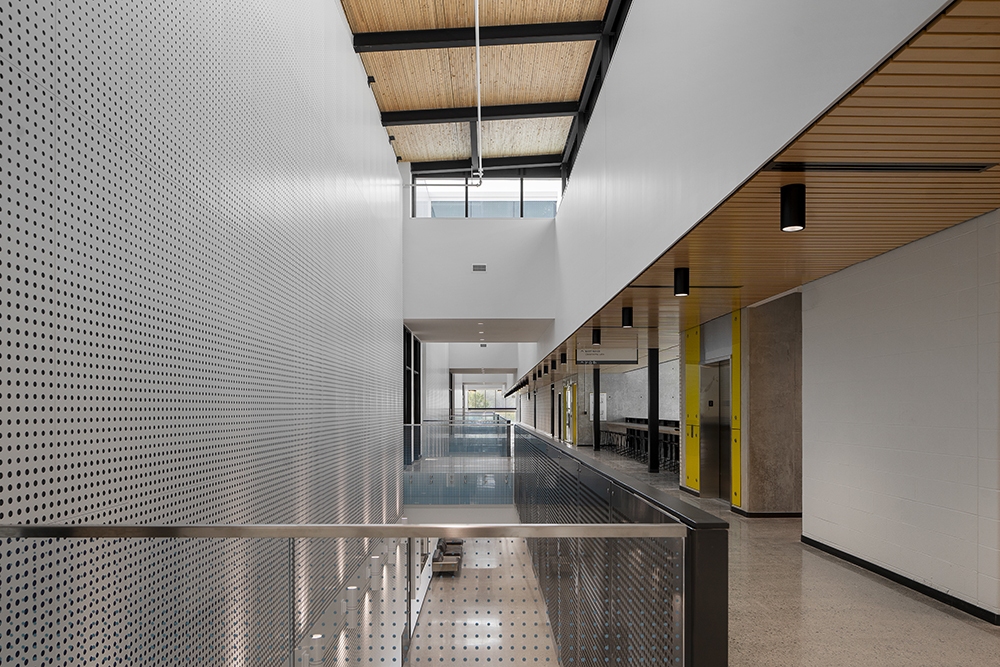

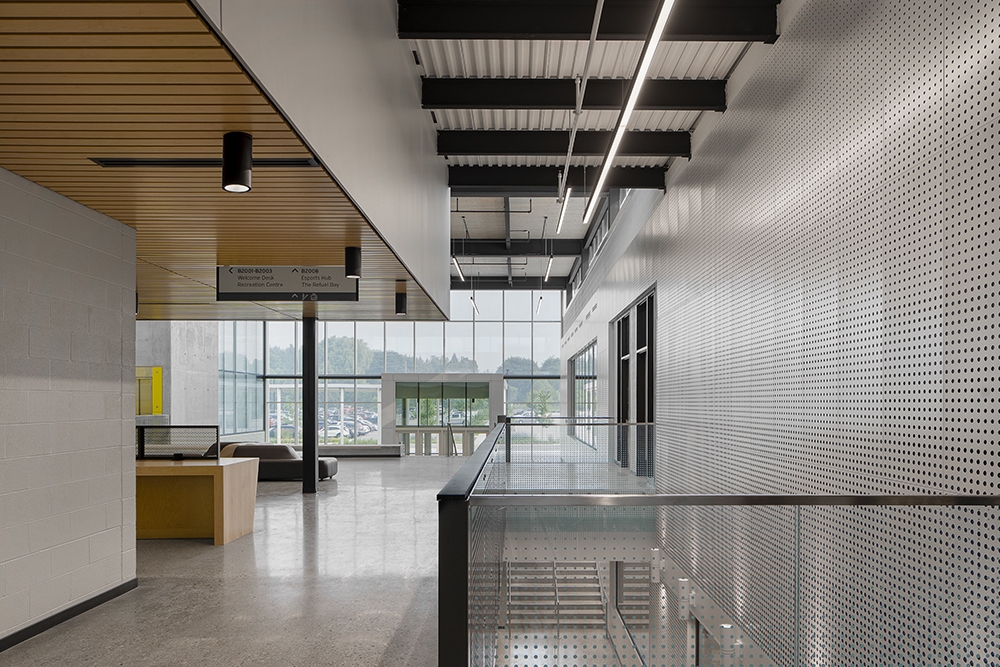

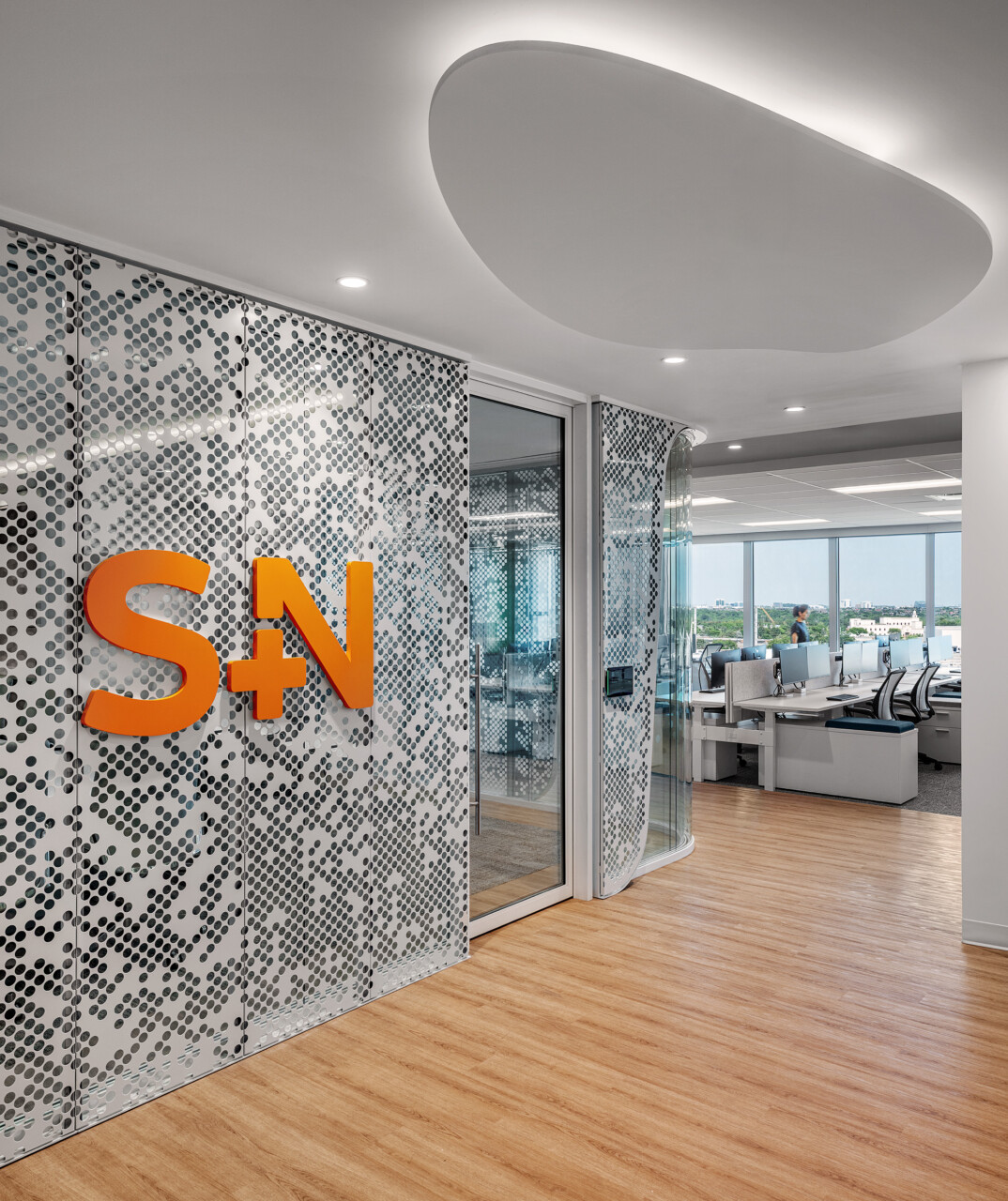

PANEL:Form Design Perforated Wall Panels in application
