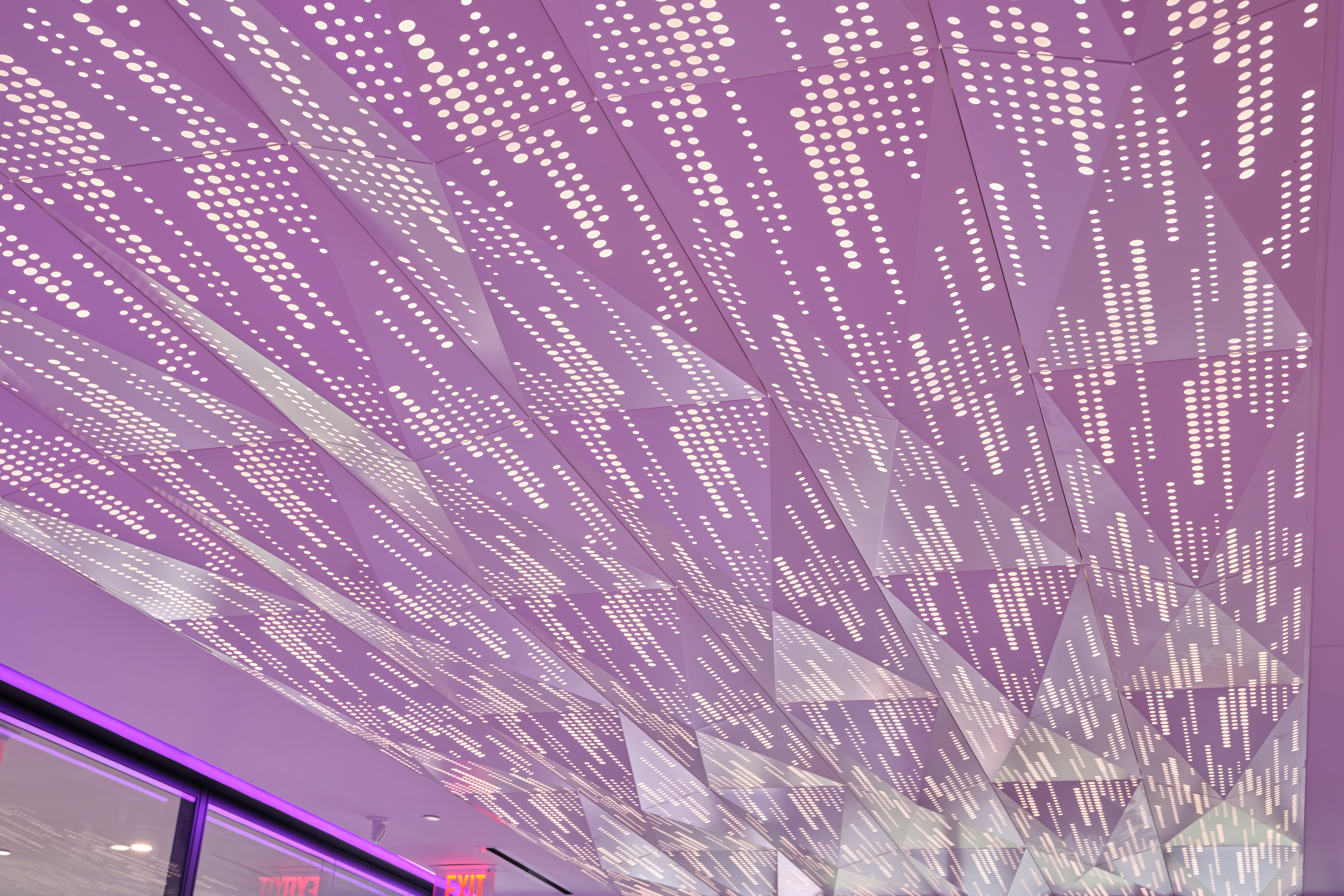

PANEL:Form Dimensional Panels

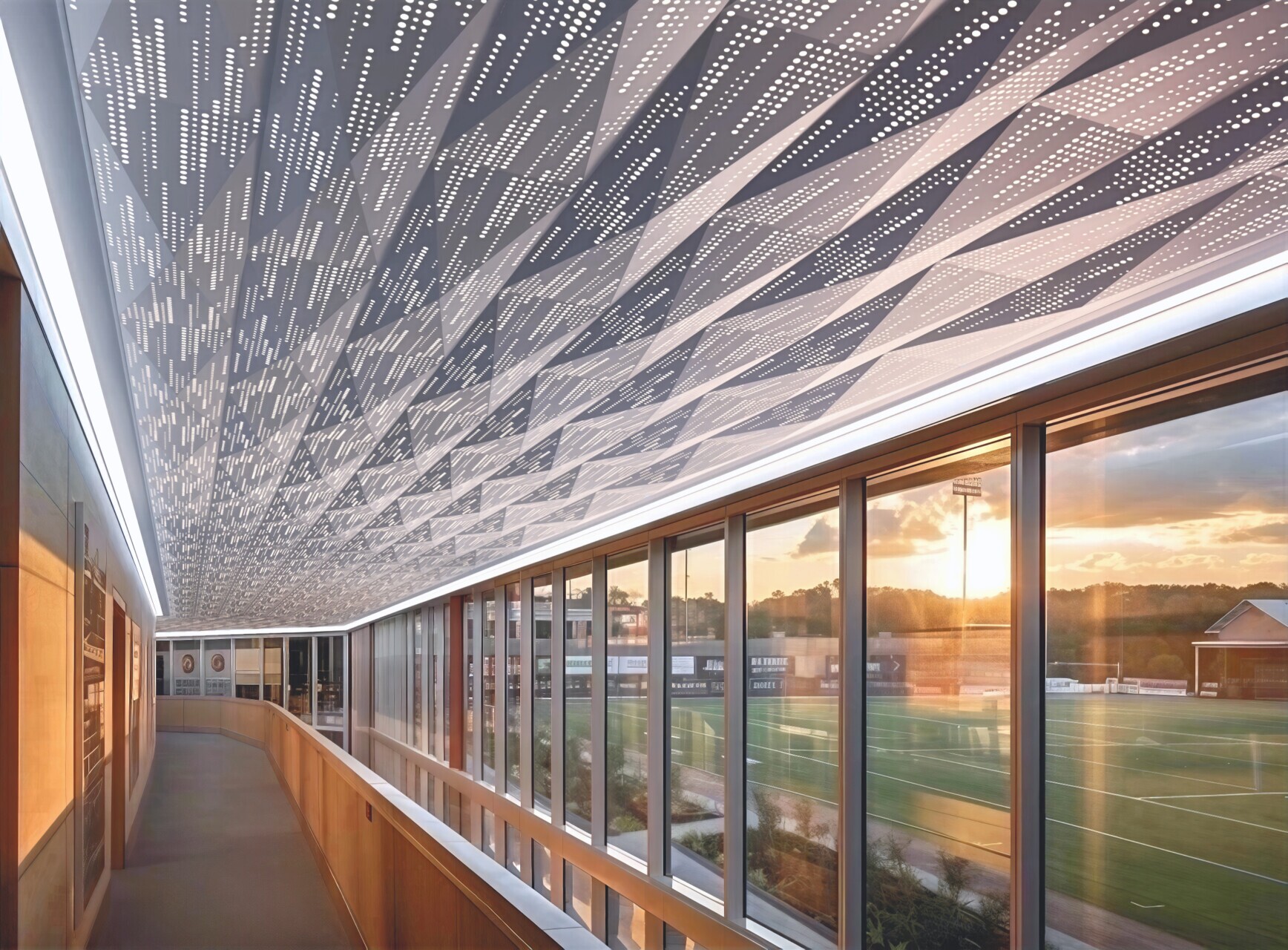

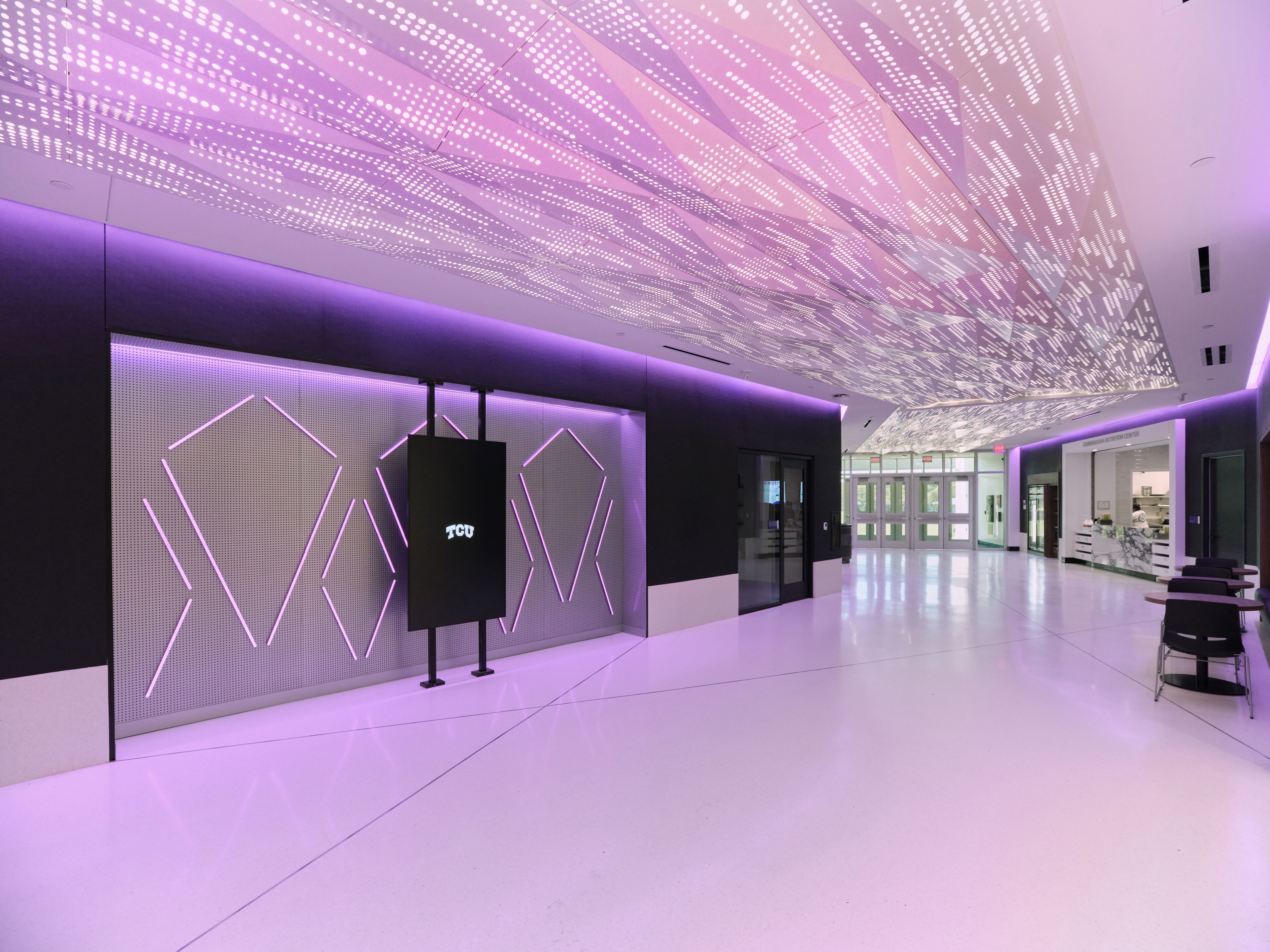

Fabricated Metal Panel SystemShowcase bold, faceted 3D designs, amplified with perforation, lighting, or acoustic backing for ceilings that command attention and transform spaces.
Specifications
- Material
- Aluminum | Fabricated
- Weight
- Varies from 1.0-1.5 lbs./sq.ft.
- Thickness
- .041” - .060” design dependent
- Surface Finish
- Factory-applied polyester paint. Available in Standard Colors, Color Matched and Wood Look Powder-Coated and laminated.
- Acoustic Performance

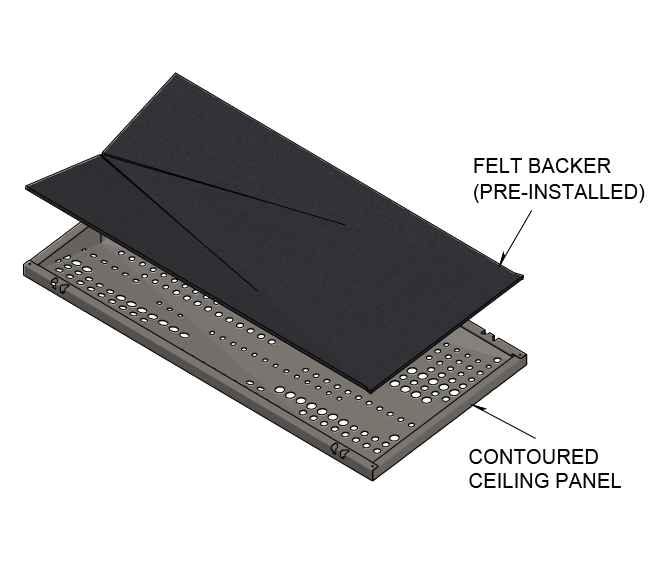

- Perforated panels can be fitted with acoustic infills or architectural felt to reduce noise and enhance visual interest.
- Seismic Performance
- Dimensional Panels have been engineered for use in all seismic areas. Installations may require additional attachment from baffle to suspension bar. Check with local code officials or a licensed engineer for additional requirements.
- Fire Performance
- Class A: Tested per ASTM E84. Flame Spread Index 25 or less. Smoke Developed Index 50 or less. CAN/ULC S102 surface burning characteristics. Flame Spread Rating 25 or less. Smoke Developed Classification 50 or less.
- LEED Points
- METAL: LEED BD+C v4 (MR: Regional & Recycled Materials) ; Schools EQ: Acoustic Performance ; ID+C EQ: Low-Emitting Materials
- FELT: BD+C v4 (MR: Product Disclosure, Recycled Content) ; Schools EQ: Acoustic Performance.
- Declarations
- No VOCs
EPD & GREENGUARD Gold certified - Recycled Content
- Aluminum contains up to 80% recycled content ; Up to 60% post-consumer PET felt
- Finishes
- - Create faceted, multi-dimensional designs that can also enhance lighting and acoustics in your space.
- Unlimited finish options - custom colors, wood looks, and films.
- Perforations run to the panel edge and are matched to adjacent panels for a more seamless appearance.
- Torsion spring design allows for easy access to light panel. Panels can remain hinged to suspension to avoid damage.

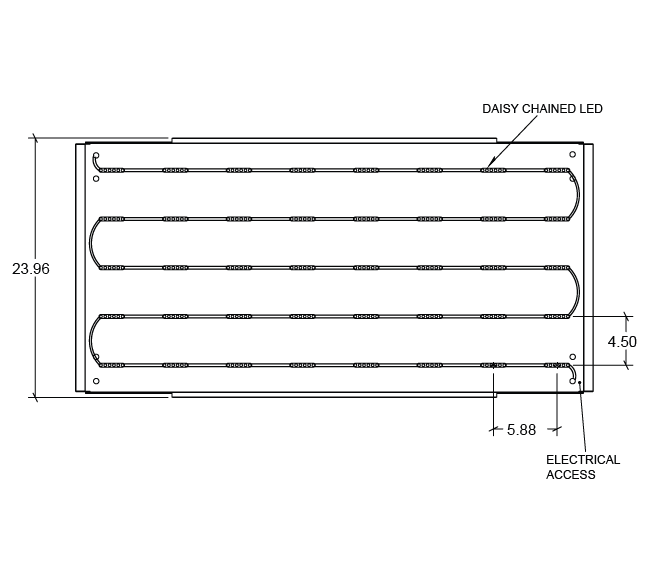

- Linear lights can be integrated with backlit panels upon request - Custom Options
- At Maxxit custom is what we do best. We will make any shape or size you can design.
- Standard Options
- Backlighting options include White and RGBW LED
- Installation
- Attaches to both traditional 15/16” HD Grid and Maxxit’s custom suspension system.
- Care & Maintenance
- Cleanable using CDC recommended and EPA-approved disinfectants for fog, spray & wipe.

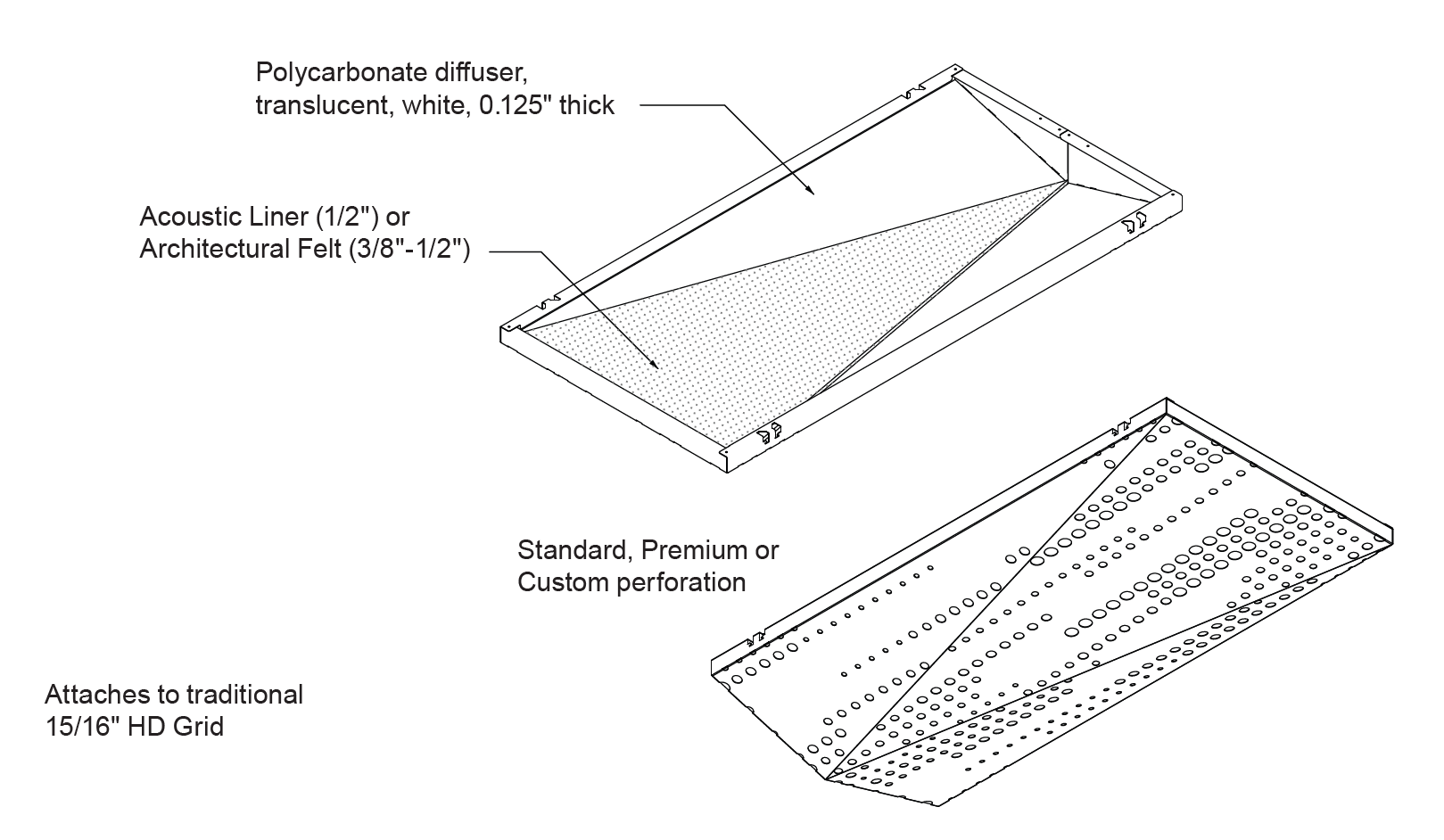

Assembly
Material and Finishing Options
(Interior & Exterior) Formaldehyde-Free.
-
Golden Bronze
-
Metallic Sterling Silver
-
Soft Nickel
-
Blush Copper
-
Dark Bronze
-
Forged Charcoal
-
Gold
Maxxit powder coat finishes offer superior chemical, scratch and UV resistance, they do not emit VOC’s and are available in a broad range of glosses and specialty looks.
-
Chalkstone White
2-6 Gloss | LRV 85-86
-
White
12-20 Gloss | LRV 79-80
-
Snow White
25-30 Gloss | LRV 83-84
-
Black
25-35 Gloss
-
Blush Rose
20 Gloss
-
Sunrise Yellow
20 Gloss
-
Forest Green
20 Gloss
-
Pure Orange
20 Gloss
-
Tan Straw
20 Gloss
-
Mid Beige
20 Gloss
-
Sterling Silver
20 Gloss
-
Grey
65-75 Gloss
Wood look powder coated paint finishes for interior and exterior use. Formaldehyde-Free.
-
National Walnut
Wood look powder coated paint finish
-
Chestnut
Wood look powder coated paint finish
-
Rosewood
Wood look powder coated paint finish
-
European Cherry
Wood look powder coated paint finish
-
Knotty Pine
Wood look powder coated paint finish
-
Oak Fine
Wood look powder coated paint finish
-
Maple
Wood look powder coated paint finish
-
American Maple
Wood look powder coated paint finish
-
American Douglas
Wood look powder coated paint finish
-
Teak
Wood look powder coated paint finish
Standard Laminated (Film) Finishes for interior use only. Formaldehyde-free.
-
Brazilian Walnut
Wood look laminated film finish
-
Black Walnut
Wood look laminated film finish
-
North Oak
Wood look laminated film finish
-
Italian Walnut
Wood look laminated film finish
-
Canadian Oak
Wood look laminated film finish
-
White Oak
Wood look laminated film finish
-
American Natural
Wood look laminated film finish
Angles – Staggered 60°
-
Unperforated
-
S02 Staggered
-

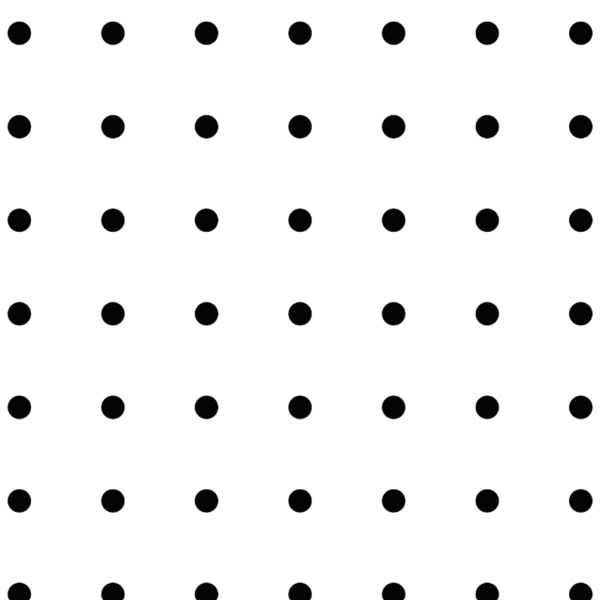

S03 Straight
-
S04 Staggered
-
S05 Staggered
-
S06 Straight
-

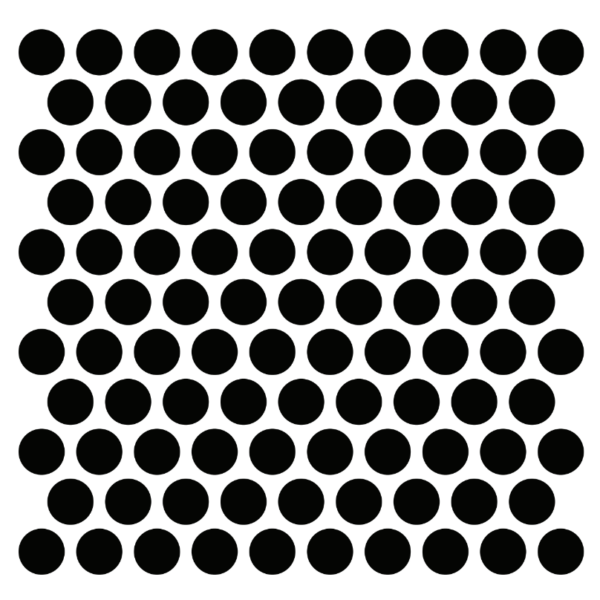

S07 Staggered
-

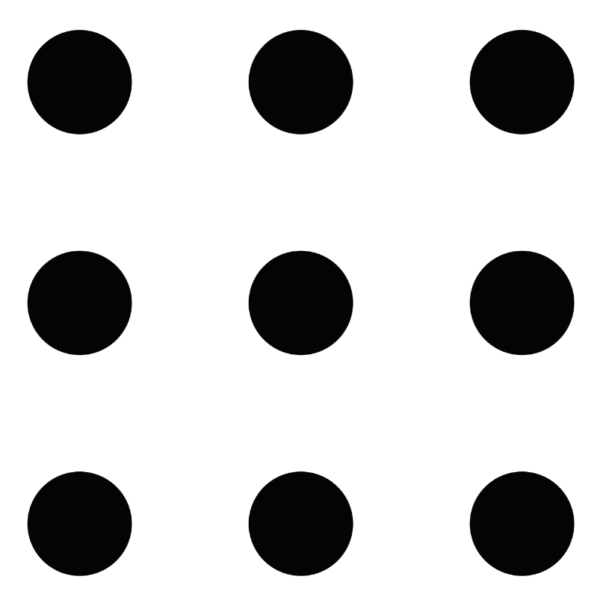

S08 Straight
-

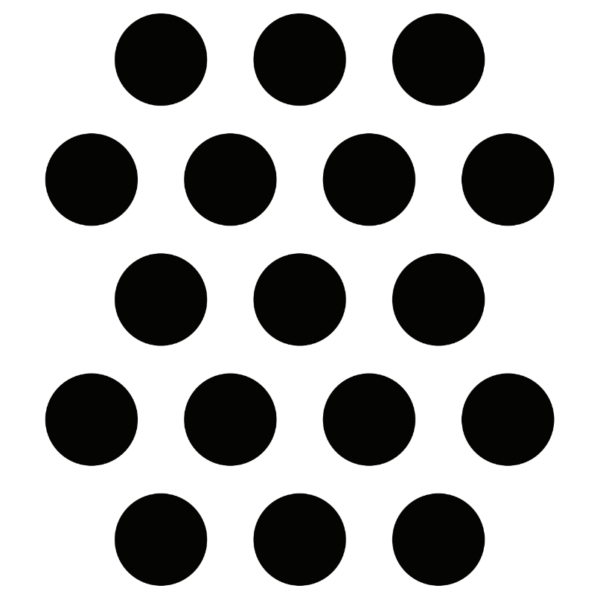

S09 Staggered
-

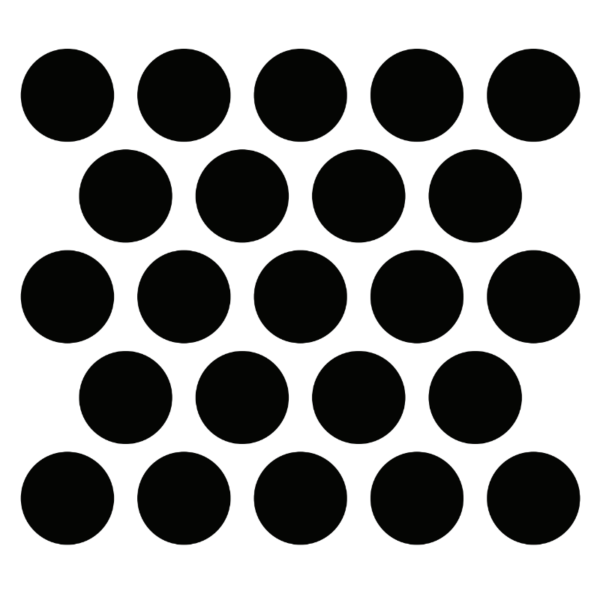

S10 Staggered
Angles – Diagonal 45° | Staggered 60°
-
P11 Straight
-
P12 Straight
-
P13 Diagonal
-

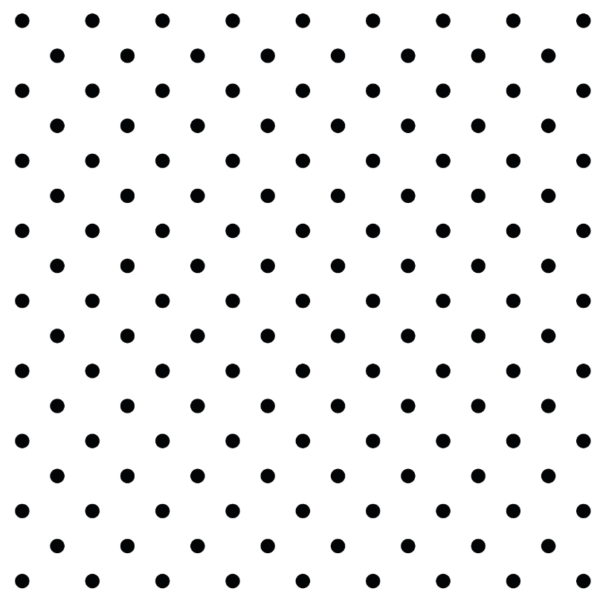

P14 Diagonal
-

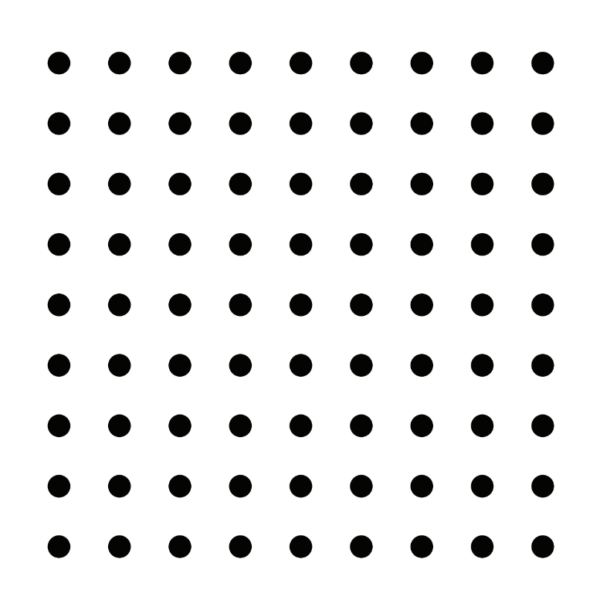

P15 Straight
-

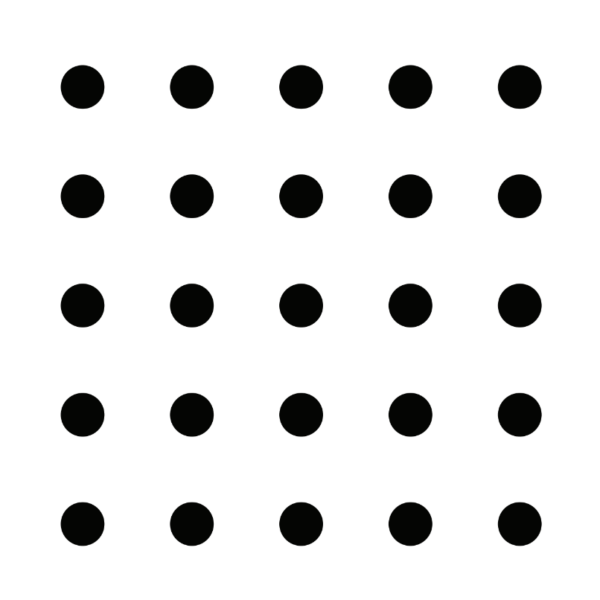

P16 Straight
-

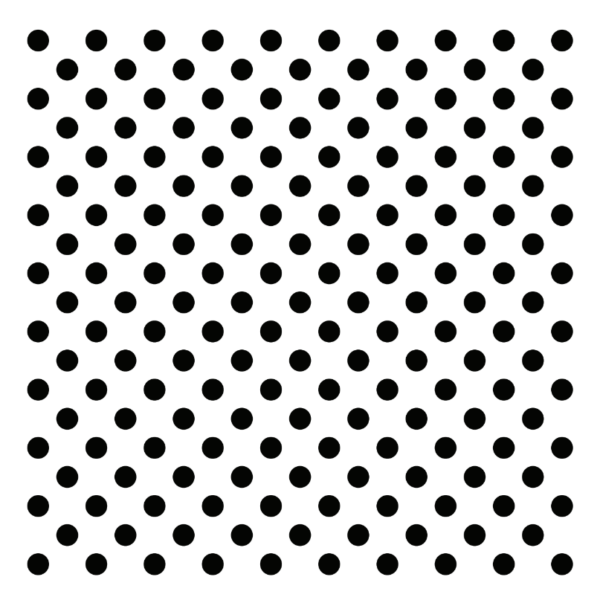

P17 Diagonal
-

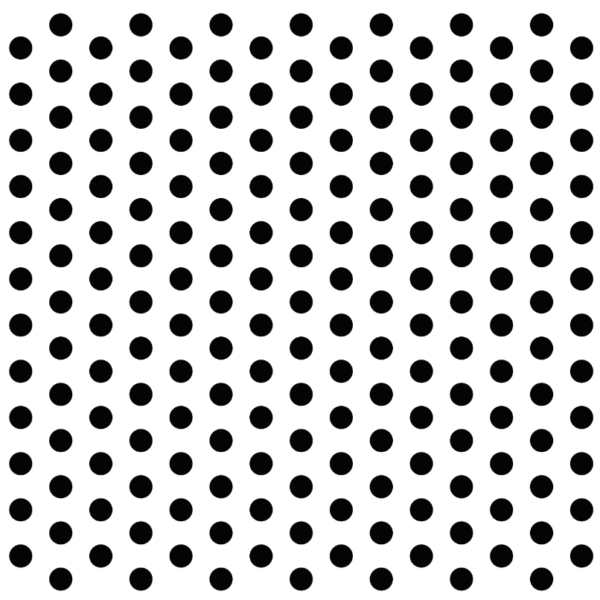

P18 Staggered
-

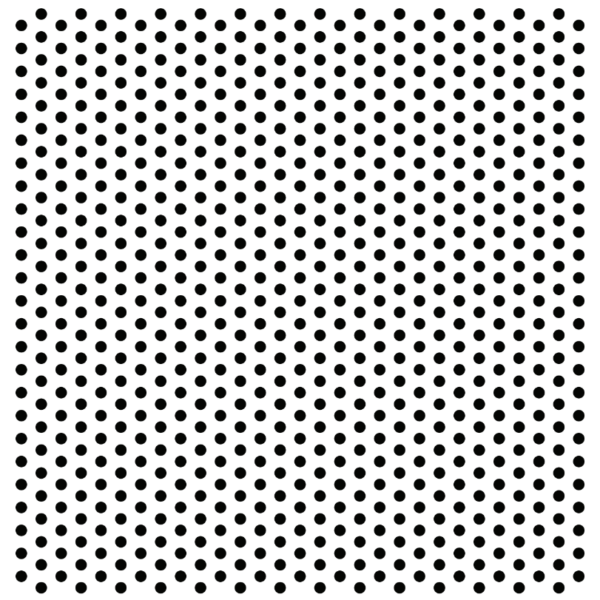

P19 Staggered
-

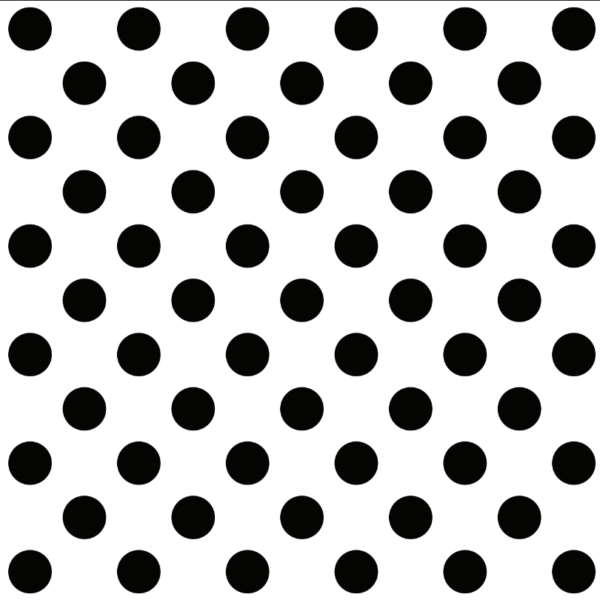

P20 Diagonal
-

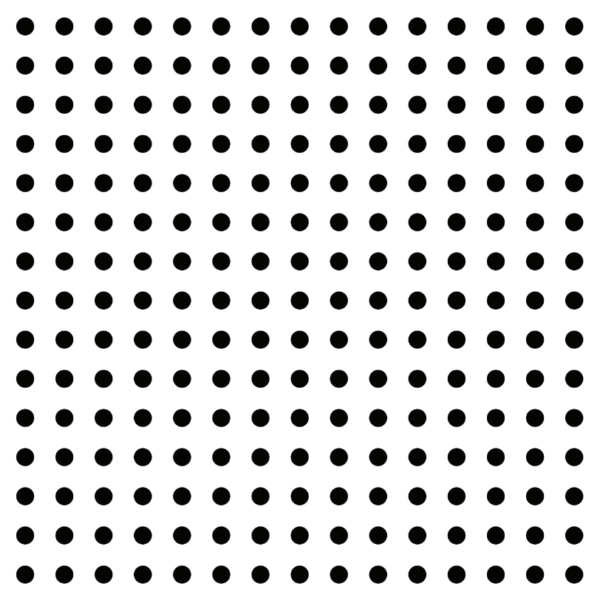

P21 Straight
-

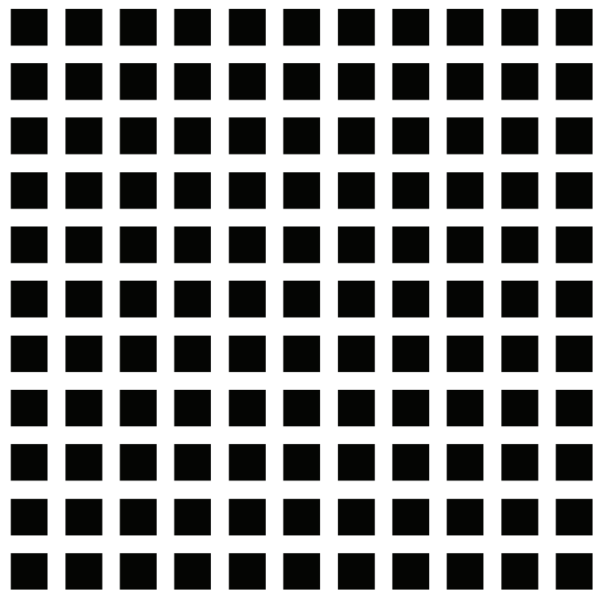

P22 Square Straight
-

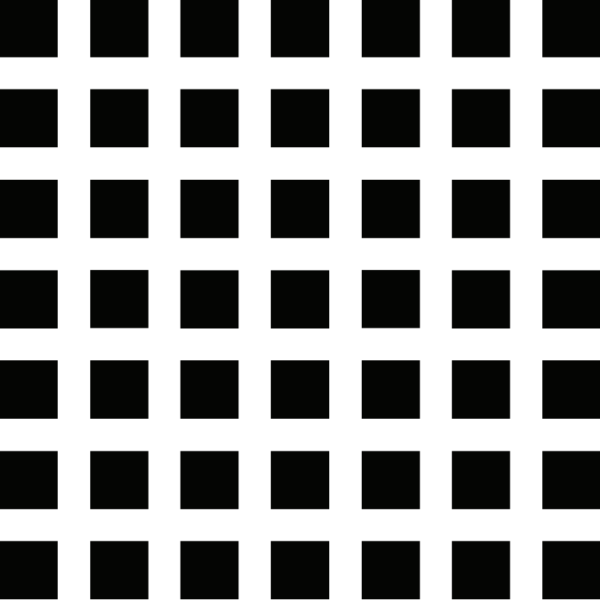

P23 Square Straight
-

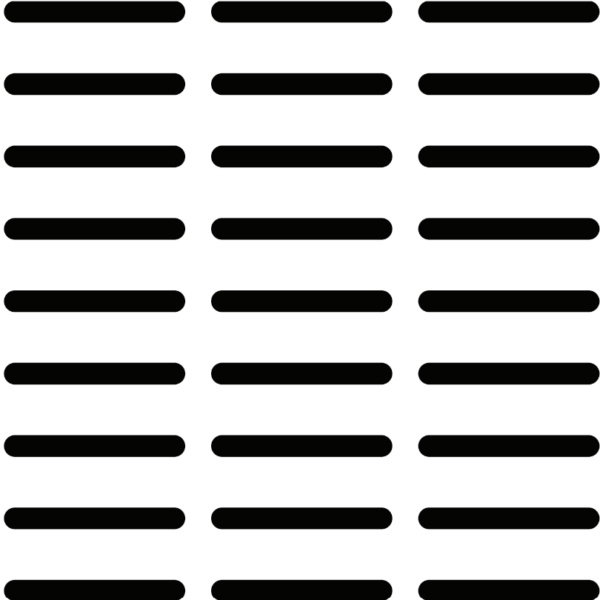

P24 Oblong Straight
-

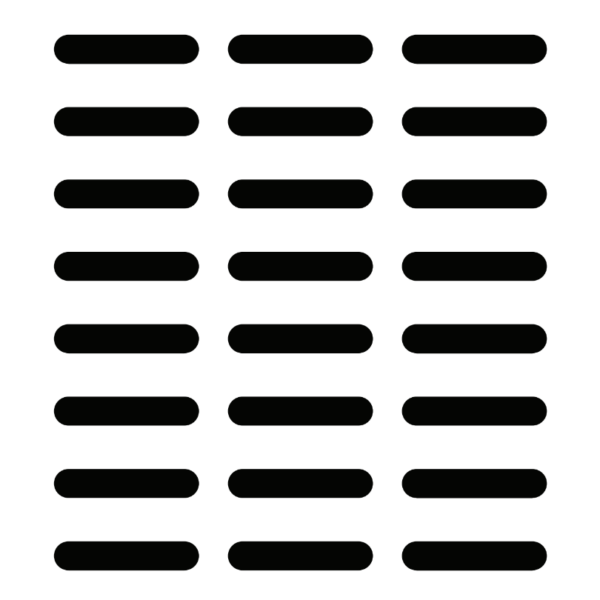

P25 Oblong Straight
-

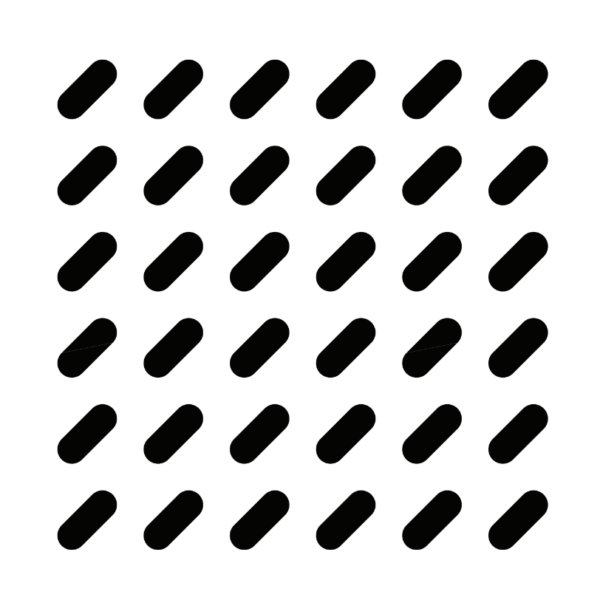

P26 Diagonal
All colors are available in both 9 mm and 12 mm, with Quick Ship option offered exclusively in 9 mm. Please note: Colors shown may not be an exact representation of the actual product due to variations in lighting, screen settings, and printing processes. We recommend requesting a physical sample for the most accurate color match.
-
Raven
Quick Ship
-
White Quartz
Quick Ship
-
Ivory
Quick Ship
-
Caramel
Quick Ship
-
Smoke
Quick Ship
-
Grey Quartz
Quick Ship
-
Cream Marble
Quick Ship
-
Olive Grey
Quick Ship
-
Mulberry
-
Sea Green
-
Jade
-
Honeycomb
-
Raspberry
-
Ocean
-
Chestnut
-
Thyme
-
Burnt Orange
-
Sage
-
Cloud
-
Driftwood
-
Steel
-
Beige Plaster
-
Cotton
-
Denim
-
Smokey Blue
-
Lavender Mist
-
Aqua
-
Clear Blue
-
Iris
-
Cornflower
-
Cyan
-
Amethyst
-
Kiwi
-
Amber
-
Cobalt
-
Persimmon
-
Strawberry
Timbercast™ Wood Look Colors
-
Weathered Grey
Timbercast™ Wood Look Colors
-
Dark Walnut
Timbercast™ Wood Look Colors
-
Red Oak
Timbercast™ Wood Look Colors
-
Natural Maple
Timbercast™ Wood Look Colors
-
White Oak
Timbercast™ Wood Look Colors
Six distinct design families, each with customizable parameters. Whether it’s adjusting hole diameter, pattern density, or scale, we can create virtually endless variations of each pattern to suit individual needs and preferences.
-

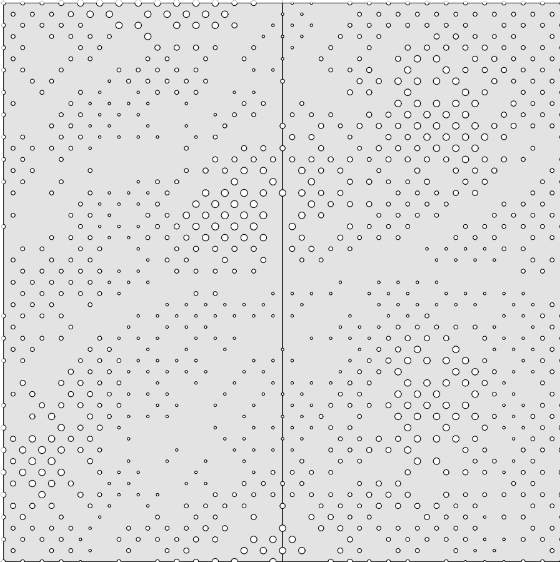

Woodland
-

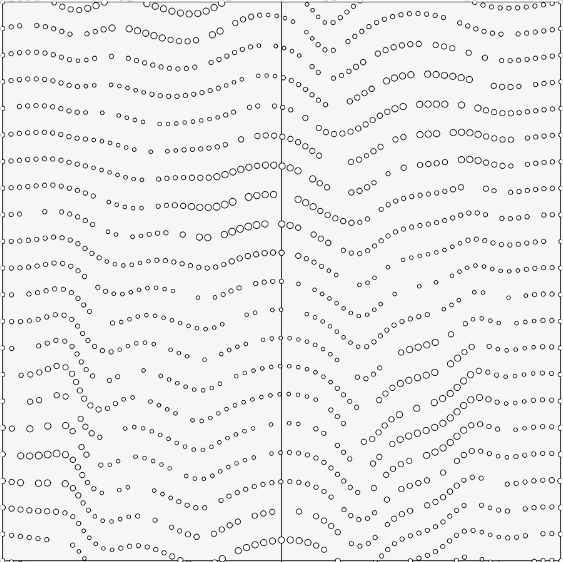

Ripple
-

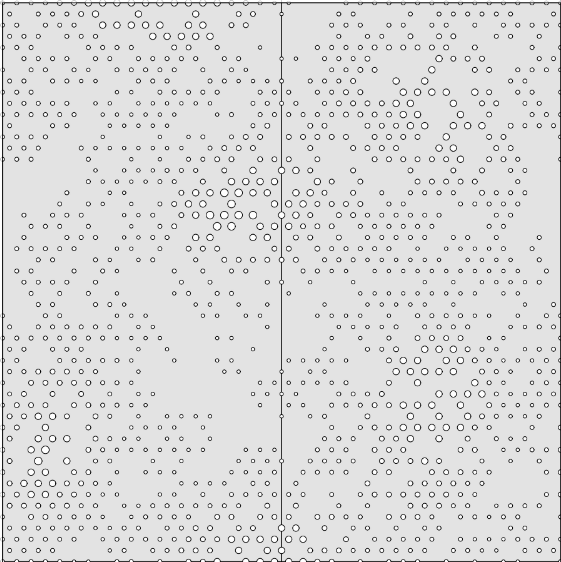

Nebula Mist
-

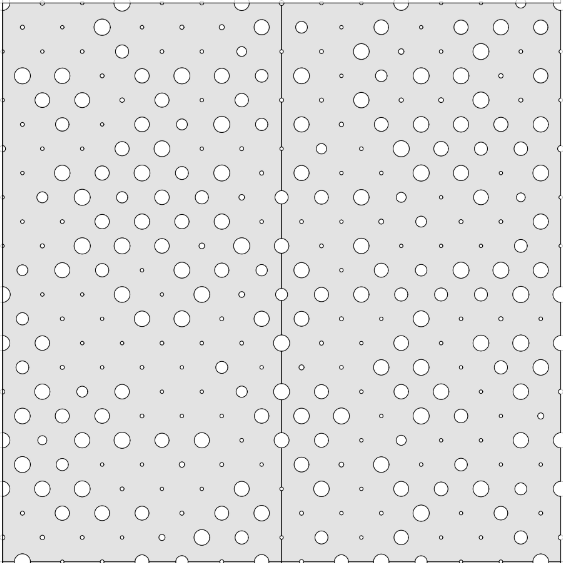

Starlight
-

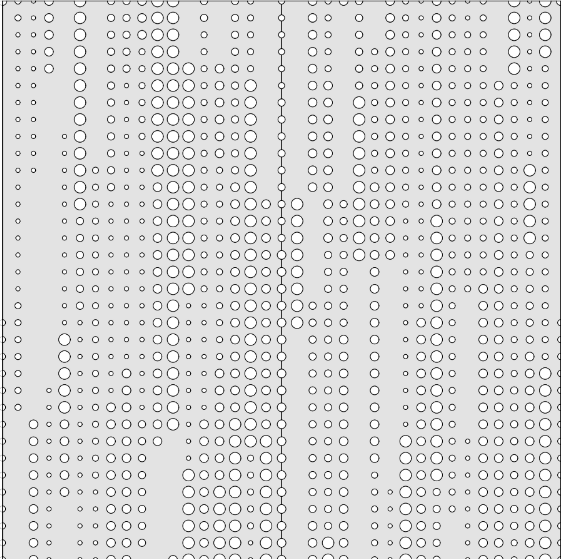

Bitstream
-

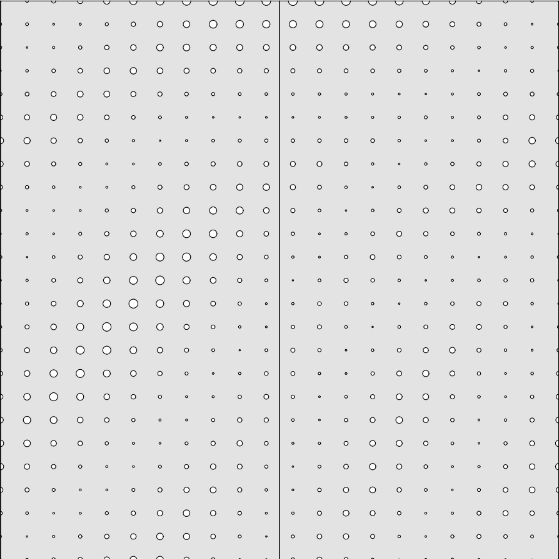

Aqua Flow
